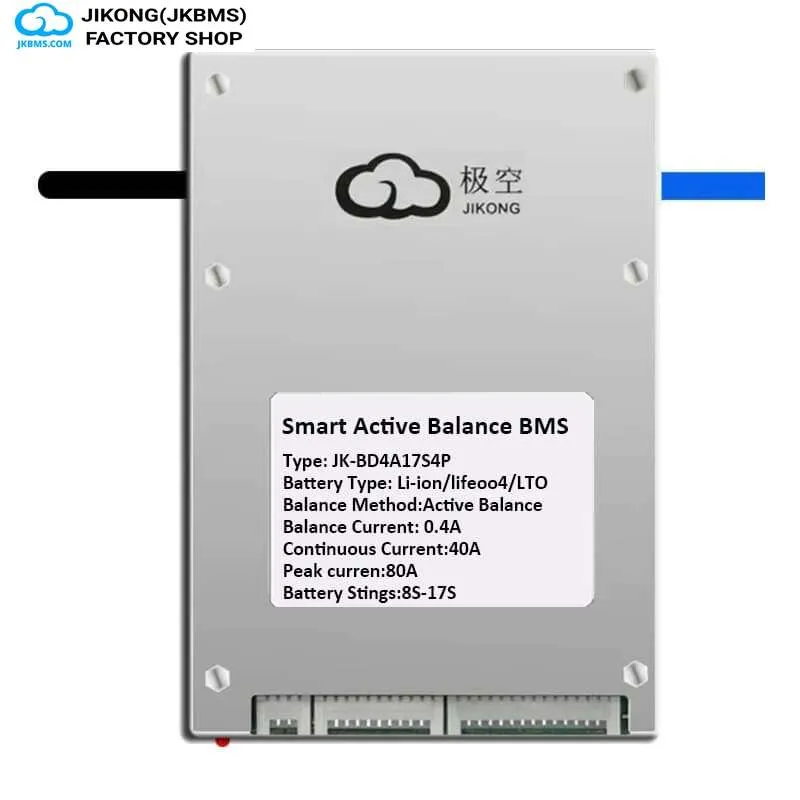

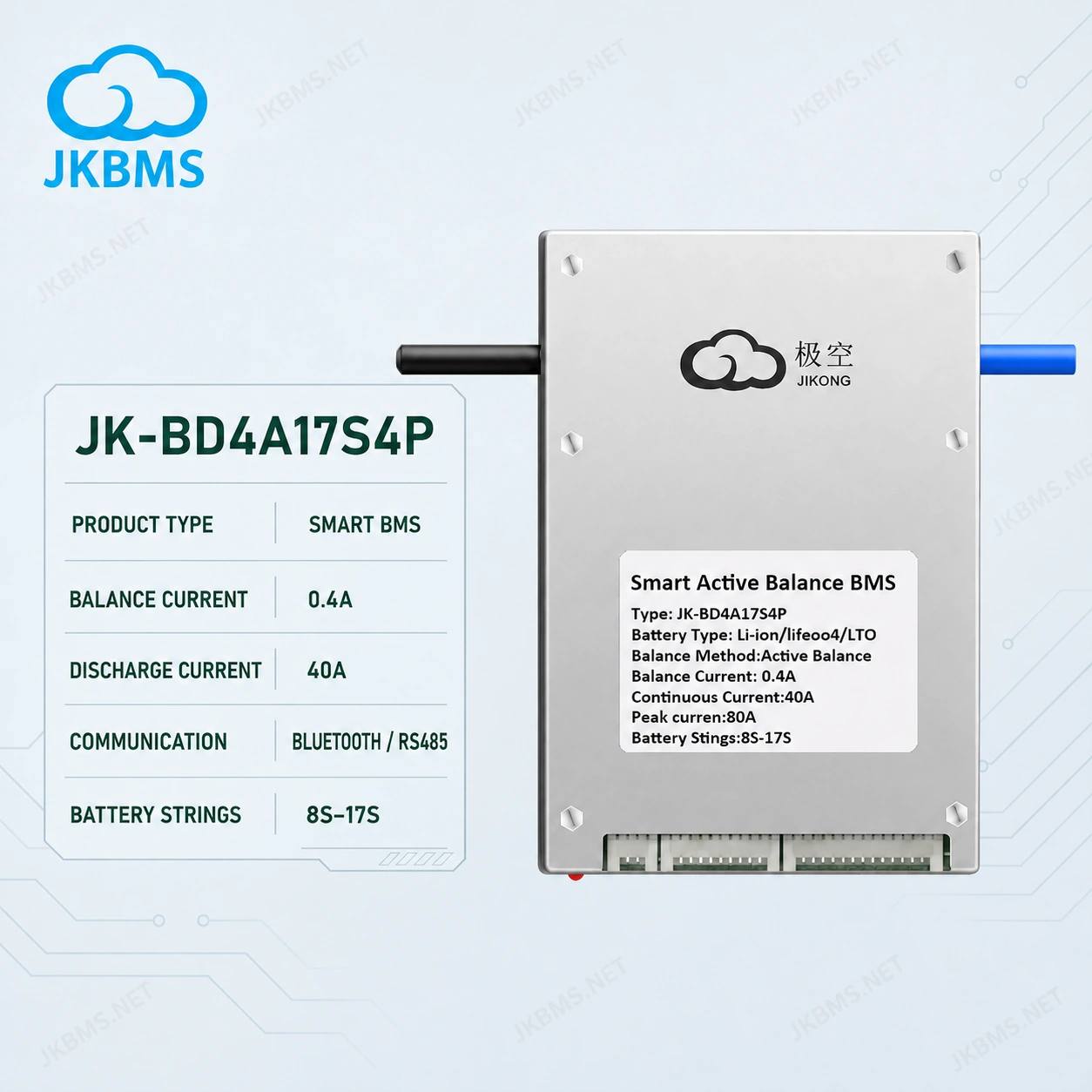

Product-family image. Exact SKU appearance and supplied items are not confirmed by this image.

JKBMS JK-BD Series

JK-BD4A17S4P

$107.69Choose configuration

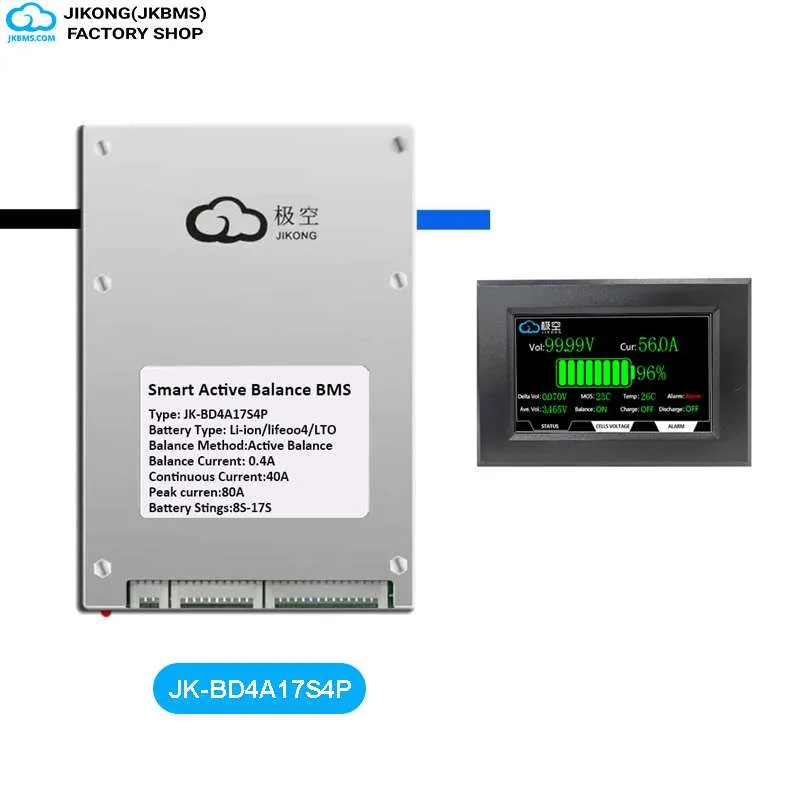

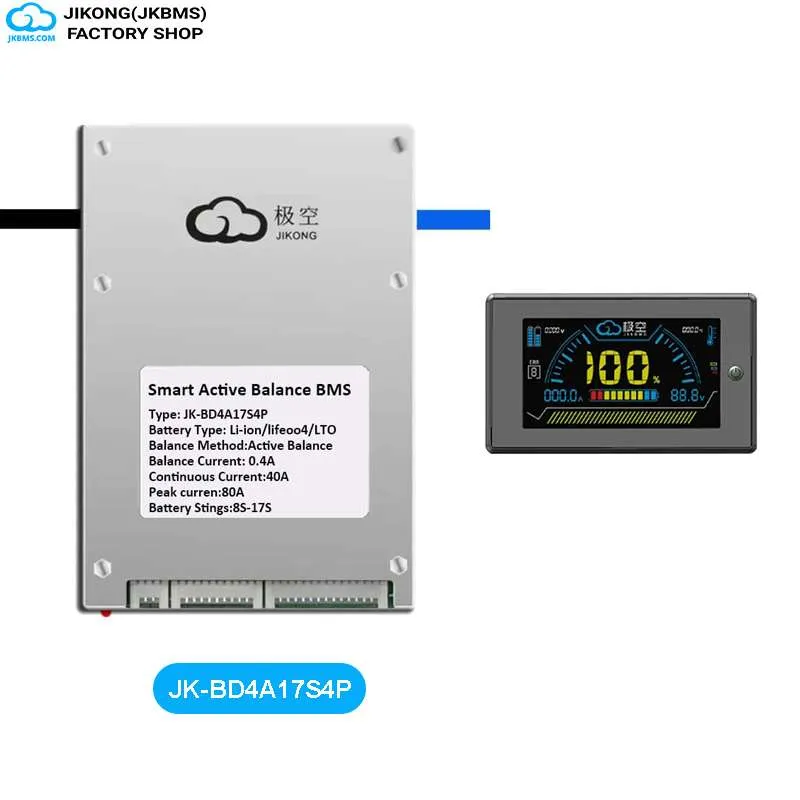

JK-BD4A17S4P+4.3″ Display

Technical data for JK-BD4A17S4P requires exact-model documentation. Confirm chemistry, strings, current duty, interfaces, hardware revision and harness before ordering.

BMS selector
Choose configuration
  • Apple Pay
  • Google Pay
  • Visa
  • Mastercard
  • PayPal
Selected configuration$107.69

Free shipping.

Selected SKU facts

Selected model
JK-BD4A17S4P
Configuration
JK-BD4A17S4P+4.3″ Display

Manual data is revision-specific. Confirm the shipped label and harness before wiring.

Optional compatible accessories

No confirmed accessory match for this configuration. Request compatibility confirmation.

Product details

Supply scope and specifications

Key features

  • Exact-model technical data and hardware revision require factory confirmation.

Included

  • Selected configuration: JK-BD4A17S4P+4.3″ Display
  • Exact harness and supplied items require confirmation against the packing list.

Not included

  • Battery cells, battery enclosure, inverter, charger, and external power cabling
  • External contactors, breakers, fuses, and installation hardware unless specified
  • Onsite installation, commissioning, firmware setup, or inverter configuration service
Selected modelJK-BD4A17S4P
ConfigurationJK-BD4A17S4P+4.3″ Display

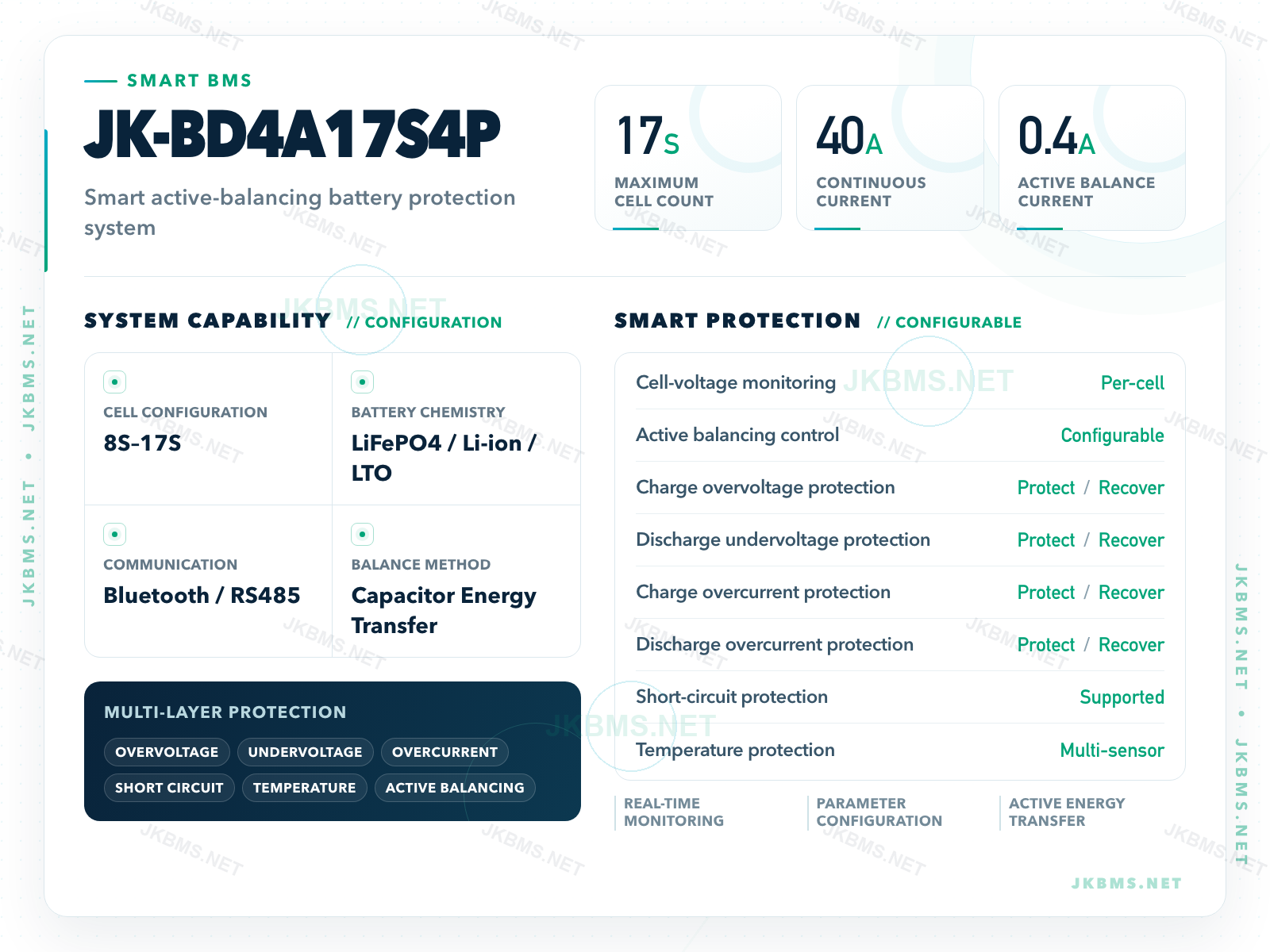

TECHNICAL SPECIFICATIONS

JK-BD4A17S4P parameter details

Hardware revisions and optional interfaces may differ; confirm the supplied revision before wiring or changing protection settings.

JK-BD4A17S4P specifications
NMC battery strings7-17S
LiFePO4 battery strings8-17S
LTO battery strings14-17S
Balancing methodActive balancing
Active balancing current0.4 A
Main circuit resistance2.8 mOhm
Continuous discharge current40 A
Maximum discharge current60 A
Overcurrent protection setting10-40 A
Other interfaces (custom order)RS485
Display interfaceRS485, custom order required
Charge / discharge connectionCommon port
Cell voltage measurement range1-5 V
Voltage measurement accuracy+/-5 mV
Overcharge protection voltage1.2-4.35 V, adjustable
Overcharge release voltage1.2-4.35 V, adjustable
Overcurrent release delay2-120 s, adjustable
Overdischarge protection voltage1.2-4.35 V, adjustable
Overdischarge recovery voltage1.2-4.35 V, adjustable
Temperature sensing points3
Temperature protectionSupported
Short-circuit protectionSupported
Coulomb countingSupported
Bluetooth app platformsAndroid, iOS and HarmonyOS
GPS (optional)Supported; GPS and RS485 are mutually exclusive

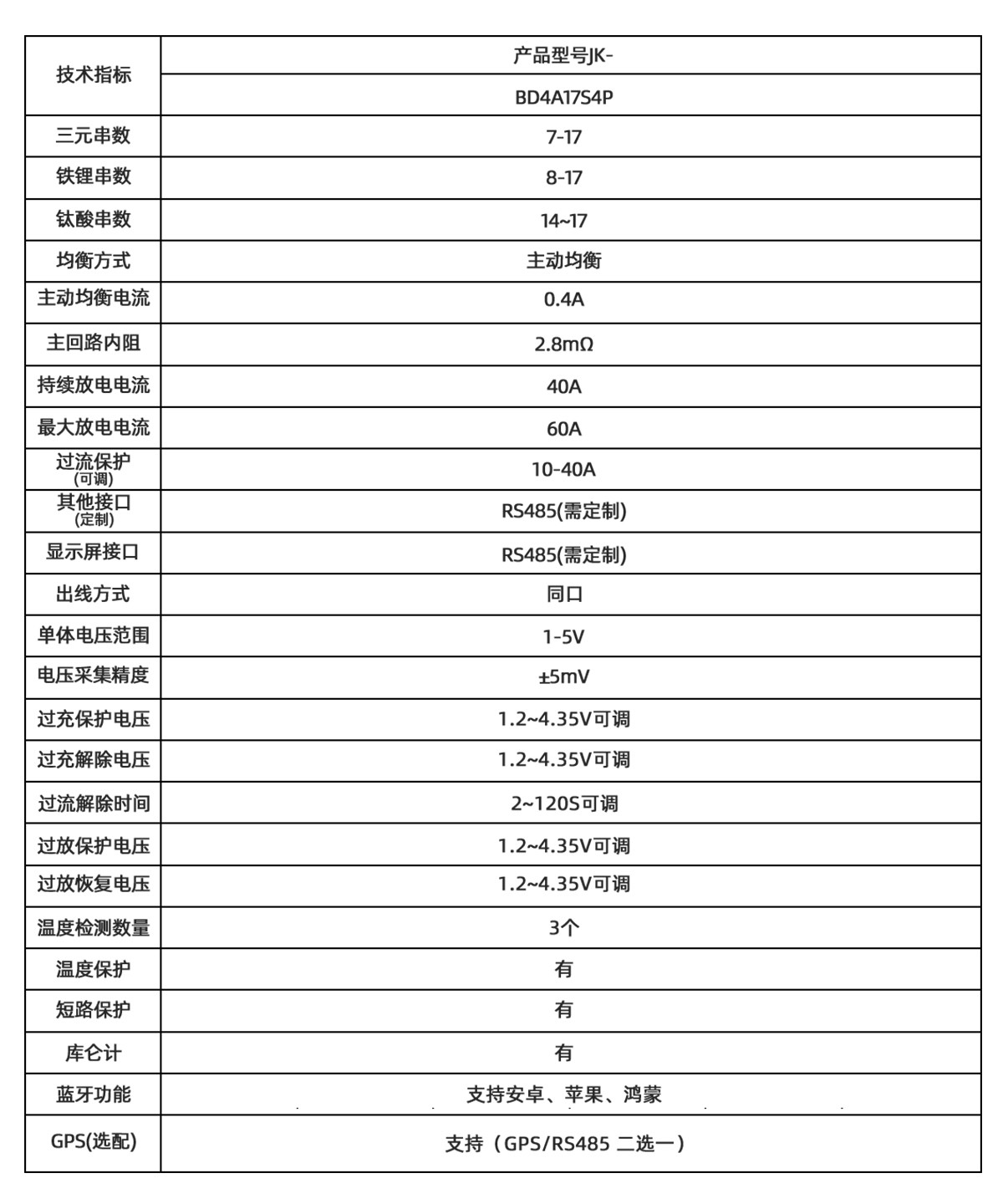

Original parameter chartChinese originalFull-size chart
JK-BD4A17S4P manufacturer technical parameter table, sheet 1

Exact-model verification

No exact-model manual association is confirmed for the selected configuration.
