Battery compatibility
Chemistry changes the series range
- Li-ion (ternary/NMC)
- 7–24S
- LiFePO4 (LFP)
- 8–24S
- Lithium titanate (LTO)
- 14–20S
JKBMS JK-BD Series
JK-BD6A24S10P
$105.21Choose configuration
JK-BD6A24S10P+3.2″ Display
Product details
JK-BD6A24S10P. Battery chemistry / strings: Li-ion (ternary/NMC): 7-24S; LiFePO4 (LFP): 8-24S; Lithium titanate (LTO): 14-20S; Current class (not a continuous rating): 100 A; Active balance: 0.6 A; Documented standard interfaces: Bluetooth, display interface. Confirm shipped revision, connectors and harness.
1 / 1

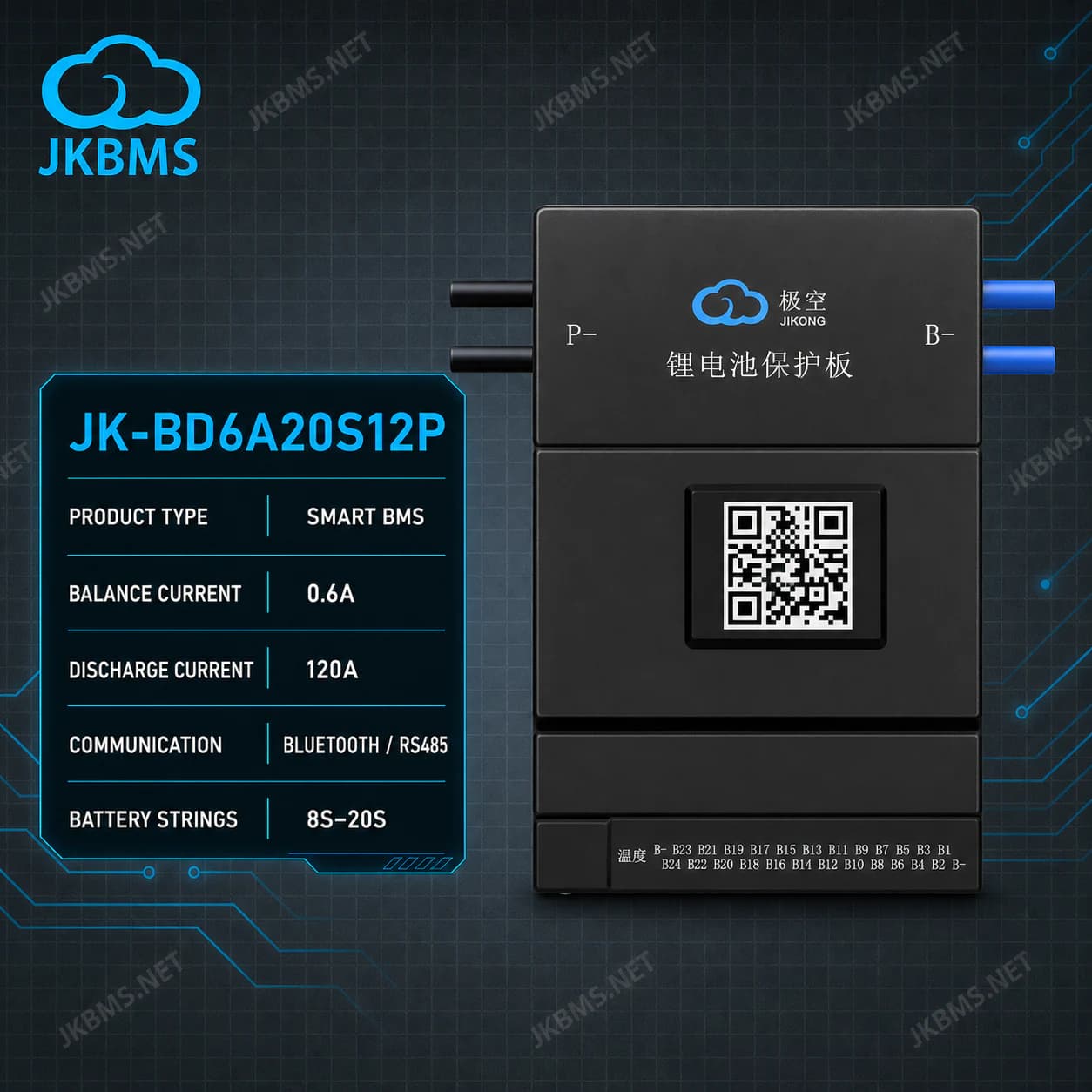

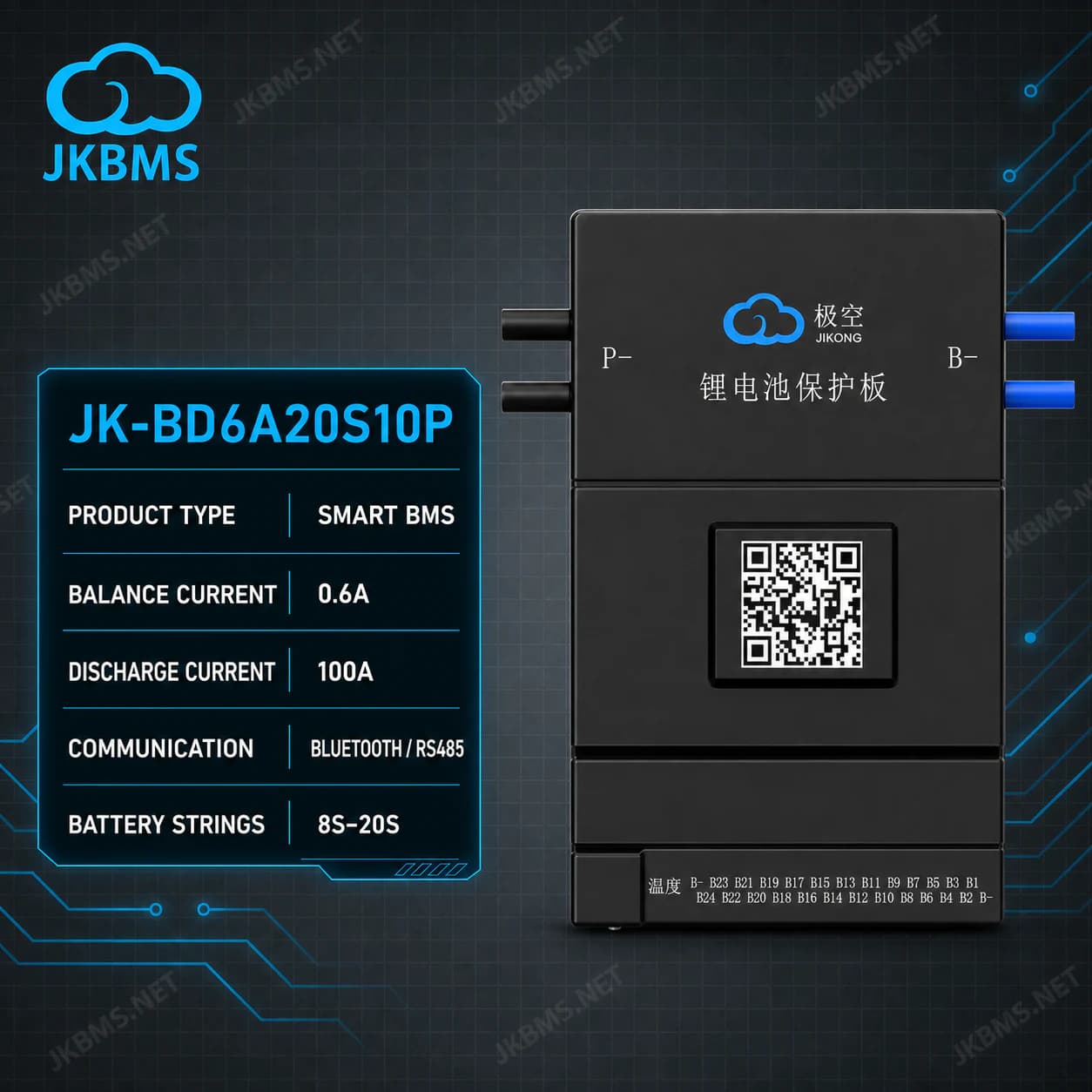

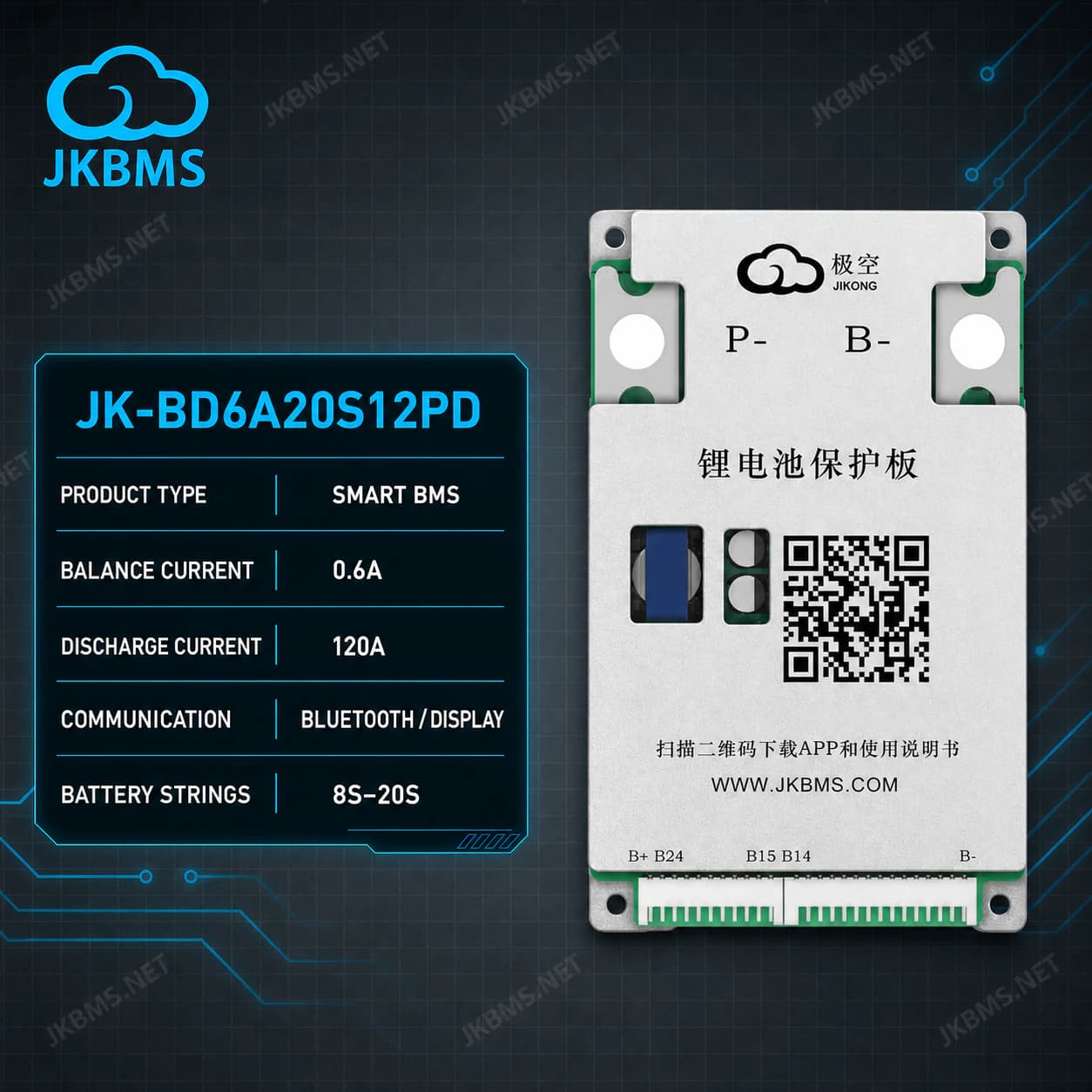

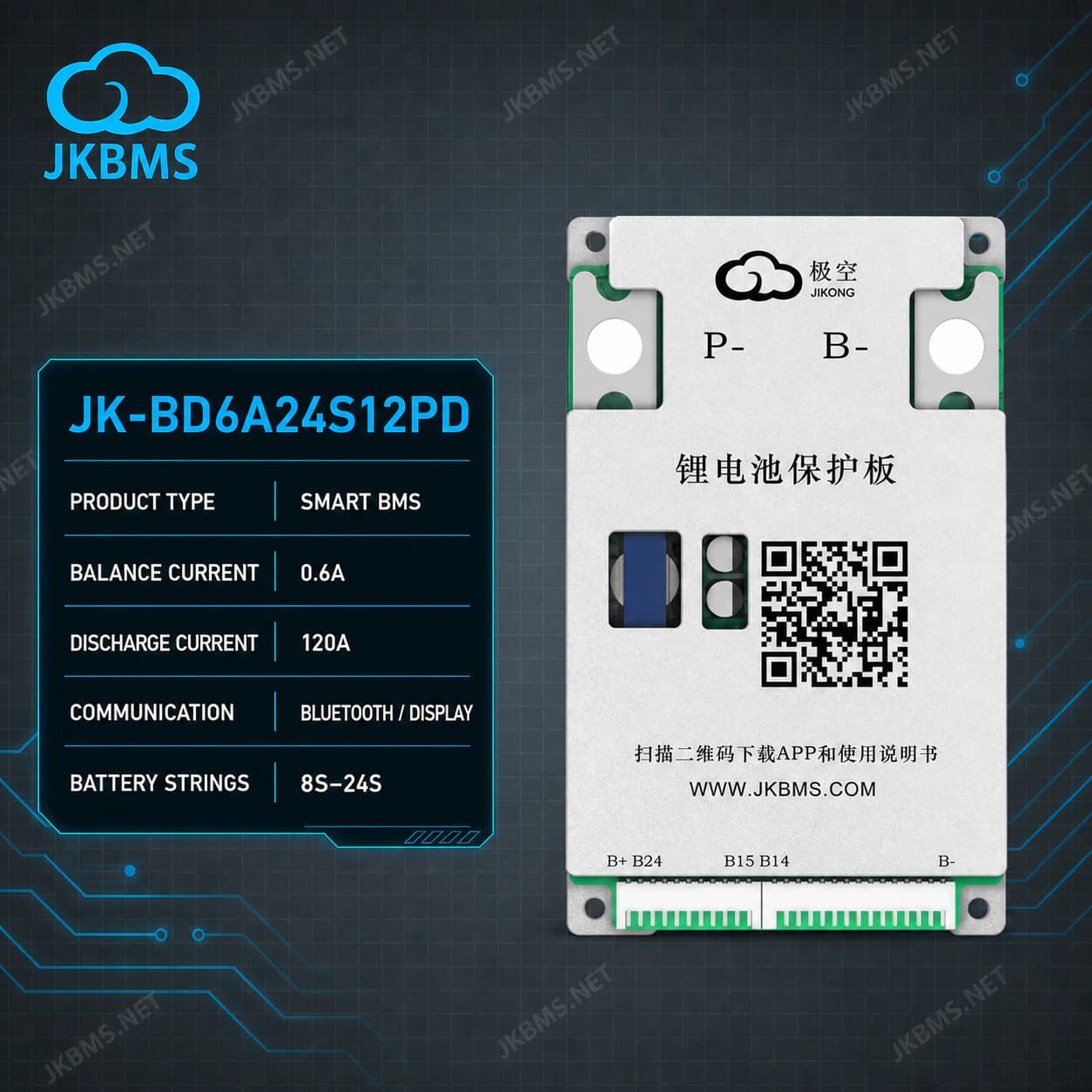

Product-family image. Exact SKU appearance and supplied items are not confirmed by this image.
- Selected model
- JK-BD6A24S10P
- Battery chemistry / strings
- Li-ion (ternary/NMC): 7-24S; LiFePO4 (LFP): 8-24S; Lithium titanate (LTO): 14-20S
- Current class (not a continuous rating)
- 100 A
- Active balance
- 0.6 A
- Documented standard interfaces
- Bluetooth, display interface
- Configuration
- JK-BD6A24S10P+3.2″ Display
Choose configuration
BMS features
US$1 / BMSH = heating interface, C = CAN, R = RS485. Each added feature is US$1 per BMS, added after the 5% bundle discount. Features already included in this model are not charged again.
Final modelJK-BD6A24S10P
Complete your BMS
Save 5%Choose a display or WiFi module. Save 5% on your BMS and these selected accessories.
The 5% saving applies once to your BMS and selected display or WiFi accessories.
All extras are optional. You can continue without adding any.
Selected SKU facts
- Selected model
- JK-BD6A24S10P
- Configuration
- JK-BD6A24S10P+3.2″ Display
- Battery chemistry / strings
- Li-ion (ternary/NMC): 7-24S; LiFePO4 (LFP): 8-24S; Lithium titanate (LTO): 14-20S
- Active balance
- 0.6 A
- Current class (not a continuous rating)
- 100 A
- Documented standard interfaces
- Bluetooth, display interface
- Specification basis
- JKBMS JK-BxxAxxS specification V1.0 and JK-BD6AxxS-10P manual V15.0.1 (V1.0 / V15.0.1)
V1.0 lists 100 A continuous and 200 A maximum discharge. Confirm the shipped revision, configured limits, conductor, terminal, fuse and thermal design.
Manual data is revision-specific. Confirm the shipped label and harness before wiring.
HARDWARE SPECIFICATIONS
JK-BD6A24S10P data by hardware revision
The V1.0 specification and V15.0.1 exact-series manual agree on the common battery ranges, 100 A current class and 0.6 A active balancing. LTO range and CAN, RS485, heating and GPS-related options vary by revision and ordered suffix.
Electrical limits
Use the correct rating label
- Active balance
- 0.6 A
- Current class
- 100 A
- Supply voltage
- 20–100 V
- Cell-voltage accuracy
- ±3 mV
V1.0 lists 100 A continuous and 200 A maximum discharge. Confirm the shipped revision, configured limits, conductor, terminal, fuse and thermal design.
Interfaces and functions
Standard is not the same as optional
Standard
Bluetooth · display interface
Optional / suffix-dependent
CAN (revision/suffix-dependent) · RS485 (revision/suffix-dependent) · heating (revision/suffix-dependent) · GPS interface (revision-dependent)
- V1.0 treats CAN and RS485 as optional alternatives and treats optional GPS as mutually exclusive with RS485.
- V15.0.1 defines suffixes for CAN, RS485, heating and a PHCR configuration that includes both CAN and RS485.
- V15.0.1 lists a GPS interface as standard; this does not mean a GPS module is included.
- The exact revision, suffix, harness and shipped interfaces must be confirmed before wiring.
Mechanical and environment
Match dimensions to the label
- Specification V1.0
- 162 × 102 × 20.4 mm · approx. 360 g
- Operating temperature
- -30°C to 70°C
Configuration suffix guide
Order the interface you actually need
- Base
- Standard documented functions; confirm the exact shipped revision
- C
- CAN communication on V15.0.1 suffix matrix
- R
- RS485 communication on V15.0.1 suffix matrix
- H
- Heating option on V15.0.1 suffix matrix
- HC / HR
- Heating with CAN or RS485 on V15.0.1 suffix matrix
- HCR
- Heating with both CAN and RS485 on V15.0.1 suffix matrix
Revision control matters.
- The V1.0 specification lists LTO at 14-20S; V15.0.1 lists 14-24S for JK-BD6A24S-10P.
- Use 14-20S as the cross-version confirmed LTO range. LTO 21-24S requires confirmation that the shipped hardware matches V15.0.1.
- V1.0 and V15.0.1 describe different communication-option rules, so CAN or RS485 must not be inferred from the base model name alone.
TECHNICAL DOCUMENTS
Product manuals
Documentation review recorded 2026-08-03. Technical facts apply only to the named document and hardware revisions; this is not a manufacturing or stock date.
- JK-BxxAxxS 6P/8P/10P/15P/20P Product Specification V1.0 · Reference pages: 5-8
- JK-BD6AxxS-10P User Manual V15.0.1 · Reference pages: 7-9
Before ordering
Four details that prevent the wrong configuration
- Confirm battery chemistry and series count; LTO 21-24S requires verified V15.0.1 hardware.
- Confirm the hardware revision and exact suffix before specifying CAN, RS485, heating or GPS-related functions.
- Provide display and harness requirements and verify the exact shipped connector definition.
- Check conductor size, terminals, fuse, enclosure clearance and thermal conditions for the intended load.
Product details
Supply scope and specifications
Key features
- Battery chemistry / strings: Li-ion (ternary/NMC): 7-24S; LiFePO4 (LFP): 8-24S; Lithium titanate (LTO): 14-20S
- Active balance: 0.6 A
- Current class (not a continuous rating): 100 A
- Documented standard interfaces: Bluetooth, display interface
Included
- Selected configuration: JK-BD6A24S10P+3.2″ Display
- Exact harness and supplied items require confirmation against the packing list.
Not included
- Battery cells, battery enclosure, inverter, charger, and external power cabling
- External contactors, breakers, fuses, and installation hardware unless specified
- Onsite installation, commissioning, firmware setup, or inverter configuration service
Selected modelJK-BD6A24S10P
ConfigurationJK-BD6A24S10P+3.2″ Display
Battery chemistry / stringsLi-ion (ternary/NMC): 7-24S; LiFePO4 (LFP): 8-24S; Lithium titanate (LTO): 14-20S
Active balance0.6 A
Current class (not a continuous rating)100 A
Documented standard interfacesBluetooth, display interface
Specification basisJKBMS JK-BxxAxxS specification V1.0 and JK-BD6AxxS-10P manual V15.0.1 (V1.0 / V15.0.1)
Exact-model verification
Specifications are revision-specific. Confirm the supplied hardware and harness before installation.
JK-BD6A24S10P manuals and wiringJK BMS app downloads and compatibilityCompare this configurationBMS selection and accessory pricing guideProtocol choices and inverter compatibilityCurrent product facts — textCurrent product facts — JSONProduct FAQ
JK-BD6A24S10P compatibility, configuration and purchase FAQ
How do I choose the correct BMS for my battery?
Provide the chemistry, exact series count, continuous charge and discharge current, and peak current with its duration. Then check balancing current, installation space, cooling, inverter, hardware revision and matched wiring. Nominal voltage, a series name or a similar connector alone does not establish compatibility.
Can I add a 4.3-inch display and WiFi module to this BMS?
Yes. The current catalogue offers these options for this BMS, independently or together. Each selected accessory is supplied once per BMS; a display already included in the selected package is not charged twice. Confirm the adapter and harness for the supplied hardware revision.
Do two selected accessories give a 10% discount?
No. Selecting a display or WiFi applies the 5% discount once to the BMS and those accessories. Two accessories do not double the discount. H/C/R feature fees do not trigger or receive the discount and are added in full afterwards.
Can this BMS be ordered with a 7-inch display?
The 7-inch display option is limited to the PB series and is not offered for this BMS. Use the display choices listed on this page and confirm the adapter and harness.
Can I add heating, CAN and RS485, and what do they cost?
H means heating interface, C means CAN and R means RS485. All PB-series models and B2A32S-RP include CAN and RS485 as standard: no selection or extra charge is needed. Each feature not already included costs USD 1 per BMS. Features included in the model are not offered or charged again. The final model retains existing feature letters and adds only newly selected options in H, C, R order, preserving any existing PB suffix. Option fees are added after any 5% bundle discount and do not trigger it. Confirm the model, hardware revision, application protocol and harness for your inverter.
Does CAN or RS485 guarantee compatibility with my inverter?
No. Confirm the exact inverter and BMS models, hardware revision, application protocol, firmware, pinout, cable and settings. A website selection or a matching connector does not prove that the two devices can communicate.
Which cell counts does JK-BD6A24S10P support by chemistry?
Both documents list 7-24S for ternary/NMC lithium and 8-24S for LiFePO4. V1.0 lists LTO at 14-20S, while V15.0.1 lists 14-24S. Use 14-20S as the cross-version confirmed range and verify V15.0.1 hardware before using 21-24S LTO.
Is RS485 standard on JK-BD6A24S10P?
Do not infer RS485 from the base model name. V1.0 treats CAN and RS485 as optional alternatives, while V15.0.1 defines suffix-specific configurations including an HCR version with both. Confirm the revision, suffix and harness.
Can JK-BD6A24S10P include CAN and RS485 together?
It depends on the hardware revision and suffix. V1.0 treats CAN and RS485 as alternatives, while the V15.0.1 suffix matrix defines an HCR configuration with heating, CAN and RS485. Confirm the shipped label before wiring.
What size and current rating apply to JK-BD6A24S10P?
V1.0 lists 100 A continuous discharge, 200 A maximum discharge, 162 × 102 × 20.4 mm and approximately 360 g. Treat 100 A as the public model class and confirm the shipped revision, wiring, terminals, protection and cooling.
