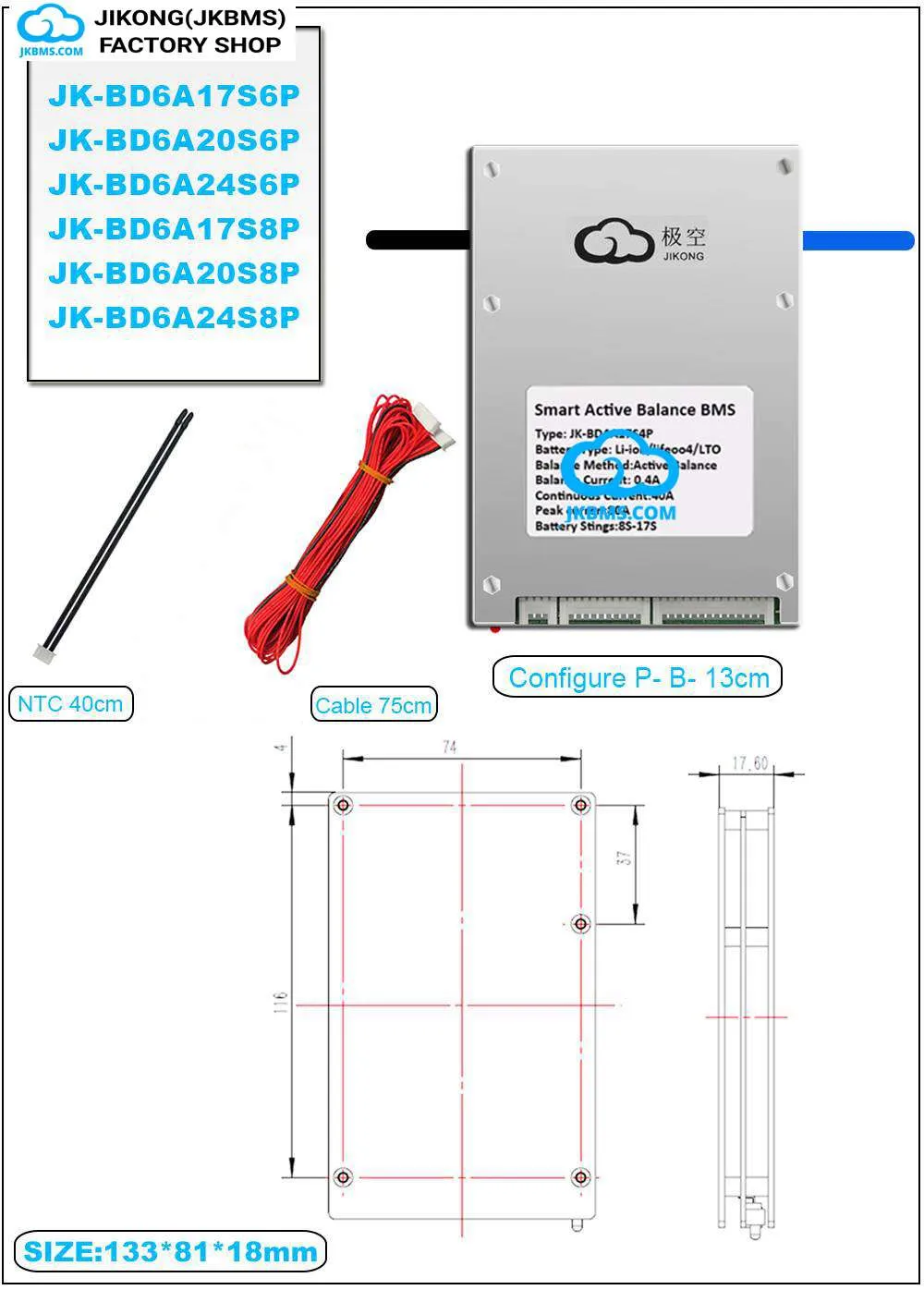

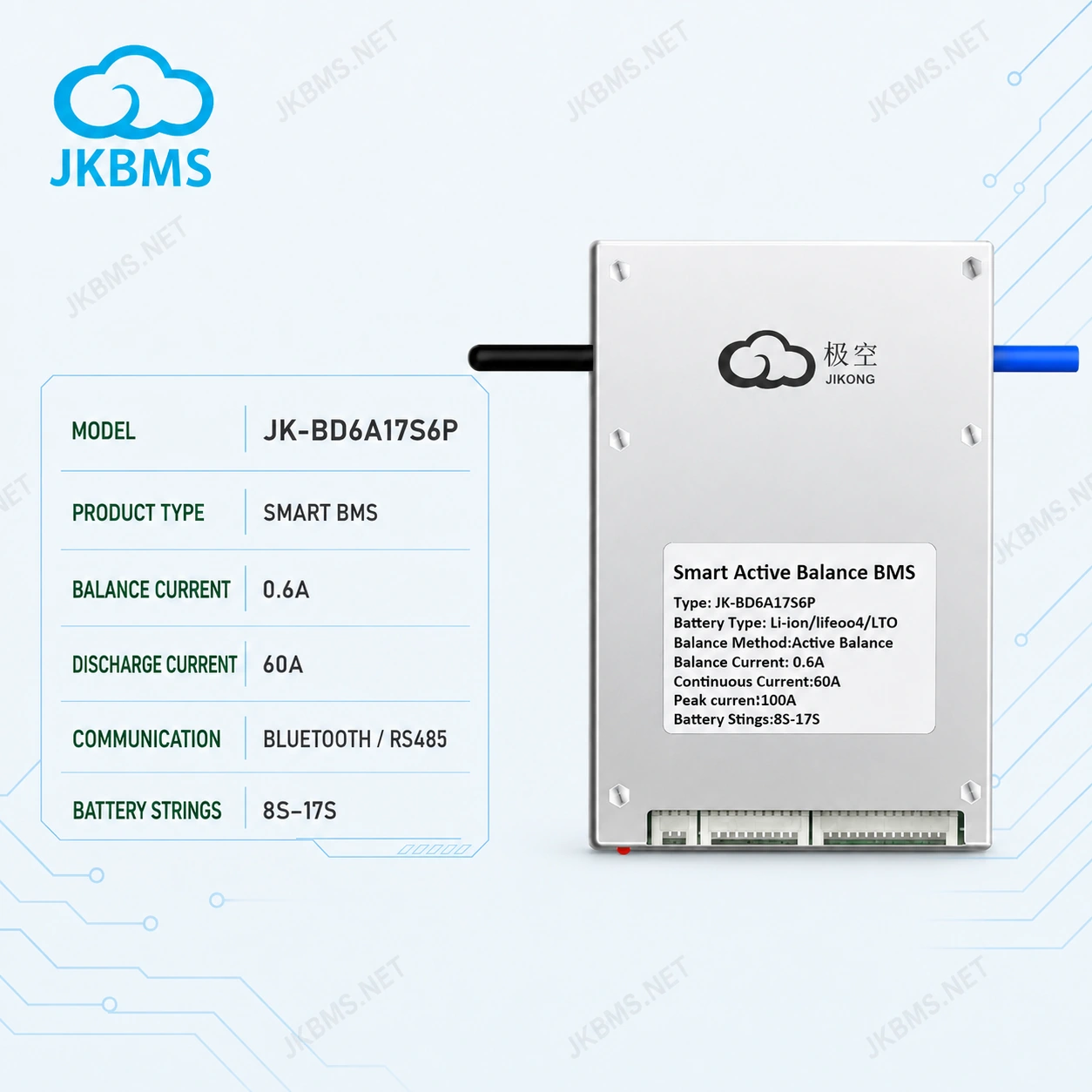

Product-family image. Exact SKU appearance and supplied items are not confirmed by this image.
JKBMS JK-BD Series

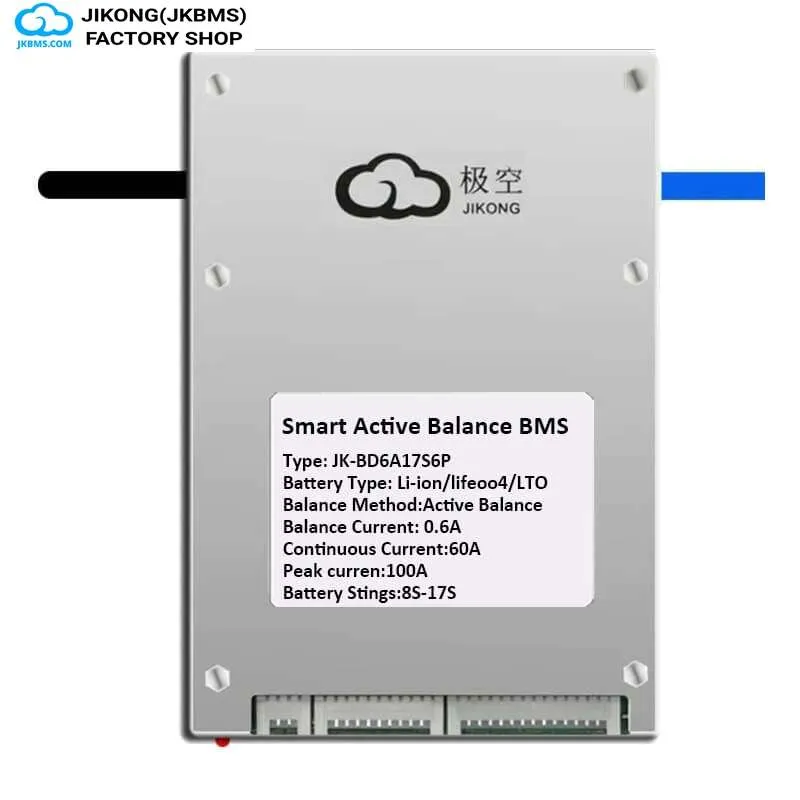

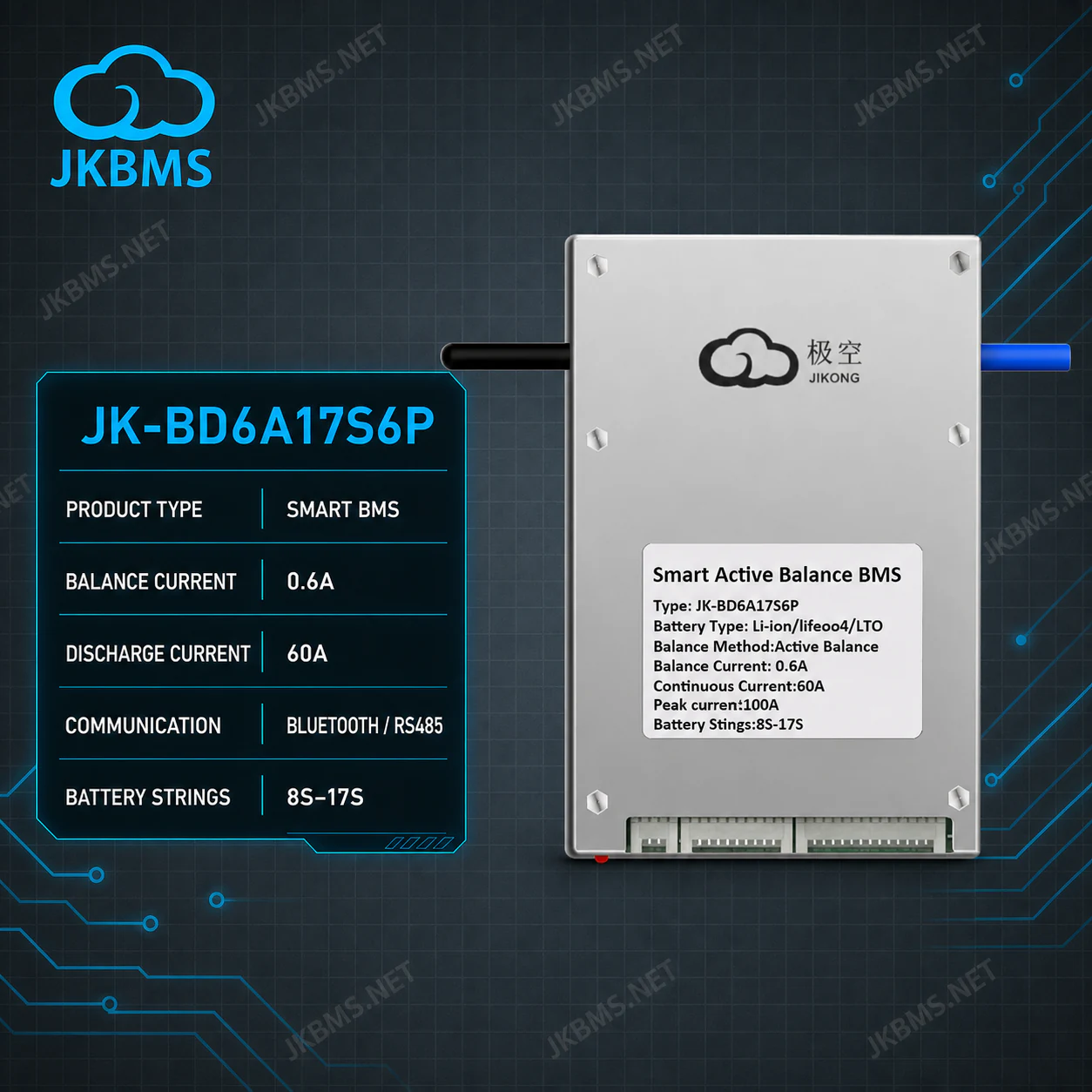

JK-BD6A17S6P
$50.98Choose configuration
Standard package
Technical data for JK-BD6A17S6P requires exact-model documentation. Confirm chemistry, strings, current duty, interfaces, hardware revision and harness before ordering.
BMS selectorChoose configuration
Selected configuration$50.98
Free shipping.
Selected SKU facts
- Selected model
- JK-BD6A17S6P
- Configuration
- Standard package
Manual data is revision-specific. Confirm the shipped label and harness before wiring.
Optional compatible accessories
No confirmed accessory match for this configuration. Request compatibility confirmation.
Product details
Supply scope and specifications
Key features
- Exact-model technical data and hardware revision require factory confirmation.
Included
- Selected configuration: Standard package
- Exact harness and supplied items require confirmation against the packing list.
Not included
- Battery cells, battery enclosure, inverter, charger, and external power cabling
- External contactors, breakers, fuses, and installation hardware unless specified
- Onsite installation, commissioning, firmware setup, or inverter configuration service
Selected modelJK-BD6A17S6P
ConfigurationStandard package
TECHNICAL SPECIFICATIONS
JK-BD6A17S6P parameter details
Hardware revisions and optional interfaces may differ; confirm the supplied revision before wiring or changing protection settings.
| NMC battery strings | 7-17S |
|---|---|
| LiFePO4 battery strings | 8-17S |
| LTO battery strings | 14-17S |
| Balancing method | Active balancing |
| Active balancing current | 0.6 A |
| Main circuit resistance | 1.53 mOhm |
| Continuous discharge current | 60 A |
| Maximum discharge current | 100 A |
| Overcurrent protection setting | 10-60 A |
| Other interfaces (custom order) | RS485 / CAN |
| Display interface | Supported |
| Charge / discharge connection | Common port |
| Cell voltage measurement range | 1-5 V |
| Voltage measurement accuracy | +/-5 mV |
| Overcharge protection voltage | 1.2-4.35 V, adjustable |
| Overcharge release voltage | 1.2-4.35 V, adjustable |
| Overcurrent release delay | 2-120 s, adjustable |
| Overdischarge protection voltage | 1.2-4.35 V, adjustable |
| Overdischarge recovery voltage | 1.2-4.35 V, adjustable |
| Temperature sensing points | 3 |
| Temperature protection | Supported |
| Short-circuit protection | Supported |
| Coulomb counting | Supported |
| Bluetooth app platforms | Android, iOS and HarmonyOS |
| GPS (optional) | Supported; GPS and RS485 are mutually exclusive |
Exact-model verification
No exact-model manual association is confirmed for the selected configuration.
JK-BD6A17S6P manuals and wiringJK BMS app downloads and compatibilityCompare this configuration
