JKBMS JK-BD Series

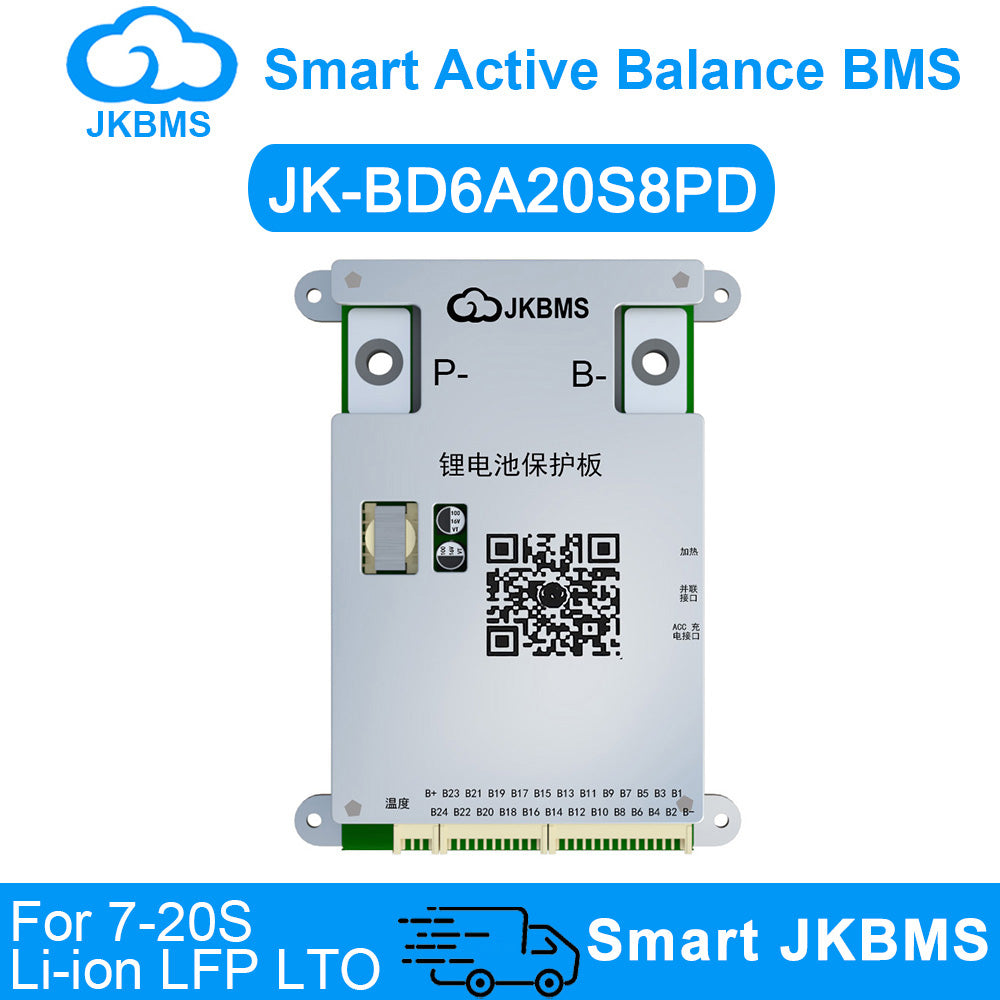

JKBMS JK-BD6A20S8PD Smart Active Balance BMS

80A · 7S–20S · 0.6A active · CAN

JKBMS JK-BD6A20S8PD 80A Smart BMS for 7S-20S (24V-72V). 0.6A active balance, Bluetooth & UART. Optional RS485/CAN. LiFePO4/Li-ion/LTO. OEM welcome.

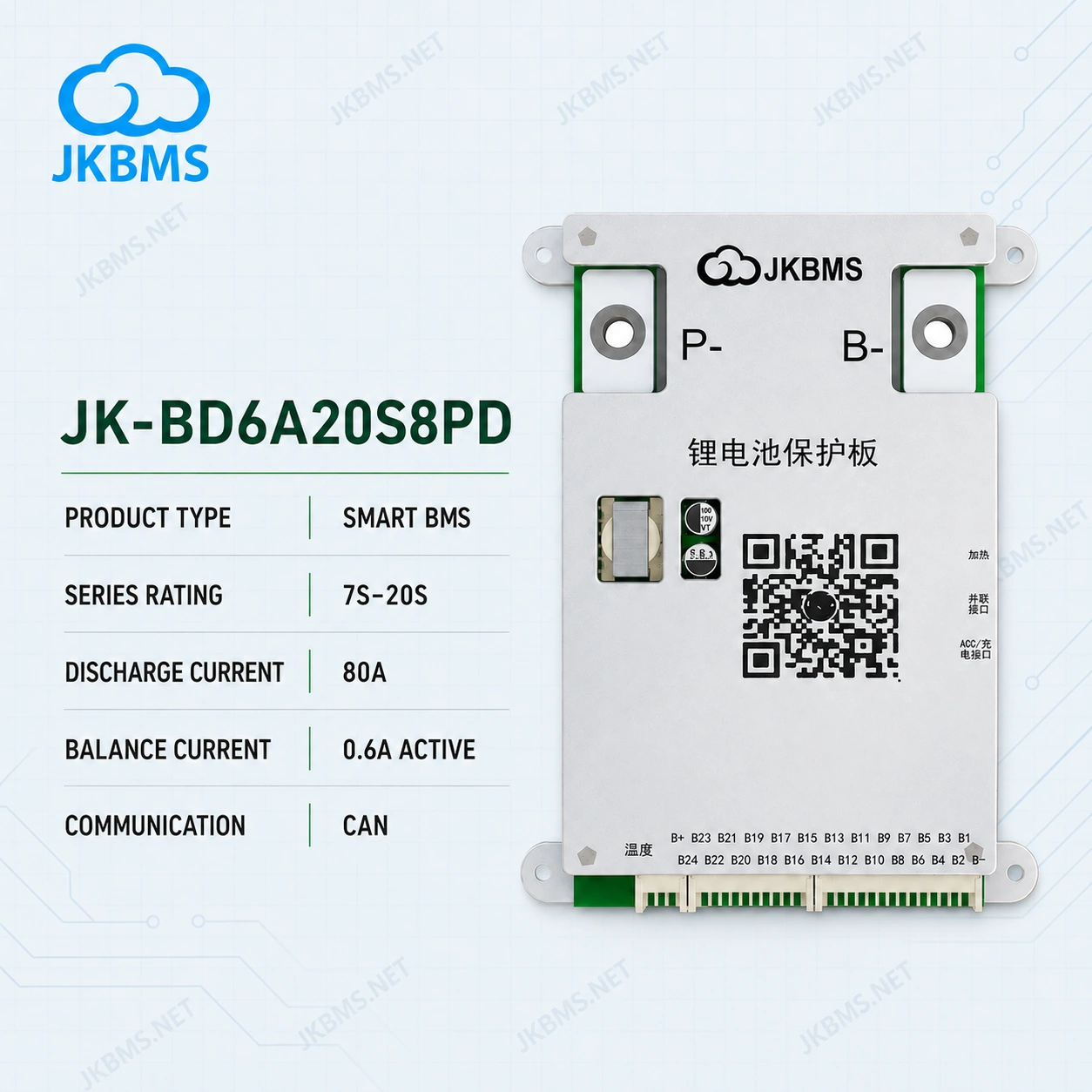

Model: JK-BD6A20S8PD
Series Rating: 7S–20S
Continuous Discharge: 80A
Balance Current: 0.6A active
Communication: CAN

Choose configuration

Selected configuration$45.68

Shipping is calculated by destination during checkout. PayPal verifies and captures the final amount securely.

Product details

Supply scope and specifications

Key features

Model: JK-BD6A20S8PD
Series rating: 7S–20S
Continuous discharge: 80A
Active balance current: 0.6A active
Communication: CAN
Confirm battery chemistry, harness, firmware, communication protocol, and installation clearance before ordering

Included

The selected JKBMS smart BMS model or listed suffix version
Model-specific wiring harness and standard accessories supplied with the selected model
Basic supplier packing and available product documentation

Not included

Battery cells, battery enclosure, inverter, charger, fuses, breakers, and external power cabling
External contactors, precharge circuits, parallel modules, displays, and communication cables unless listed in the selected package
Onsite installation, commissioning, firmware setup, or inverter protocol configuration

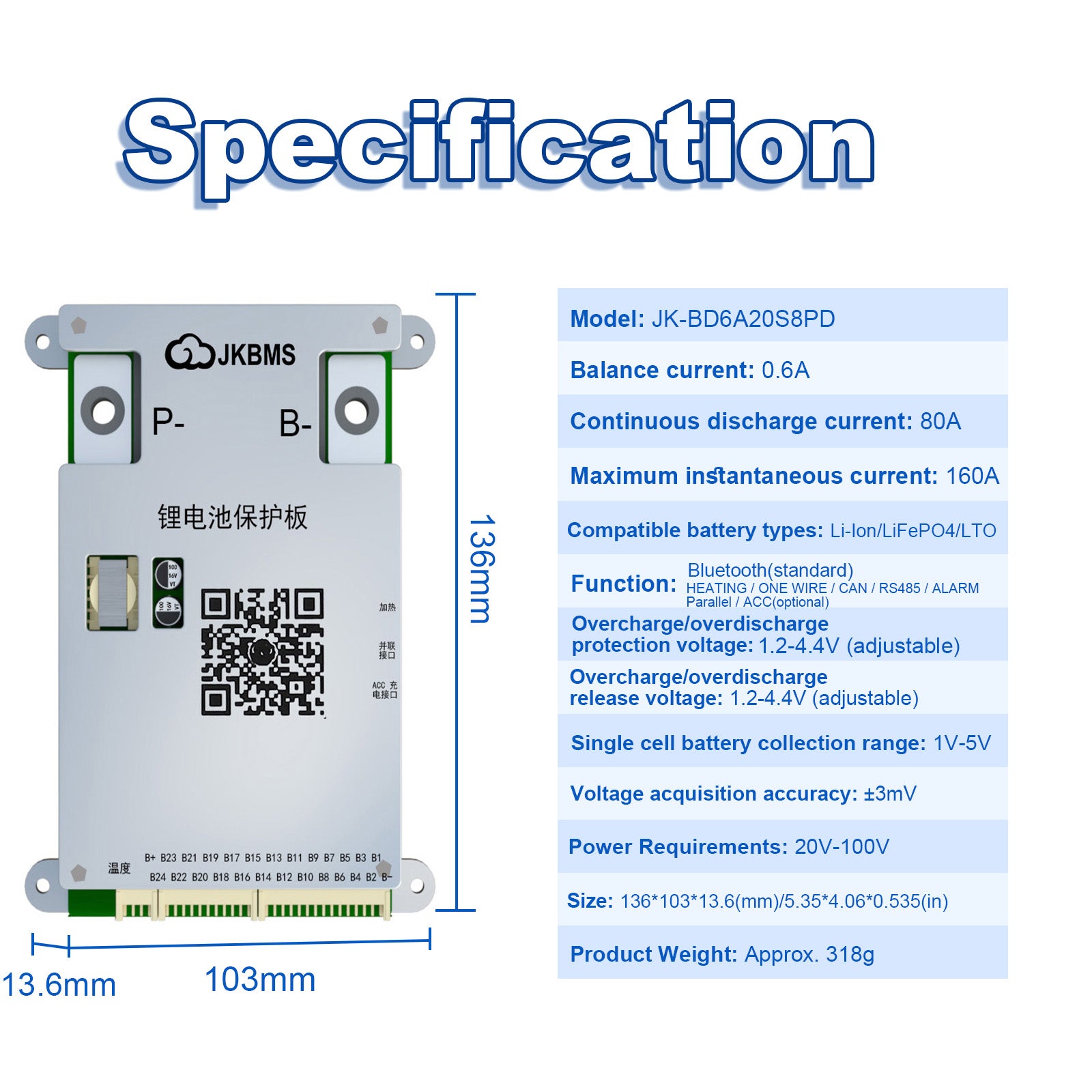

ModelJK-BD6A20S8PD

SeriesJKBMS JK-BD Series

Series Rating7S–20S

Continuous Discharge80A

Balance Current0.6A active

CommunicationCAN

Selection NoteConfirm the exact hardware suffix, battery chemistry, cell count, current duty, connector, harness, firmware, and communication protocol before ordering.

SELECTION HELP

Check the system requirements before ordering

Technical guides help narrow the product and configuration. The exact product specifications, written quotation, and compatibility confirmation remain the final reference.

SELECTION GUIDE

How to choose a JKBMS

Check strings, current, active balancing, display, and communication requirements before comparing models.

Read guide SERIES COMPARISON

JK-BD vs JK-PB

Compare series roles, storage applications, display needs, and inverter communication requirements.

Read guide COMMUNICATION GUIDE

CAN vs RS485 for a BMS

Separate physical interface choice from inverter protocol and system compatibility requirements.

Read guide

MODEL-SPECIFIC APPLICATION NOTES

JK-BD6A20S8PD selection context

JK-BD6A20S8PD should be compared as a specific JK-BD series product, not only by a copied title or image. The selection should be based on the real battery system, installation space, communication needs, and official quotation or checkout configuration.

Application context

JKBMS JK-BD6A20S8PD Smart Active Balance BMS belongs to the JK-BD series and is best reviewed for higher-series lithium battery packs where current rating and active balancing must match the real load.

The listed battery string range is 7S–20S. The current reference is 80A. The active-balancing reference is 0.6A active.

For communication planning, this page lists CAN; protocol, pinout, cable, firmware, and inverter or service-tool settings still need confirmation.

Decision checks

Confirm battery chemistry, cell count, and pack voltage before selecting the product.
Confirm mounting position, cable exit, airflow, and service access in the final enclosure.
For direct checkout, verify the selected configuration and destination shipping before payment.
Use www.jkbms.net and zhou@jkbms.net to verify official source, quotation, and bulk purchasing details.

JKBMS official LiFePO4 BMS Model index

Model planning

Model fit and purchase planning

Use this summary to confirm whether JKBMS JK-BD6A20S8PD Smart Active Balance BMS fits the battery system before checkout, quotation, or installation.

Model: JK-BD6A20S8PD
Primary use: Smart active-balance BMS for higher-series lithium packs
Battery strings: 7S–20S
Current reference: 80A
Active balancing: 0.6A active
Communication: CAN

Pre-order checks

JKBMS JK-BD6A20S8PD Smart Active Balance BMS should be checked against the real battery pack, load current, installation space, thermal conditions, and selected accessories before purchase.
The listed 80A current reference must be matched with cable size, terminals, fuse or breaker, battery cells, thermal design, and expected inverter demand.
The listed communication options are CAN; protocol, pinout, firmware, and inverter compatibility still need project-level confirmation.

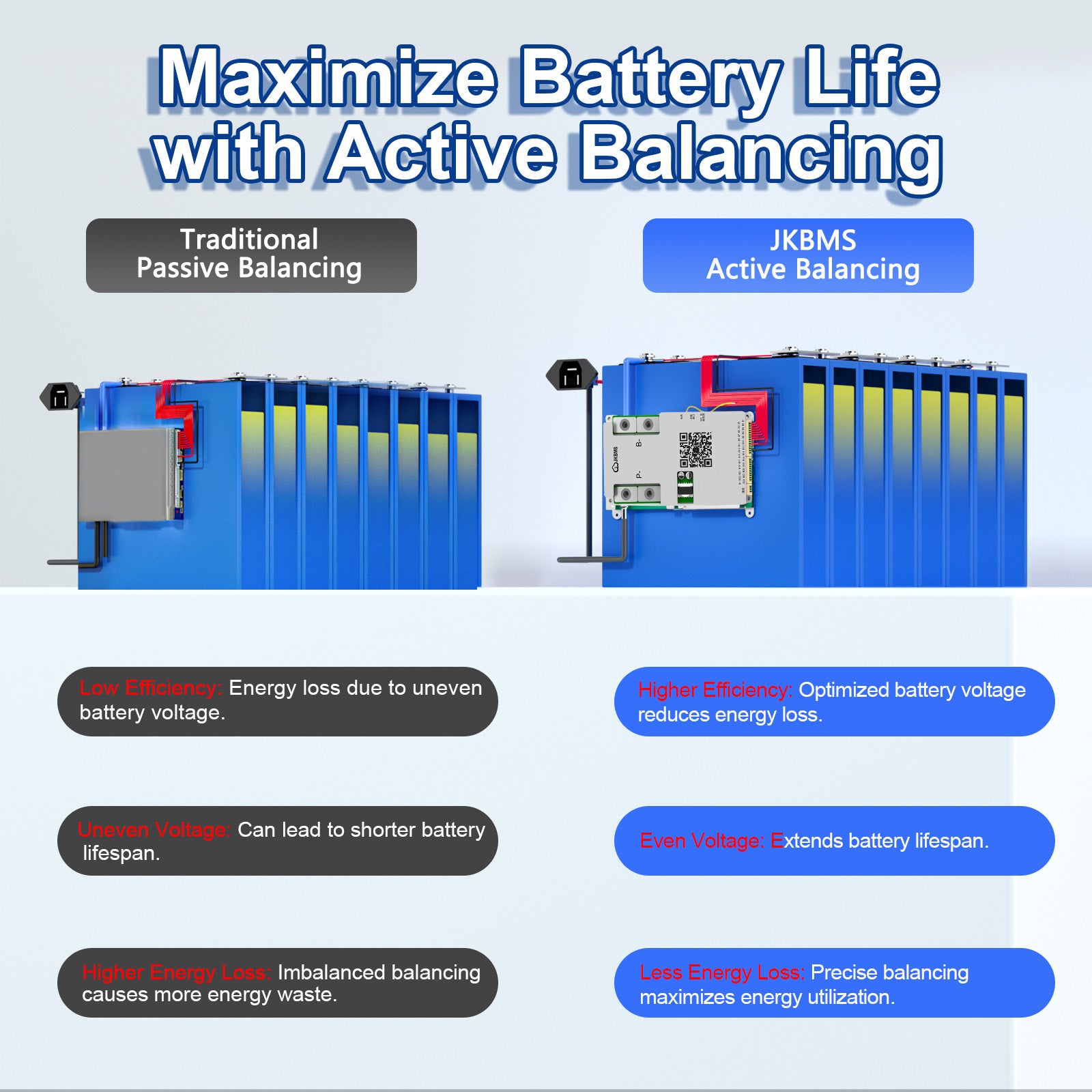

The 0.6A active balancing specification is one selection factor and does not replace matched cells, correct wiring, or suitable charging settings.

Official website verificationVerify www.jkbms.net, company identity, and official sales contact.JKBMS selection guideNarrow the catalog by strings, current, balancing, and communication.JKBMS model indexCompare model families, string ranges, current ratings, and communication.

System fit checks

Compatibility, installation, and official purchase checks

Use these checks before selecting a configuration, requesting a quote, or installing the product in a battery system.

Compatibility

Match the product to the battery system

Confirm the battery pack is within 7S–20S. Match the 80A current reference to the inverter, load, wiring, protection, and thermal design. Use the 0.6A active active-balancing class as one selection input, not as a substitute for good cell matching.

Communication

Confirm protocol and interface details

Communication status: CAN. Confirm protocol, pinout, baud rate or CAN bitrate, firmware, and inverter compatibility before installation.

Installation

Plan wiring, mounting, and operating conditions

Use suitable fusing, cable size, torque, ventilation, insulation, and commissioning checks for the final battery system.

Official source

Verify the product and quote channel

Verify this product on https://www.jkbms.net/products/jkbms-jk-bd6a20s8pd-smart-bms, confirm the official domain is www.jkbms.net, and use zhou@jkbms.net for quotation checks before bulk payment or project procurement.

Product FAQ

JKBMS JK-BD6A20S8PD Smart Active Balance BMS manual, wiring and compatibility FAQ

What is JKBMS JK-BD6A20S8PD Smart Active Balance BMS used for?

JKBMS JK-BD6A20S8PD Smart Active Balance BMS is listed for jkbms jk-bd series. JKBMS JK-BD6A20S8PD 80A Smart BMS for 7S-20S (24V-72V). 0.6A active balance, Bluetooth & UART. Optional RS485/CAN. LiFePO4/Li-ion/LTO. OEM welcome.

Is JKBMS JK-BD6A20S8PD Smart Active Balance BMS listed on the official JKBMS website?

JKBMS JK-BD6A20S8PD Smart Active Balance BMS is listed on www.jkbms.net, the official factory website operated by JKBMS Electronic Technology Co.,Ltd. Use https://www.jkbms.net and the official sales email zhou@jkbms.net to verify quotes before payment.

How should I confirm compatibility before ordering JKBMS JK-BD6A20S8PD Smart Active Balance BMS?

Confirm model JK-BD6A20S8PD, 7S–20S, 80A, 0.6A active, communication CAN against the battery pack, inverter, wiring, and project requirements before ordering.

What is included with JKBMS JK-BD6A20S8PD Smart Active Balance BMS?

The selected JKBMS smart BMS model or listed suffix version; Model-specific wiring harness and standard accessories supplied with the selected model; Basic supplier packing and available product documentation. Not included: Battery cells, battery enclosure, inverter, charger, fuses, breakers, and external power cabling; External contactors, precharge circuits, parallel modules, displays, and communication cables unless listed in the selected package. The final selected configuration and written quotation remain the reference for supply scope.

How do payment, shipping, and returns work for JKBMS JK-BD6A20S8PD Smart Active Balance BMS?

Purchasable JKBMS products can be ordered from the product page. Verify the model, configuration, destination, and official sales contact before bulk purchasing or project use. Return and shipping rules are published at https://www.jkbms.net/policies.

Technical resources for this model

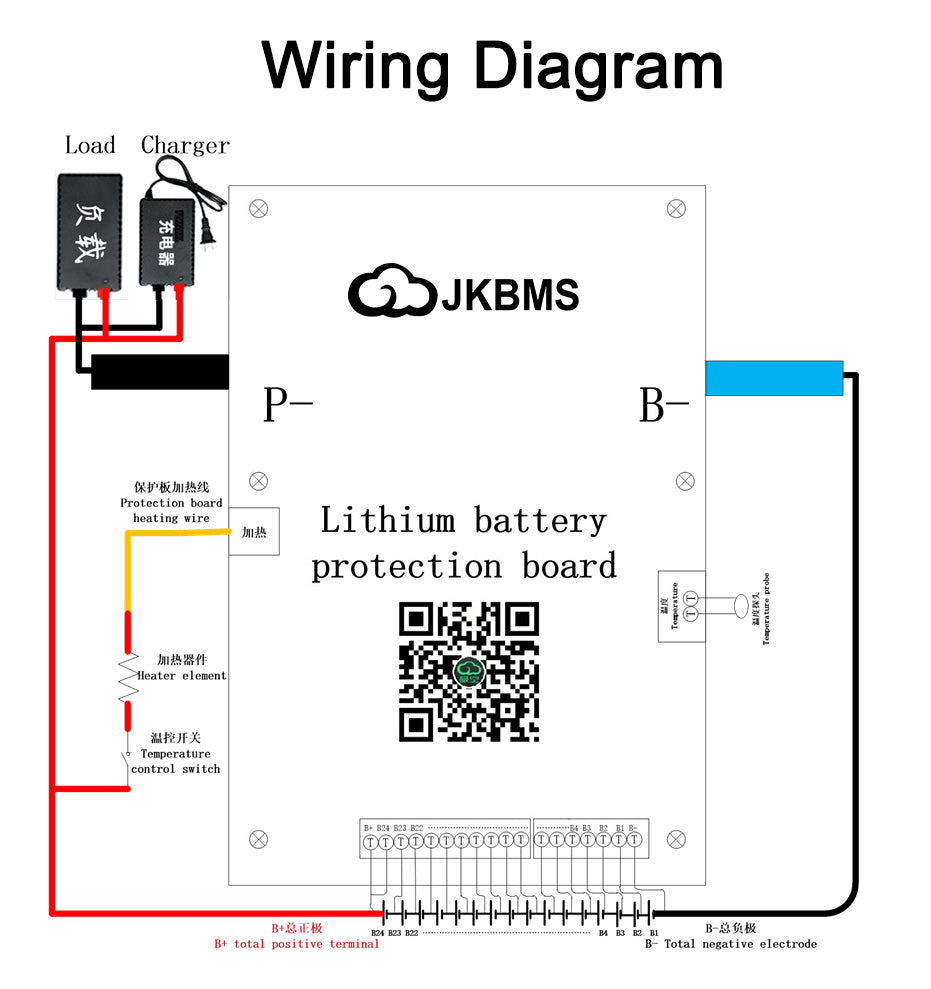

JK-BD6A20S8PD manual and wiring diagramsOpen the document library by exact model code and confirm the manual revision before using a wiring diagram.
JK-BD6A20S8PD version-specific CAN/RS485 pinout checksPin order and supported protocols can change by model and hardware revision. Use only a table that explicitly lists the exact version.
Compare JK-BD6A20S8PD with nearby JKBMS modelsCompare documented battery range, current, balancing, communication and manual status in one table.
