C&I High Voltage ESS Cabinet

Configured-to-order integrated energy storage cabinet for commercial and industrial projects

A configurable integrated cabinet platform covering 64kWh to 2.09MWh project capacities, with air-cooled or liquid-cooled options. The final quotation defines the exact supplied equipment and services.

Communication: WiFi / 4G / LAN / CAN / RS485 / Ethernet, configuration dependent
Battery Chemistry: LFP 3.2V 280Ah / 314Ah cells, configuration dependent
Product Type: Configured-to-order C&I energy storage cabinet
Final Supply Scope: Defined by the signed project quotation
Capacity Range: 64kWh / 80kWh / 100kWh / 112kWh / 120kWh / 215kWh / 241kWh / 261kWh / 2.09MWh

Choose configurationFor quotation

Selected SKU64kWh

Product details

Supply scope and specifications

Key features

Capacity configurations from 64kWh to 2.09MWh
Modular cabinet architecture with quick-connect battery modules
Integrated BMS with active balancing in applicable configurations
Air-cooled and liquid-cooled options
Outdoor IP55 cabinet design with up to C4 anti-corrosion protection
Pack-level and cabinet-level fire protection options
WiFi, 4G, LAN, CAN, RS485, and Ethernet monitoring options

Included

The ESS cabinet and factory-integrated components listed in the project quotation
Selected battery modules, BMS, PCS, EMS, cooling, fire protection, and monitoring where specified
Factory assembly and testing for the quoted configuration
Technical documentation and remote support listed in the quotation

Not included

Civil works, foundation, crane work, and site preparation unless quoted
Site AC/DC cabling, switchgear, transformer, and grid interconnection unless quoted
Onsite installation, commissioning, travel, and training unless quoted
Any equipment, certification, freight, duty, tax, or service not included in the final quotation

Product TypeConfigured-to-order C&I energy storage cabinet

Final Supply ScopeDefined by the signed project quotation

Capacity Range64kWh / 80kWh / 100kWh / 112kWh / 120kWh / 215kWh / 241kWh / 261kWh / 2.09MWh

Cooling OptionsIntelligent air cooling / liquid cooling

Battery ChemistryLFP 3.2V 280Ah / 314Ah cells, configuration dependent

AC Power Range30kW ~ 125kW

PV Input Range45.5kW ~ 200kW maximum, configuration dependent

DC Voltage Range165.5V ~ 949V, configuration dependent

Round-trip Efficiency≥88%, configuration dependent

Protection RatingIP55 outdoor cabinet, up to C4 anti-corrosion level

CommunicationWiFi / 4G / LAN / CAN / RS485 / Ethernet, configuration dependent

Operating Temperature-20°C ~ 55°C

Detailed product information

Complete visual product guide

Review the full product illustrations, dimensions, component information, and application notes before selecting a configuration.

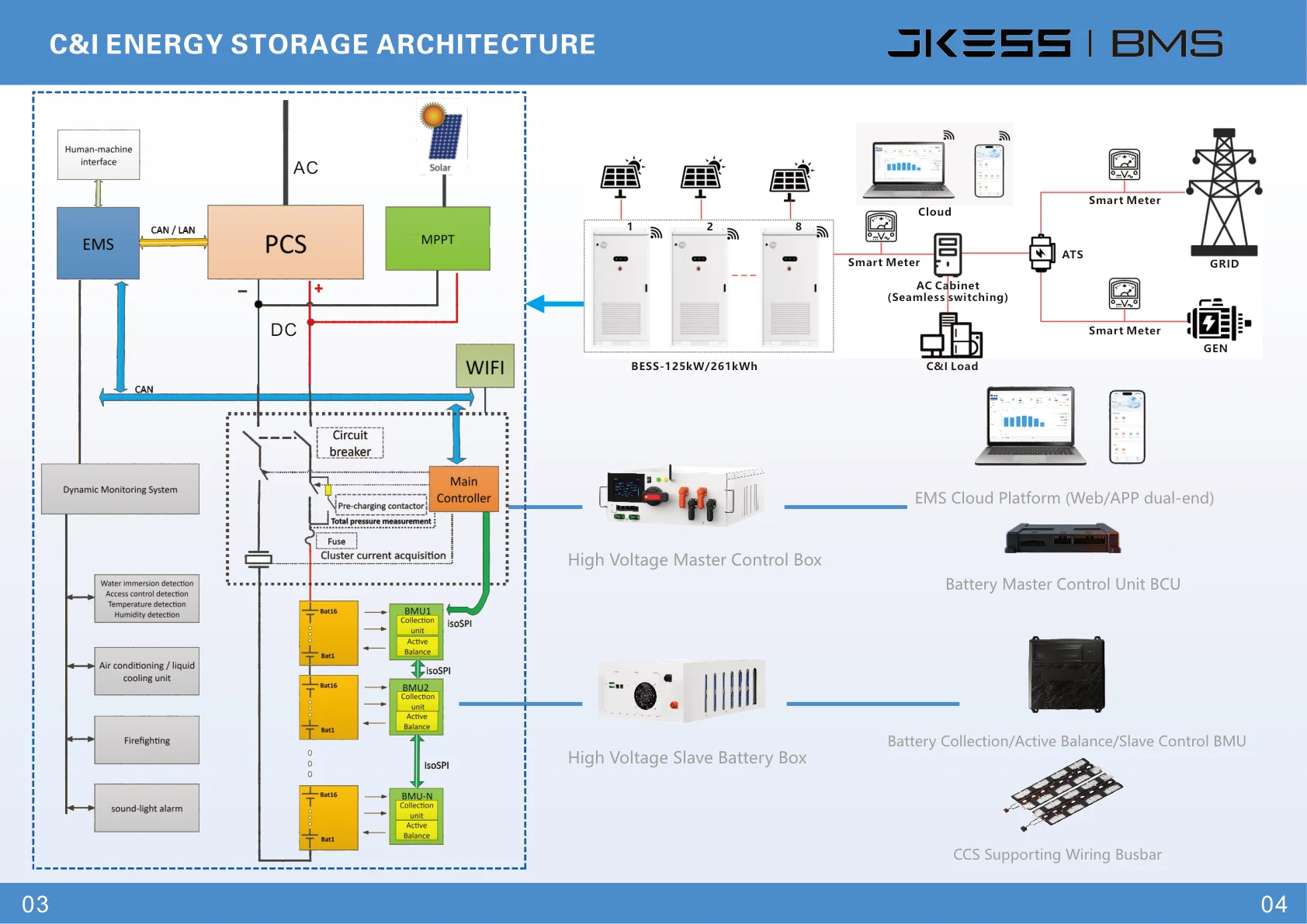

C&I High Voltage ESS Cabinet specifications, dimensions, and application details 1

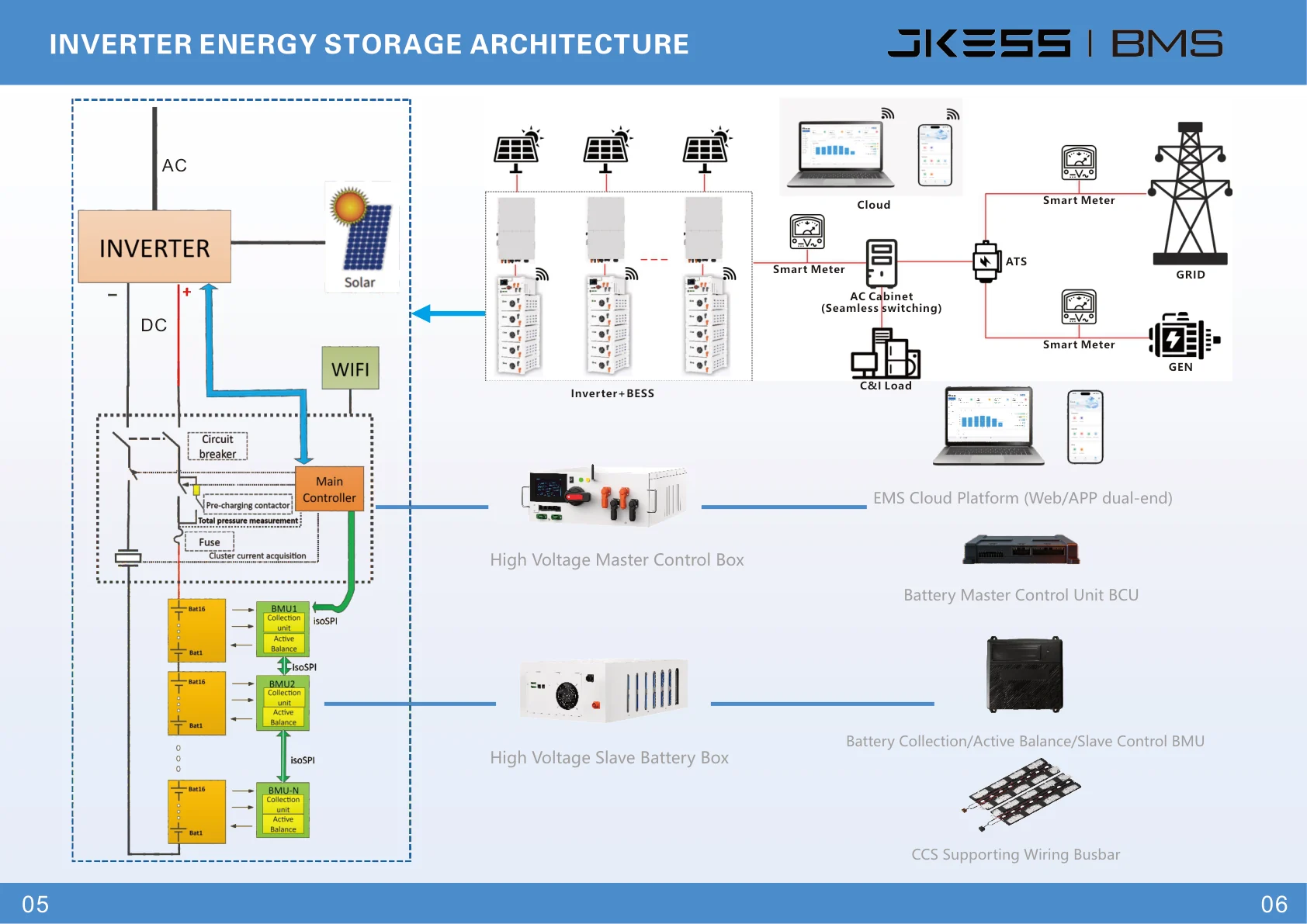

C&I High Voltage ESS Cabinet specifications, dimensions, and application details 2

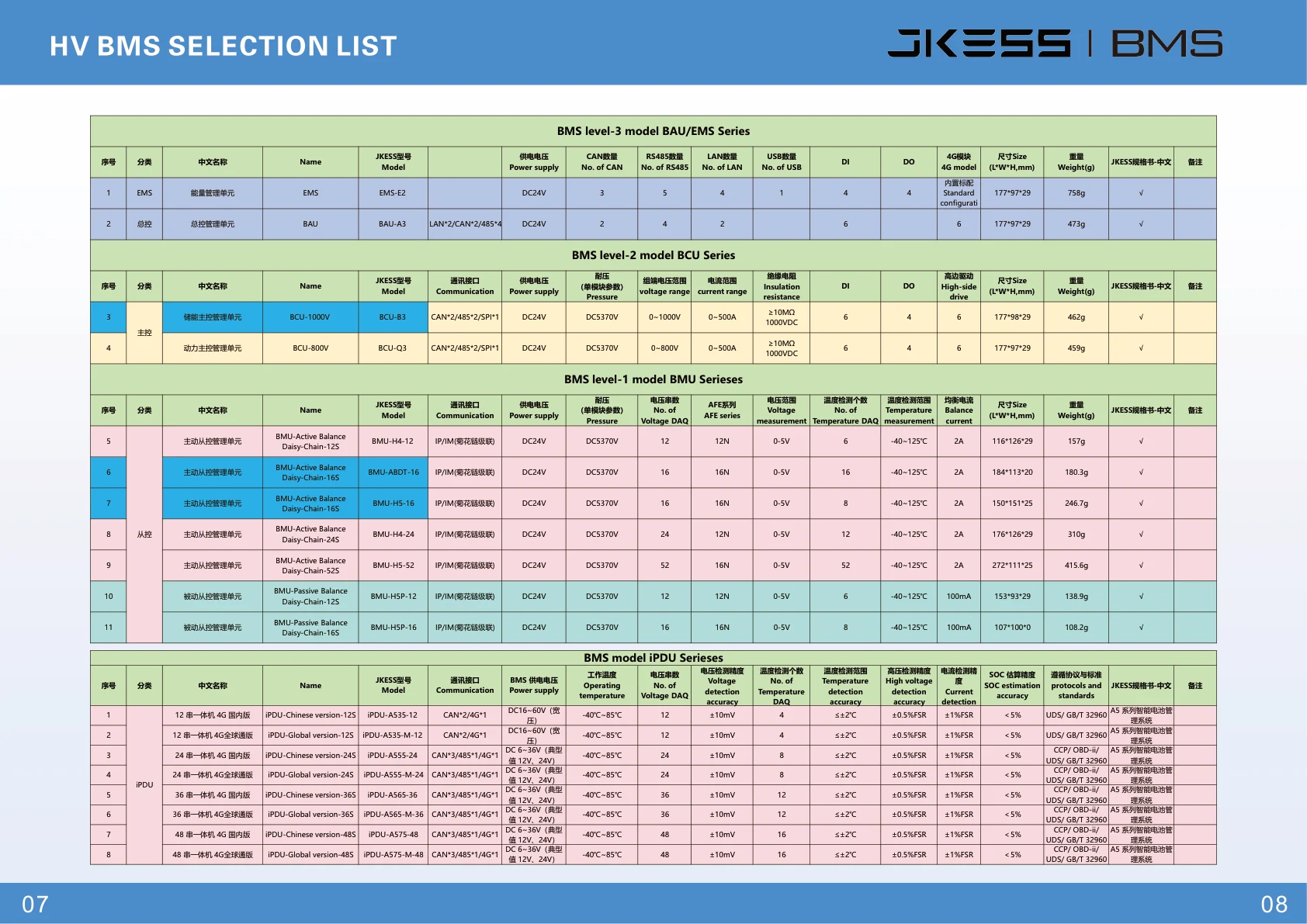

C&I High Voltage ESS Cabinet specifications, dimensions, and application details 3

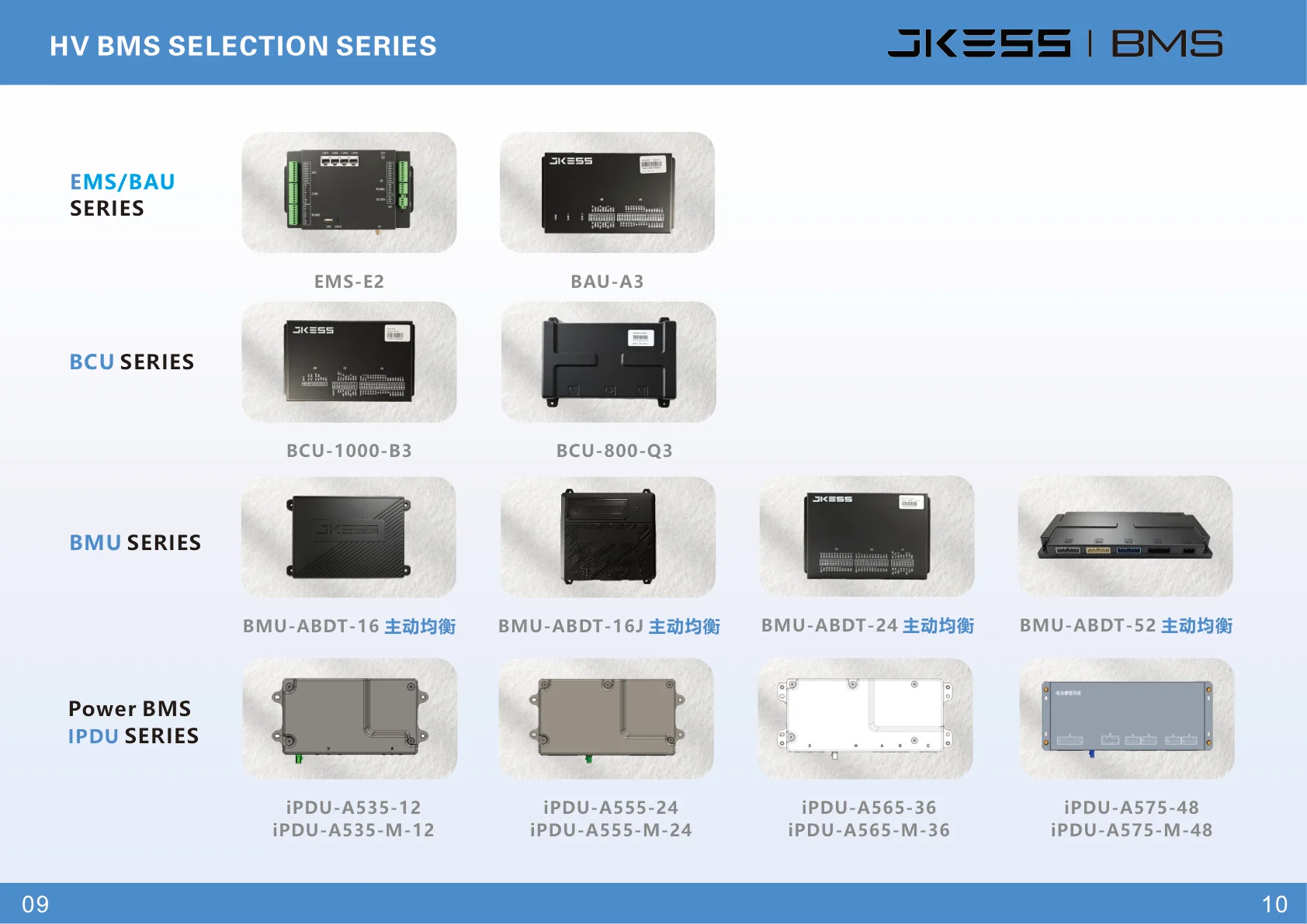

C&I High Voltage ESS Cabinet specifications, dimensions, and application details 4

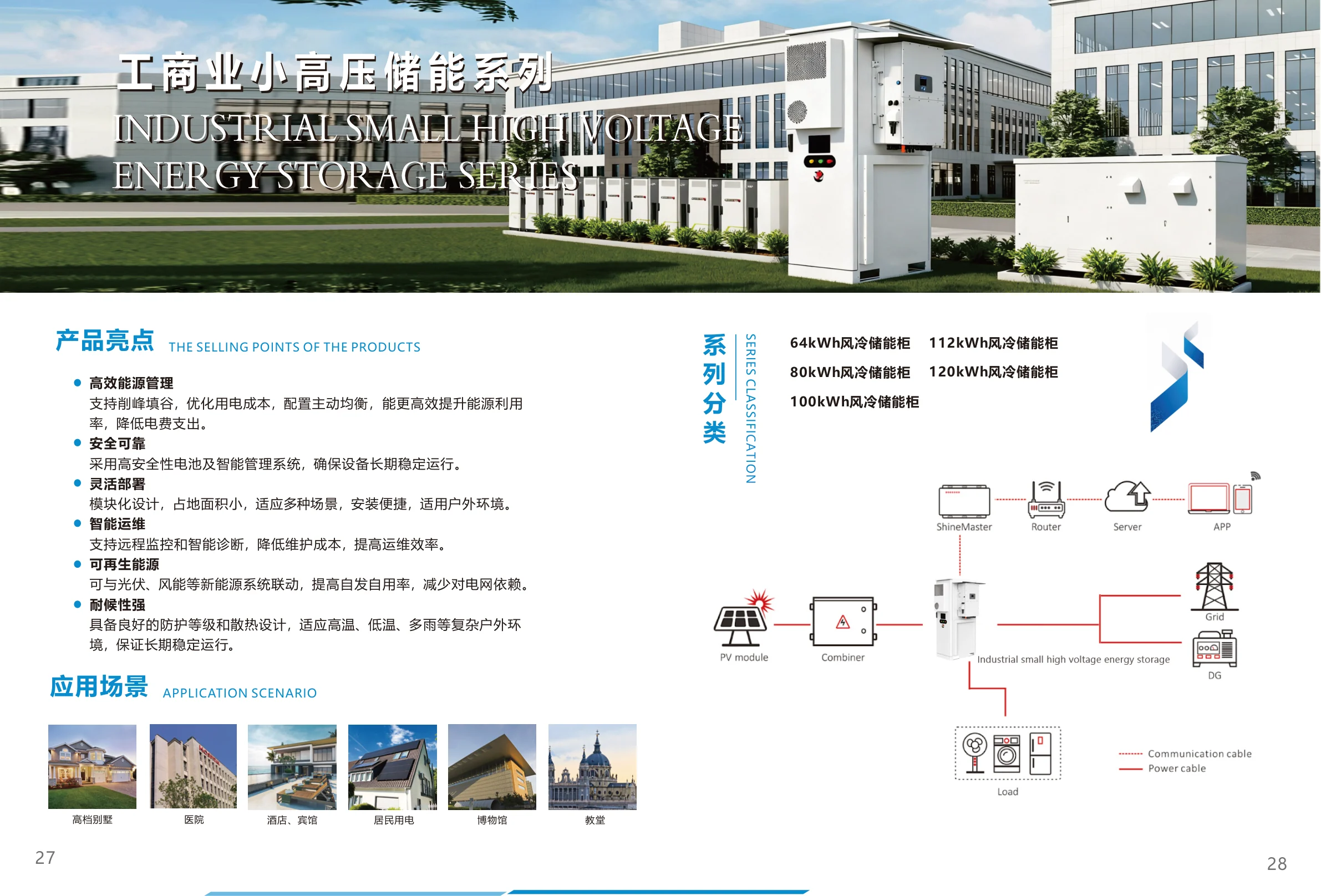

C&I High Voltage ESS Cabinet specifications, dimensions, and application details 5

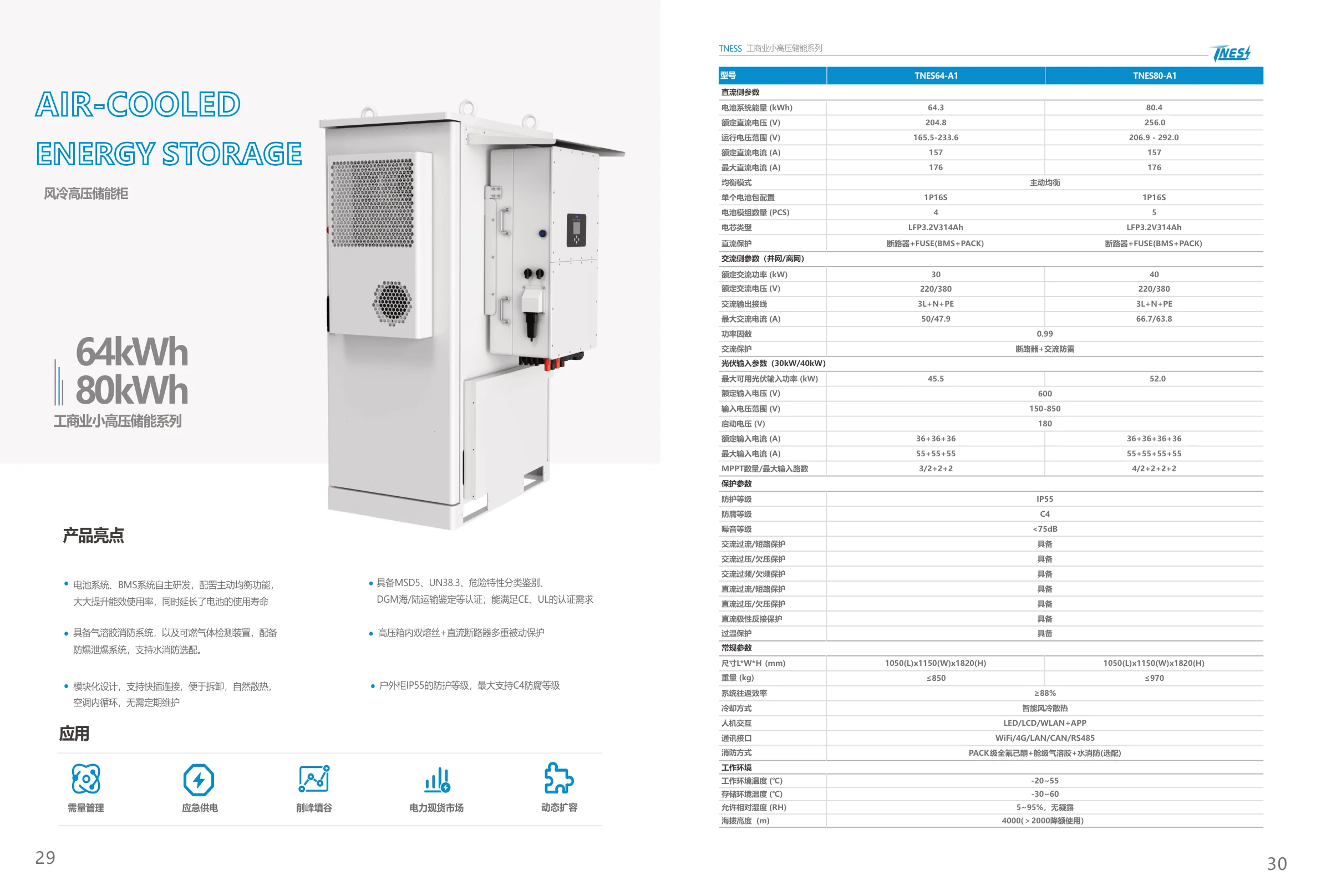

C&I High Voltage ESS Cabinet specifications, dimensions, and application details 6

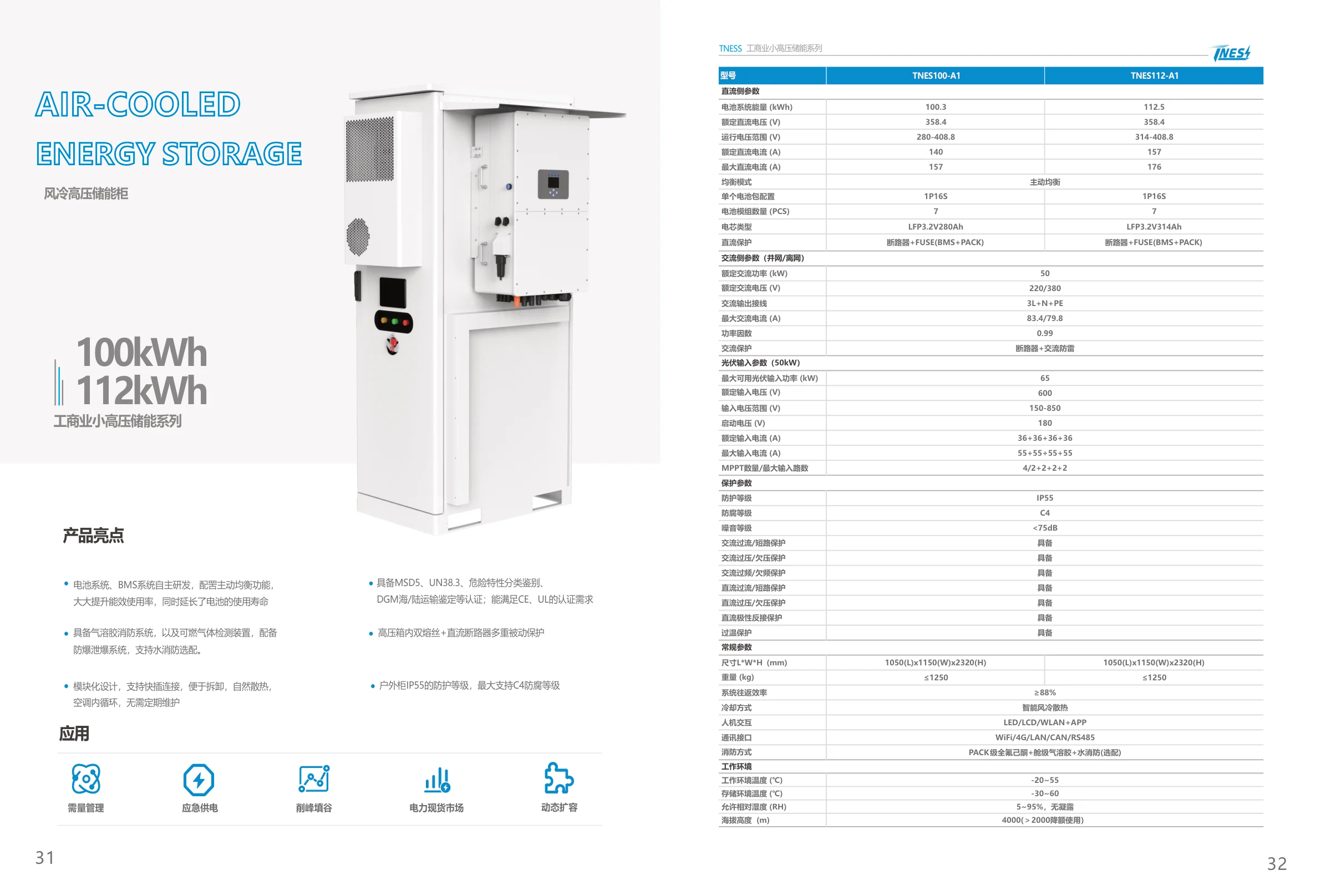

C&I High Voltage ESS Cabinet specifications, dimensions, and application details 7

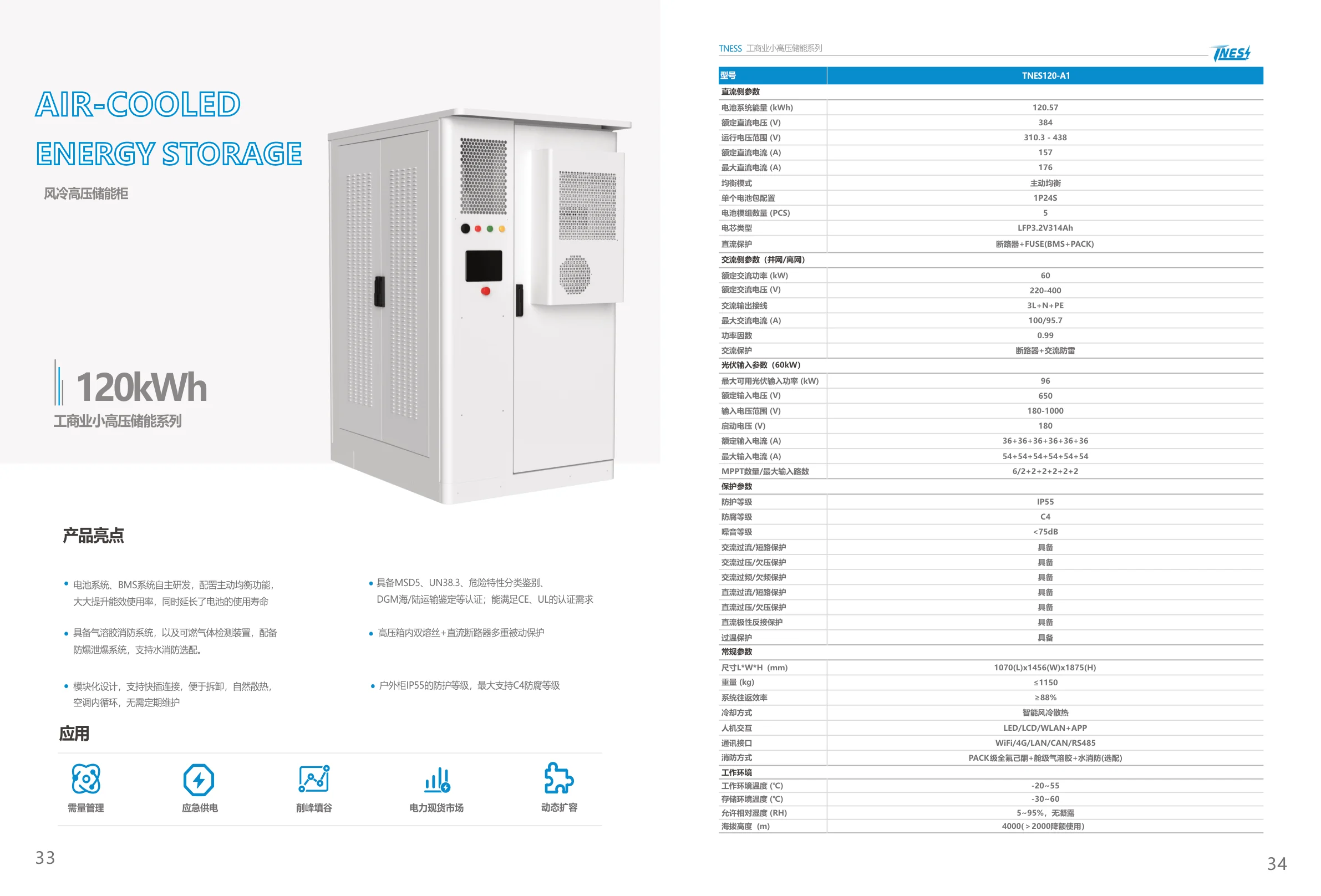

C&I High Voltage ESS Cabinet specifications, dimensions, and application details 8

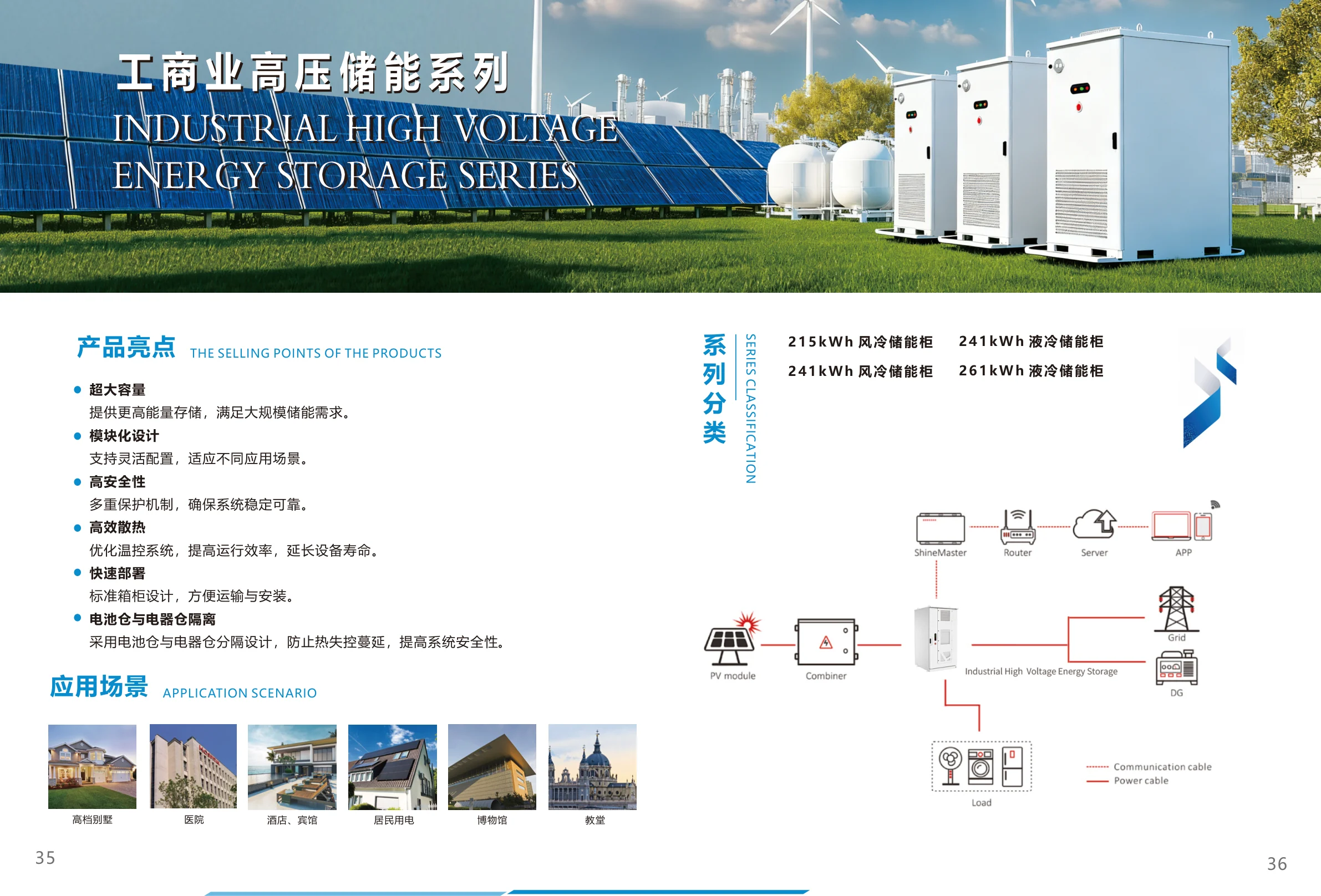

C&I High Voltage ESS Cabinet specifications, dimensions, and application details 9

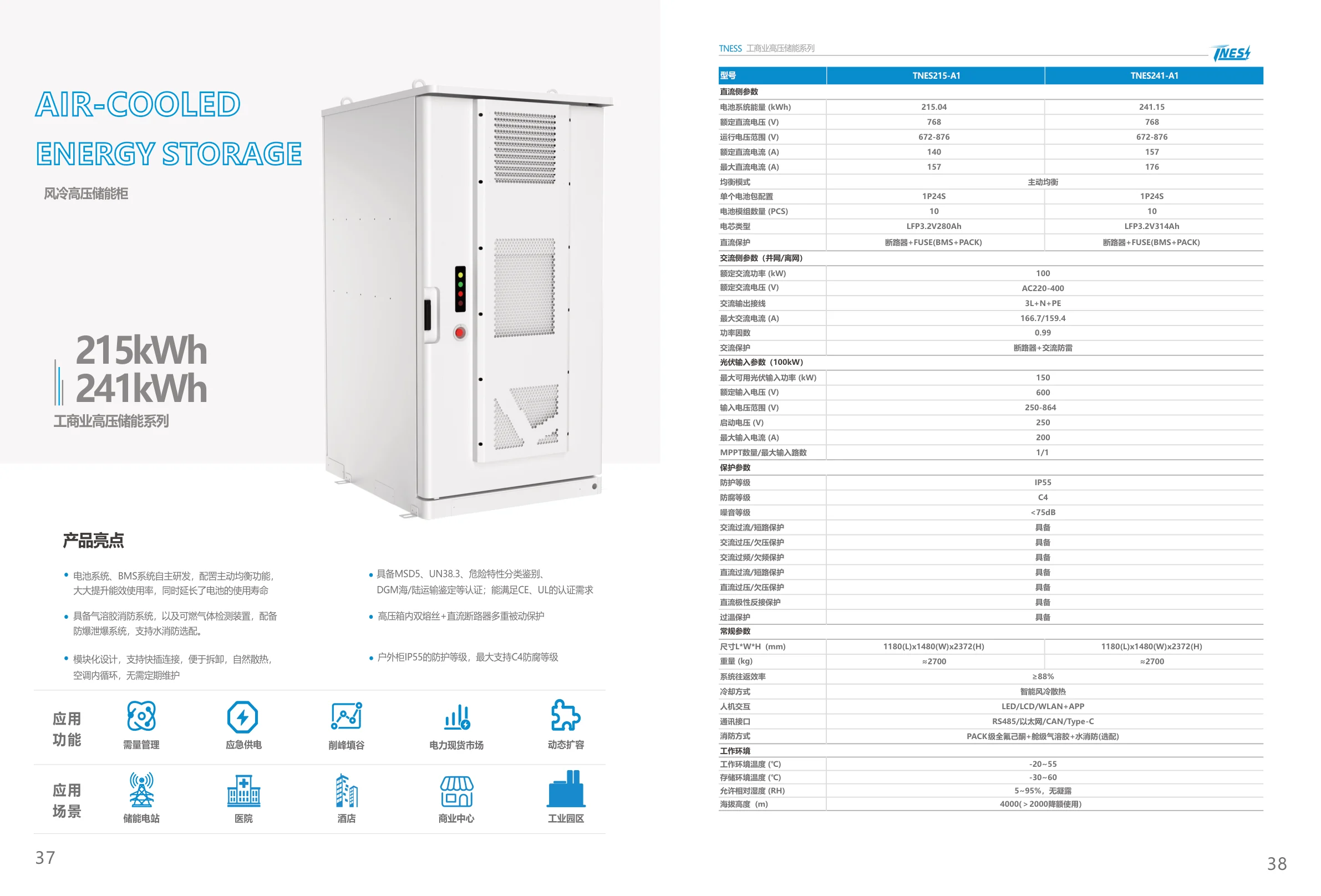

C&I High Voltage ESS Cabinet specifications, dimensions, and application details 10

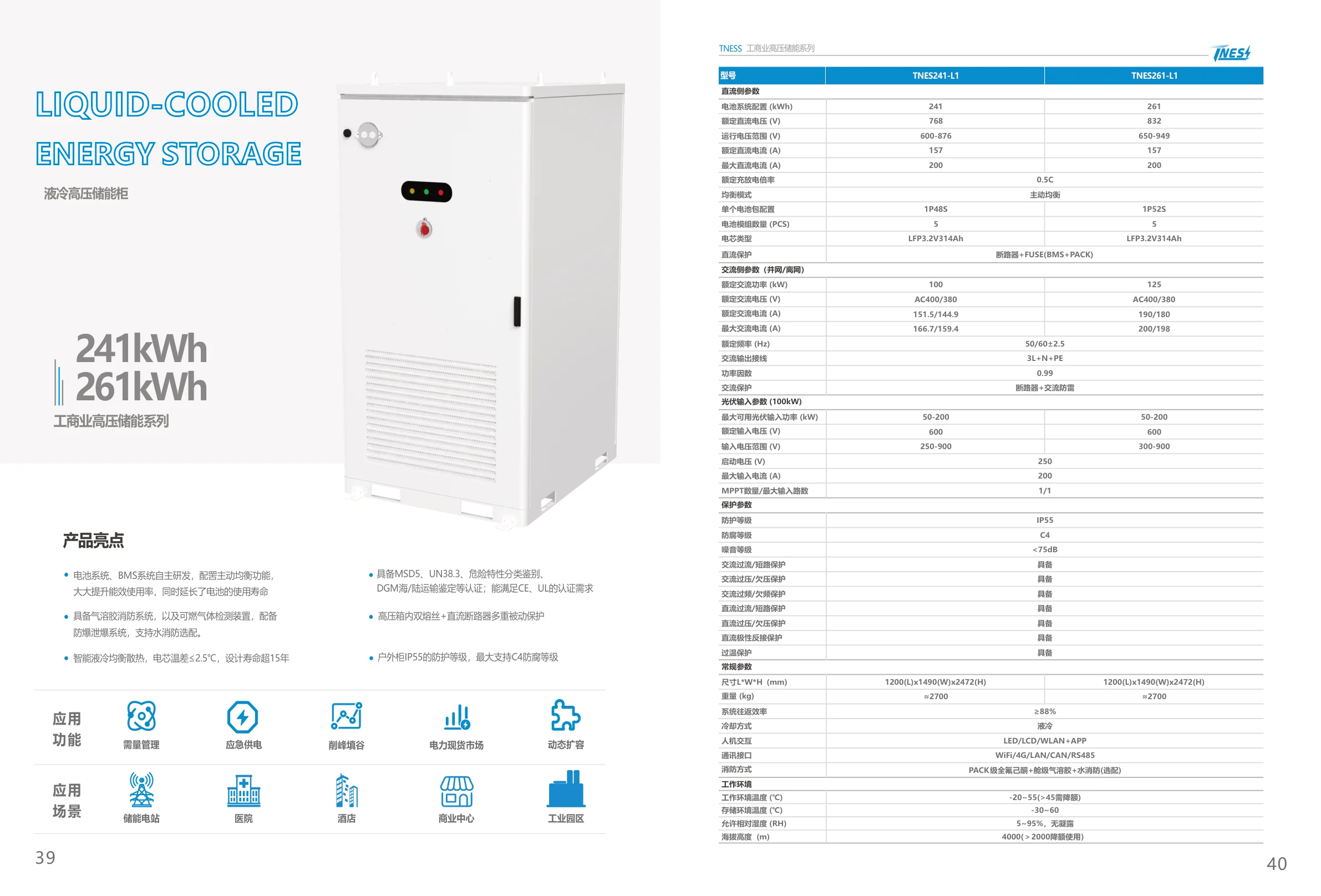

C&I High Voltage ESS Cabinet specifications, dimensions, and application details 11

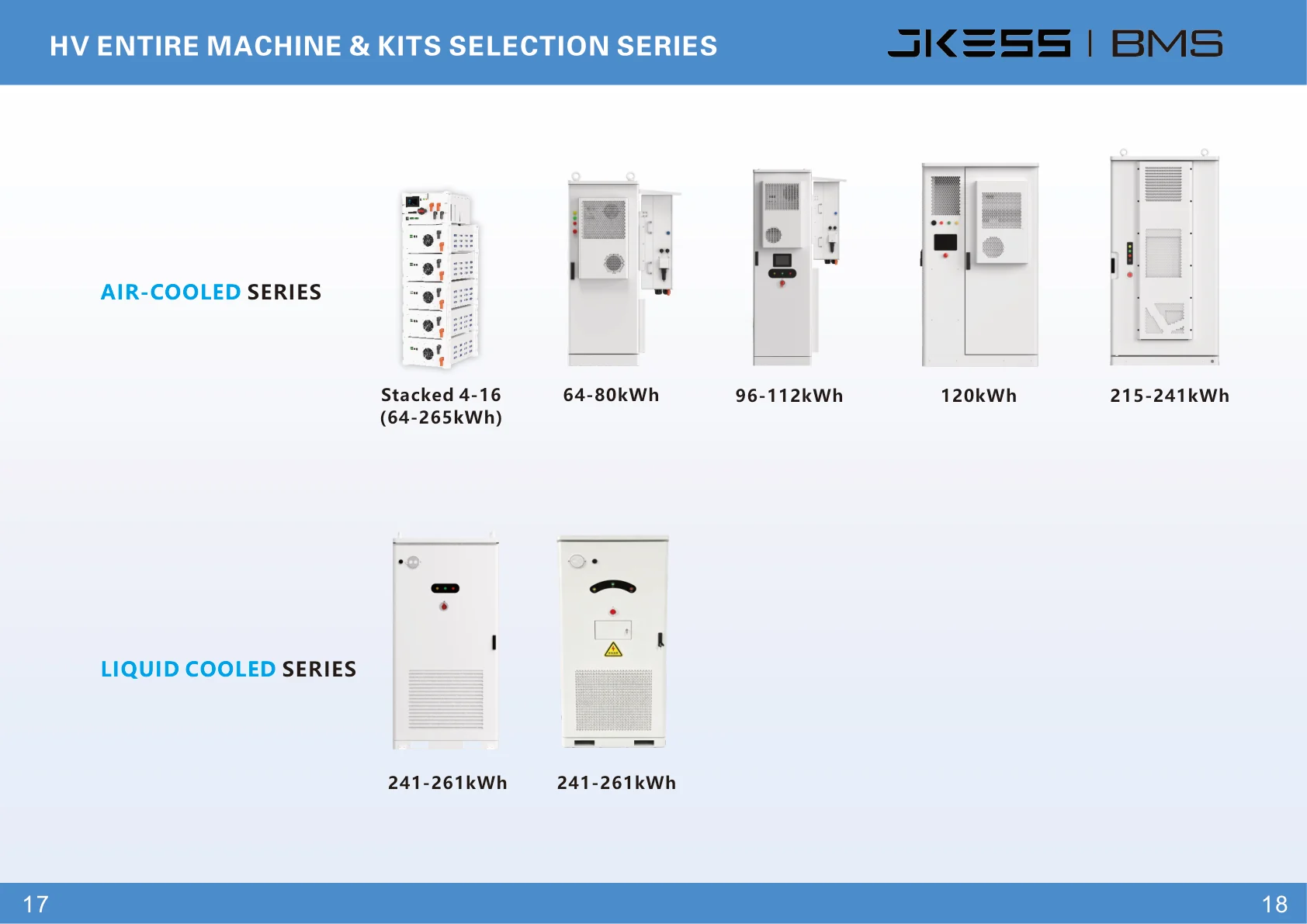

C&I High Voltage ESS Cabinet specifications, dimensions, and application details 12

SELECTION HELP

Check the system requirements before ordering

Technical guides help narrow the product and configuration. The exact product specifications, written quotation, and compatibility confirmation remain the final reference.
