6U Rack Battery Enclosure Kit

6U Battery Kit

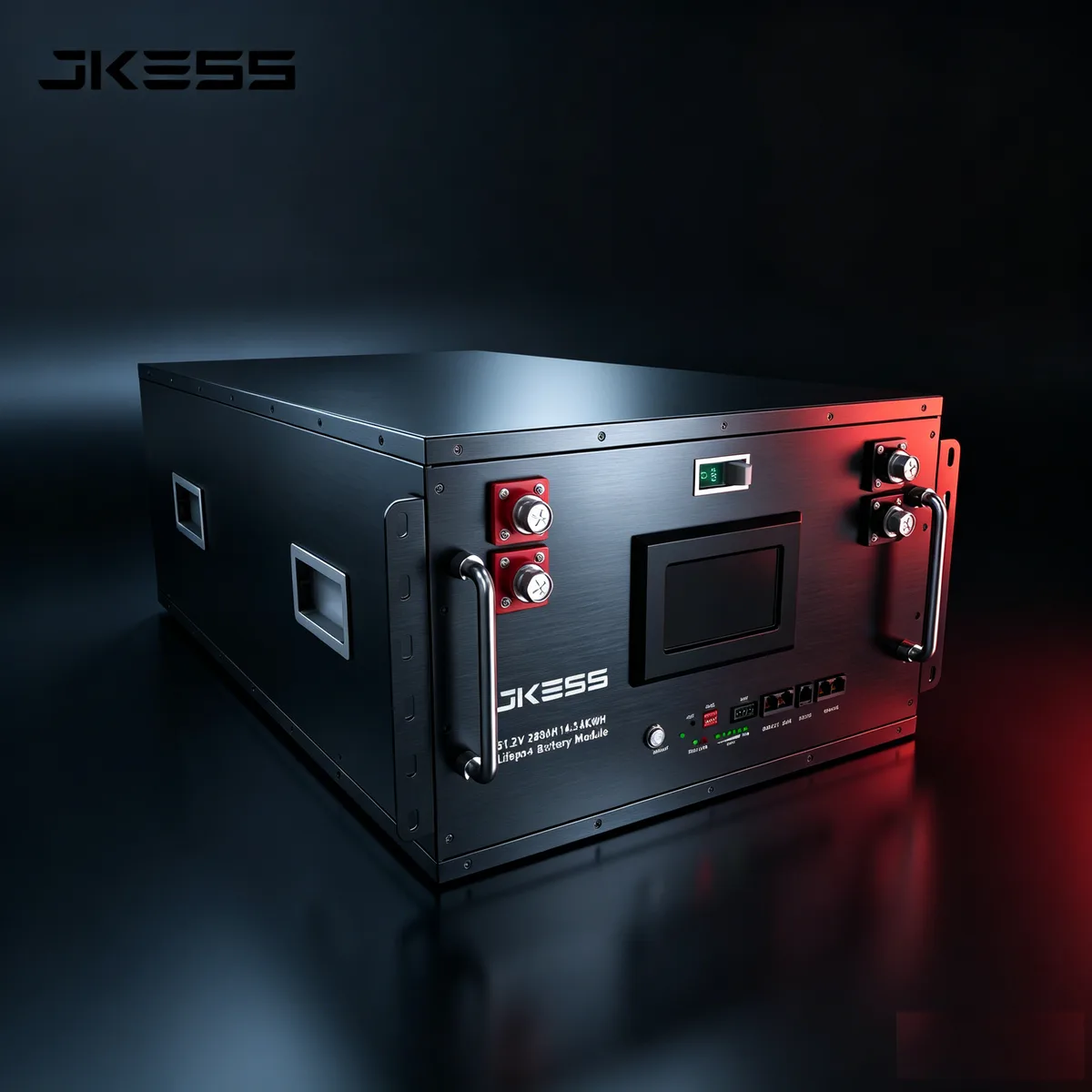

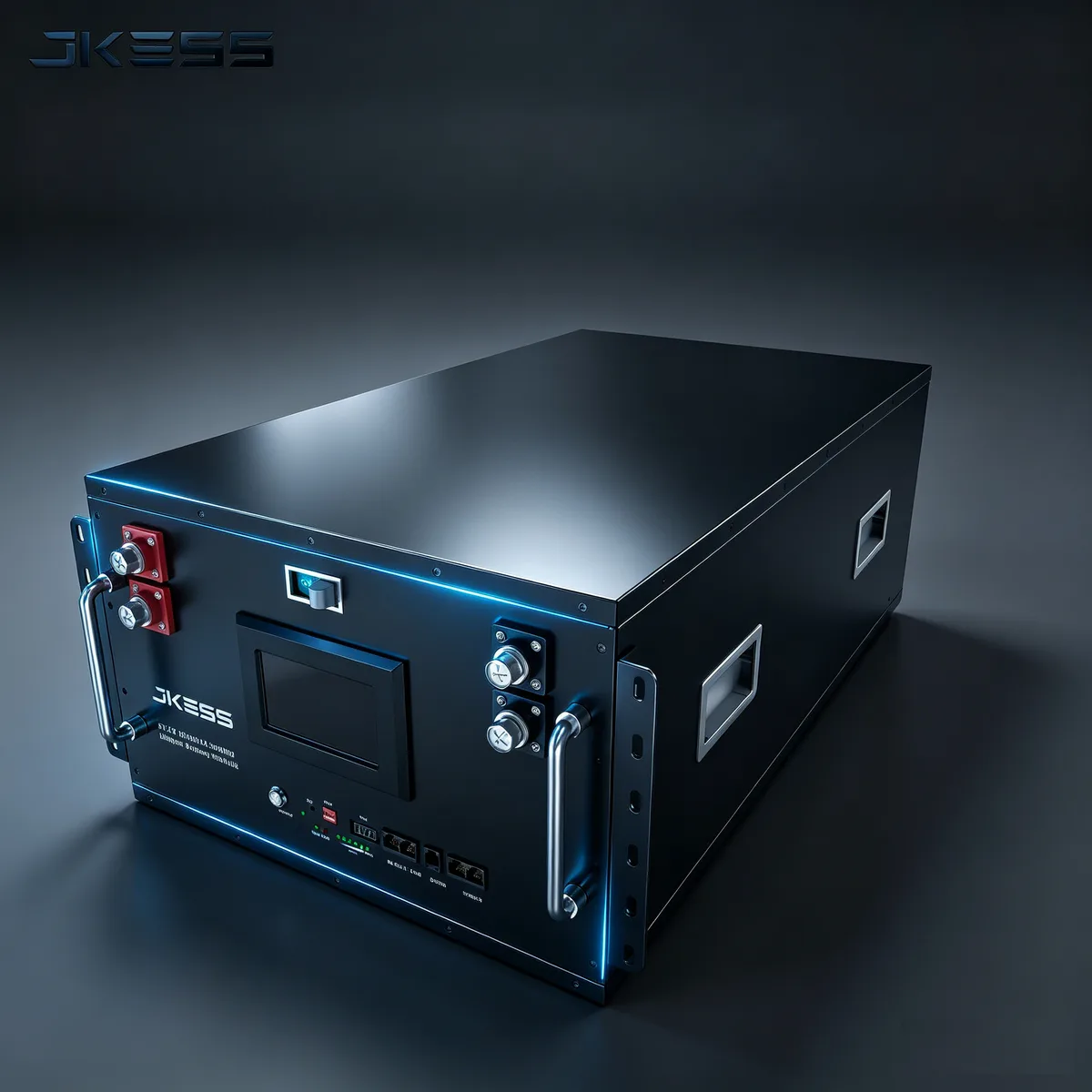

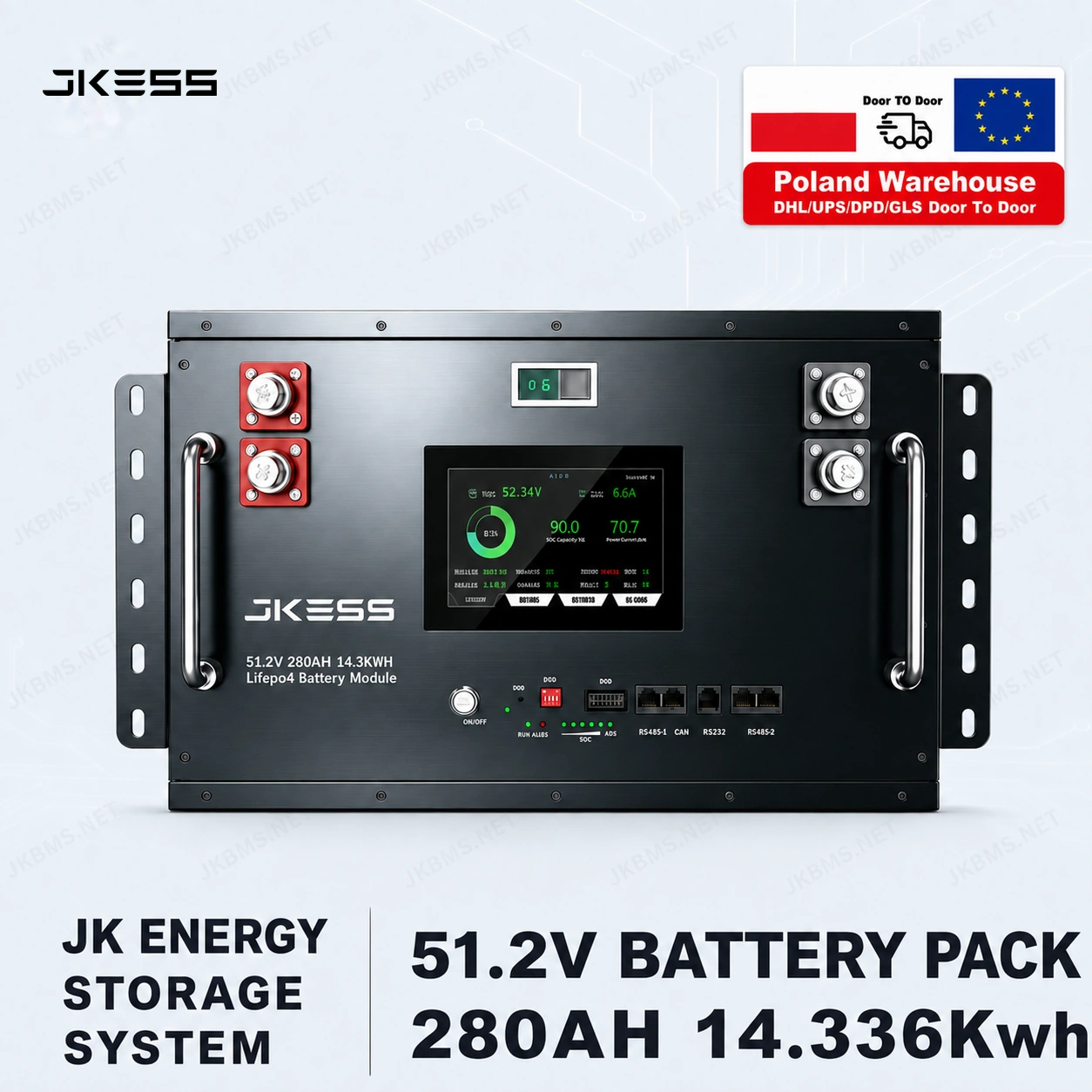

6U rack-mount LiFePO4 enclosure kit with optional BMS and LCD

A 19-inch rack-mount enclosure and assembly hardware kit for building a 51.2V LiFePO4 battery module. The supported 15kWh capacity applies after compatible cells are installed. Battery cells are not included.

Communication: CAN 2.0 / RS485 with compatible BMS option
Dimensions: 715 × 472 × 270 mm
Product Type: 6U rack battery enclosure and assembly hardware kit
Supported Assembled Capacity: 15kWh after compatible cells are installed
Battery Cells Included: No

View complete specifications

Choose configuration

Selected configuration$380.00

Shipping is calculated by destination during checkout. PayPal verifies and captures the final amount securely.

Product details

Supply scope and specifications

Key features

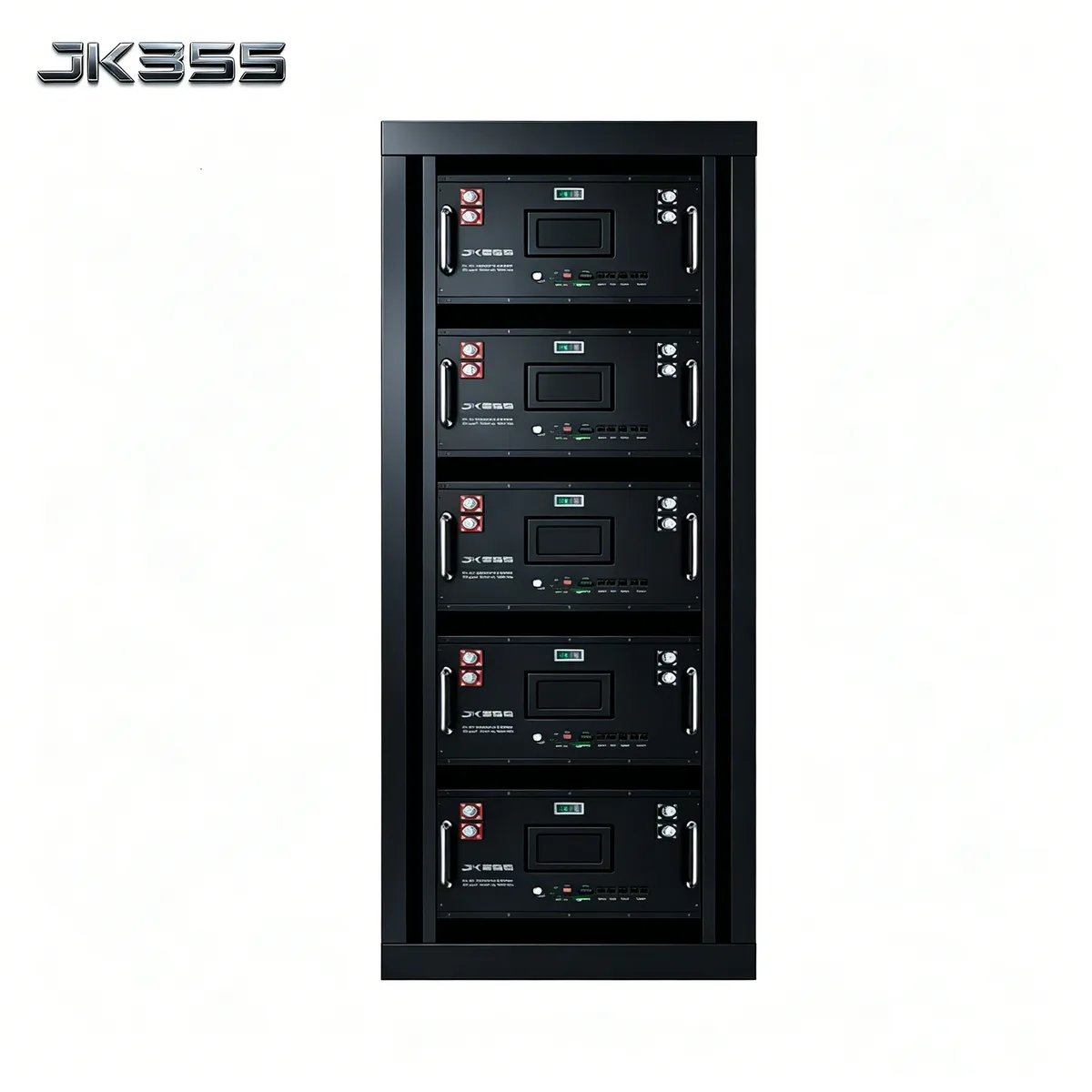

6U rack-mount form factor for standard 19-inch cabinets
Supports a 51.2V 15kWh assembled configuration after compatible cells are installed
Optional intelligent BMS with active balancing

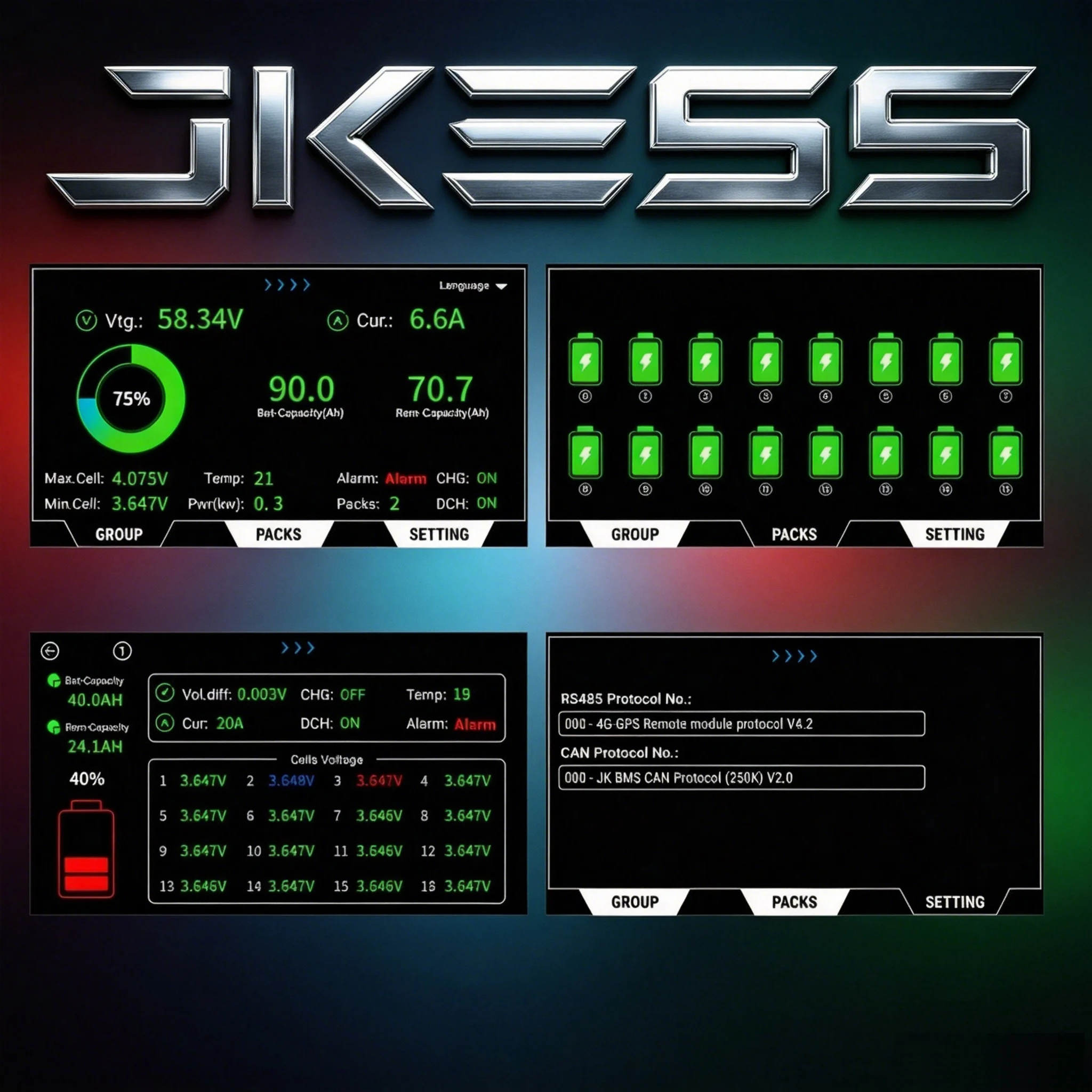

Optional 4.3-inch LCD for voltage, current, temperature, and SOC monitoring
CAN / RS485 communication with compatible electronics

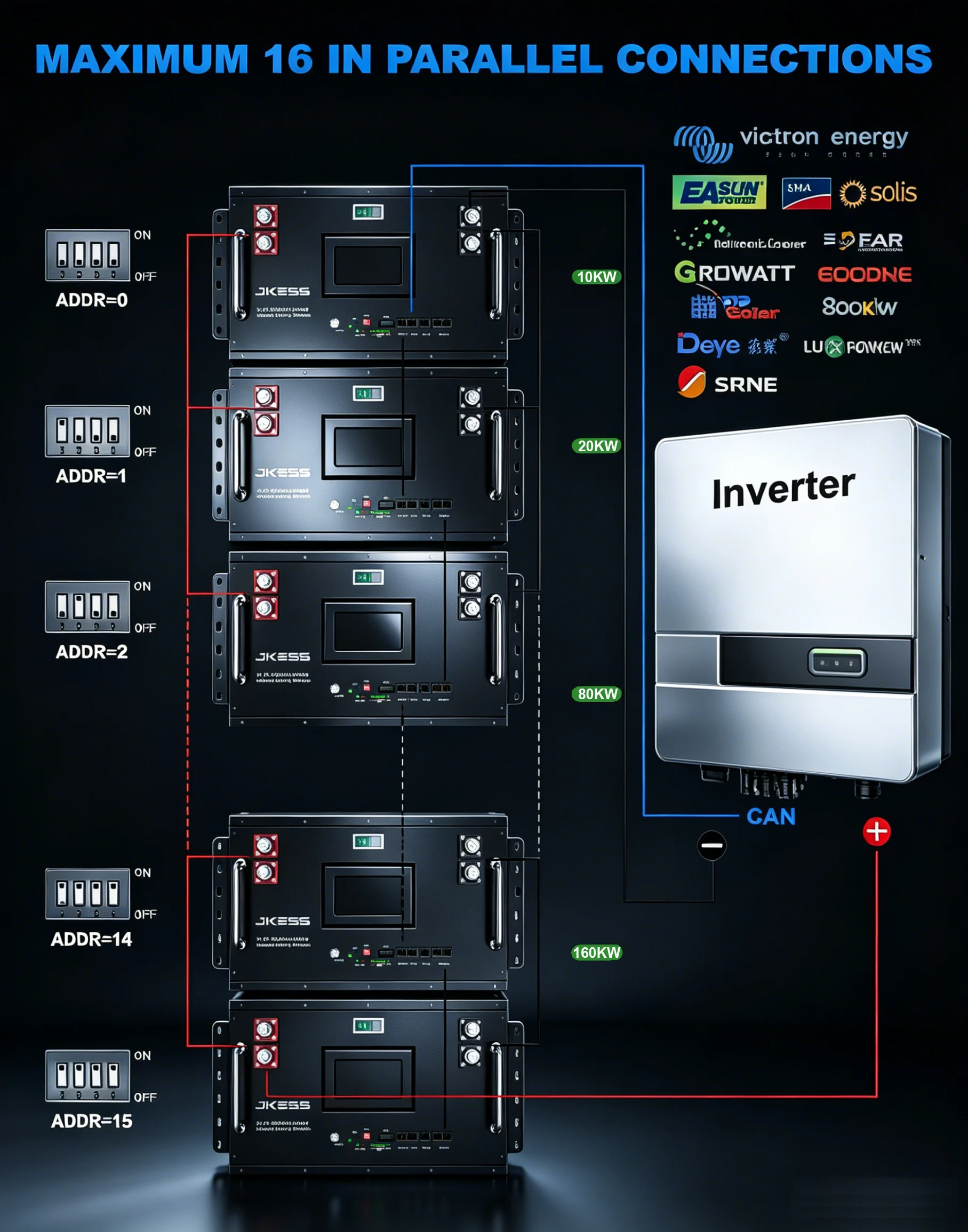

Modular design for planned parallel expansion
1-year warranty for supplied hardware

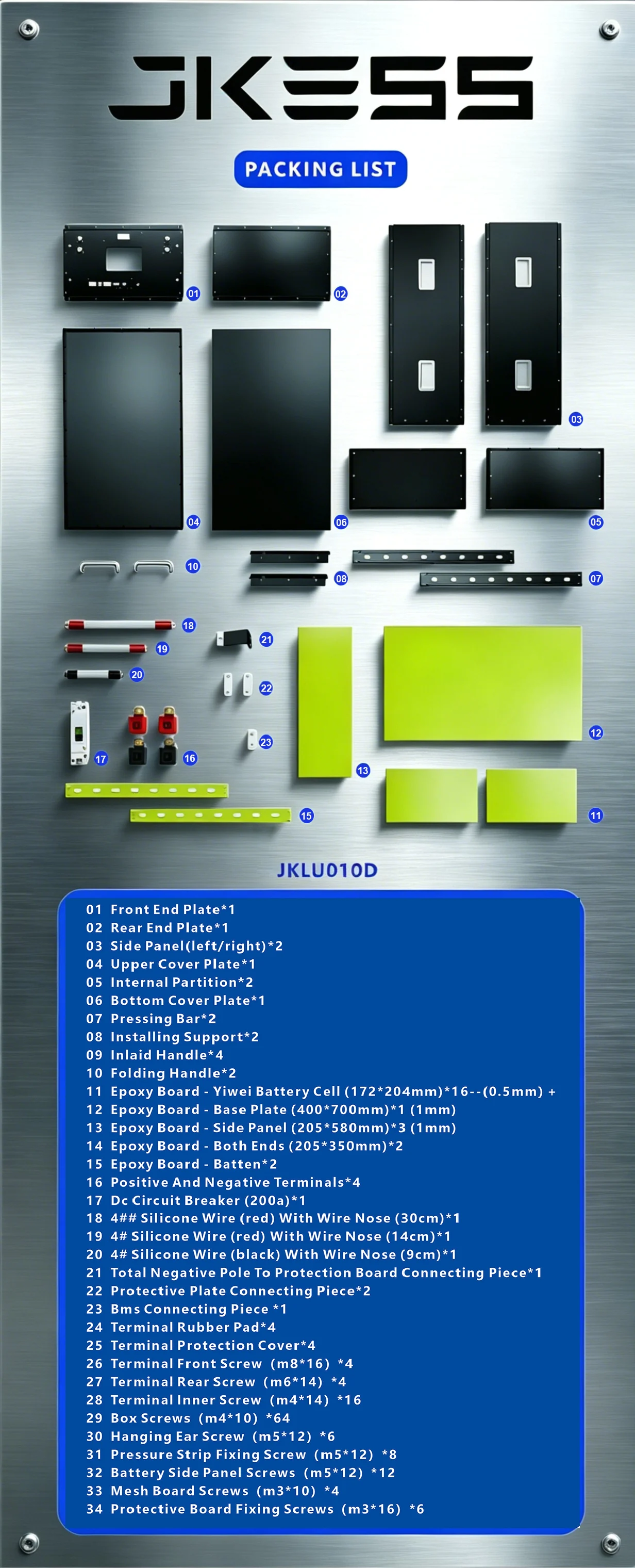

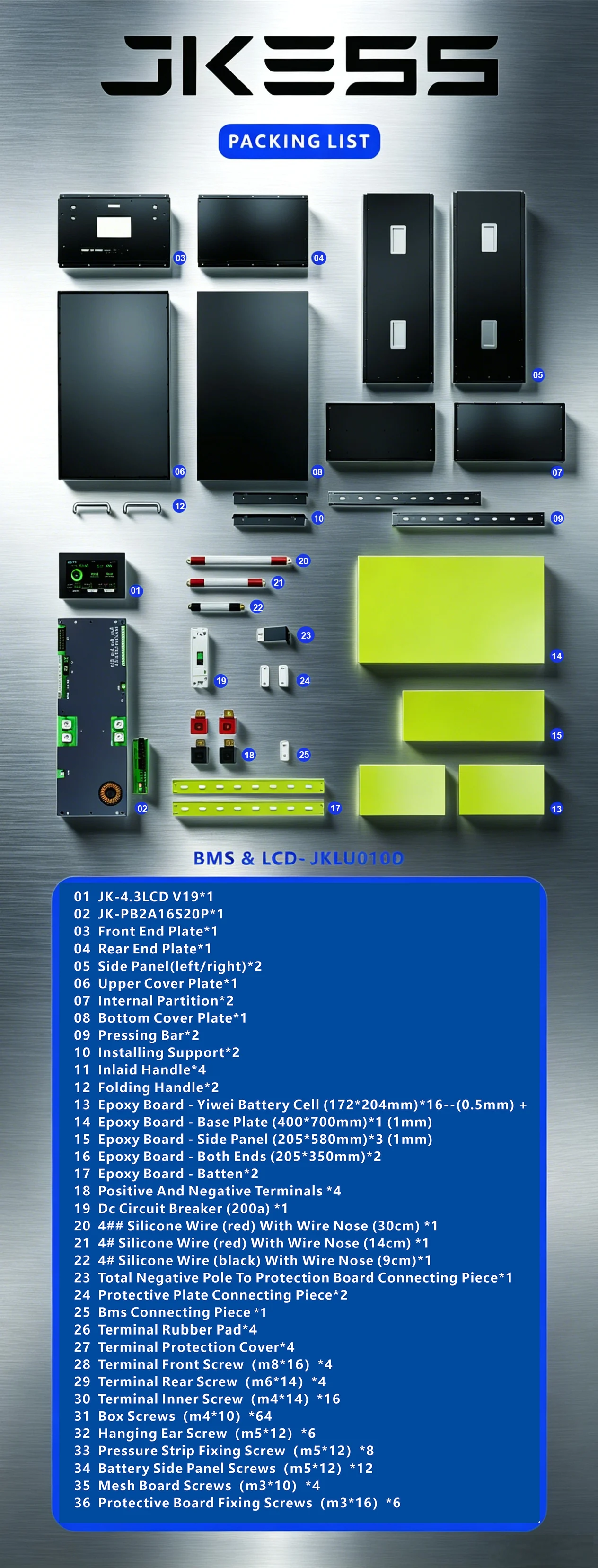

Included

6U sheet-metal enclosure for standard 19-inch rack installation
Internal mechanical and connection hardware supplied with the selected package
4.3-inch LCD and BMS only when the Enclosure + LCD + BMS option is selected
Standard packing list and applicable product documentation

Not included

LiFePO4 battery cells
External rack cabinet, inverter, charger, breaker, and external cabling
Onsite assembly, installation, and commissioning
Any component not listed in the selected variant or final packing list

Product Type6U rack battery enclosure and assembly hardware kit

Supported Assembled Capacity15kWh after compatible cells are installed

Battery Cells IncludedNo

Nominal Voltage51.2V assembled configuration

Package OptionsEnclosure Only / Enclosure + LCD + BMS

Form Factor6U rack-mount, 19-inch

Cell ChemistryLiFePO4 compatible

CommunicationCAN 2.0 / RS485 with compatible BMS option

DisplayOptional 4.3-inch LCD touch display

Operating Temperature-20°C ~ 60°C, component dependent

Protection RatingIP20 indoor enclosure design

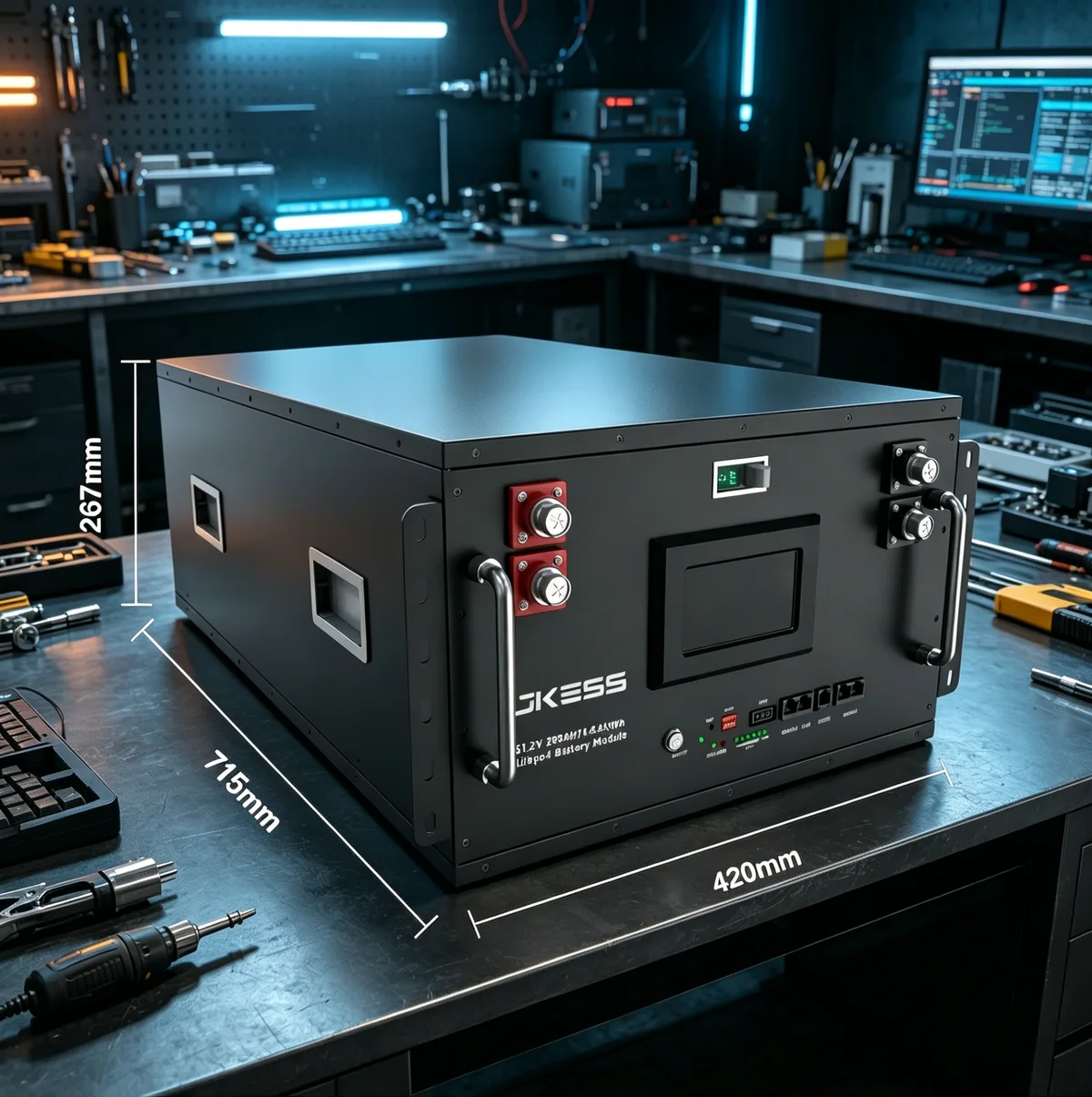

Dimensions715 × 472 × 270 mm

Weight~25 kg empty, configuration dependent

Warranty1 year for supplied hardware

Detailed product information

Complete visual product guide

Review the full product illustrations, dimensions, component information, and application notes before selecting a configuration.

6U Battery Kit specifications, dimensions, and application details 1

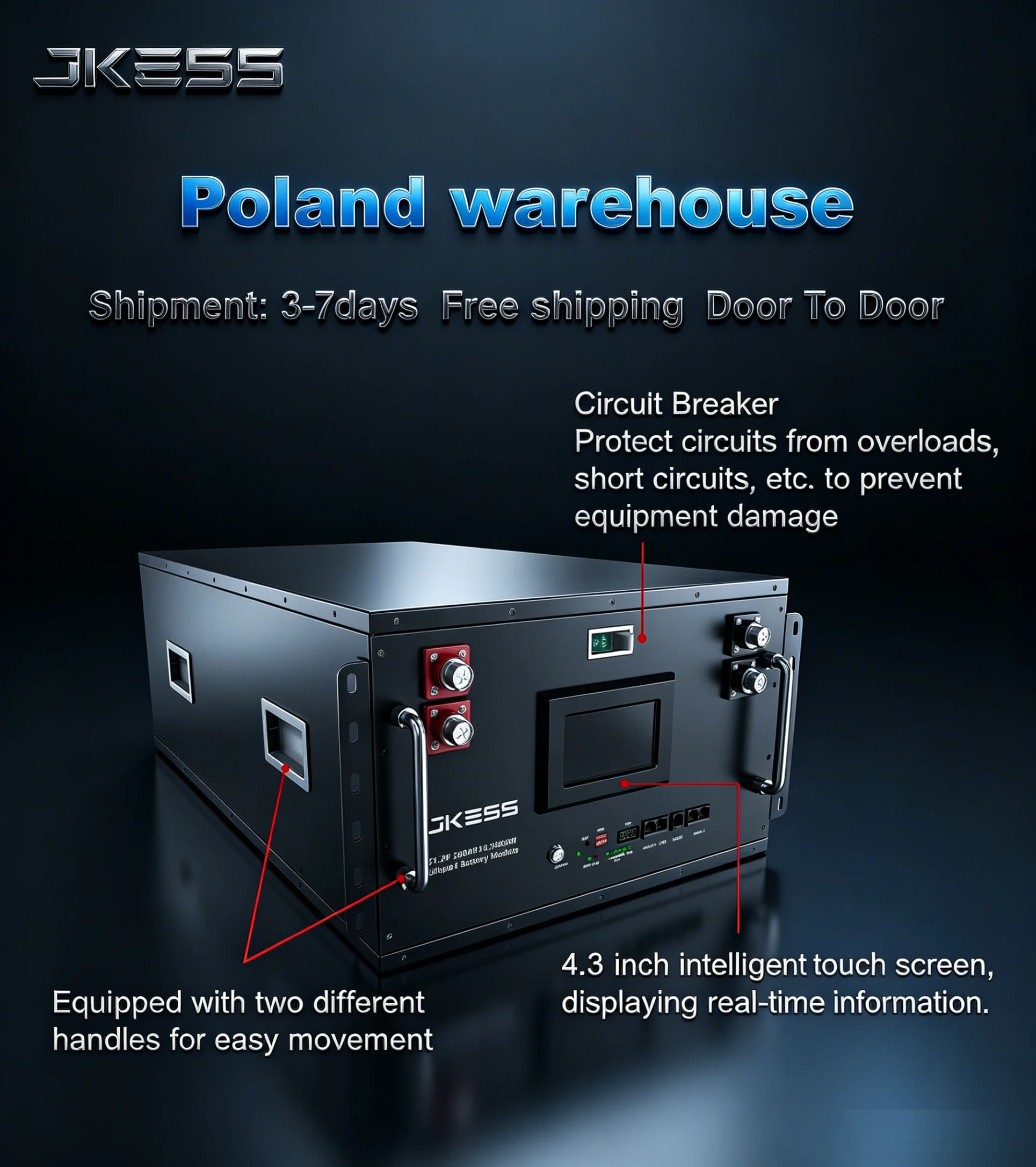

6U Battery Kit specifications, dimensions, and application details 2

6U Battery Kit specifications, dimensions, and application details 3

6U Battery Kit specifications, dimensions, and application details 4

6U Battery Kit specifications, dimensions, and application details 5

6U Battery Kit specifications, dimensions, and application details 6

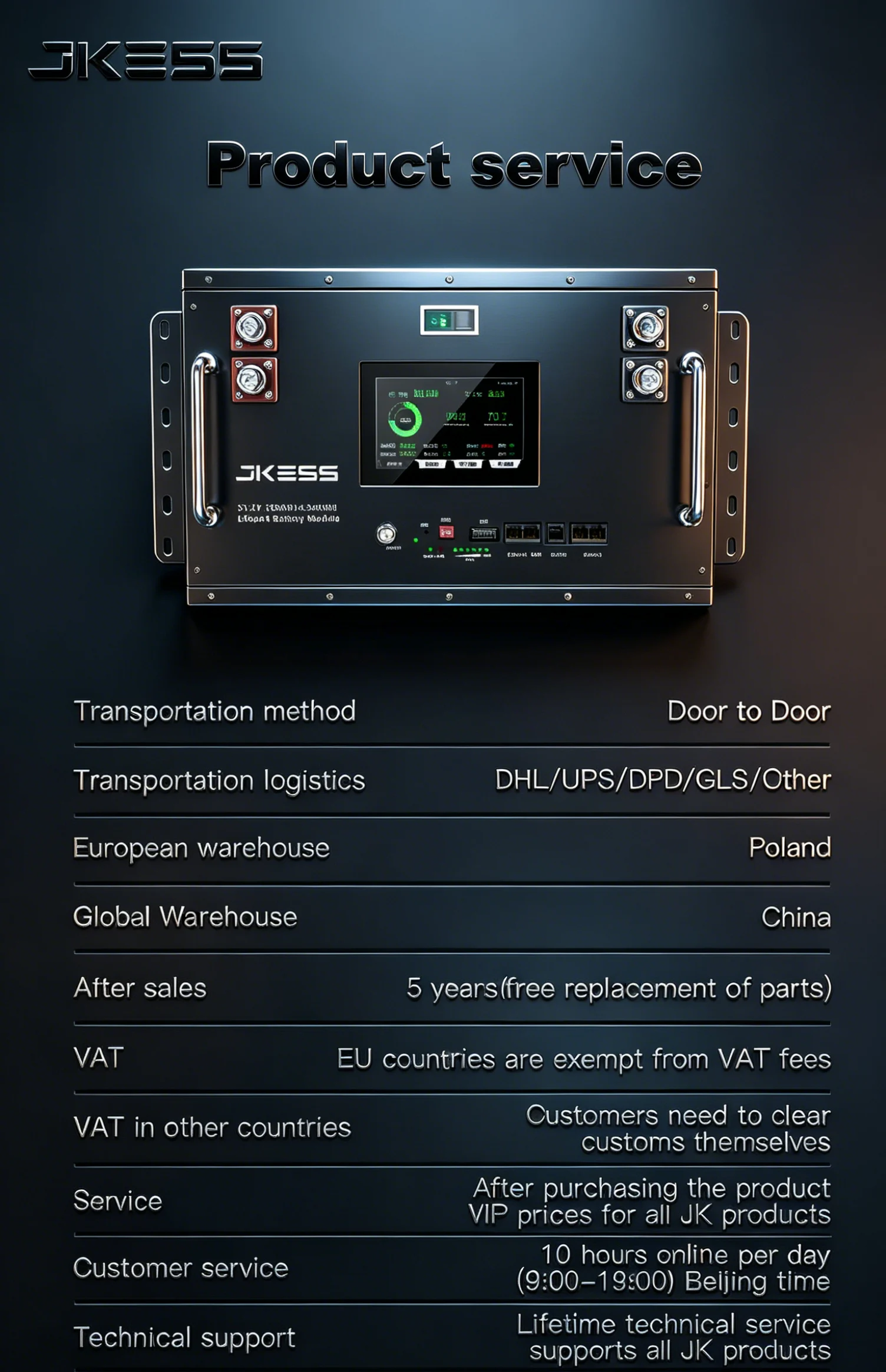

6U Battery Kit specifications, dimensions, and application details 7

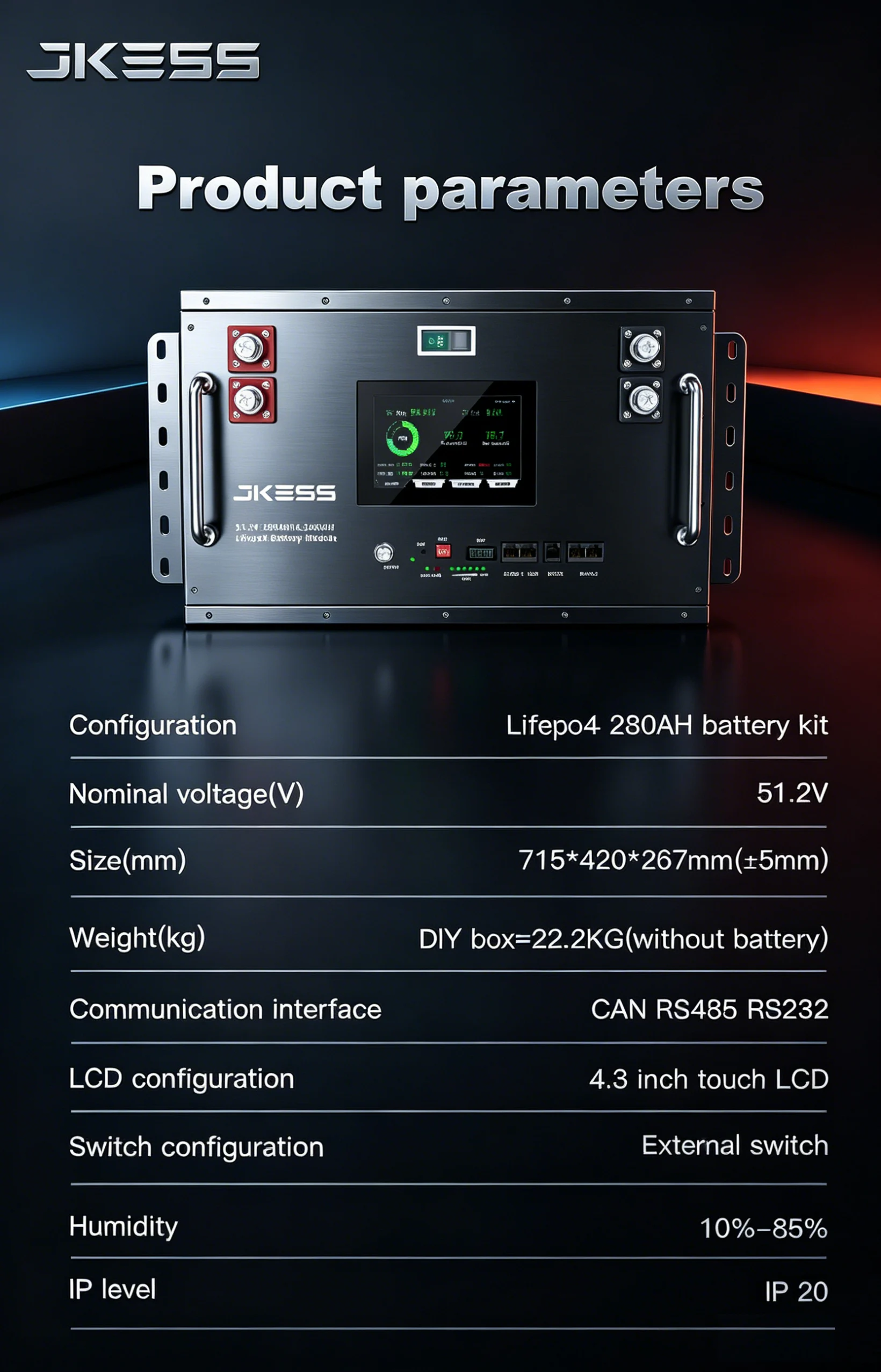

6U Battery Kit specifications, dimensions, and application details 8

6U Battery Kit specifications, dimensions, and application details 9

6U Battery Kit specifications, dimensions, and application details 10

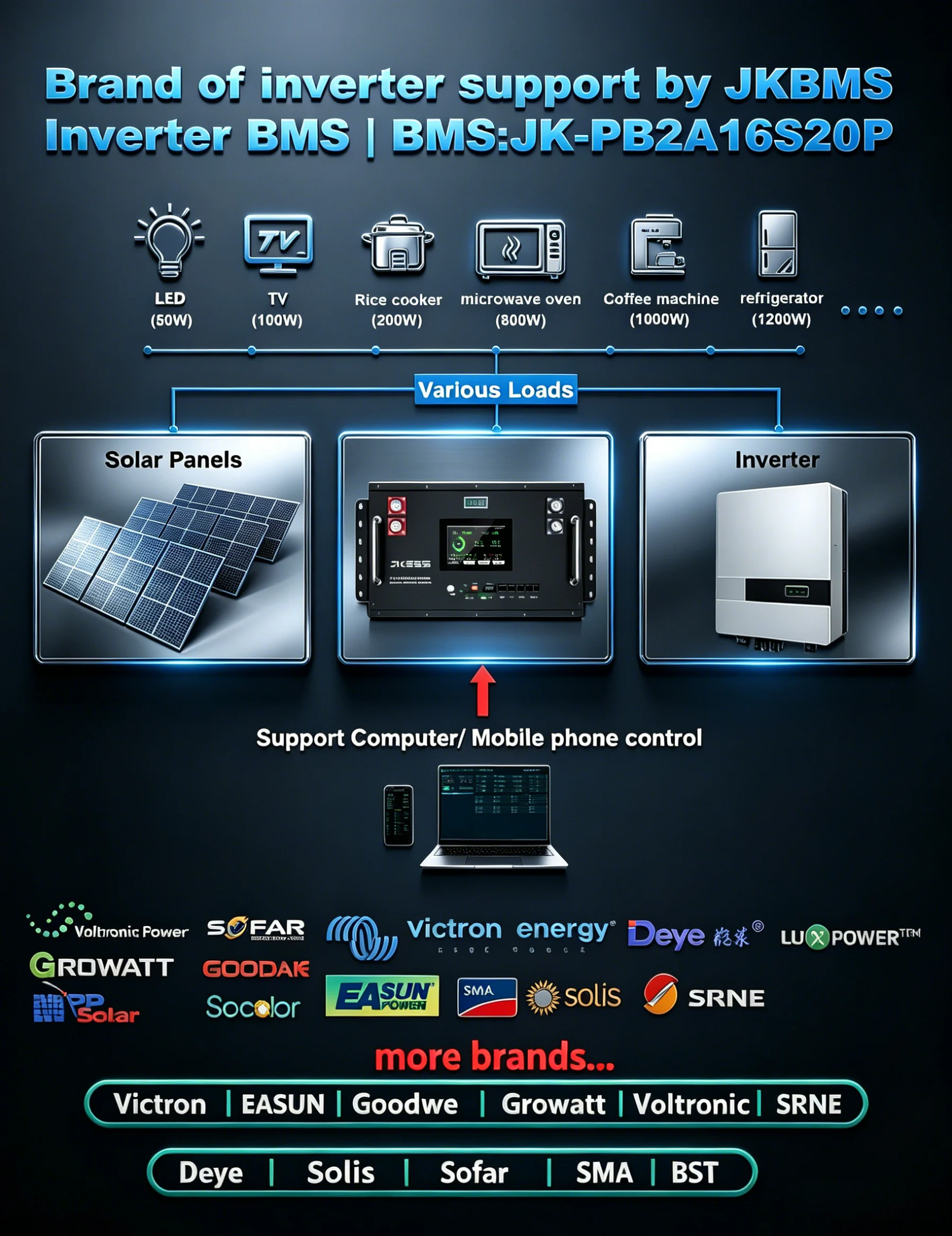

6U Battery Kit specifications, dimensions, and application details 11

6U Battery Kit specifications, dimensions, and application details 12

6U Battery Kit specifications, dimensions, and application details 13

6U Battery Kit specifications, dimensions, and application details 14

6U Battery Kit specifications, dimensions, and application details 15
