JKBMS PRODUCT

JKBMS JK-B1A / B2A Series

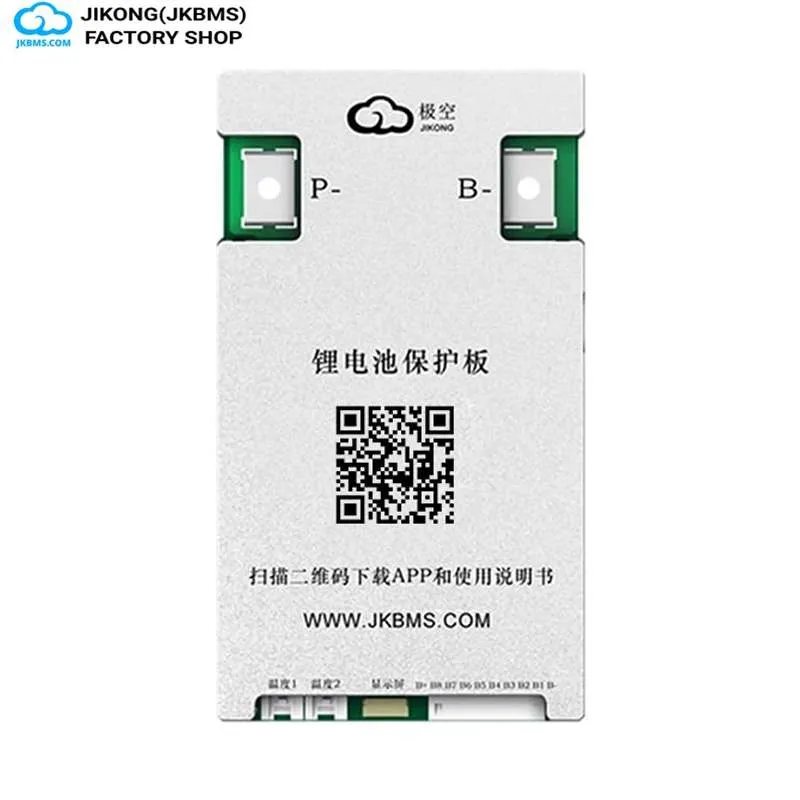

JKBMS JK-B1A8S10P Smart Active Balance BMS

B1A/B2A smart active-balance BMS for DIY and system battery packs

A JK-B1A/B2A smart BMS for lithium packs up to 8S, rated at 100 A continuous discharge and 1 A active balancing. Bluetooth are listed. Use a compatible harness for the installation.

1 / 6
Total$74.16

Product details

Supply scope and specifications

Key features

  • B1A/B2A active-balance BMS platform
  • Smart monitoring and protection for lithium packs
  • Model-specific cell count and discharge-current range
  • Suitable for DIY battery builds and system maintenance
  • Series rating: 3-8S
  • Continuous discharge: 100A
  • Active balance current: 1A
  • Communication: Bluetooth

Included

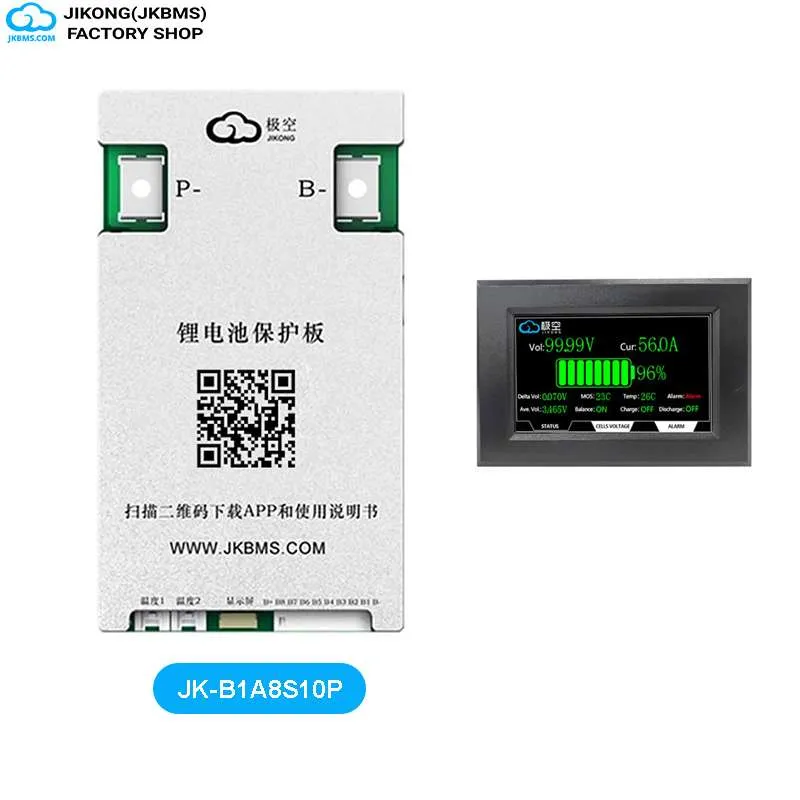

  • Selected JKBMS smart BMS model or display bundle
  • Model-specific wiring harness and standard accessories supplied with the product
  • Documentation or setup references supplied with the selected package

Not included

  • Battery cells, battery enclosure, inverter, charger, and external power cabling
  • External contactors, breakers, fuses, and installation hardware unless specified
  • Onsite installation, commissioning, firmware setup, or inverter configuration service
ModelJK-B1A8S10P
SeriesJKBMS JK-B1A / B2A Series
Balance Current1A
Continuous Discharge100A
CommunicationBluetooth

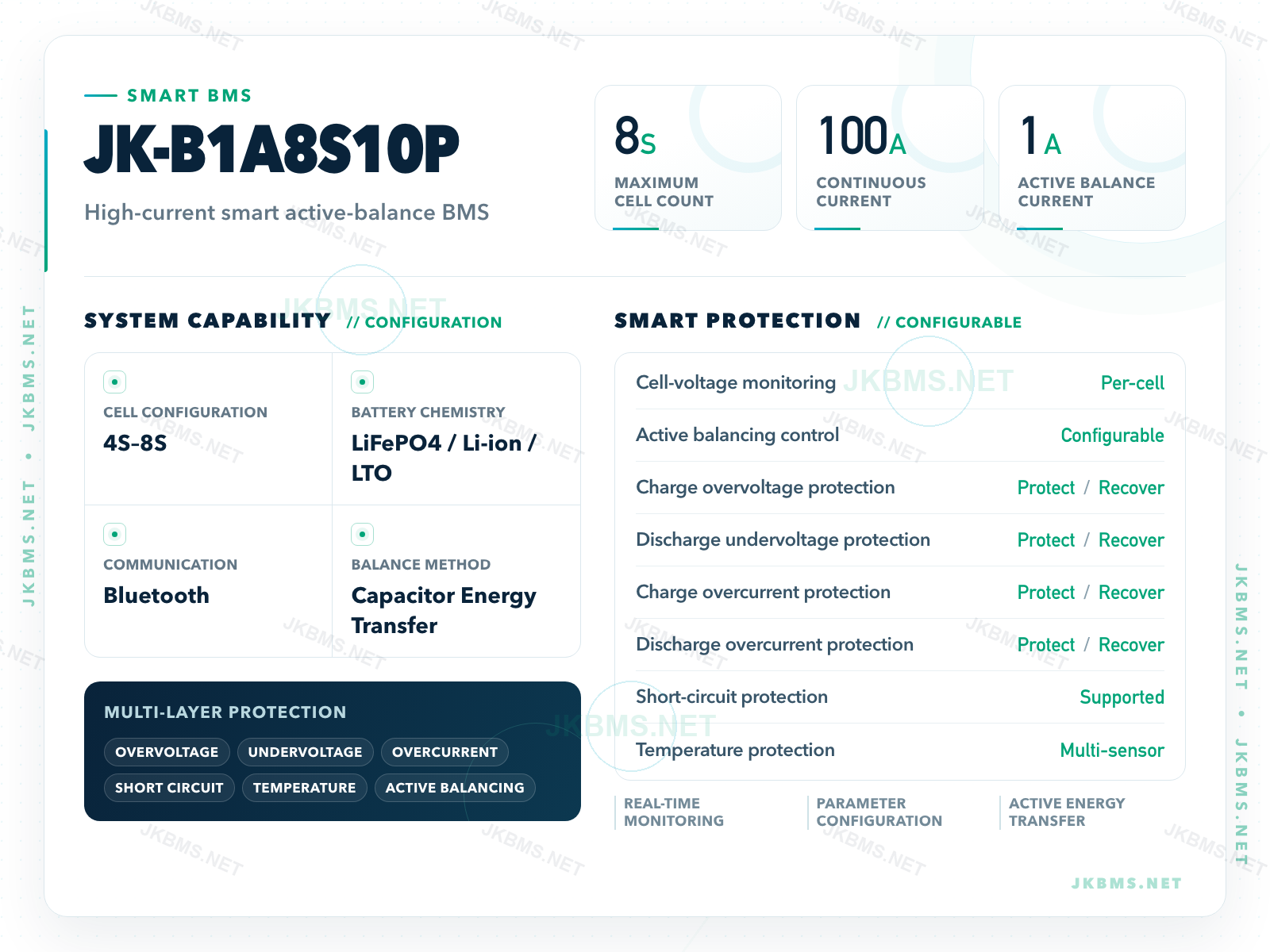

JK-B1A8S10P technical parameters, 4S–8S, 100A, 1A active balance
TECHNICAL SPECIFICATIONS

JK-B1A8S-10P parameter details

Hardware revisions and optional interfaces vary by configuration. Use the correct wiring and protection settings for your system. Use the revision-matched manual for wiring.

View specifications as text
JK-B1A8S-10P specifications
Selected modelJK-B1A8S-10P
ConfigurationJK-B1A8S10P
Continuous current (catalog)100 A; duty limits require confirmation
Battery chemistry / stringsLi-ion (ternary/NMC): 3-8S; LiFePO4 (LFP): 3-8S; Lithium titanate (LTO): 7-8S
Active balance1 A
Maximum charge100 A
Maximum discharge (not continuous)100 A
Documented standard interfacesBluetooth, UART, display interface
Specification basisCompany model catalog (2026-07-11); JK product specification V19.1.1, exact JK-B1A8S-10P adaptation row and function selection table, pages 1, 8-9, 16 (V19.1.1)
Model parameter chartEnglishFull-size chart
JK-B1A8S-10P current model specification table, with qualified current ratings, source basis and confirmation notes.

Product resources

Specifications depend on hardware revision. Use a compatible harness and follow the applicable installation instructions.

HARDWARE SPECIFICATIONS

JK-B1A8S-10P data by hardware revision

The V19.1.1 exact-model table names JK-B1A8S-10P, verifies chemistry-specific string limits, 100 A maximum charge and discharge current, 1 A active balancing, and standard Bluetooth, UART and display interfaces. Wired interfaces and heating are suffix-specific.

Battery compatibility

Chemistry changes the series range

Li-ion (ternary/NMC)
3–8S
LiFePO4 (LFP)
3–8S
Lithium titanate (LTO)
7–8S

Electrical limits

Use the correct rating label

Active balance
1 A
Maximum charge
100 A
Maximum discharge
100 A
Instantaneous current
200 A

These are manual maximum values. Continuous current duty and complete-system conductor, fuse and thermal design require confirmation.

Interfaces and functions

Standard is not the same as optional

Standard

Bluetooth · UART · display interface

Optional / suffix-dependent

CAN · RS485 · heating control

Additional standard functions

charge overvoltage and overcurrent protection · discharge undervoltage and overcurrent protection · short-circuit protection

  • CAN, RS485 and heating are defined by the exact function-selection suffix. A base model does not include every optional function.

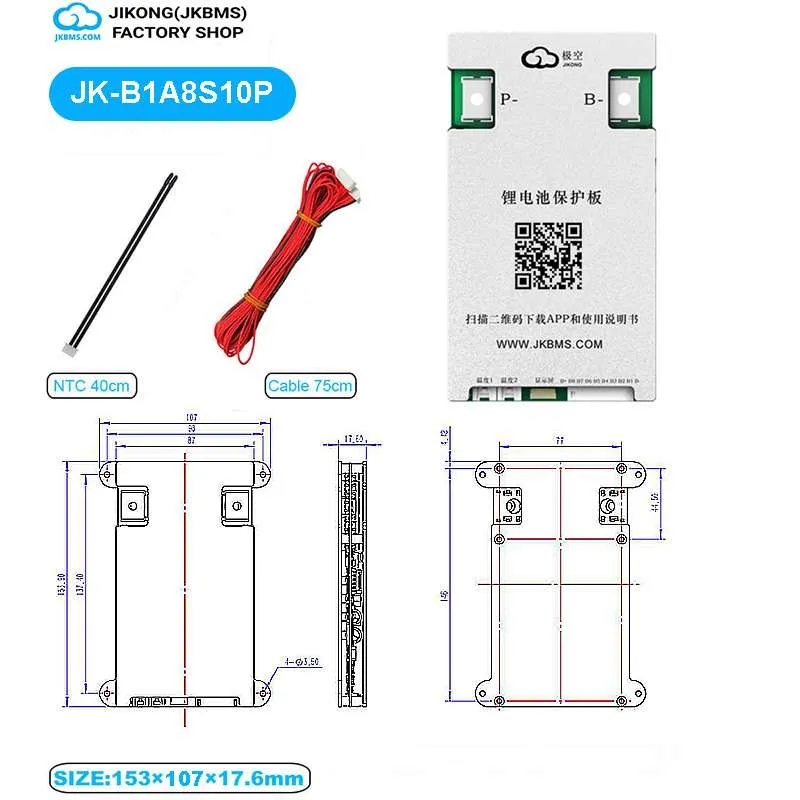

Mechanical and environment

Match dimensions to the label

Revision control matters.
  • These facts apply only to JK-B1A8S-10P V19.1.1. The ordered suffix, connector pinout and harness must be compatible with the system. Other model suffixes do not inherit this profile.

TECHNICAL DOCUMENTS

Product manuals

Documentation review recorded 2026-10-12. Technical facts apply only to the named document and hardware revisions; this is not a manufacturing date.

Browse the official technical library →

Before ordering

Four details that prevent the wrong configuration

  1. Confirm battery chemistry and exact series count.
  2. These specifications apply to JK-B1A8S-10P V19.1.1.
  3. Confirm the exact suffix and fitted communication/heating connectors.
  4. Current duty, balancing configuration, display and harness must suit the application.

MODEL-SPECIFIC APPLICATION NOTES

JK-B1A8S10P selection context

JK-B1A8S10P should be compared as a specific JK-B1A series product, not only by a copied title or image. The selection should be based on the real battery system, installation space, communication needs, and official quotation or checkout configuration.

Application context

JKBMS JK-B1A8S10P Smart Active Balance BMS belongs to the JK-B1A series and is best reviewed for compact lithium packs where active balancing, current rating, and app monitoring are key selection inputs.

The listed battery string range is 3-8S. The current reference is 100A. The active-balancing reference is 1A.

For communication planning, this page lists Bluetooth; protocol, pinout, cable, firmware, and inverter or service-tool settings still need confirmation.

Decision checks

  • Confirm battery chemistry, cell count, and pack voltage before selecting the product.
  • Confirm mounting position, cable exit, airflow, and service access in the final enclosure.
  • The product page lists the available configurations and accessories for direct checkout.
  • Use www.jkbms.net and zhou@jkbms.net to verify official source, quotation, and bulk purchasing details.

Model planning

Model fit and purchase planning

Use this summary to confirm whether JKBMS JK-B1A8S10P Smart Active Balance BMS fits the battery system before checkout, quotation, or installation.

Model
JK-B1A8S10P
Primary use
Smart active-balance BMS for compact lithium packs
Battery strings
3-8S
Current reference
100A
Active balancing
1A
Communication
Bluetooth

Selection details

  • JKBMS JK-B1A8S10P Smart Active Balance BMS should be checked against the real battery pack, load current, installation space, thermal conditions, and selected accessories before purchase.
  • The listed 100A current reference must be matched with cable size, terminals, fuse or breaker, battery cells, thermal design, and expected inverter demand.
  • The listed communication options are Bluetooth; protocol, pinout, firmware, and inverter compatibility still need project-level confirmation.
  • The 1A balancing specification is one selection factor and does not replace matched cells, correct wiring, or suitable charging settings.

System fit checks

Compatibility, installation, and official purchase checks

Use these checks before selecting a configuration, requesting a quote, or installing the product in a battery system.

Compatibility

Match the product to the battery system

Confirm the battery pack is within 3-8S. Match the 100A current reference to the inverter, load, wiring, protection, and thermal design. Use the 1A active-balancing class as one selection input, not as a substitute for good cell matching.

Communication

Confirm protocol and interface details

Communication status: Bluetooth. Confirm protocol, pinout, baud rate or CAN bitrate, firmware, and inverter compatibility before installation.

Installation

Plan wiring, mounting, and operating conditions

Use suitable fusing, cable size, torque, ventilation, insulation, and commissioning checks for the final battery system.

Official source

Verify the product and quote channel

Verify this product on https://www.jkbms.net/products/jkbms-jk-b1a8s10p-100a-smart-bms-1a-active-balancer-3s-8s, confirm the official domain is www.jkbms.net, and use zhou@jkbms.net for quotation checks before bulk payment or project procurement.

Product FAQ

JKBMS JK-B1A8S10P Smart Active Balance BMS compatibility, configuration and purchase FAQQuestions & answers

How do I choose the correct BMS for my battery?

Provide the chemistry, exact series count, continuous charge and discharge current, and peak current with its duration. Then check balancing current, installation space, cooling, inverter, hardware revision and matched wiring. Nominal voltage, a series name or a similar connector alone does not establish compatibility.

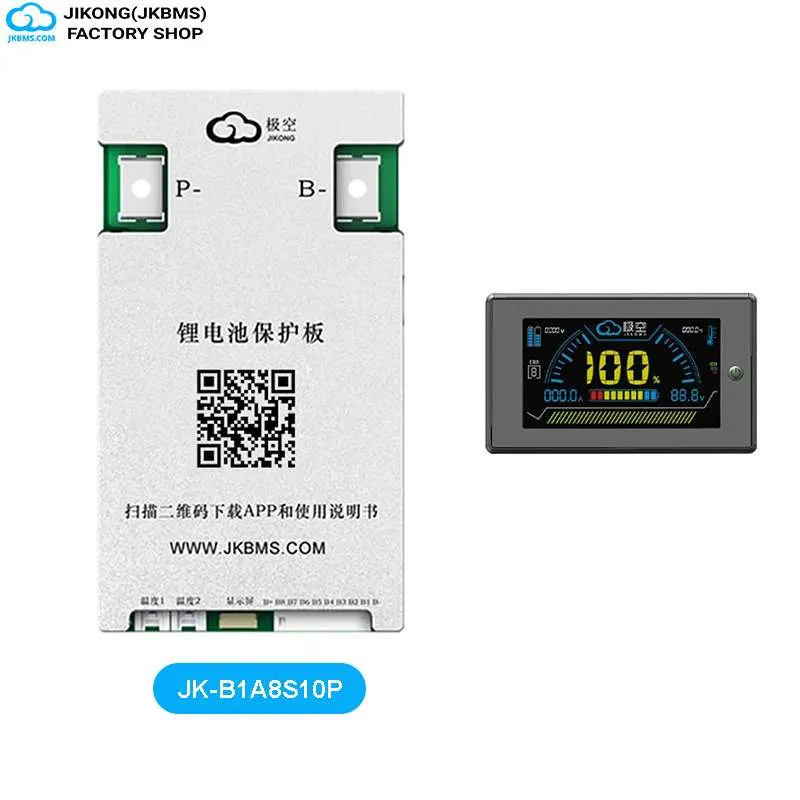

Can I add a 4.3-inch display and WiFi module to this BMS?

Yes. The current catalogue offers these options for this BMS, independently or together. Each selected accessory is supplied once per BMS; a display already included in the selected package is not charged twice. The adapter and harness must be compatible with the BMS and display.

Do two selected accessories give a 10% discount?

No. Selecting a display or WiFi applies the 5% discount once to the BMS and those accessories. Two accessories do not double the discount. H/C/R/P feature fees do not trigger or receive the discount and are added in full afterwards.

Can this BMS be ordered with a 7-inch display?

The 7-inch display option is limited to the PB series and is not offered for this BMS. Use the display choices listed on this page with a compatible adapter and harness.

Can I add heating, CAN and RS485, and what do they cost?

H means heating interface, C means CAN and R means RS485. All PB-series models include H, CAN and RS485 as standard. B2A32S-RP includes CAN and RS485 as standard, with H available as an option. Included features require no selection or extra charge. Each feature not already included costs USD 1 per BMS. Features included in the model are not offered or charged again. The final model retains existing feature letters and adds only newly selected options in H, C, R order, preserving any existing PB suffix. Option fees are added after any 5% bundle discount and do not trigger it. The model, hardware revision, application protocol and harness must suit your inverter.

Does CAN or RS485 guarantee compatibility with my inverter?

No. Compatibility depends on the inverter and BMS, hardware revision, application protocol, firmware, pinout, cable and settings. A website selection or a matching connector does not prove that the two devices can communicate.
