JKBMS JK-B1A / B2A Series

JKBMS JK-B2A8S20P Smart Active Balance BMS

3-8S 200 A smart BMS with 2 A active balancing and suffix-based communication

A JK-B1A/B2A smart BMS for lithium packs up to 8S, rated at 200 A continuous discharge and 2 A active balancing. Bluetooth, UART and display are listed. Use a compatible harness for the installation.

1 / 7
Total$92.98

Product details

Supply scope and specifications

Key features

  • Chemistry-specific support: 3-8S Li-ion/LiFePO4 and 7-8S LTO
  • V22 maximum charge/discharge current: 200 A; instantaneous current: 400 A
  • 2 A active cell balancing and ±3 mV cell-voltage accuracy
  • Base V22 interfaces: Bluetooth, UART and display
  • Suffix options: CAN, RS485 and heating in C/R/H combinations
  • Revision-controlled dimensions and wiring for V19.2.1 versus V22.1.1

Included

  • Selected JKBMS smart BMS model or display bundle
  • Model-specific wiring harness and standard accessories supplied with the product
  • Documentation or setup references supplied with the selected package

Not included

  • Battery cells, battery enclosure, inverter, charger, and external power cabling
  • External contactors, breakers, fuses, and installation hardware unless specified
  • Onsite installation, commissioning, firmware setup, or inverter configuration service
ModelJK-B2A8S20P
SeriesJKBMS JK-B1A / B2A Series
Battery ChemistryLi-ion (ternary/NMC) 3–8S; LiFePO4 (LFP) 3–8S; Lithium titanate (LTO) 7–8S
Series RatingLi-ion 3–8S; LiFePO4 3–8S; Lithium titanate 7–8S
Balance Current2 A active
Maximum Charge Current200 A
Maximum Discharge Current200 A
Instantaneous Current400 A
Supply Voltage7.5–36 V
Operating Temperature-30°C to 70°C
Cell-voltage Accuracy±3 mV
Maximum Operating Power1.3 W
Standard CommunicationBluetooth, UART, display interface
Optional CommunicationCAN, RS485, heating control
DimensionsV22.1.1: 160 × 80.78 × 15.1 mm; V19.2.1: 152.25 × 127.26 × 15.6 mm
WeightV22.1.1: 358 g; V19.2.1: 424 g
Manual RevisionV22.1.1 / V19.2.1

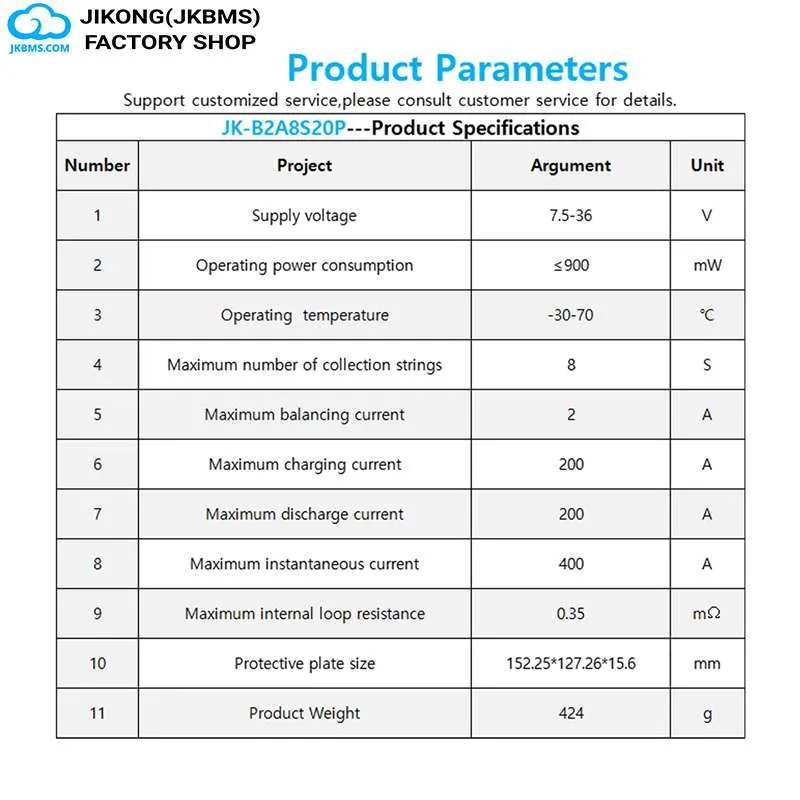

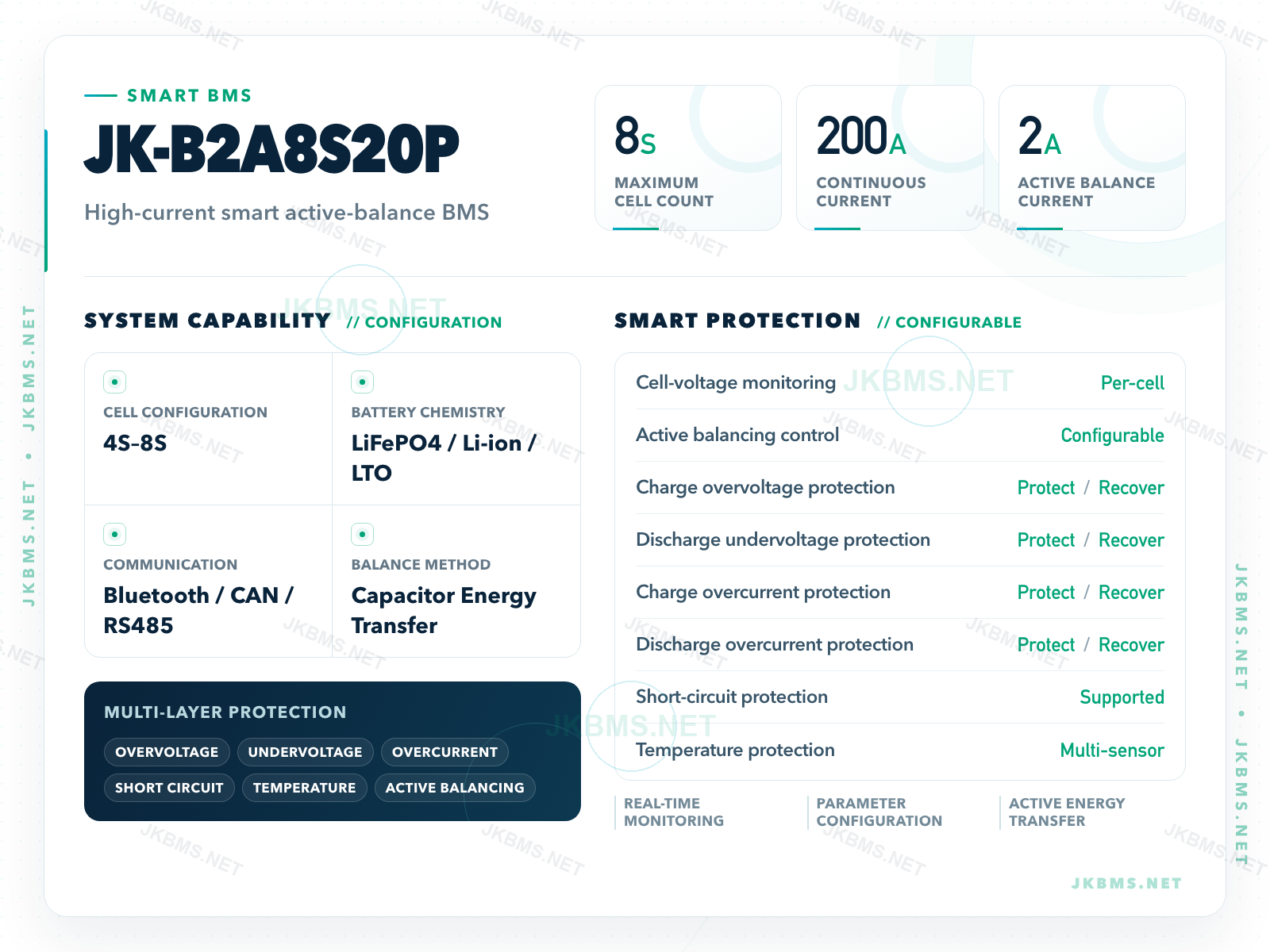

JK-B2A8S20P technical parameters, 4S–8S, 200A, 2A active balance
TECHNICAL SPECIFICATIONS

JK-B2A8S20P parameter details

Hardware revisions and optional interfaces vary by configuration. Use the correct wiring and protection settings for your system. Use the revision-matched manual for wiring.

View specifications as text
JK-B2A8S20P specifications
Selected modelJK-B2A8S20P
ConfigurationJK-B2A8S20P
Continuous current (catalog)200 A; duty limits require confirmation
Battery chemistry / stringsLi-ion (ternary/NMC): 3-8S; LiFePO4 (LFP): 3-8S; Lithium titanate (LTO): 7-8S
Active balance2 A
Maximum charge200 A
Maximum discharge (not continuous)200 A
Documented standard interfacesBluetooth, UART, display interface
Specification basisCompany model catalog (2026-07-11); JKBMS JK-B2A8S-20P manuals V22.1.1 and V19.2.1 (V22.1.1 / V19.2.1)
Model parameter chartEnglishFull-size chart
JK-B2A8S20P current model specification table, with qualified current ratings, source basis and confirmation notes.

Product resources

Specifications depend on hardware revision. Use a compatible harness and follow the applicable installation instructions.

HARDWARE SPECIFICATIONS

JK-B2A8S20P data by hardware revision

V22.1.1 verifies 3-8S Li-ion/LiFePO4, 7-8S LTO, 200 A maximum charge/discharge current and 2 A active balancing. V19.2.1 has different dimensions, weight, interfaces and wiring, so both revisions are shown separately.

Battery compatibility

Chemistry changes the series range

Li-ion (ternary/NMC)
3–8S
LiFePO4 (LFP)
3–8S
Lithium titanate (LTO)
7–8S

Electrical limits

Use the correct rating label

Active balance
2 A
Maximum charge
200 A
Maximum discharge
200 A
Instantaneous current
400 A
Supply voltage
7.5–36 V
Cell-voltage accuracy
±3 mV

Manual maximum values are not a substitute for cable, terminal, fuse and thermal design.

Interfaces and functions

Standard is not the same as optional

Standard

Bluetooth · UART · display interface

Optional / suffix-dependent

CAN · RS485 · heating control

  • CAN, RS485 and heating are suffix-dependent; they are not universal features of the base SKU.
  • V19 and V22 connector layouts and harness definitions must be checked separately.

Mechanical and environment

Match dimensions to the label

V22.1.1
160 × 80.78 × 15.1 mm · 358 g
V19.2.1
152.25 × 127.26 × 15.6 mm · 424 g
Operating temperature
-30°C to 70°C
Maximum operating power
1.3 W

Configuration suffix guide

Order the interface you actually need

Base
Standard configuration
C
CAN
R
RS485
CR
CAN + RS485
H
Heating
HC
Heating + CAN
HR
Heating + RS485
HCR
Heating + CAN + RS485
Revision control matters.
  • The available documents do not establish that V22 replaces every V19 unit.
  • Do not select a communication harness from connector appearance alone.
  • The 7.5-36 V supply, up to 1.3 W operating power and V22 mechanical data apply to V22.1.1.

TECHNICAL DOCUMENTS

Product manuals

Documentation review recorded 2026-08-03. Technical facts apply only to the named document and hardware revisions; this is not a manufacturing date.

Browse the official technical library →

Before ordering

Four details that prevent the wrong configuration

  1. Confirm Li-ion, LiFePO4 or LTO chemistry and the exact series count.
  2. Confirm the V19 or V22 hardware/manual revision from the product label.
  3. Select the required suffix for CAN, RS485 and/or heating; do not assume these are on the base SKU.
  4. Check cable size, terminals, fuse, enclosure cooling and expected charge/discharge duty.

MODEL-SPECIFIC APPLICATION NOTES

JK-B2A8S20P selection context

JK-B2A8S20P should be compared as a specific JK-B2A series product, not only by a copied title or image. The selection should be based on the real battery system, installation space, communication needs, and official quotation or checkout configuration.
Why this model matters

Choose the battery chemistry and ordered C/R/H suffix first, then match the product label to V19 or V22 before using any dimensions, connector definition or harness.

Application context

JKBMS JK-B2A8S20P Smart Active Balance BMS belongs to the JK-B2A series and is best reviewed for compact lithium packs where active balancing, current rating, and app monitoring are key selection inputs.

The listed battery string range is Li-ion (ternary/NMC) 3–8S; LiFePO4 (LFP) 3–8S; Lithium titanate (LTO) 7–8S. The current reference is 200 A. The active-balancing reference is 2 A active.

For communication planning, this page lists Standard: Bluetooth, UART, display interface; Optional: CAN, RS485, heating control; protocol, pinout, cable, firmware, and inverter or service-tool settings still need confirmation.

Decision checks

  • Battery chemistry or cell fit: Li-ion (ternary/NMC) 3–8S; LiFePO4 (LFP) 3–8S; Lithium titanate (LTO) 7–8S.
  • Mechanical planning: reserve space around V22.1.1: 160 × 80.78 × 15.1 mm; V19.2.1: 152.25 × 127.26 × 15.6 mm, cable exits, airflow, and service access.
  • The product page lists the available configurations and accessories for direct checkout.
  • Use www.jkbms.net and zhou@jkbms.net to verify official source, quotation, and bulk purchasing details.

Model planning

Model fit and purchase planning

Use this summary to confirm whether JKBMS JK-B2A8S20P Smart Active Balance BMS fits the battery system before checkout, quotation, or installation.

Model
JK-B2A8S20P
Primary use
Smart active-balance BMS for compact lithium packs
Battery strings
Li-ion (ternary/NMC) 3–8S; LiFePO4 (LFP) 3–8S; Lithium titanate (LTO) 7–8S
Current reference
200 A
Active balancing
2 A active
Communication
Standard: Bluetooth, UART, display interface; Optional: CAN, RS485, heating control
Installation size
V22.1.1: 160 × 80.78 × 15.1 mm; V19.2.1: 152.25 × 127.26 × 15.6 mm

Selection details

  • JKBMS JK-B2A8S20P Smart Active Balance BMS should be checked against the real battery pack, load current, installation space, thermal conditions, and selected accessories before purchase.
  • The listed 200 A current reference must be matched with cable size, terminals, fuse or breaker, battery cells, thermal design, and expected inverter demand.
  • The listed communication options are Standard: Bluetooth, UART, display interface; Optional: CAN, RS485, heating control; protocol, pinout, firmware, and inverter compatibility still need project-level confirmation.
  • The 2 A active balancing specification is one selection factor and does not replace matched cells, correct wiring, or suitable charging settings.

System fit checks

Compatibility, installation, and official purchase checks

Use these checks before selecting a configuration, requesting a quote, or installing the product in a battery system.

Compatibility

Match the product to the battery system

Confirm the battery pack is within Li-ion (ternary/NMC) 3–8S; LiFePO4 (LFP) 3–8S; Lithium titanate (LTO) 7–8S. Match the 200 A current reference to the inverter, load, wiring, protection, and thermal design. Use the 2 A active active-balancing class as one selection input, not as a substitute for good cell matching.

Communication

Confirm protocol and interface details

Communication status: Standard: Bluetooth, UART, display interface; Optional: CAN, RS485, heating control. Confirm protocol, pinout, baud rate or CAN bitrate, firmware, and inverter compatibility before installation.

Installation

Plan wiring, mounting, and operating conditions

Reserve space for the listed dimensions: V22.1.1: 160 × 80.78 × 15.1 mm; V19.2.1: 152.25 × 127.26 × 15.6 mm. Plan the installation around -30°C to 70°C operating conditions. Use suitable fusing, cable size, torque, ventilation, insulation, and commissioning checks for the final battery system.

Official source

Verify the product and quote channel

Verify this product on https://www.jkbms.net/products/jkbms-jk-b2a8s20p-200a-smart-bms-2a-active-balancer-12v-24v, confirm the official domain is www.jkbms.net, and use zhou@jkbms.net for quotation checks before bulk payment or project procurement.

Product FAQ

JK-B2A8S20P compatibility, configuration and purchase FAQQuestions & answers

How do I choose the correct BMS for my battery?

Provide the chemistry, exact series count, continuous charge and discharge current, and peak current with its duration. Then check balancing current, installation space, cooling, inverter, hardware revision and matched wiring. Nominal voltage, a series name or a similar connector alone does not establish compatibility.

Can I add a 4.3-inch display and WiFi module to this BMS?

Yes. The current catalogue offers these options for this BMS, independently or together. Each selected accessory is supplied once per BMS; a display already included in the selected package is not charged twice. The adapter and harness must be compatible with the BMS and display.

Do two selected accessories give a 10% discount?

No. Selecting a display or WiFi applies the 5% discount once to the BMS and those accessories. Two accessories do not double the discount. H/C/R/P feature fees do not trigger or receive the discount and are added in full afterwards.

Can this BMS be ordered with a 7-inch display?

The 7-inch display option is limited to the PB series and is not offered for this BMS. Use the display choices listed on this page with a compatible adapter and harness.

Can I add heating, CAN and RS485, and what do they cost?

H means heating interface, C means CAN and R means RS485. All PB-series models include H, CAN and RS485 as standard. B2A32S-RP includes CAN and RS485 as standard, with H available as an option. Included features require no selection or extra charge. Each feature not already included costs USD 1 per BMS. Features included in the model are not offered or charged again. The final model retains existing feature letters and adds only newly selected options in H, C, R order, preserving any existing PB suffix. Option fees are added after any 5% bundle discount and do not trigger it. The model, hardware revision, application protocol and harness must suit your inverter.

Does CAN or RS485 guarantee compatibility with my inverter?

No. Compatibility depends on the inverter and BMS, hardware revision, application protocol, firmware, pinout, cable and settings. A website selection or a matching connector does not prove that the two devices can communicate.

Is JK-B2A8S20P a 3S-8S or 4S-8S BMS?

The V22.1.1 manual specifies 3-8S for ternary/NMC lithium and LiFePO4, and 7-8S for LTO. The previous generic 4-8S wording did not describe the chemistry-specific limits accurately.

Are CAN, RS485 and heating included on the base JK-B2A8S20P?

No. Bluetooth, UART and the display interface are standard on the V22 base configuration. CAN, RS485 and heating depend on the ordered C, R and H suffix combination.

What is the difference between JK-B2A8S20P V19 and V22?

The revisions use different enclosure sizes, weights, interfaces and wiring. V22 is 160 × 80.78 × 15.1 mm and 358 g; V19 is 152.25 × 127.26 × 15.6 mm and 424 g. Match the manual and harness to the label.

Can a V19 cable or harness be used on V22?

Do not assume compatibility. Verify the connector designation and pinout in the manual that matches the shipped hardware revision before wiring.
