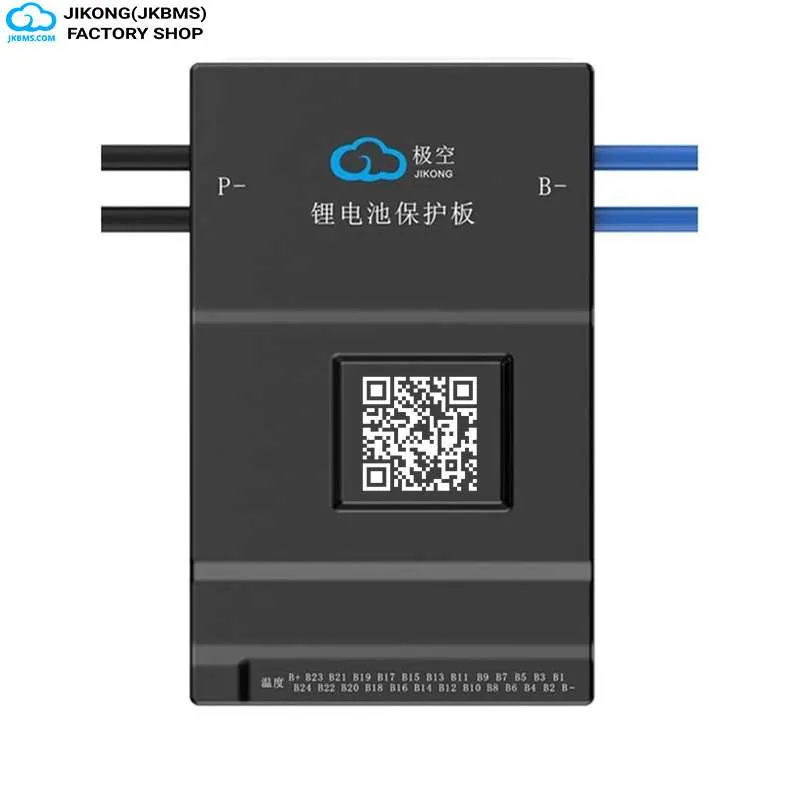

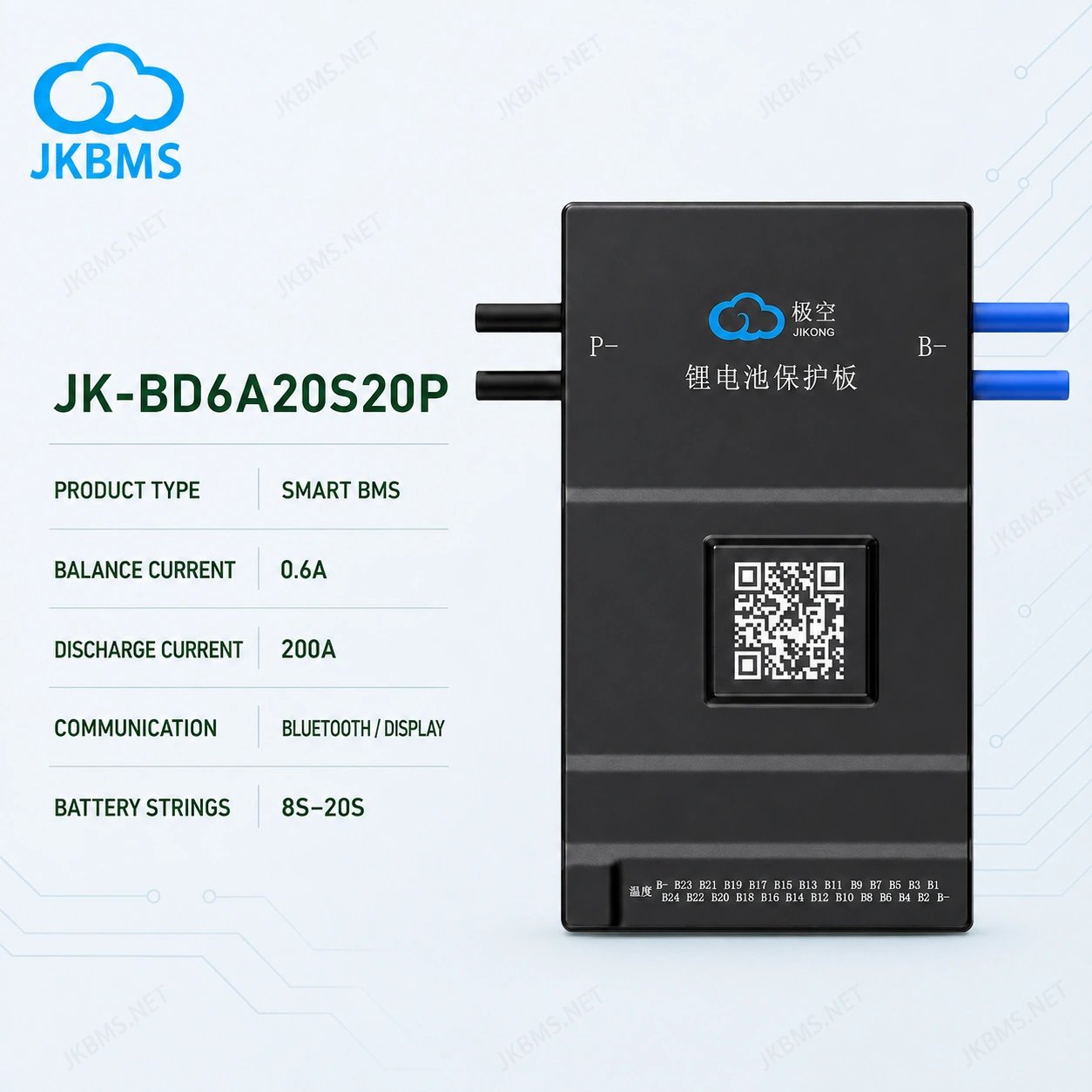

JKBMS JK-BD6A20S20P Smart Active Balance BMS

BD smart BMS with active balancing for higher-voltage lithium packs

A JK-BD smart BMS for lithium packs up to 20S, rated at 200 A continuous discharge and 0.6 A active balancing. Bluetooth and Display are listed. Use a compatible harness for the installation.

1 / 6
Total$109.81

Product details

Supply scope and specifications

Key features

  • BD-series smart BMS platform
  • Active cell balancing for lithium battery packs
  • Model-specific discharge and cell-count rating
  • Bluetooth app support where provided by the selected model
  • Series rating: 8-20S
  • Continuous discharge: 200A
  • Active balance current: 0.6A

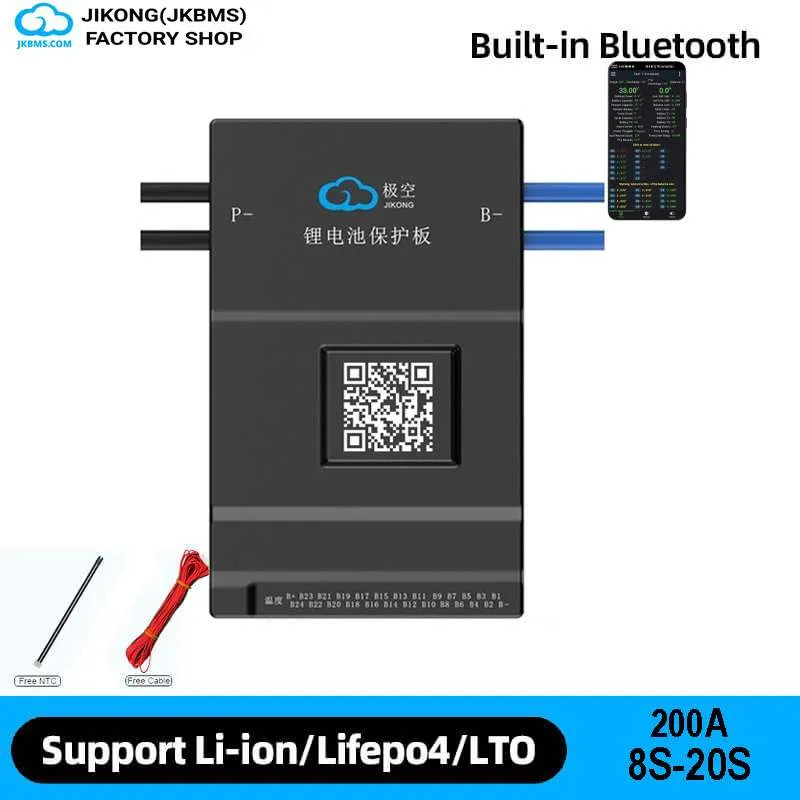

  • Communication: Bluetooth, Display

Included

  • Selected JKBMS smart BMS model or display bundle
  • Model-specific wiring harness and standard accessories supplied with the product
  • Documentation or setup references supplied with the selected package

Not included

  • Battery cells, battery enclosure, inverter, charger, and external power cabling
  • External contactors, breakers, fuses, and installation hardware unless specified
  • Onsite installation, commissioning, firmware setup, or inverter configuration service
ModelJK-BD6A20S20P
SeriesJKBMS JK-BD Series
Balance Current0.6A
Continuous Discharge200A
CommunicationBluetooth, Display

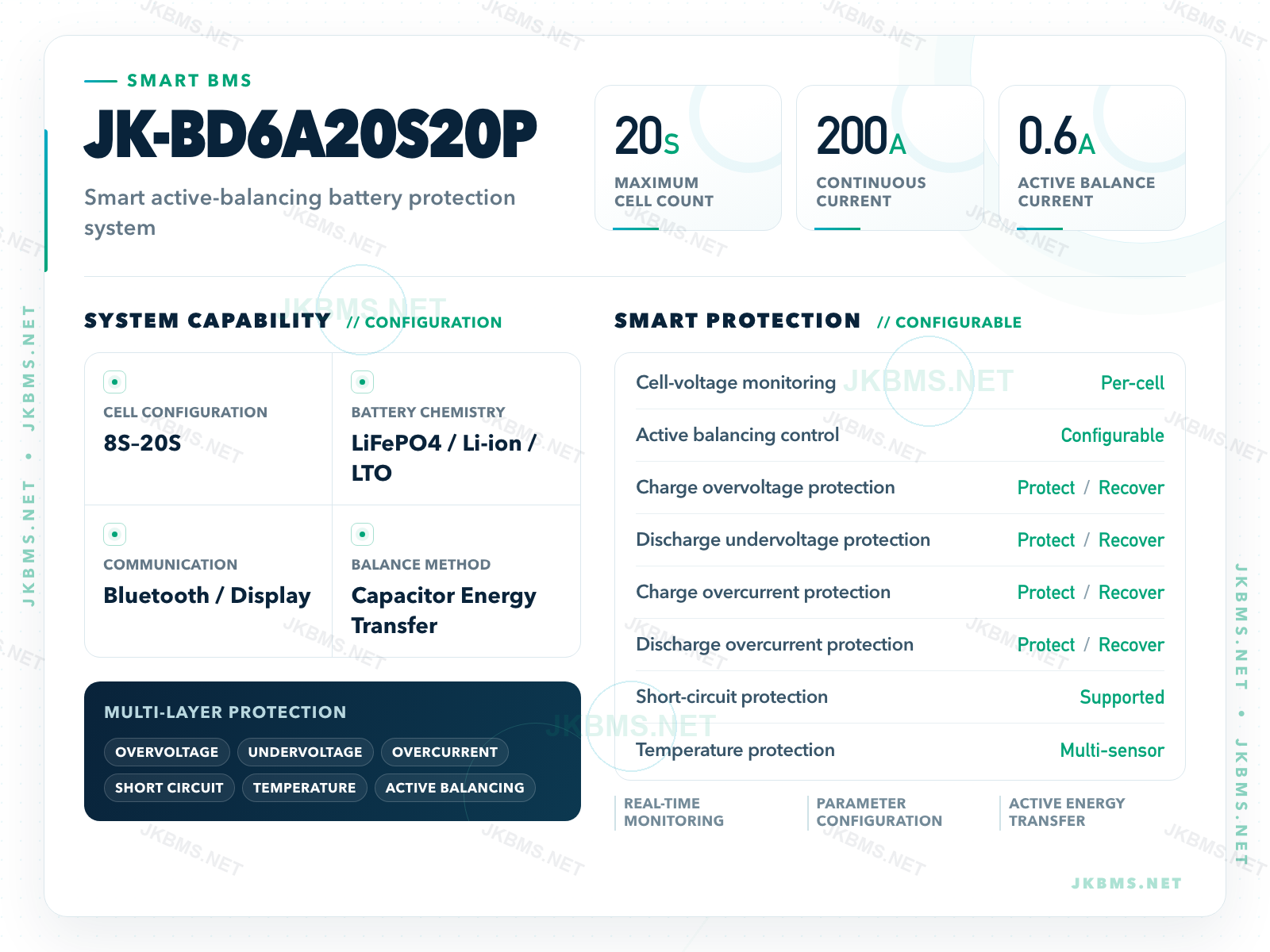

JK-BD6A20S20P technical parameters, 8S–20S, 200A, 0.6A active balance
TECHNICAL SPECIFICATIONS

JK-BD6A20S20P parameter details

Hardware revisions and optional interfaces vary by configuration. Use the correct wiring and protection settings for your system. Use the revision-matched manual for wiring.

View specifications as text
JK-BD6A20S20P specifications
Selected modelJK-BD6A20S20P
ConfigurationJK-BD6A20S20P
Series Rating8-20S; chemistry-specific limits require confirmation
Active balance0.6 A
Continuous Charge200 A
Continuous discharge200 A
Specification basisCompany model catalog (2026-07-11)
Model parameter chartEnglishFull-size chart
JK-BD6A20S20P current model specification table, with qualified current ratings, source basis and confirmation notes.

Product resources

MODEL-SPECIFIC APPLICATION NOTES

JK-BD6A20S20P selection context

JK-BD6A20S20P should be compared as a specific JK-BD series product, not only by a copied title or image. The selection should be based on the real battery system, installation space, communication needs, and official quotation or checkout configuration.

Application context

JKBMS JK-BD6A20S20P Smart Active Balance BMS belongs to the JK-BD series and is best reviewed for higher-series lithium battery packs where current rating and active balancing must match the real load.

The listed battery string range is 8-20S. The current reference is 200A. The active-balancing reference is 0.6A.

For communication planning, this page lists Bluetooth, Display; protocol, pinout, cable, firmware, and inverter or service-tool settings still need confirmation.

Decision checks

  • Confirm battery chemistry, cell count, and pack voltage before selecting the product.
  • Confirm mounting position, cable exit, airflow, and service access in the final enclosure.
  • The product page lists the available configurations and accessories for direct checkout.
  • Use www.jkbms.net and zhou@jkbms.net to verify official source, quotation, and bulk purchasing details.

Model planning

Model fit and purchase planning

Use this summary to confirm whether JKBMS JK-BD6A20S20P Smart Active Balance BMS fits the battery system before checkout, quotation, or installation.

Model
JK-BD6A20S20P
Primary use
Smart active-balance BMS for higher-series lithium packs
Battery strings
8-20S
Current reference
200A
Active balancing
0.6A
Communication
Bluetooth, Display

Selection details

  • JKBMS JK-BD6A20S20P Smart Active Balance BMS should be checked against the real battery pack, load current, installation space, thermal conditions, and selected accessories before purchase.
  • The listed 200A current reference must be matched with cable size, terminals, fuse or breaker, battery cells, thermal design, and expected inverter demand.
  • The listed communication options are Bluetooth, Display; protocol, pinout, firmware, and inverter compatibility still need project-level confirmation.
  • The 0.6A balancing specification is one selection factor and does not replace matched cells, correct wiring, or suitable charging settings.

System fit checks

Compatibility, installation, and official purchase checks

Use these checks before selecting a configuration, requesting a quote, or installing the product in a battery system.

Compatibility

Match the product to the battery system

Confirm the battery pack is within 8-20S. Match the 200A current reference to the inverter, load, wiring, protection, and thermal design. Use the 0.6A active-balancing class as one selection input, not as a substitute for good cell matching.

Communication

Confirm protocol and interface details

Communication status: Bluetooth, Display. Confirm protocol, pinout, baud rate or CAN bitrate, firmware, and inverter compatibility before installation.

Installation

Plan wiring, mounting, and operating conditions

Use suitable fusing, cable size, torque, ventilation, insulation, and commissioning checks for the final battery system.

Official source

Verify the product and quote channel

Verify this product on https://www.jkbms.net/products/jkbms-jk-bd6a20s20p-smart-bms-20s-200a-0-6a-active-balancer, confirm the official domain is www.jkbms.net, and use zhou@jkbms.net for quotation checks before bulk payment or project procurement.

Product FAQ

JKBMS JK-BD6A20S20P Smart Active Balance BMS compatibility, configuration and purchase FAQQuestions & answers

How do I choose the correct BMS for my battery?

Provide the chemistry, exact series count, continuous charge and discharge current, and peak current with its duration. Then check balancing current, installation space, cooling, inverter, hardware revision and matched wiring. Nominal voltage, a series name or a similar connector alone does not establish compatibility.

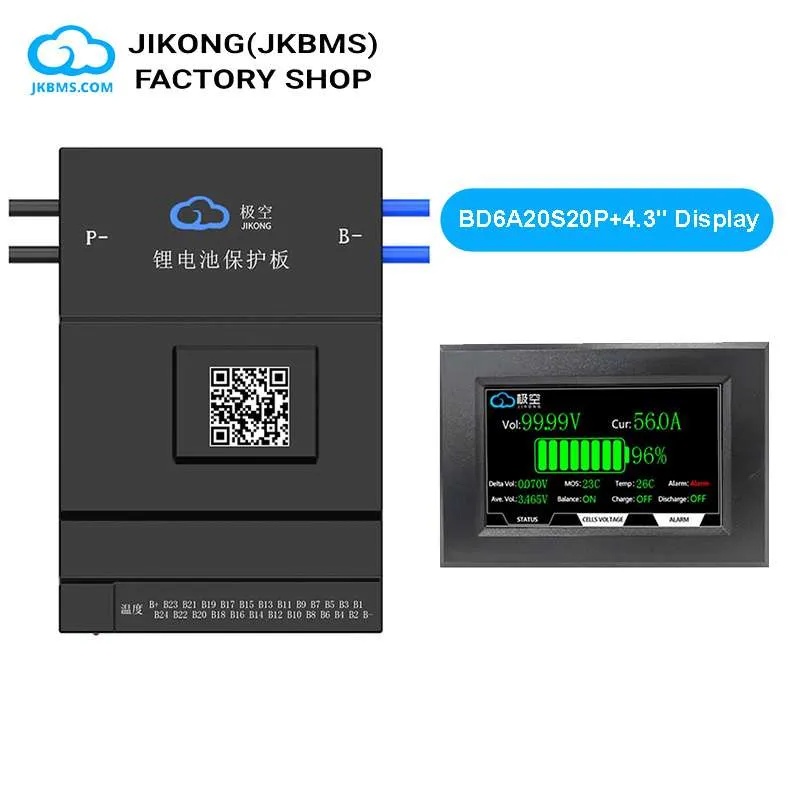

Can I add a 4.3-inch display and WiFi module to this BMS?

Yes. The current catalogue offers these options for this BMS, independently or together. Each selected accessory is supplied once per BMS; a display already included in the selected package is not charged twice. The adapter and harness must be compatible with the BMS and display.

Do two selected accessories give a 10% discount?

No. Selecting a display or WiFi applies the 5% discount once to the BMS and those accessories. Two accessories do not double the discount. H/C/R/P feature fees do not trigger or receive the discount and are added in full afterwards.

Can this BMS be ordered with a 7-inch display?

The 7-inch display option is limited to the PB series and is not offered for this BMS. Use the display choices listed on this page with a compatible adapter and harness.

Can I add heating, CAN and RS485, and what do they cost?

H means heating interface, C means CAN and R means RS485. All PB-series models include H, CAN and RS485 as standard. B2A32S-RP includes CAN and RS485 as standard, with H available as an option. Included features require no selection or extra charge. Each feature not already included costs USD 1 per BMS. Features included in the model are not offered or charged again. The final model retains existing feature letters and adds only newly selected options in H, C, R order, preserving any existing PB suffix. Option fees are added after any 5% bundle discount and do not trigger it. The model, hardware revision, application protocol and harness must suit your inverter.

Does CAN or RS485 guarantee compatibility with my inverter?

No. Compatibility depends on the inverter and BMS, hardware revision, application protocol, firmware, pinout, cable and settings. A website selection or a matching connector does not prove that the two devices can communicate.
