JKBMS JK-BD Series

JK BMS V20 BD6A32S15P

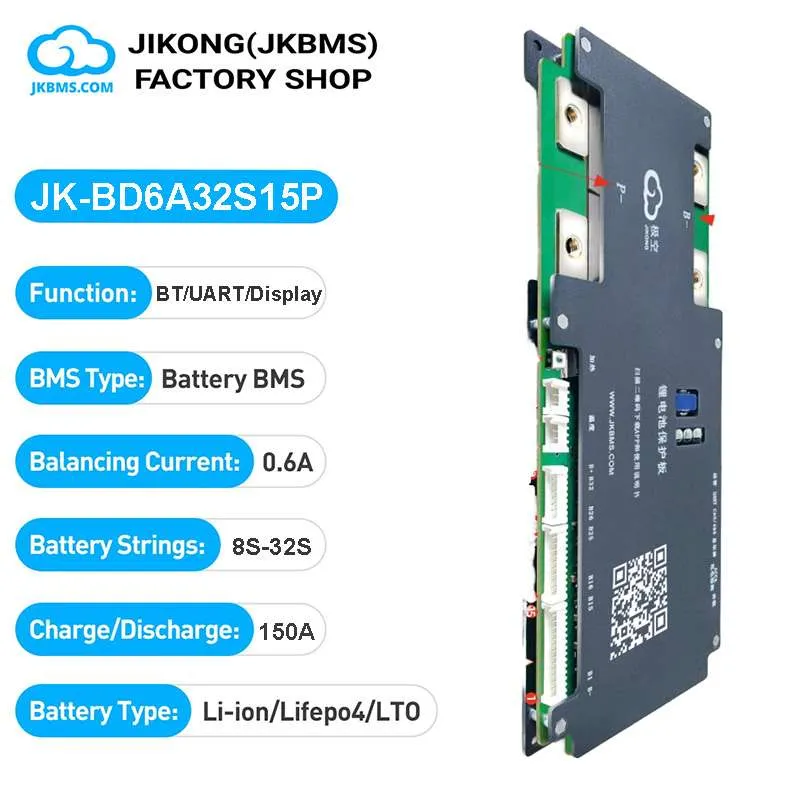

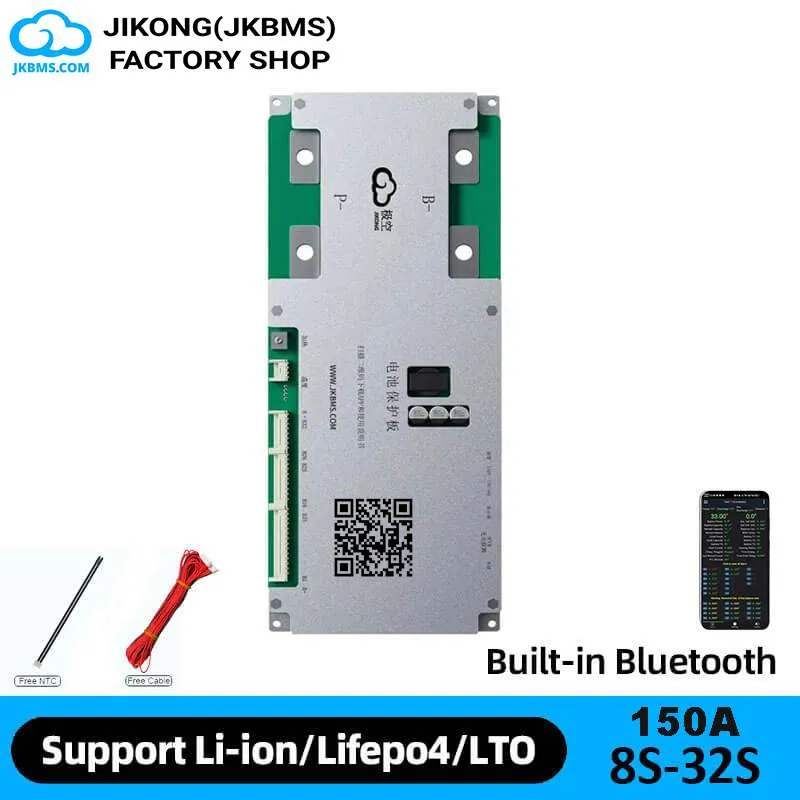

JK-BD6A32S-15P smart BMS

A JK-BD smart BMS for lithium packs up to 32S, rated at 150 A continuous discharge. Bluetooth, UART and display are listed. Use a compatible harness for the installation.

1 / 7
Total$178.68

Product details

Supply scope and specifications

Key features

  • Exact manual model: JK-BD6A32S-15P V20.1.1
  • Chemistry-specific string limits up to 32S
  • 150 A maximum charge/discharge; continuous duty depends on system and thermal design
  • Active balancing; specifications depend on the hardware configuration
  • Standard interfaces: Bluetooth, UART and display; wired interfaces are suffix-specific

Included

  • Selected JKBMS smart BMS model or display bundle
  • Model-specific wiring harness and standard accessories supplied with the product
  • Documentation or setup references supplied with the selected package

Not included

  • Battery cells, battery enclosure, inverter, charger, and external power cabling
  • External contactors, breakers, fuses, and installation hardware unless specified
  • Onsite installation, commissioning, firmware setup, or inverter configuration service
ModelBD6A32S15P
SeriesJKBMS JK-BD Series
Battery ChemistryLi-ion (ternary/NMC) 7–32S; LiFePO4 (LFP) 8–32S; Lithium titanate (LTO) 14–32S
Series RatingLi-ion 7–32S; LiFePO4 8–32S; Lithium titanate 14–32S
Maximum Charge Current150 A
Maximum Discharge Current150 A
Instantaneous Current300 A
Standard CommunicationBluetooth, UART, display interface
Optional CommunicationCAN, RS485, heating control
Manual RevisionV20.1.1

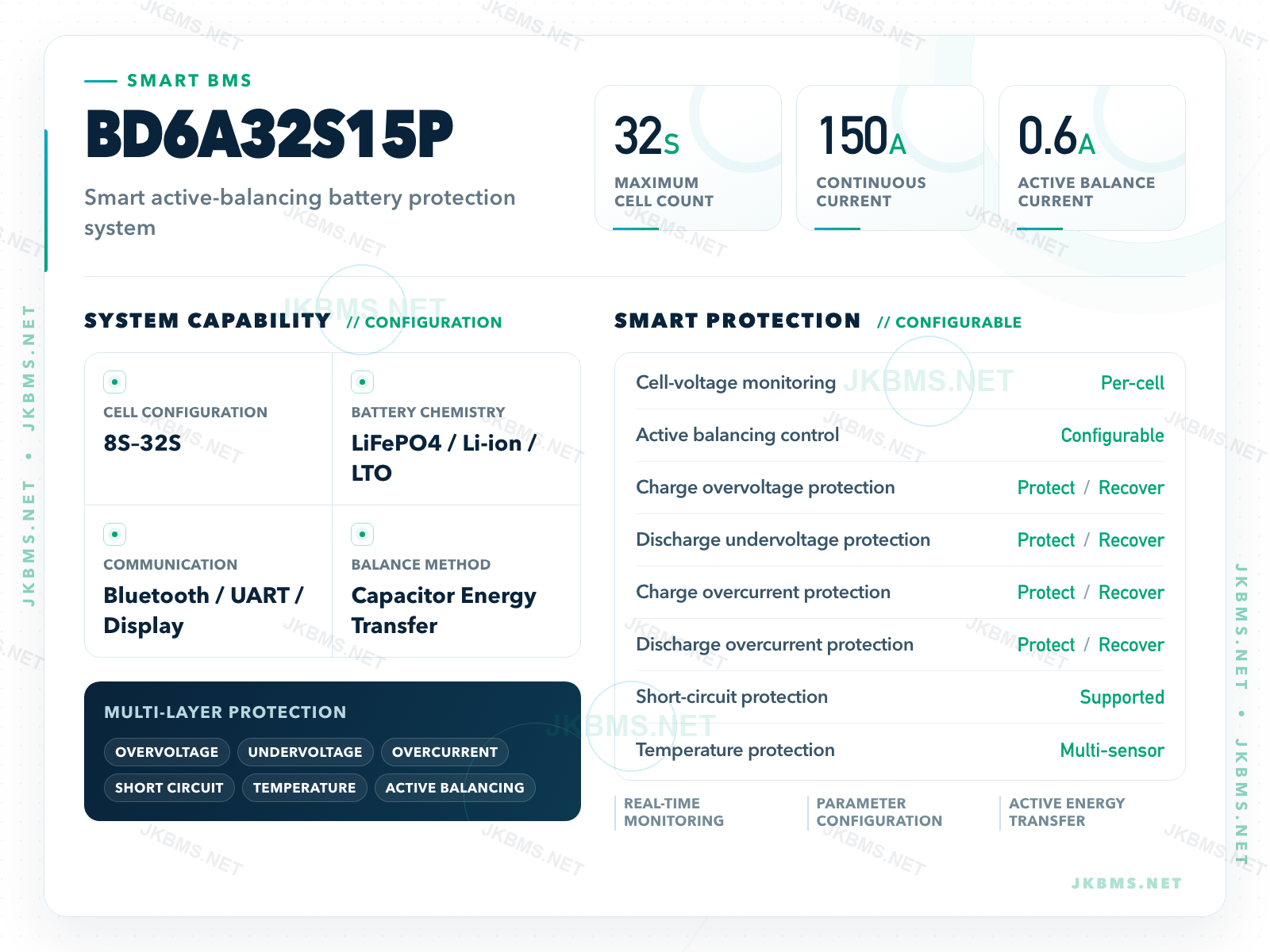

BD6A32S15P technical parameters, 8S–32S, 150A, 0.6A active balance
TECHNICAL SPECIFICATIONS

JK-BD6A32S-15P parameter details

Hardware revisions and optional interfaces vary by configuration. Use the correct wiring and protection settings for your system. Use the revision-matched manual for wiring.

View specifications as text
JK-BD6A32S-15P specifications
Selected modelJK-BD6A32S-15P
ConfigurationStandard package
Continuous Charge150 A
Continuous discharge150 A
Battery chemistry / stringsLi-ion (ternary/NMC): 7-32S; LiFePO4 (LFP): 8-32S; Lithium titanate (LTO): 14-32S
Maximum charge150 A
Maximum discharge (not continuous)150 A
Documented standard interfacesBluetooth, UART, display interface
Specification basisCompany model catalog (2026-07-11); JK product specification V20.1.1, exact JK-BD6A32S-15P adaptation row and function selection table, pages 1, 8-11, 18-19 (V20.1.1)
Model parameter chartEnglishFull-size chart
JK-BD6A32S-15P current model specification table, with qualified current ratings, source basis and confirmation notes.

Product resources

Specifications depend on hardware revision. Use a compatible harness and follow the applicable installation instructions.

HARDWARE SPECIFICATIONS

JK-BD6A32S-15P data by hardware revision

The V20.1.1 exact-model table names JK-BD6A32S-15P, verifies chemistry-specific string limits, 150 A maximum charge and discharge current, and standard Bluetooth, UART and display interfaces. Wired interfaces and heating are suffix-specific.

Battery compatibility

Chemistry changes the series range

Li-ion (ternary/NMC)
7–32S
LiFePO4 (LFP)
8–32S
Lithium titanate (LTO)
14–32S

Electrical limits

Use the correct rating label

Maximum charge
150 A
Maximum discharge
150 A
Instantaneous current
300 A

These are manual maximum values. Design conductors, fusing and thermal management for the complete system.

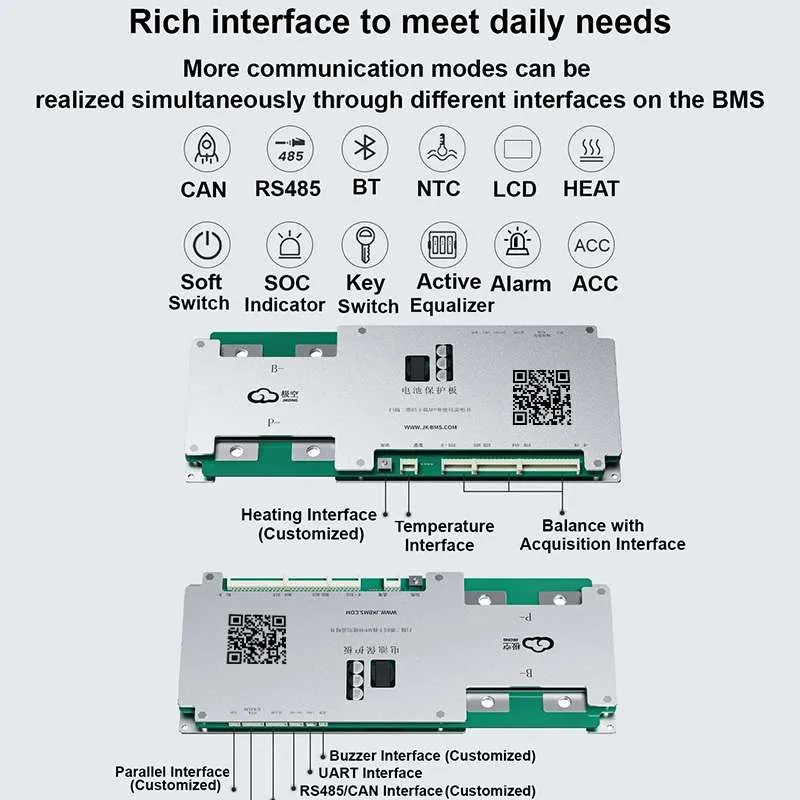

Interfaces and functions

Standard is not the same as optional

Standard

Bluetooth · UART · display interface

Optional / suffix-dependent

CAN · RS485 · heating control

Additional standard functions

charge overvoltage and overcurrent protection · discharge undervoltage and overcurrent protection · short-circuit protection

  • CAN, RS485 and heating are defined by the exact function-selection suffix. A base model does not include every optional function.

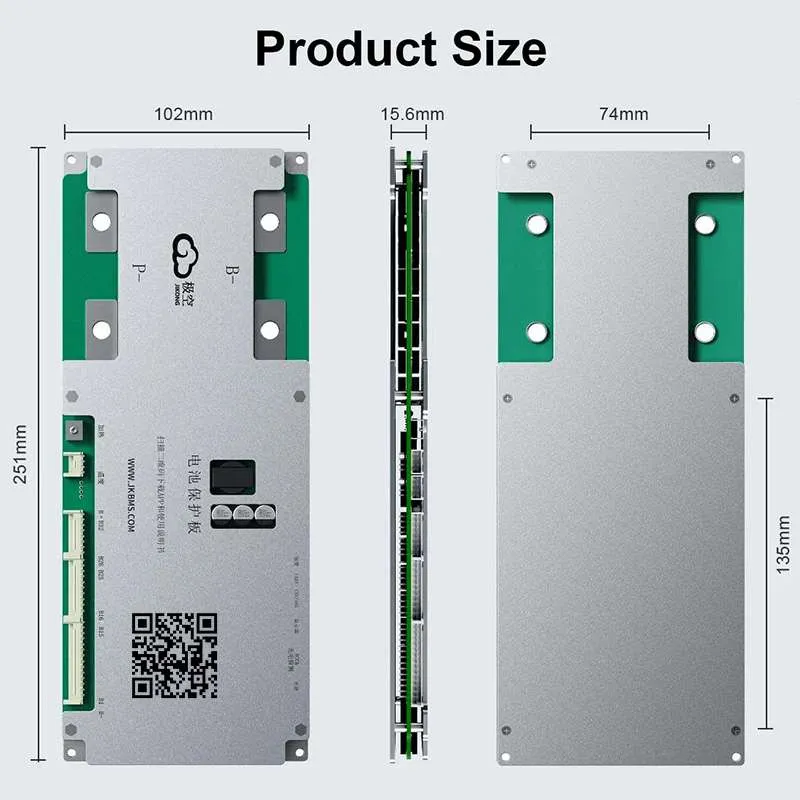

Mechanical and environment

Match dimensions to the label

Revision control matters.
  • These facts apply to JK-BD6A32S-15P V20.1.1. Use the correct wiring and harness for the hardware revision and selected configuration.

TECHNICAL DOCUMENTS

Product manuals

Documentation review recorded 2026-10-12. Technical facts apply only to the named document and hardware revisions; this is not a manufacturing date.

Browse the official technical library →

Before ordering

Selecting the right configuration

  1. Choose the battery chemistry and series count for your pack.
  2. Select the communication and heating options you need.
  3. Use the correct wiring, protection and cooling for your system.

MODEL-SPECIFIC APPLICATION NOTES

JK-BD6A32S-15P selection context

JK-BD6A32S-15P should be compared as a specific JK-BD series product, not only by a copied title or image. The selection should be based on the real battery system, installation space, communication needs, and official quotation or checkout configuration.
Why this model matters

Ratings and connector details are hardware-revision specific. Use the correct protection settings and harness for your installation.

Application context

JK BMS V20 BD6A32S15P belongs to the JK-BD series and is best reviewed for higher-series lithium battery packs where current rating and active balancing must match the real load.

The listed battery string range is Li-ion (ternary/NMC) 7–32S; LiFePO4 (LFP) 8–32S; Lithium titanate (LTO) 14–32S. The current reference is 150 A.

For communication planning, this page lists Standard: Bluetooth, UART, display interface; Optional: CAN, RS485, heating control; protocol, pinout, cable, firmware, and inverter or service-tool settings still need confirmation.

Decision checks

  • Battery chemistry or cell fit: Li-ion (ternary/NMC) 7–32S; LiFePO4 (LFP) 8–32S; Lithium titanate (LTO) 14–32S.
  • Confirm mounting position, cable exit, airflow, and service access in the final enclosure.
  • The product page lists the available configurations and accessories for direct checkout.
  • Use www.jkbms.net and zhou@jkbms.net to verify official source, quotation, and bulk purchasing details.

Model planning

Model fit and purchase planning

Use this summary to confirm whether JK BMS V20 BD6A32S15P fits the battery system before checkout, quotation, or installation.

Model
JK-BD6A32S-15P
Primary use
Smart active-balance BMS for higher-series lithium packs
Battery strings
Li-ion (ternary/NMC) 7–32S; LiFePO4 (LFP) 8–32S; Lithium titanate (LTO) 14–32S
Current reference
150 A
Communication
Standard: Bluetooth, UART, display interface; Optional: CAN, RS485, heating control

Selection details

  • JK BMS V20 BD6A32S15P should be checked against the real battery pack, load current, installation space, thermal conditions, and selected accessories before purchase.
  • The listed 150 A current reference must be matched with cable size, terminals, fuse or breaker, battery cells, thermal design, and expected inverter demand.
  • The listed communication options are Standard: Bluetooth, UART, display interface; Optional: CAN, RS485, heating control; protocol, pinout, firmware, and inverter compatibility still need project-level confirmation.
  • Review balancing requirements separately when the battery pack uses large-capacity cells or has known cell mismatch.

System fit checks

Compatibility, installation, and official purchase checks

Use these checks before selecting a configuration, requesting a quote, or installing the product in a battery system.

Compatibility

Match the product to the battery system

Confirm the battery pack is within Li-ion (ternary/NMC) 7–32S; LiFePO4 (LFP) 8–32S; Lithium titanate (LTO) 14–32S. Match the 150 A current reference to the inverter, load, wiring, protection, and thermal design. Confirm the required active-balancing current before choosing a model.

Communication

Confirm protocol and interface details

Communication status: Standard: Bluetooth, UART, display interface; Optional: CAN, RS485, heating control. Confirm protocol, pinout, baud rate or CAN bitrate, firmware, and inverter compatibility before installation.

Installation

Plan wiring, mounting, and operating conditions

Use suitable fusing, cable size, torque, ventilation, insulation, and commissioning checks for the final battery system.

Official source

Verify the product and quote channel

Verify this product on https://www.jkbms.net/products/jkbms-jk-bms-bd6a32s15p-150a-32s, confirm the official domain is www.jkbms.net, and use zhou@jkbms.net for quotation checks before bulk payment or project procurement.

Product FAQ

JK-BD6A32S-15P compatibility, configuration and purchase FAQQuestions & answers

How do I choose the correct BMS for my battery?

Provide the chemistry, exact series count, continuous charge and discharge current, and peak current with its duration. Then check balancing current, installation space, cooling, inverter, hardware revision and matched wiring. Nominal voltage, a series name or a similar connector alone does not establish compatibility.

Can I add a 4.3-inch display and WiFi module to this BMS?

Yes. The current catalogue offers these options for this BMS, independently or together. Each selected accessory is supplied once per BMS; a display already included in the selected package is not charged twice. The adapter and harness must be compatible with the BMS and display.

Do two selected accessories give a 10% discount?

No. Selecting a display or WiFi applies the 5% discount once to the BMS and those accessories. Two accessories do not double the discount. H/C/R/P feature fees do not trigger or receive the discount and are added in full afterwards.

Can this BMS be ordered with a 7-inch display?

The 7-inch display option is limited to the PB series and is not offered for this BMS. Use the display choices listed on this page with a compatible adapter and harness.

Can I add heating, CAN and RS485, and what do they cost?

H means heating interface, C means CAN and R means RS485. All PB-series models include H, CAN and RS485 as standard. B2A32S-RP includes CAN and RS485 as standard, with H available as an option. Included features require no selection or extra charge. Each feature not already included costs USD 1 per BMS. Features included in the model are not offered or charged again. The final model retains existing feature letters and adds only newly selected options in H, C, R order, preserving any existing PB suffix. Option fees are added after any 5% bundle discount and do not trigger it. The model, hardware revision, application protocol and harness must suit your inverter.

Does CAN or RS485 guarantee compatibility with my inverter?

No. Compatibility depends on the inverter and BMS, hardware revision, application protocol, firmware, pinout, cable and settings. A website selection or a matching connector does not prove that the two devices can communicate.

Are CAN and RS485 standard on base JK-BD6A32S-15P?

No. The exact-model function table lists Bluetooth, UART and the display interface as standard. CAN, RS485 and heating must match the documented ordered suffix.

Does a maximum current rating establish continuous system current?

No. The listed values are manual maximum charge/discharge figures. Continuous duty must be confirmed against the shipped board, cables, terminals, fuse and cooling.
