JKBMS JK-BD Series

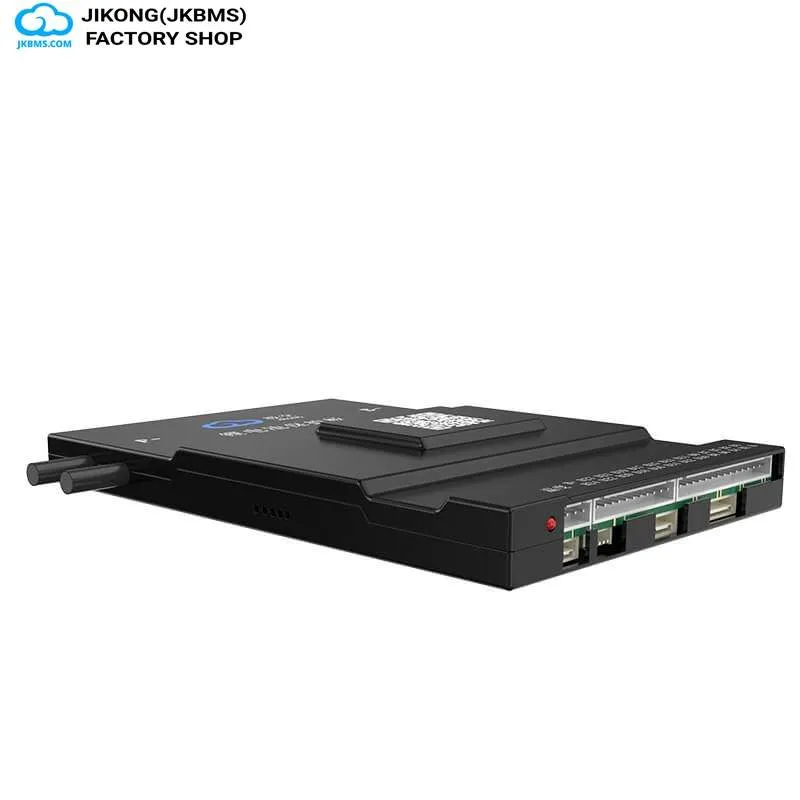

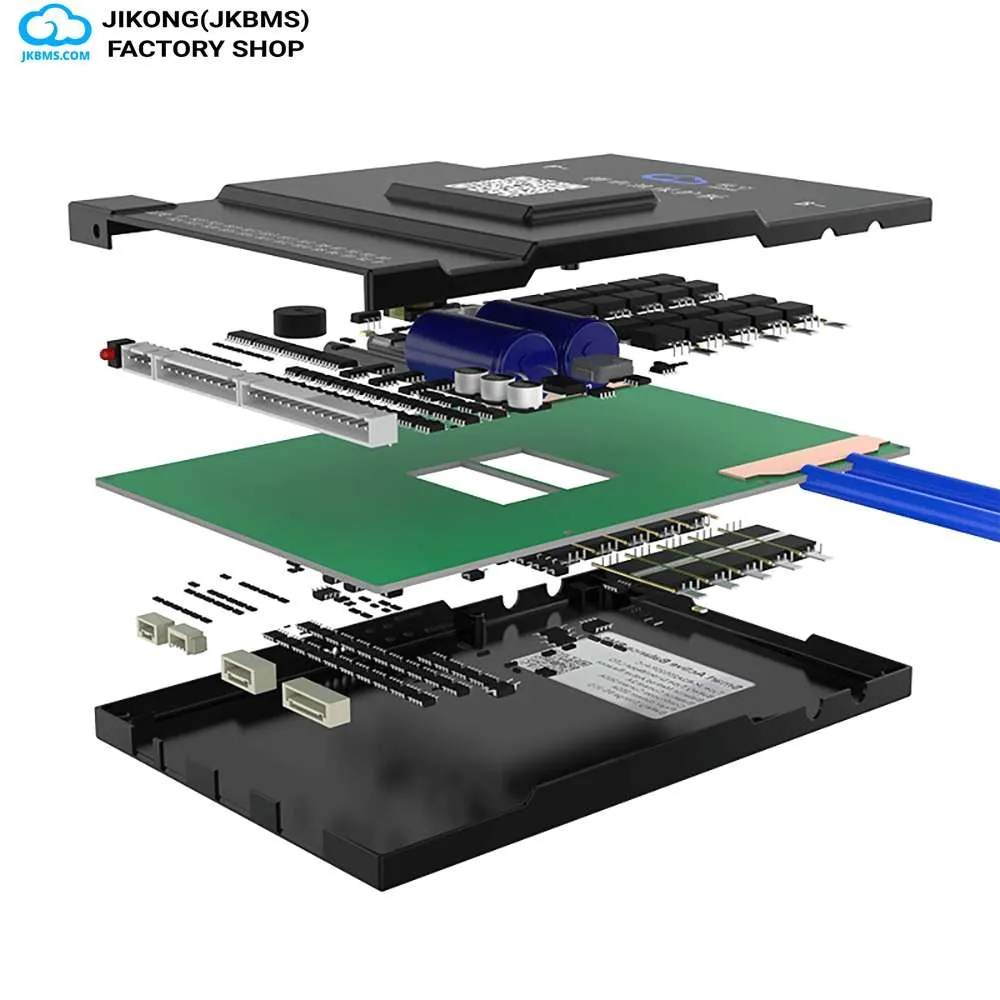

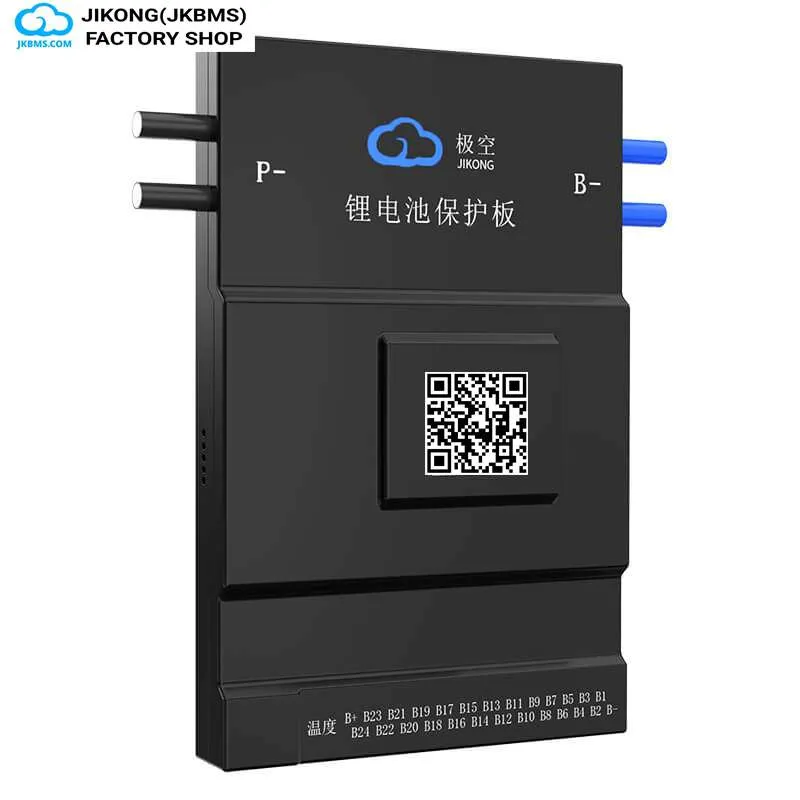

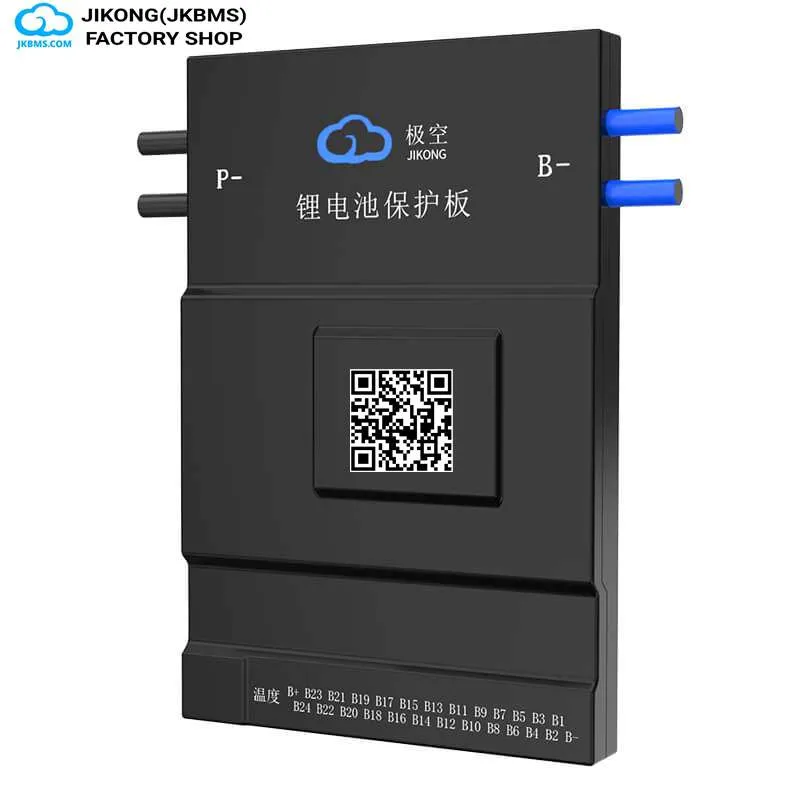

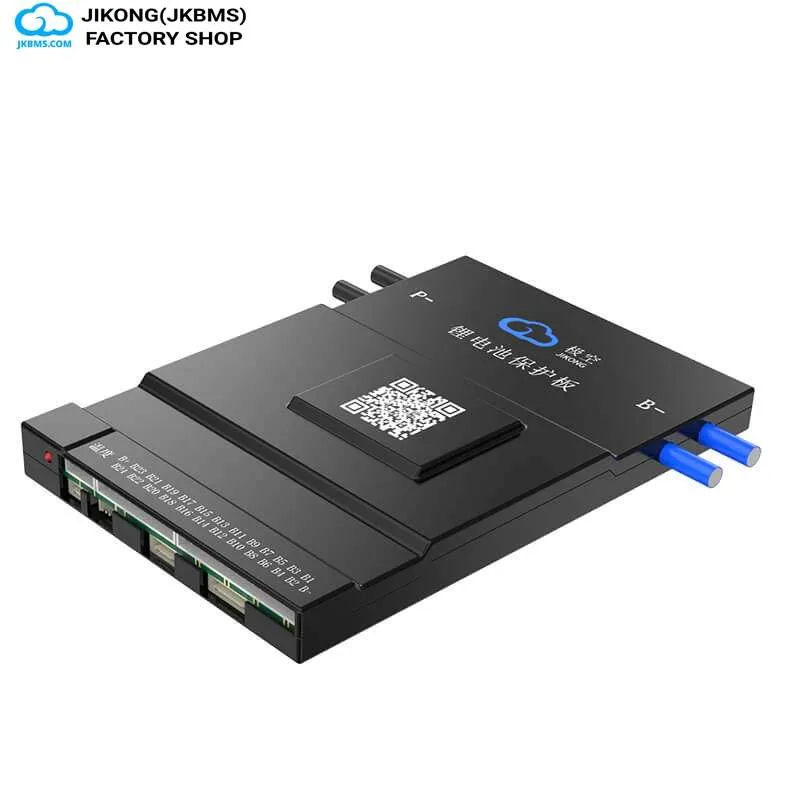

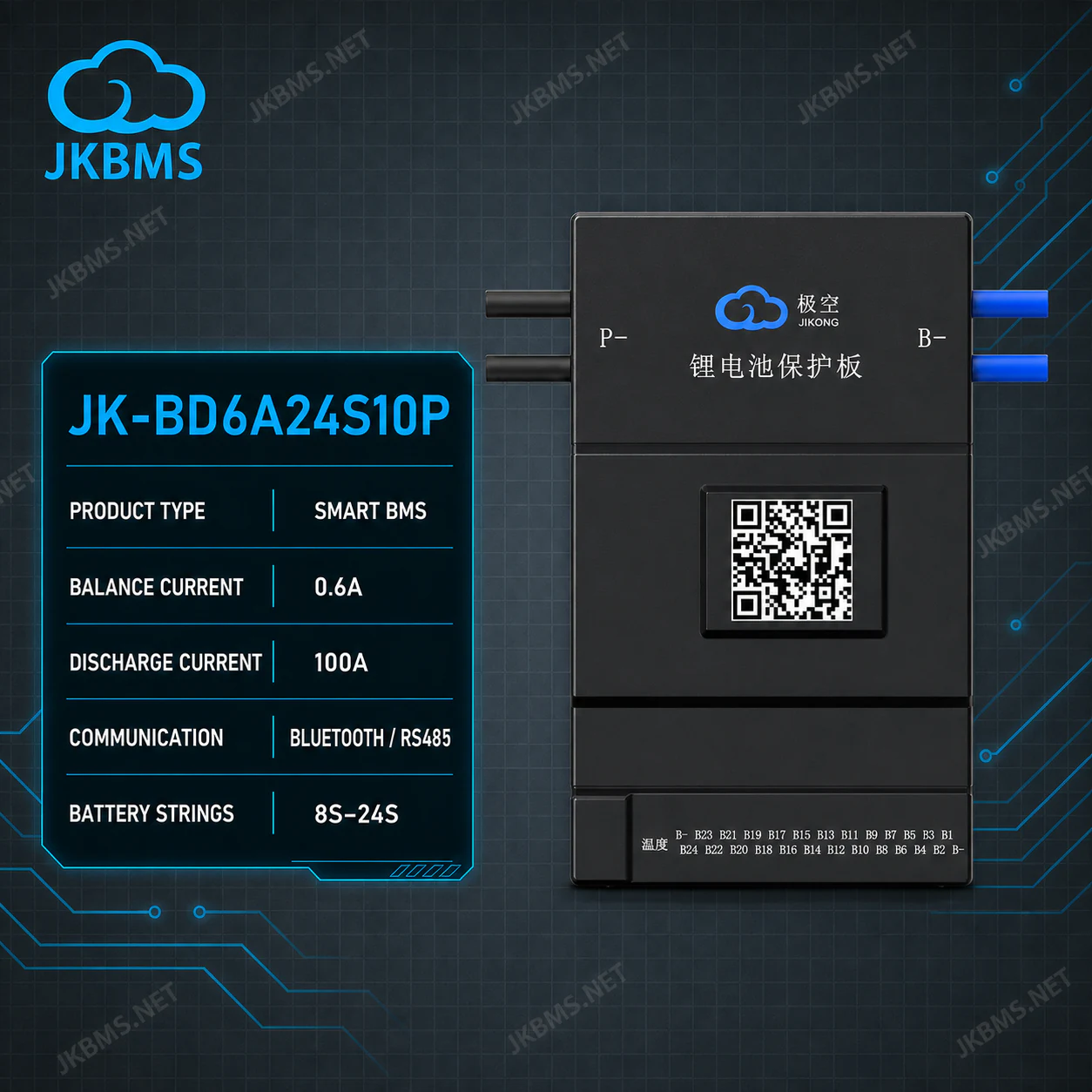

JKBMS JK-BD6A24S10P Smart Active Balance BMS

7-24S 100 A-class JK-BD BMS with 0.6 A active balancing

A JK-BD smart BMS for lithium packs up to 24S, rated at 100 A continuous discharge and 0.6 A active balancing. Bluetooth and display are listed. Use a compatible harness for the installation.

1 / 8
Total$79.23

Product details

Supply scope and specifications

Key features

  • Chemistry-specific support: 7-24S Li-ion, 8-24S LiFePO4, 14-20S LTO
  • 100 A current class; V1.0 lists 100 A continuous and 200 A maximum discharge
  • 0.6 A active cell balancing and ±3 mV cell-voltage accuracy
  • Bluetooth and display support
  • CAN, RS485, heating and GPS-related functions are revision- and suffix-dependent
  • Mechanical reference: 162 × 102 × 20.4 mm, approximately 360 g

Included

  • Selected JKBMS smart BMS model or display bundle
  • Model-specific wiring harness and standard accessories supplied with the product
  • Documentation or setup references supplied with the selected package

Not included

  • Battery cells, battery enclosure, inverter, charger, and external power cabling
  • External contactors, breakers, fuses, and installation hardware unless specified
  • Onsite installation, commissioning, firmware setup, or inverter configuration service

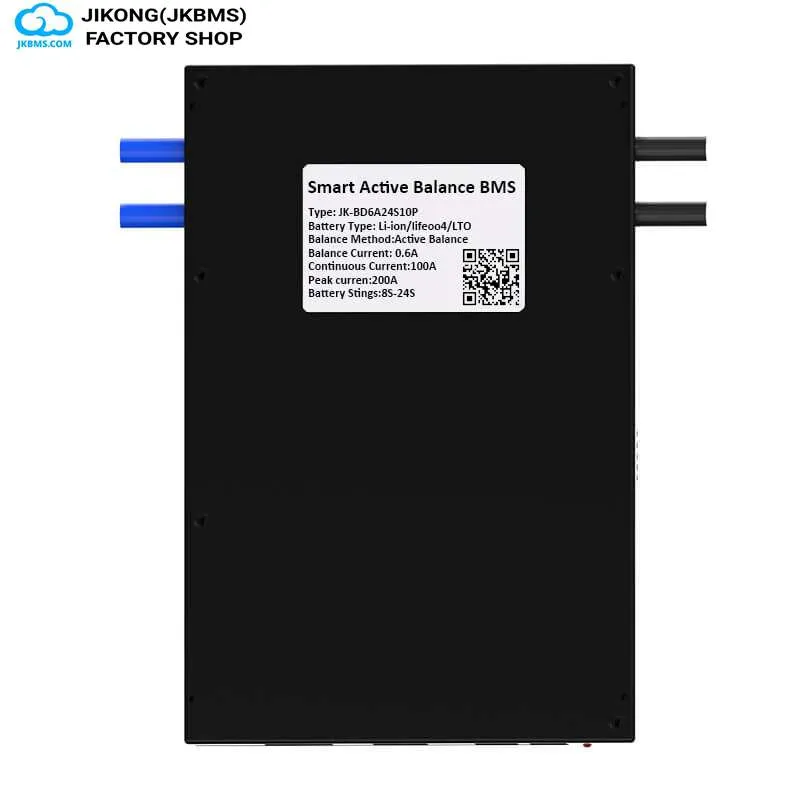

ModelJK-BD6A24S10P
SeriesJKBMS JK-BD Series
Battery ChemistryLi-ion (ternary/NMC) 7–24S; LiFePO4 (LFP) 8–24S; Lithium titanate (LTO) 14–20S
Series RatingLi-ion 7–24S; LiFePO4 8–24S; Lithium titanate 14–20S
Balance Current0.6 A active
Current Class100 A
Supply Voltage20–100 V
Operating Temperature-30°C to 70°C
Cell-voltage Accuracy±3 mV
Standard CommunicationBluetooth, display interface
Optional CommunicationCAN (revision/suffix-dependent), RS485 (revision/suffix-dependent), heating (revision/suffix-dependent), GPS interface (revision-dependent)
DimensionsSpecification V1.0: 162 × 102 × 20.4 mm
WeightSpecification V1.0: 360 g approx.
Manual RevisionV1.0 / V15.0.1

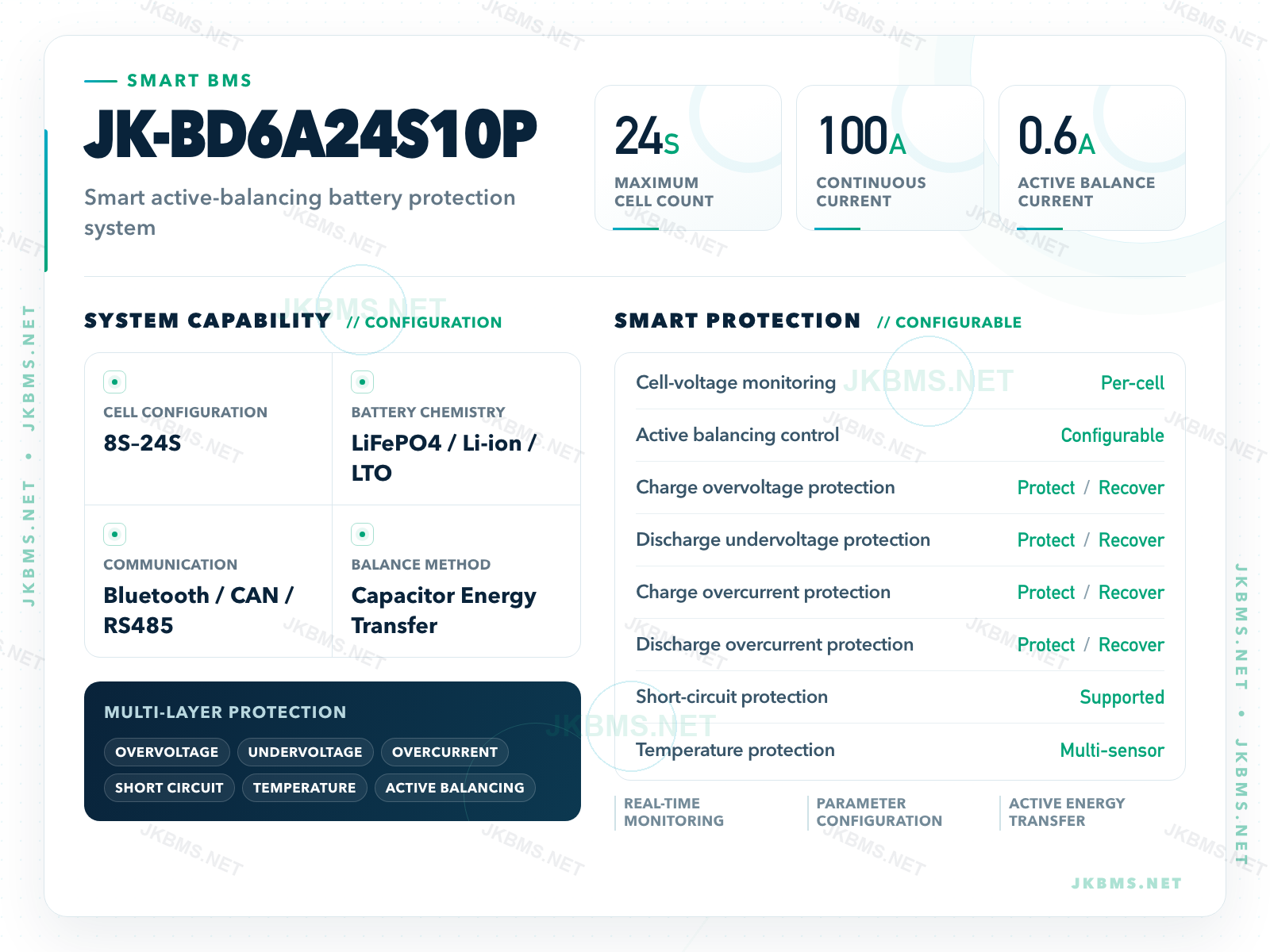

JK-BD6A24S10P technical parameters, 8S–24S, 100A, 0.6A active balance
TECHNICAL SPECIFICATIONS

JK-BD6A24S10P parameter details

Hardware revisions and optional interfaces vary by configuration. Use the correct wiring and protection settings for your system. Use the revision-matched manual for wiring.

View specifications as text
JK-BD6A24S10P specifications
Selected modelJK-BD6A24S10P
ConfigurationJK-BD6A24S10P
Battery chemistry / stringsLi-ion (ternary/NMC): 7-24S; LiFePO4 (LFP): 8-24S; Lithium titanate (LTO): 14-20S
Active balance0.6 A
Current class (not a continuous rating)100 A
Documented standard interfacesBluetooth, display interface
Specification basisJKBMS JK-BxxAxxS specification V1.0 and JK-BD6AxxS-10P manual V15.0.1 (V1.0 / V15.0.1)
Model parameter chartEnglishFull-size chart
JK-BD6A24S10P current model specification table, with qualified current ratings, source basis and confirmation notes.

Product resources

Specifications depend on hardware revision. Use a compatible harness and follow the applicable installation instructions.

HARDWARE SPECIFICATIONS

JK-BD6A24S10P data by hardware revision

The V1.0 specification and V15.0.1 exact-series manual agree on the common battery ranges, 100 A current class and 0.6 A active balancing. LTO range and CAN, RS485, heating and GPS-related options vary by revision and ordered suffix.

Battery compatibility

Chemistry changes the series range

Li-ion (ternary/NMC)
7–24S
LiFePO4 (LFP)
8–24S
Lithium titanate (LTO)
14–20S

Electrical limits

Use the correct rating label

Active balance
0.6 A
Current class
100 A
Supply voltage
20–100 V
Cell-voltage accuracy
±3 mV

V1.0 lists 100 A continuous and 200 A maximum discharge. System limits depend on the applicable hardware, configured limits, conductors, terminals, fusing and thermal design.

Interfaces and functions

Standard is not the same as optional

Standard

Bluetooth · display interface

Optional / suffix-dependent

CAN (revision/suffix-dependent) · RS485 (revision/suffix-dependent) · heating (revision/suffix-dependent) · GPS interface (revision-dependent)

  • V1.0 treats CAN and RS485 as optional alternatives and treats optional GPS as mutually exclusive with RS485.
  • V15.0.1 defines suffixes for CAN, RS485, heating and a PHCR configuration that includes both CAN and RS485.
  • V15.0.1 lists a GPS interface as standard; this does not mean a GPS module is included.
  • The exact revision, suffix, harness and shipped interfaces must be confirmed before wiring.

Mechanical and environment

Match dimensions to the label

Specification V1.0
162 × 102 × 20.4 mm · approx. 360 g
Operating temperature
-30°C to 70°C

Configuration suffix guide

Order the interface you actually need

Base
Standard documented functions; confirm the exact shipped revision
C
CAN communication on V15.0.1 suffix matrix
R
RS485 communication on V15.0.1 suffix matrix
H
Heating option on V15.0.1 suffix matrix
HC / HR
Heating with CAN or RS485 on V15.0.1 suffix matrix
HCR
Heating with both CAN and RS485 on V15.0.1 suffix matrix
Revision control matters.
  • The V1.0 specification lists LTO at 14-20S; V15.0.1 lists 14-24S for JK-BD6A24S-10P.
  • Use 14-20S as the cross-version confirmed LTO range. LTO 21-24S requires confirmation that the shipped hardware matches V15.0.1.
  • V1.0 and V15.0.1 describe different communication-option rules, so CAN or RS485 must not be inferred from the base model name alone.

TECHNICAL DOCUMENTS

Product manuals

Documentation review recorded 2026-08-03. Technical facts apply only to the named document and hardware revisions; this is not a manufacturing date.

Browse the official technical library →

Before ordering

Four details that prevent the wrong configuration

  1. Confirm battery chemistry and series count; LTO 21-24S requires verified V15.0.1 hardware.
  2. Confirm the hardware revision and exact suffix before specifying CAN, RS485, heating or GPS-related functions.
  3. Provide display and harness requirements and verify the exact shipped connector definition.
  4. Check conductor size, terminals, fuse, enclosure clearance and thermal conditions for the intended load.

MODEL-SPECIFIC APPLICATION NOTES

JK-BD6A24S10P selection context

JK-BD6A24S10P should be compared as a specific JK-BD series product, not only by a copied title or image. The selection should be based on the real battery system, installation space, communication needs, and official quotation or checkout configuration.
Why this model matters

Use 14-20S as the cross-version confirmed LTO range. Confirm the V1.0 or V15.0.1 hardware revision, suffix and harness before specifying CAN, RS485, heating or GPS-related functions.

Application context

JKBMS JK-BD6A24S10P Smart Active Balance BMS belongs to the JK-BD series and is best reviewed for higher-series lithium battery packs where current rating and active balancing must match the real load.

The listed battery string range is Li-ion (ternary/NMC) 7–24S; LiFePO4 (LFP) 8–24S; Lithium titanate (LTO) 14–20S. The current reference is 100 A. The active-balancing reference is 0.6 A active.

For communication planning, this page lists Standard: Bluetooth, display interface; Optional: CAN (revision/suffix-dependent), RS485 (revision/suffix-dependent), heating (revision/suffix-dependent), GPS interface (revision-dependent); protocol, pinout, cable, firmware, and inverter or service-tool settings still need confirmation.

Decision checks

  • Battery chemistry or cell fit: Li-ion (ternary/NMC) 7–24S; LiFePO4 (LFP) 8–24S; Lithium titanate (LTO) 14–20S.
  • Mechanical planning: reserve space around Specification V1.0: 162 × 102 × 20.4 mm, cable exits, airflow, and service access.
  • The product page lists the available configurations and accessories for direct checkout.
  • Use www.jkbms.net and zhou@jkbms.net to verify official source, quotation, and bulk purchasing details.

Model planning

Model fit and purchase planning

Use this summary to confirm whether JKBMS JK-BD6A24S10P Smart Active Balance BMS fits the battery system before checkout, quotation, or installation.

Model
JK-BD6A24S10P
Primary use
Smart active-balance BMS for higher-series lithium packs
Battery strings
Li-ion (ternary/NMC) 7–24S; LiFePO4 (LFP) 8–24S; Lithium titanate (LTO) 14–20S
Current reference
100 A
Active balancing
0.6 A active
Communication
Standard: Bluetooth, display interface; Optional: CAN (revision/suffix-dependent), RS485 (revision/suffix-dependent), heating (revision/suffix-dependent), GPS interface (revision-dependent)
Installation size
Specification V1.0: 162 × 102 × 20.4 mm

Selection details

  • JKBMS JK-BD6A24S10P Smart Active Balance BMS should be checked against the real battery pack, load current, installation space, thermal conditions, and selected accessories before purchase.
  • The listed 100 A current reference must be matched with cable size, terminals, fuse or breaker, battery cells, thermal design, and expected inverter demand.
  • The listed communication options are Standard: Bluetooth, display interface; Optional: CAN (revision/suffix-dependent), RS485 (revision/suffix-dependent), heating (revision/suffix-dependent), GPS interface (revision-dependent); protocol, pinout, firmware, and inverter compatibility still need project-level confirmation.
  • The 0.6 A active balancing specification is one selection factor and does not replace matched cells, correct wiring, or suitable charging settings.

System fit checks

Compatibility, installation, and official purchase checks

Use these checks before selecting a configuration, requesting a quote, or installing the product in a battery system.

Compatibility

Match the product to the battery system

Confirm the battery pack is within Li-ion (ternary/NMC) 7–24S; LiFePO4 (LFP) 8–24S; Lithium titanate (LTO) 14–20S. Match the 100 A current reference to the inverter, load, wiring, protection, and thermal design. Use the 0.6 A active active-balancing class as one selection input, not as a substitute for good cell matching.

Communication

Confirm protocol and interface details

Communication status: Standard: Bluetooth, display interface; Optional: CAN (revision/suffix-dependent), RS485 (revision/suffix-dependent), heating (revision/suffix-dependent), GPS interface (revision-dependent). Confirm protocol, pinout, baud rate or CAN bitrate, firmware, and inverter compatibility before installation.

Installation

Plan wiring, mounting, and operating conditions

Reserve space for the listed dimensions: Specification V1.0: 162 × 102 × 20.4 mm. Plan the installation around -30°C to 70°C operating conditions. Use suitable fusing, cable size, torque, ventilation, insulation, and commissioning checks for the final battery system.

Official source

Verify the product and quote channel

Verify this product on https://www.jkbms.net/products/jkbms-jk-bd6a24s10p-smart-bms-24s-100a-0-6a-active-balancer, confirm the official domain is www.jkbms.net, and use zhou@jkbms.net for quotation checks before bulk payment or project procurement.

Product FAQ

JK-BD6A24S10P compatibility, configuration and purchase FAQQuestions & answers

How do I choose the correct BMS for my battery?

Provide the chemistry, exact series count, continuous charge and discharge current, and peak current with its duration. Then check balancing current, installation space, cooling, inverter, hardware revision and matched wiring. Nominal voltage, a series name or a similar connector alone does not establish compatibility.

Can I add a 4.3-inch display and WiFi module to this BMS?

Yes. The current catalogue offers these options for this BMS, independently or together. Each selected accessory is supplied once per BMS; a display already included in the selected package is not charged twice. The adapter and harness must be compatible with the BMS and display.

Do two selected accessories give a 10% discount?

No. Selecting a display or WiFi applies the 5% discount once to the BMS and those accessories. Two accessories do not double the discount. H/C/R/P feature fees do not trigger or receive the discount and are added in full afterwards.

Can this BMS be ordered with a 7-inch display?

The 7-inch display option is limited to the PB series and is not offered for this BMS. Use the display choices listed on this page with a compatible adapter and harness.

Can I add heating, CAN and RS485, and what do they cost?

H means heating interface, C means CAN and R means RS485. All PB-series models include H, CAN and RS485 as standard. B2A32S-RP includes CAN and RS485 as standard, with H available as an option. Included features require no selection or extra charge. Each feature not already included costs USD 1 per BMS. Features included in the model are not offered or charged again. The final model retains existing feature letters and adds only newly selected options in H, C, R order, preserving any existing PB suffix. Option fees are added after any 5% bundle discount and do not trigger it. The model, hardware revision, application protocol and harness must suit your inverter.

Does CAN or RS485 guarantee compatibility with my inverter?

No. Compatibility depends on the inverter and BMS, hardware revision, application protocol, firmware, pinout, cable and settings. A website selection or a matching connector does not prove that the two devices can communicate.

Which cell counts does JK-BD6A24S10P support by chemistry?

Both documents list 7-24S for ternary/NMC lithium and 8-24S for LiFePO4. V1.0 lists LTO at 14-20S, while V15.0.1 lists 14-24S. Use 14-20S as the cross-version confirmed range and verify V15.0.1 hardware before using 21-24S LTO.

Is RS485 standard on JK-BD6A24S10P?

Do not infer RS485 from the base model name. V1.0 treats CAN and RS485 as optional alternatives, while V15.0.1 defines suffix-specific configurations including an HCR version with both. Confirm the revision, suffix and harness.

Can JK-BD6A24S10P include CAN and RS485 together?

It depends on the hardware revision and suffix. V1.0 treats CAN and RS485 as alternatives, while the V15.0.1 suffix matrix defines an HCR configuration with heating, CAN and RS485. Confirm the shipped label before wiring.

What size and current rating apply to JK-BD6A24S10P?

V1.0 lists 100 A continuous discharge, 200 A maximum discharge, 162 × 102 × 20.4 mm and approximately 360 g. Treat 100 A as the public model class; system limits depend on the applicable hardware, wiring, terminals, protection and cooling.
