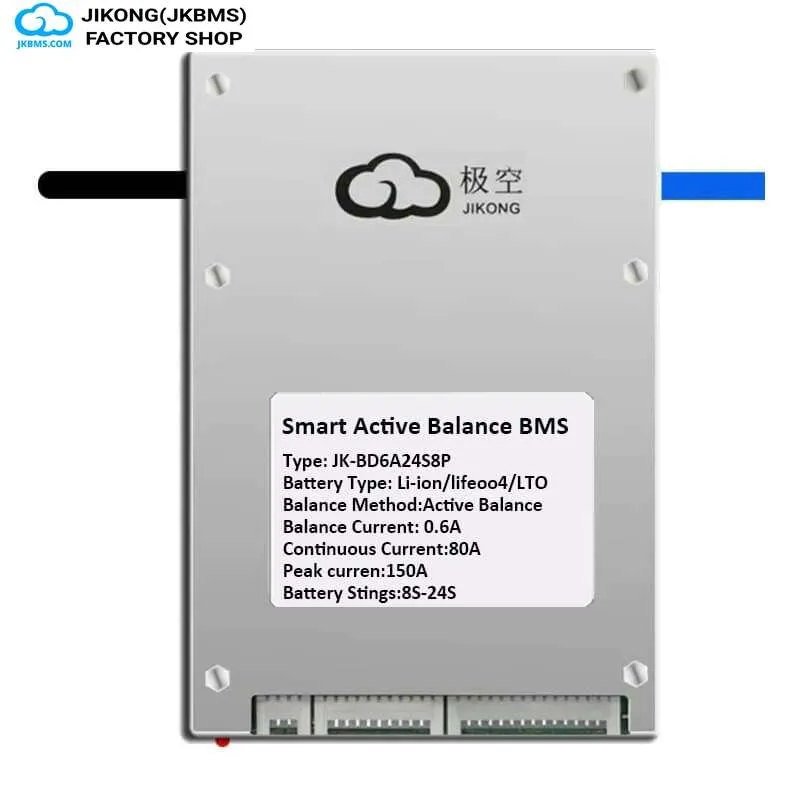

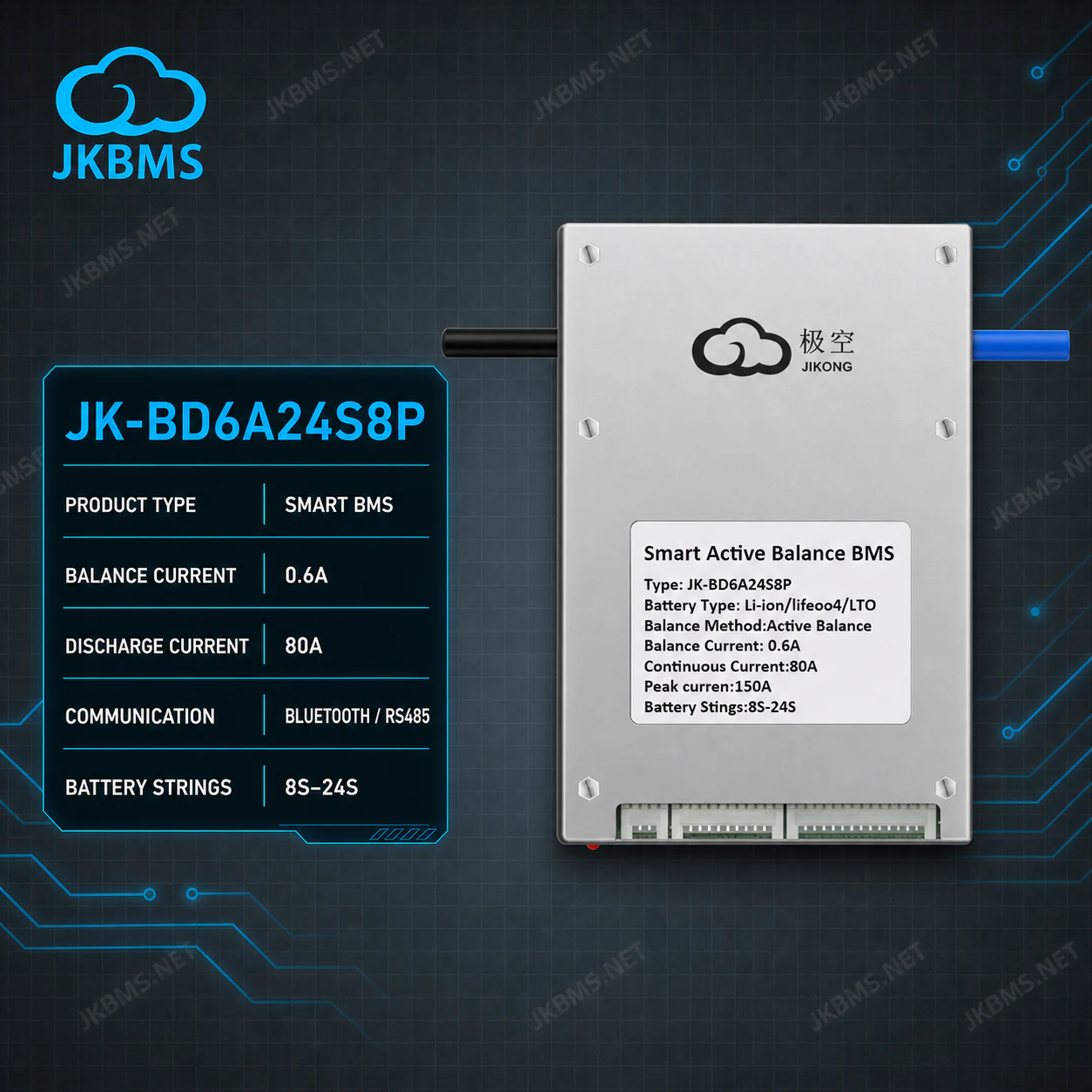

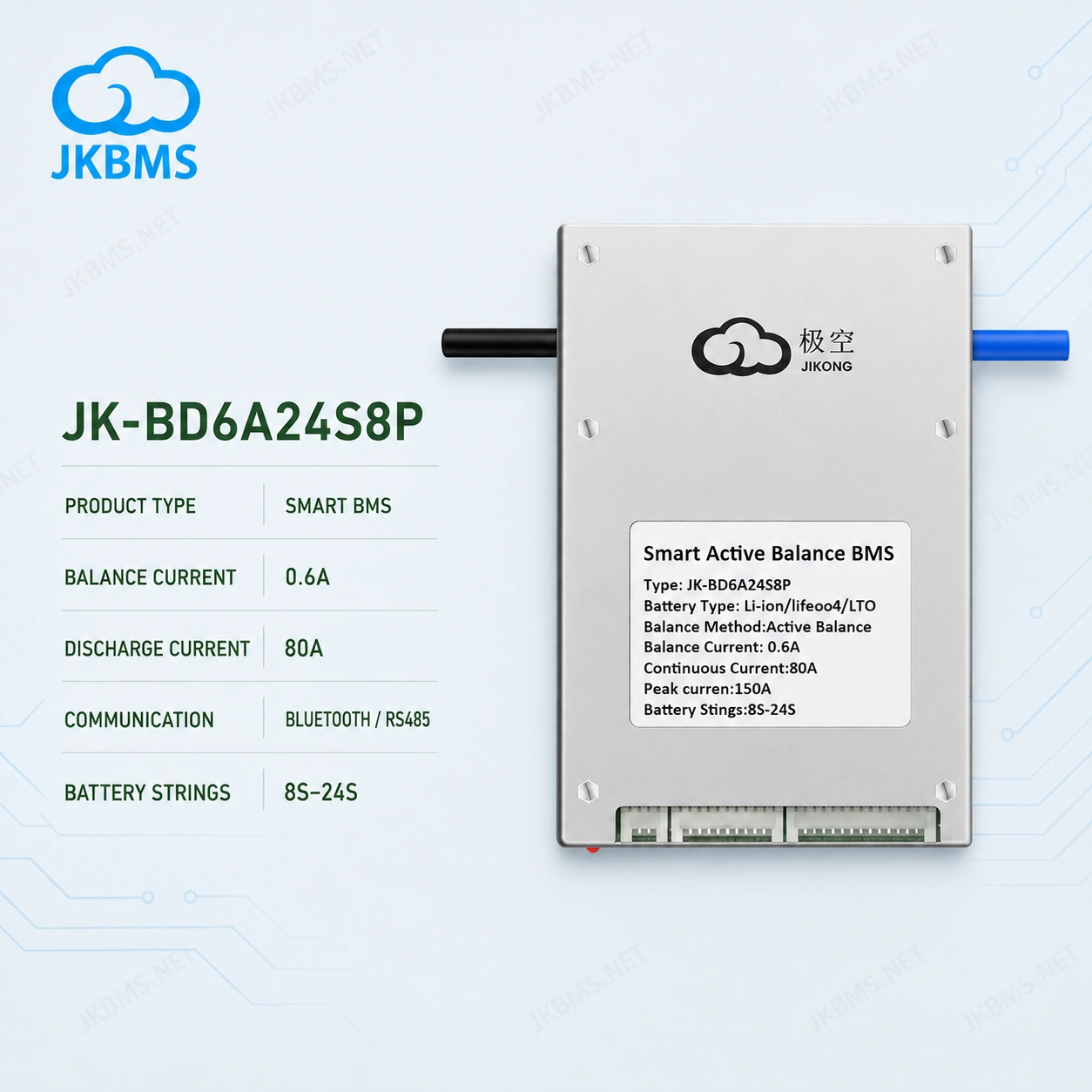

Product-family image. Exact SKU appearance and supplied items are not confirmed by this image.

JKBMS JK-BD Series

JK-BD6A24S8P

$109.86Choose configuration

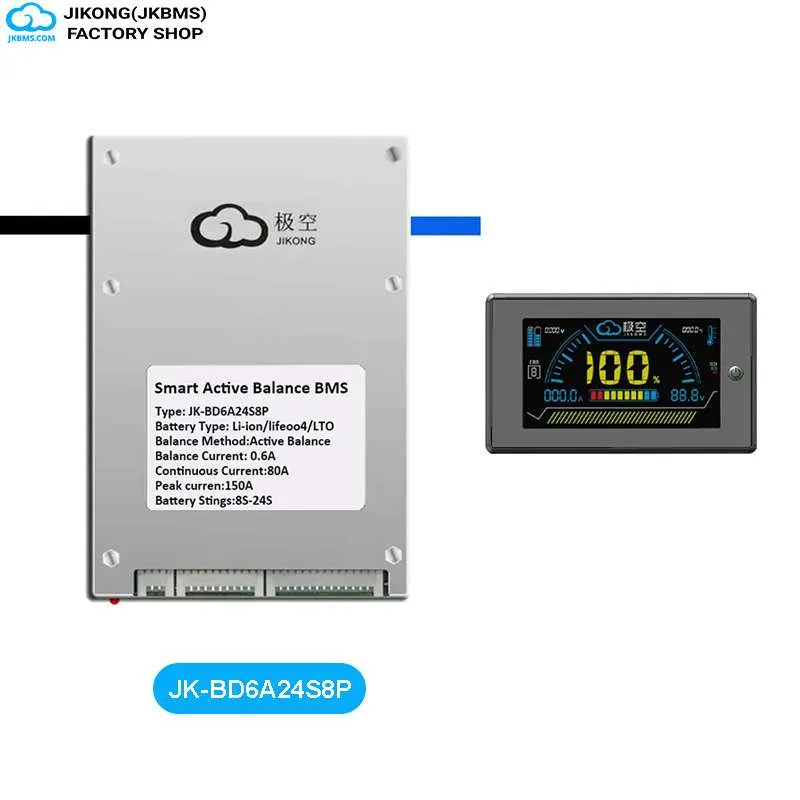

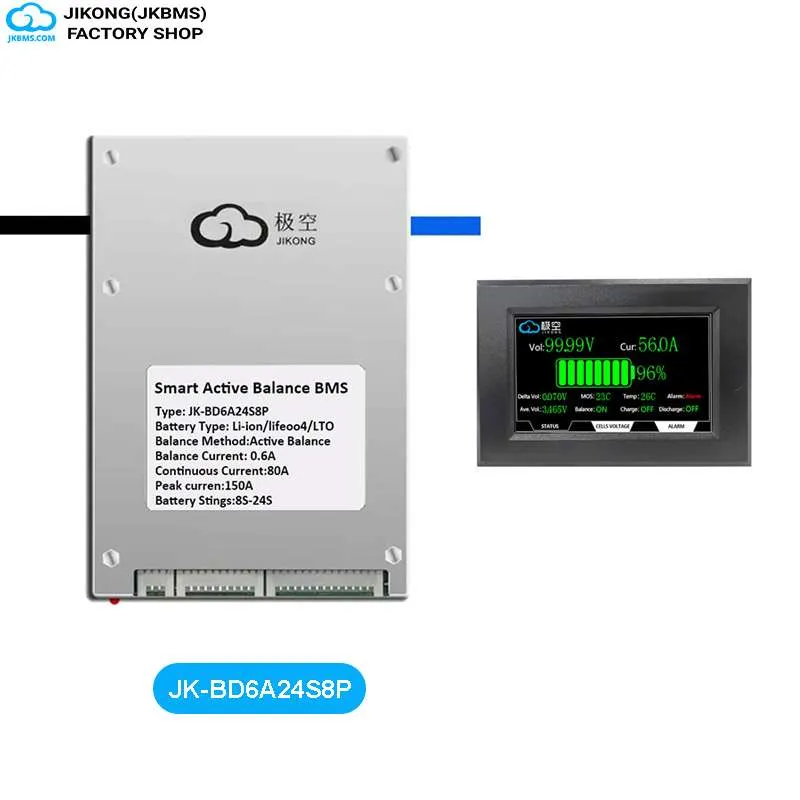

JK-BD6A24S8P+4.3″ Display

Technical data for JK-BD6A24S8P requires exact-model documentation. Confirm chemistry, strings, current duty, interfaces, hardware revision and harness before ordering.

BMS selector
Choose configuration
  • Apple Pay
  • Google Pay
  • Visa
  • Mastercard
  • PayPal
Selected configuration$109.86

Free shipping.

Selected SKU facts

Selected model
JK-BD6A24S8P
Configuration
JK-BD6A24S8P+4.3″ Display

Manual data is revision-specific. Confirm the shipped label and harness before wiring.

Optional compatible accessories

No confirmed accessory match for this configuration. Request compatibility confirmation.

Product details

Supply scope and specifications

Key features

  • Exact-model technical data and hardware revision require factory confirmation.

Included

  • Selected configuration: JK-BD6A24S8P+4.3″ Display
  • Exact harness and supplied items require confirmation against the packing list.

Not included

  • Battery cells, battery enclosure, inverter, charger, and external power cabling
  • External contactors, breakers, fuses, and installation hardware unless specified
  • Onsite installation, commissioning, firmware setup, or inverter configuration service
Selected modelJK-BD6A24S8P
ConfigurationJK-BD6A24S8P+4.3″ Display
TECHNICAL SPECIFICATIONS

JK-BD6A24S8P parameter details

Hardware revisions and optional interfaces may differ; confirm the supplied revision before wiring or changing protection settings.

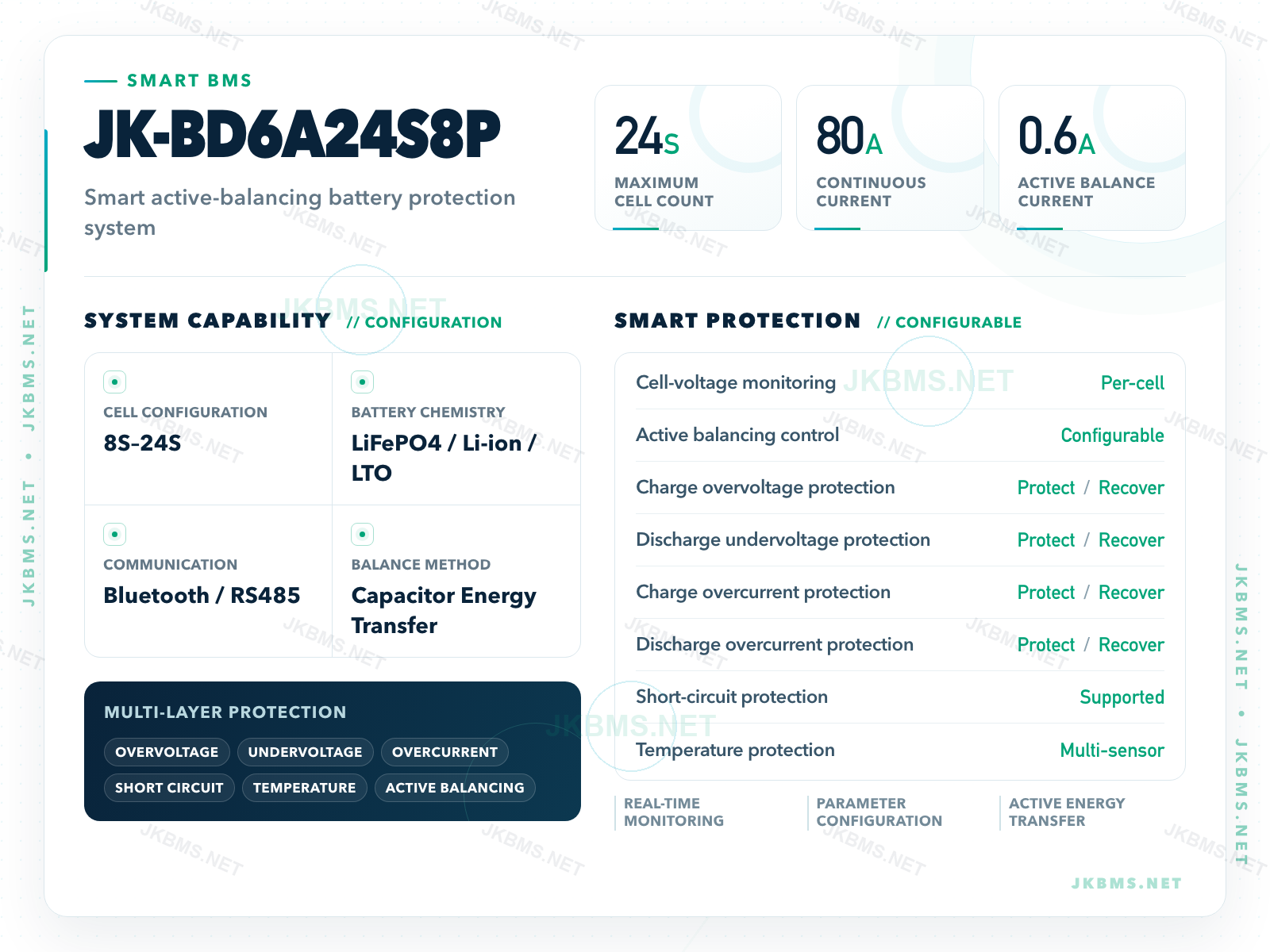

JK-BD6A24S8P specifications
NMC battery strings7-24S
LiFePO4 battery strings8-24S
LTO battery strings14-24S
Balancing methodActive balancing
Active balancing current0.6 A
Main circuit resistance1.2 mOhm
Continuous discharge current80 A
Maximum discharge current150 A
Overcurrent protection setting10-80 A
Other interfaces (custom order)RS485 / CAN
Display interfaceSupported
Charge / discharge connectionCommon port
Cell voltage measurement range1-5 V
Voltage measurement accuracy+/-5 mV
Overcharge protection voltage1.2-4.35 V, adjustable
Overcharge release voltage1.2-4.35 V, adjustable
Overcurrent release delay2-120 s, adjustable
Overdischarge protection voltage1.2-4.35 V, adjustable
Overdischarge recovery voltage1.2-4.35 V, adjustable
Temperature sensing points3
Temperature protectionSupported
Short-circuit protectionSupported
Coulomb countingSupported
Bluetooth app platformsAndroid, iOS and HarmonyOS
GPS (optional)Supported; GPS and RS485 are mutually exclusive
Original parameter chartChinese originalFull-size chart

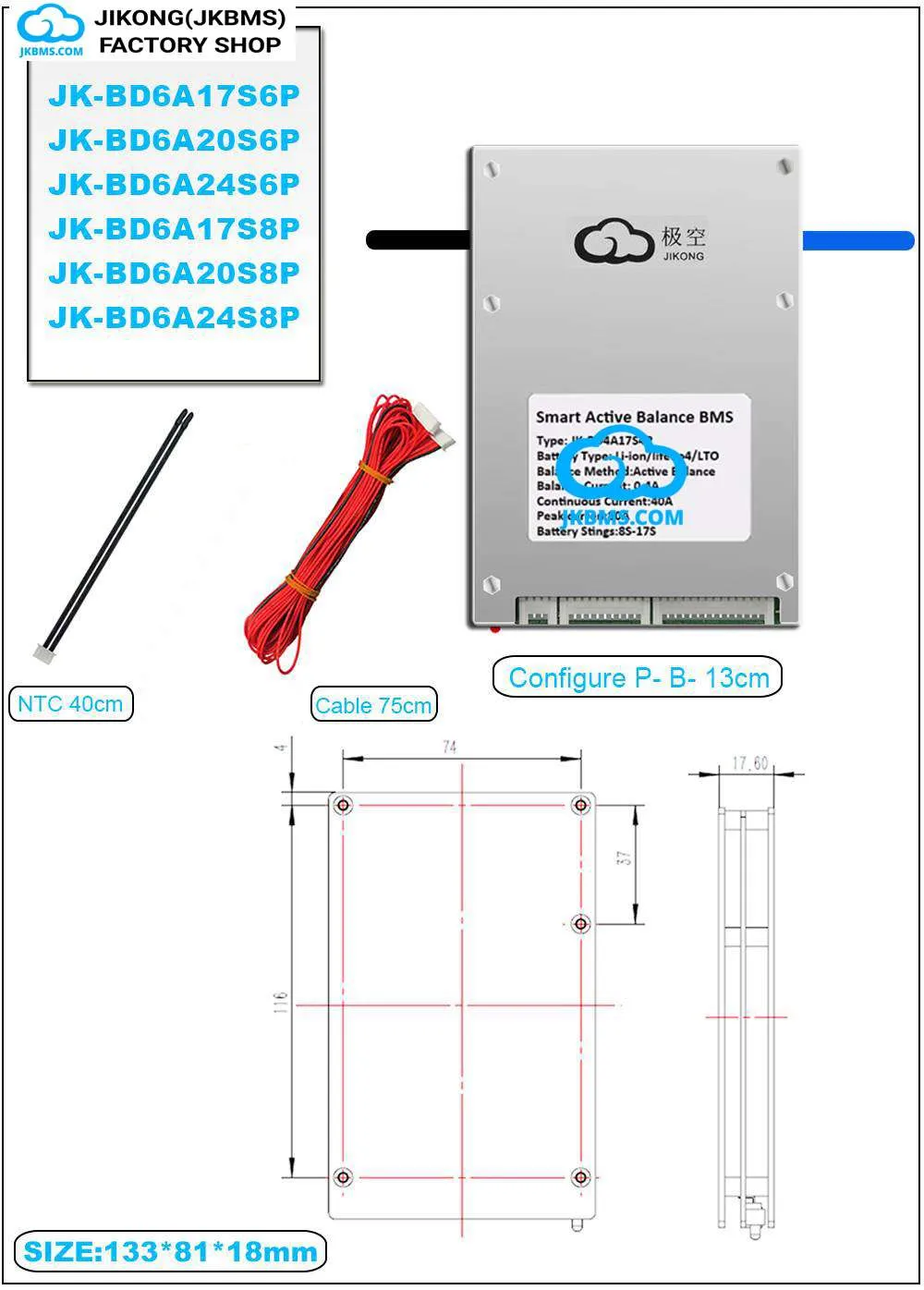

JK-BD6A24S8P manufacturer technical parameter table; shared chart covers JK-BD6A17S6P, JK-BD6A20S6P, JK-BD6A24S6P, JK-BD6A17S8P, JK-BD6A20S8P, JK-BD6A24S8P, sheet 1

Exact-model verification

No exact-model manual association is confirmed for the selected configuration.

JK-BD6A24S8P manuals and wiringJK BMS app downloads and compatibilityCompare this configuration
