JKBMS JK-PB Series

JK BMS PB1A16S10P

JK-PB1A16S-10P documented V19.0.3 inverter BMS

A JK-PB smart BMS for lithium packs up to 16S, rated at 100 A continuous discharge and 1 A active balancing. Bluetooth, CAN, dual RS485 and display are listed. Use a compatible harness for the installation.

1 / 8
Total$120.25

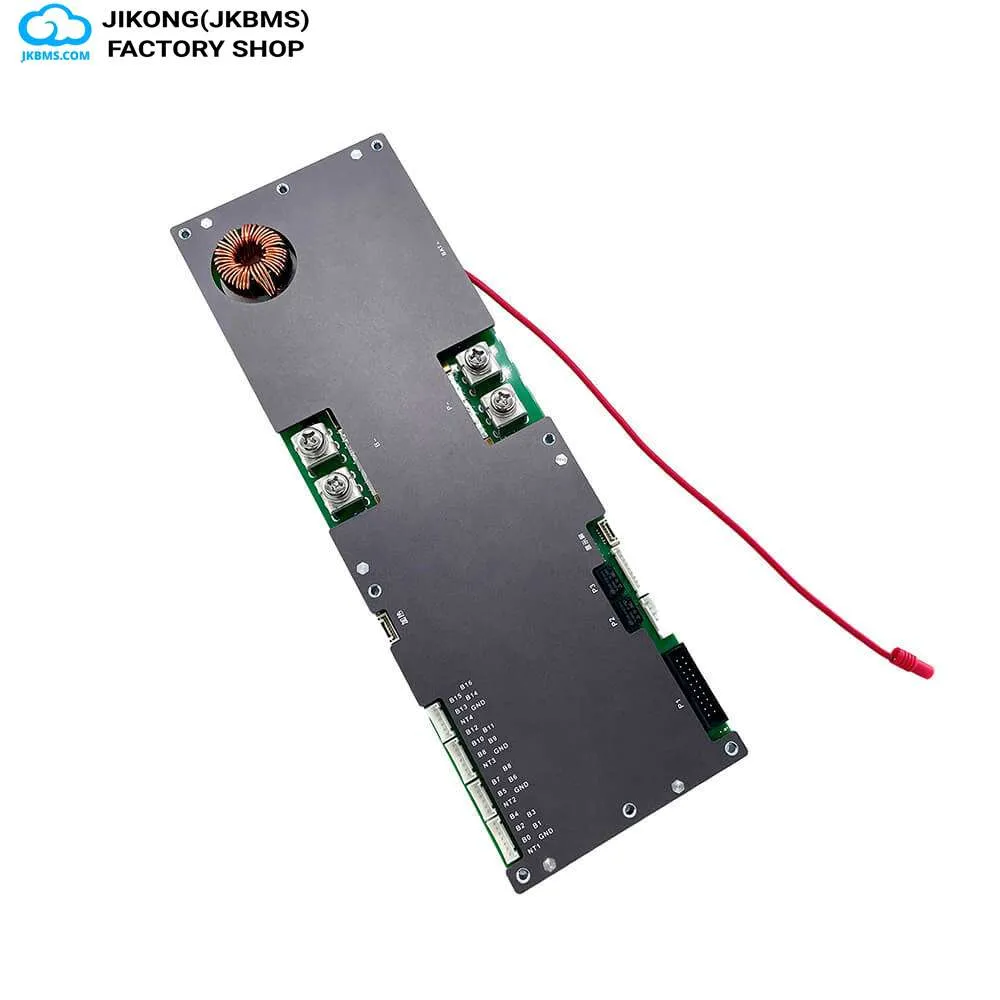

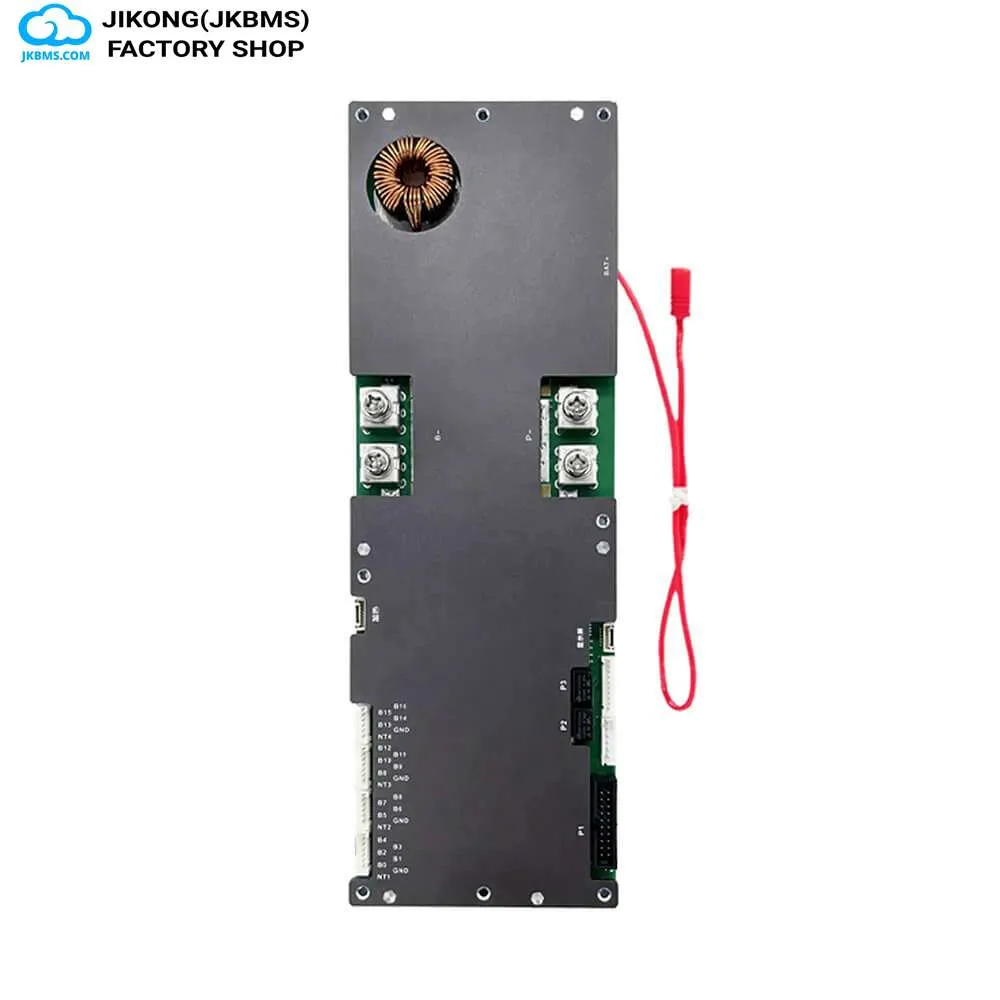

Product details

Supply scope and specifications

Key features

  • Exact manual model: JK-PB1A16S-10P V19.0.3
  • Chemistry-specific support: 7-16S NMC, 8-16S LiFePO4, 14-16S LTO
  • 1 A active balancing
  • Documented current: 100 A maximum continuous current
  • Documented standard interfaces: Bluetooth, CAN, dual RS485 and display

Included

  • Selected JKBMS smart BMS model or display bundle
  • Model-specific wiring harness and standard accessories supplied with the product
  • Documentation or setup references supplied with the selected package

Not included

  • Battery cells, battery enclosure, inverter, charger, and external power cabling
  • External contactors, breakers, fuses, and installation hardware unless specified
  • Onsite installation, commissioning, firmware setup, or inverter configuration service
ModelJK-PB1A16S10P
SeriesJKBMS JK-PB Series
Battery ChemistryLi-ion (ternary/NMC) 7–16S; LiFePO4 (LFP) 8–16S; Lithium titanate (LTO) 14–16S
Series RatingLi-ion 7–16S; LiFePO4 8–16S; Lithium titanate 14–16S
Balance Current1 A active
Continuous Discharge100 A
Standard CommunicationBluetooth, CAN, RS485-1, RS485-2, display interface
Manual RevisionV19.0.3

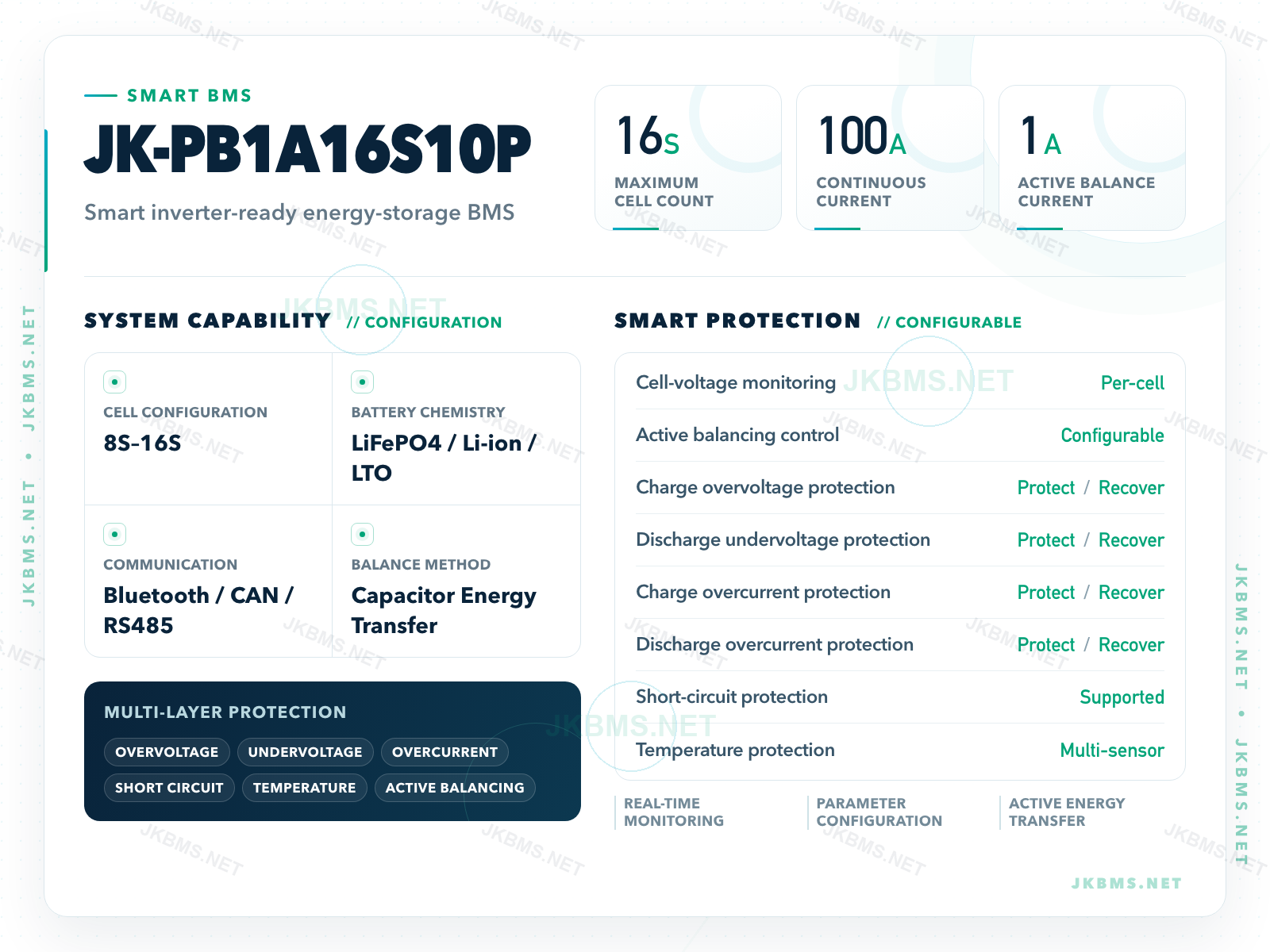

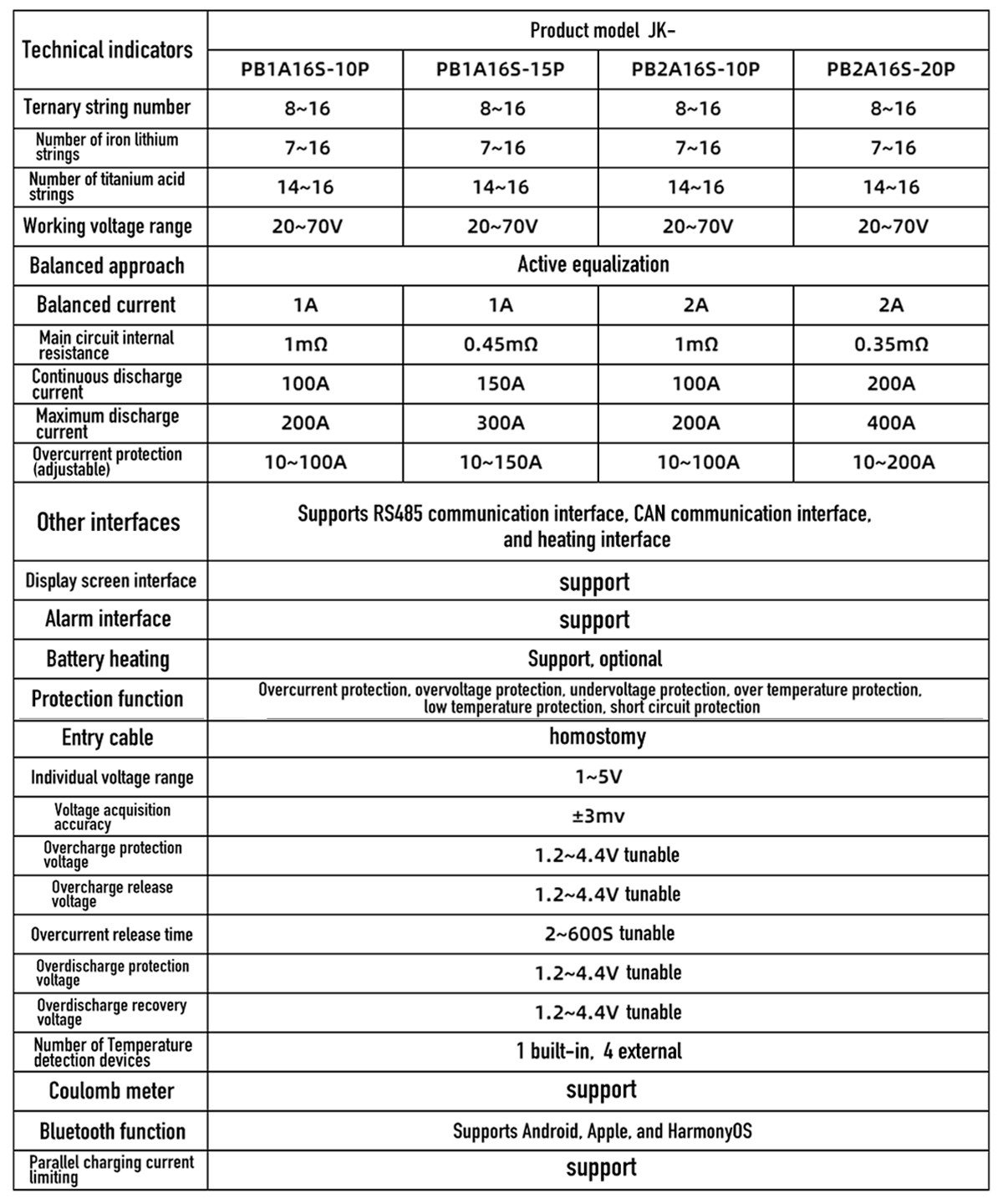

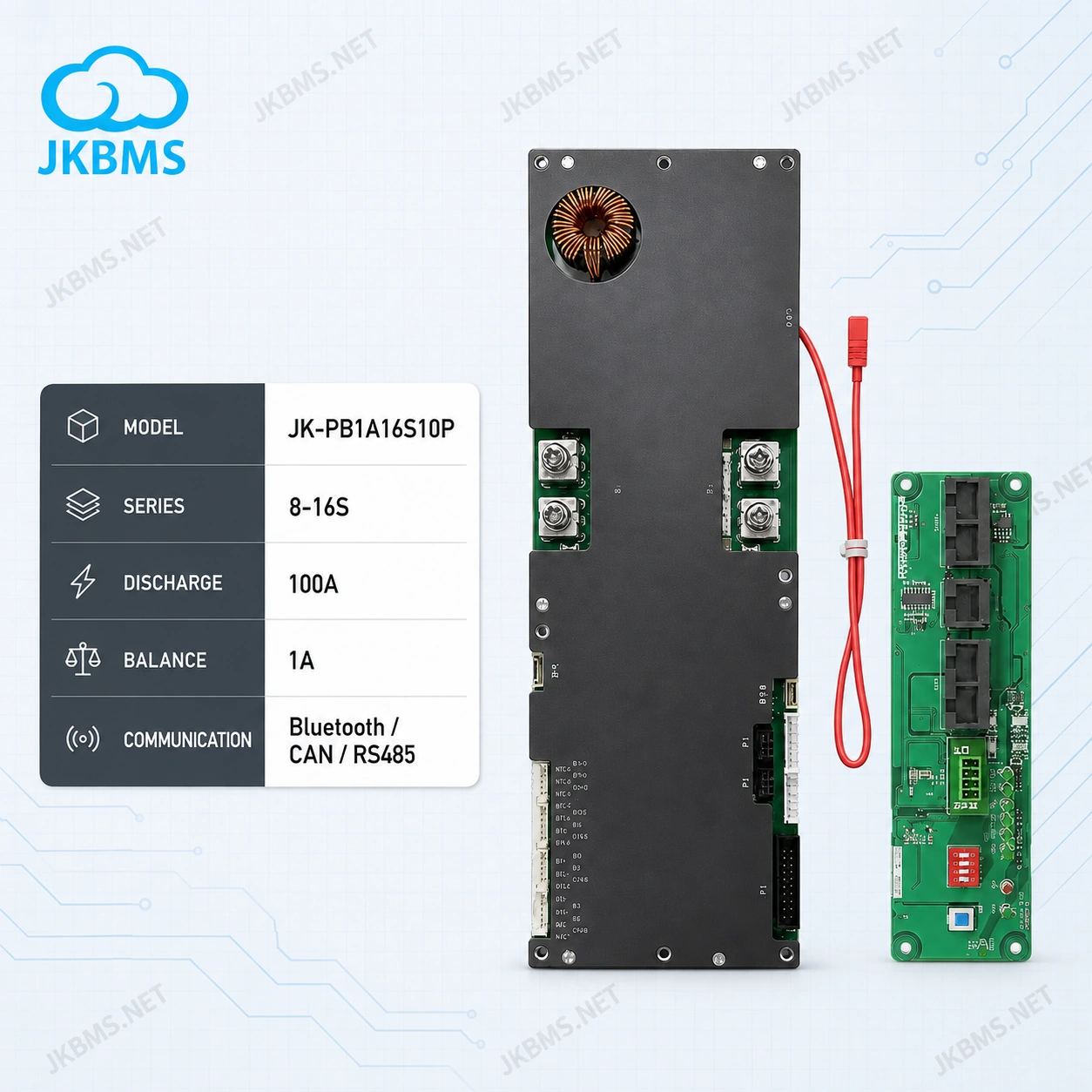

JK-PB1A16S10P technical parameters, 8S–16S, 100A, 1A active balance

Product resources

Specifications depend on hardware revision. Use a compatible harness and follow the applicable installation instructions.

HARDWARE SPECIFICATIONS

JK-PB1A16S-10P data by hardware revision

The V19.0.3 exact-model table names JK-PB1A16S-10P, documents 7-16S ternary/NMC, 8-16S LiFePO4 and 14-16S LTO, 1 A active balancing, 100 A maximum continuous current, Bluetooth, CAN, two RS485 channels and a display interface.

Battery compatibility

Chemistry changes the series range

Li-ion (ternary/NMC)
7–16S
LiFePO4 (LFP)
8–16S
Lithium titanate (LTO)
14–16S

Electrical limits

Use the correct rating label

Active balance
1 A
Continuous discharge
100 A

The manual maximum continuous current is a documented board rating; system limits depend on the applicable hardware, configured limits, conductors, fusing and cooling.

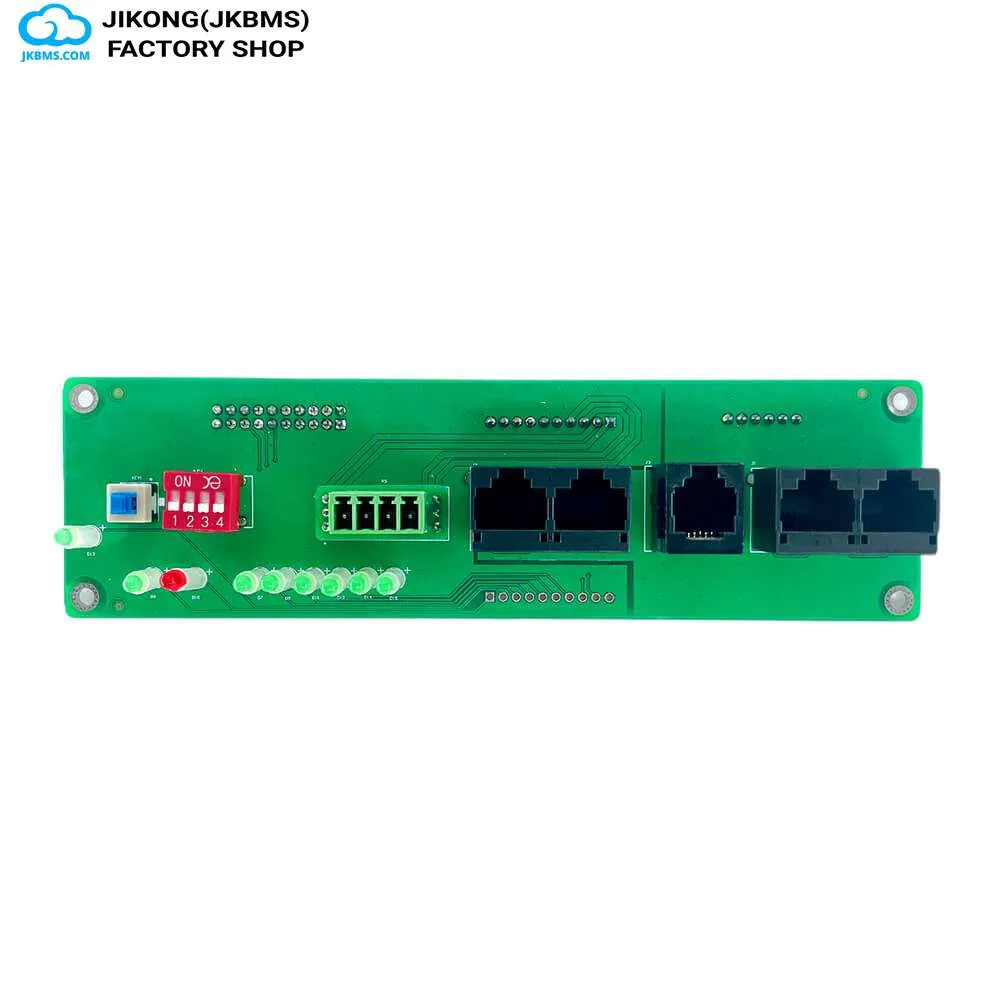

Interfaces and functions

Standard is not the same as optional

Standard

Bluetooth · CAN · RS485-1 · RS485-2 · display interface

Additional standard functions

heating control · two dry contacts · battery parallel current limiting

  • CAN and RS485 protocol and cable compatibility must be matched to the shipped revision. A documented display interface does not establish which display is supplied.

Mechanical and environment

Match dimensions to the label

Revision control matters.
  • These facts apply to JK-PB1A16S-10P V19.0.3. The inverter protocol, harness and display must be compatible; other revisions and PBD models do not inherit this profile.
  • Public PDF has 38 pages; local PDF has 36 pages. Both exact model, chemistry, balance and continuous current tables were visually checked. The public edition additionally lists discharge precharge; this shared version number does not establish identical shipped hardware.

TECHNICAL DOCUMENTS

Product manuals

Documentation review recorded 2026-10-12. Technical facts apply only to the named document and hardware revisions; this is not a manufacturing date.

Browse the official technical library →

Before ordering

Four details that prevent the wrong configuration

  1. Confirm the battery chemistry and exact series count.
  2. These specifications apply to JK-PB1A16S-10P V19.0.3.
  3. Confirm inverter communication protocol and matching CAN/RS485 cable.
  4. Current duty, complete-system electrical and thermal design, display and harness must suit the application.

MODEL-SPECIFIC APPLICATION NOTES

JK-PB1A16S-10P selection context

JK-PB1A16S-10P should be compared as a specific JK-PB series product, not only by a copied title or image. The selection should be based on the real battery system, installation space, communication needs, and official quotation or checkout configuration.
Why this model matters

These facts apply to JK-PB1A16S-10P V19.0.3. The inverter protocol, harness and display must be compatible; other revisions and PBD models do not inherit this profile.

Application context

JK BMS PB1A16S10P belongs to the JK-PB series and is best reviewed for 48V-class storage batteries and inverter-connected LiFePO4 systems.

The listed battery string range is Li-ion (ternary/NMC) 7–16S; LiFePO4 (LFP) 8–16S; Lithium titanate (LTO) 14–16S. The current reference is 100 A. The active-balancing reference is 1 A active.

For communication planning, this page lists Standard: Bluetooth, CAN, RS485-1, RS485-2, display interface; protocol, pinout, cable, firmware, and inverter or service-tool settings still need confirmation.

Decision checks

  • Battery chemistry or cell fit: Li-ion (ternary/NMC) 7–16S; LiFePO4 (LFP) 8–16S; Lithium titanate (LTO) 14–16S.
  • Confirm mounting position, cable exit, airflow, and service access in the final enclosure.
  • The product page lists the available configurations and accessories for direct checkout.
  • Use www.jkbms.net and zhou@jkbms.net to verify official source, quotation, and bulk purchasing details.

Model planning

Model fit and purchase planning

Use this summary to confirm whether JK BMS PB1A16S10P fits the battery system before checkout, quotation, or installation.

Model
JK-PB1A16S-10P
Primary use
Inverter-connected LiFePO4 storage batteries
Battery strings
Li-ion (ternary/NMC) 7–16S; LiFePO4 (LFP) 8–16S; Lithium titanate (LTO) 14–16S
Current reference
100 A
Active balancing
1 A active
Communication
Standard: Bluetooth, CAN, RS485-1, RS485-2, display interface

Selection details

  • JK BMS PB1A16S10P should be checked against the real battery pack, load current, installation space, thermal conditions, and selected accessories before purchase.
  • The listed 100 A current reference must be matched with cable size, terminals, fuse or breaker, battery cells, thermal design, and expected inverter demand.
  • The listed communication options are Standard: Bluetooth, CAN, RS485-1, RS485-2, display interface; protocol, pinout, firmware, and inverter compatibility still need project-level confirmation.
  • The 1 A active balancing specification is one selection factor and does not replace matched cells, correct wiring, or suitable charging settings.

System fit checks

Compatibility, installation, and official purchase checks

Use these checks before selecting a configuration, requesting a quote, or installing the product in a battery system.

Compatibility

Match the product to the battery system

Confirm the battery pack is within Li-ion (ternary/NMC) 7–16S; LiFePO4 (LFP) 8–16S; Lithium titanate (LTO) 14–16S. Match the 100 A current reference to the inverter, load, wiring, protection, and thermal design. Use the 1 A active active-balancing class as one selection input, not as a substitute for good cell matching.

Communication

Confirm protocol and interface details

Communication status: Standard: Bluetooth, CAN, RS485-1, RS485-2, display interface. Confirm protocol, pinout, baud rate or CAN bitrate, firmware, and inverter compatibility before installation.

Installation

Plan wiring, mounting, and operating conditions

Use suitable fusing, cable size, torque, ventilation, insulation, and commissioning checks for the final battery system.

Official source

Verify the product and quote channel

Verify this product on https://www.jkbms.net/products/jkbms-jk-pb1a16s10p-smart-16s-lifepo4-bms-active-balancer, confirm the official domain is www.jkbms.net, and use zhou@jkbms.net for quotation checks before bulk payment or project procurement.

Product FAQ

JK-PB1A16S-10P compatibility, configuration and purchase FAQQuestions & answers

How do I choose the correct BMS for my battery?

Provide the chemistry, exact series count, continuous charge and discharge current, and peak current with its duration. Then check balancing current, installation space, cooling, inverter, hardware revision and matched wiring. Nominal voltage, a series name or a similar connector alone does not establish compatibility.

Can I add a 4.3-inch display and WiFi module to this BMS?

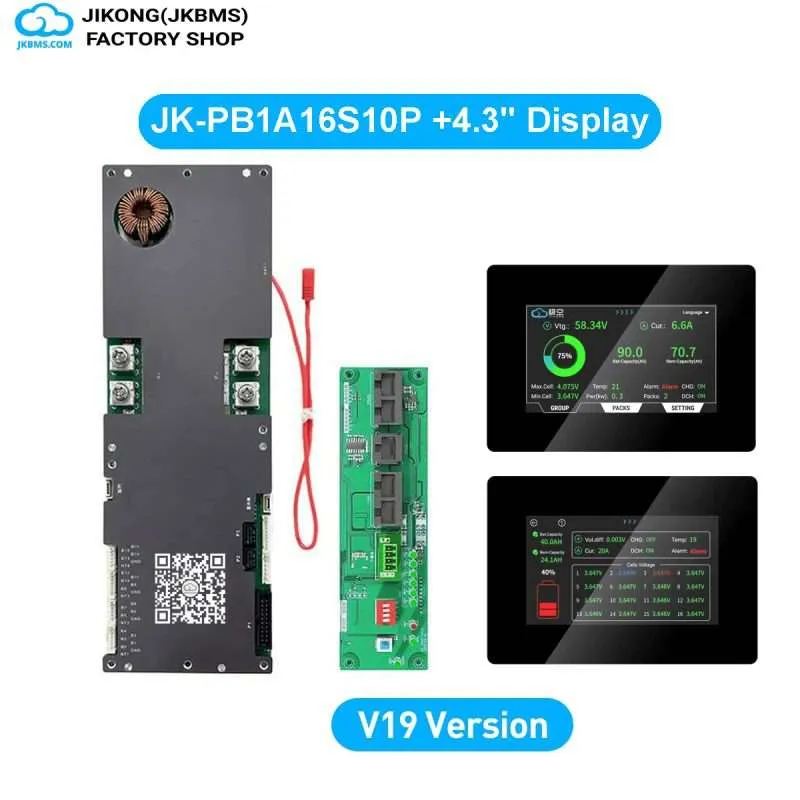

Yes. The current catalogue offers these options for this BMS, independently or together. Each selected accessory is supplied once per BMS; a display already included in the selected package is not charged twice. The adapter and harness must be compatible with the BMS and display.

Do two selected accessories give a 10% discount?

No. Selecting a display or WiFi applies the 5% discount once to the BMS and those accessories. Two accessories do not double the discount. H/C/R/P feature fees do not trigger or receive the discount and are added in full afterwards.

Can this BMS be ordered with a 7-inch display?

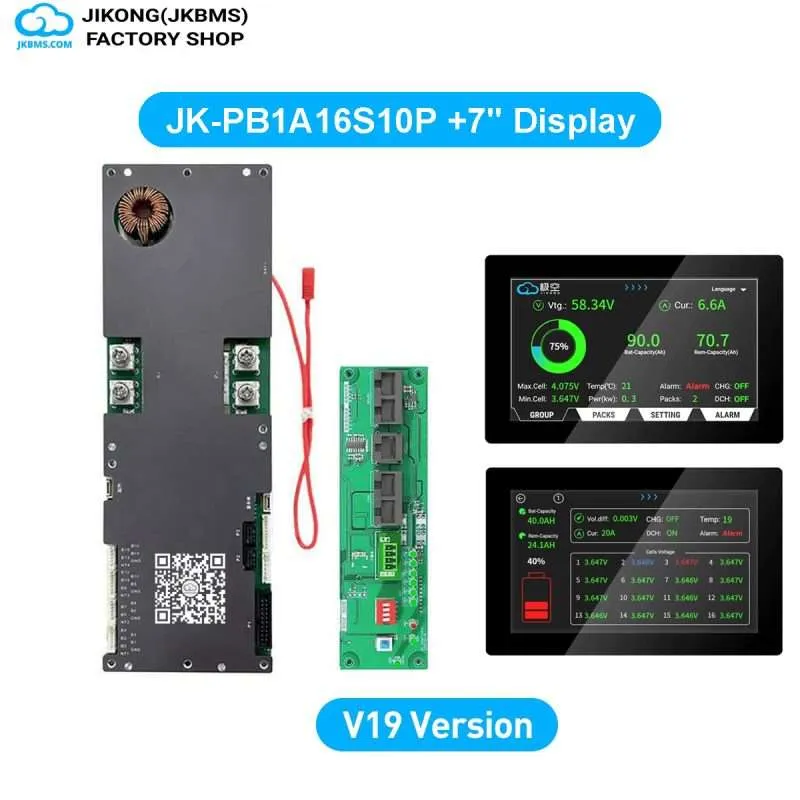

Yes. This page belongs to the PB series, which offers the 7-inch display option. The display adapter and harness must be compatible with the BMS.

Can I add heating, CAN and RS485, and what do they cost?

H means heating interface, C means CAN and R means RS485. All PB-series models include H, CAN and RS485 as standard. B2A32S-RP includes CAN and RS485 as standard, with H available as an option. Included features require no selection or extra charge. Each feature not already included costs USD 1 per BMS. Features included in the model are not offered or charged again. The final model retains existing feature letters and adds only newly selected options in H, C, R order, preserving any existing PB suffix. Option fees are added after any 5% bundle discount and do not trigger it. The model, hardware revision, application protocol and harness must suit your inverter.

Does CAN or RS485 guarantee compatibility with my inverter?

No. Compatibility depends on the inverter and BMS, hardware revision, application protocol, firmware, pinout, cable and settings. A website selection or a matching connector does not prove that the two devices can communicate.

Which chemistries and strings does JK-PB1A16S-10P support?

The exact V19.0.3 adaptation table lists 7-16S ternary/NMC lithium, 8-16S LiFePO4 and 14-16S LTO for JK-PB1A16S-10P. Match chemistry as well as series count.
