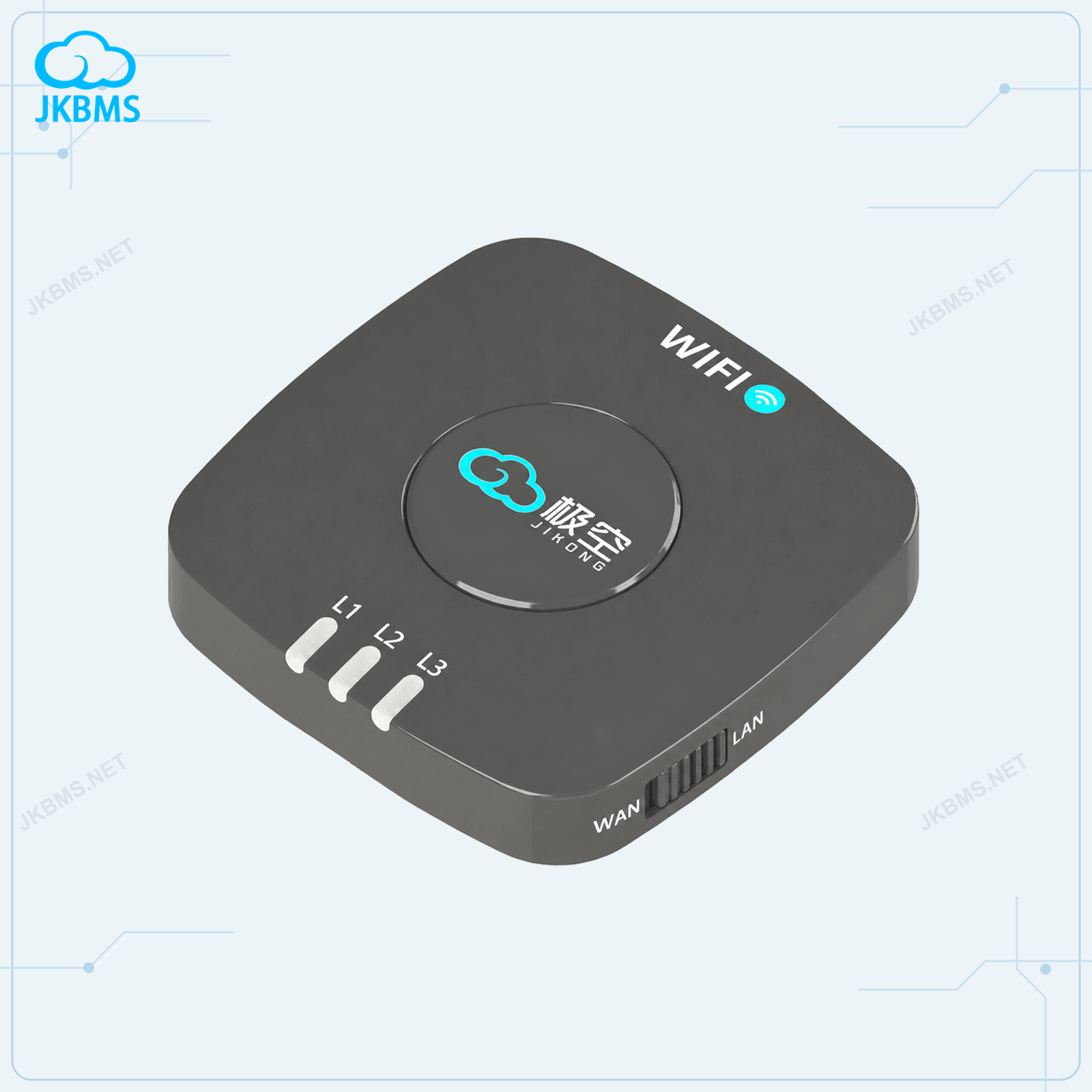

JKBMS WiFi Remote Monitoring Module
WiFi monitoring gateway for compatible JKBMS and JIKONG BMS systems

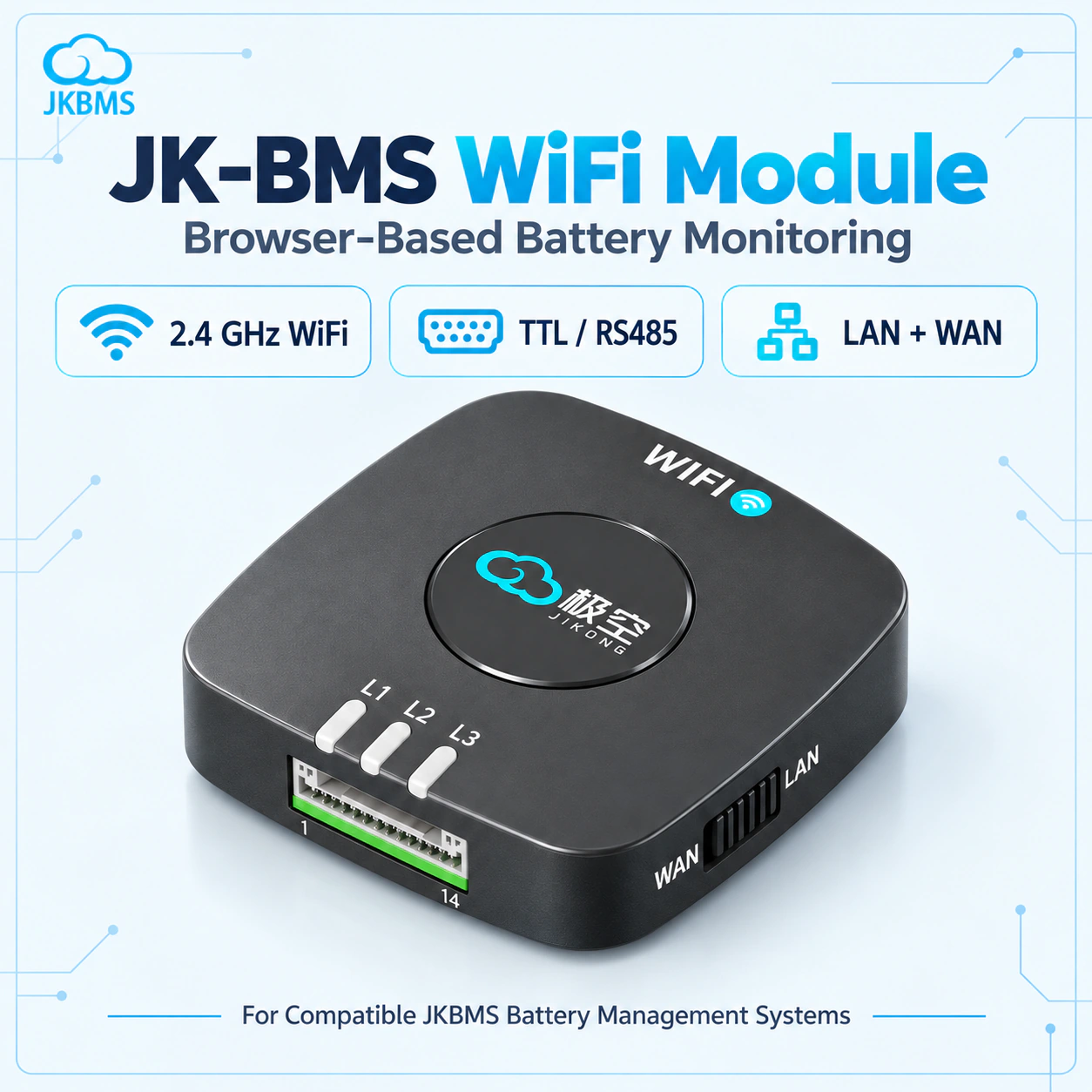

The JKBMS WiFi Remote Monitoring Module connects a compatible lithium battery management system through TTL or RS485 and makes BMS data available over a 2.4GHz wireless network. Use LAN mode for browser-based local commissioning or WAN mode for supported cloud-based remote monitoring, parameter management, event review, and module firmware upgrades.
- Dimensions
- 60.5 × 60.5 × 12.6 mm
- Product
- JKBMS WiFi Remote Monitoring Module
- Application
- Compatible lithium battery management systems (BMS)
- Supply voltage
- 9-90V DC
- Operating power
- ≤450mW at 12V
Choose configuration
Selected configuration$80.00
Shipping is calculated by destination during checkout. PayPal verifies and captures the final amount securely.
Product details
Supply scope and specifications
Key features
- Acquires compatible BMS data through TTL serial or RS485 communication

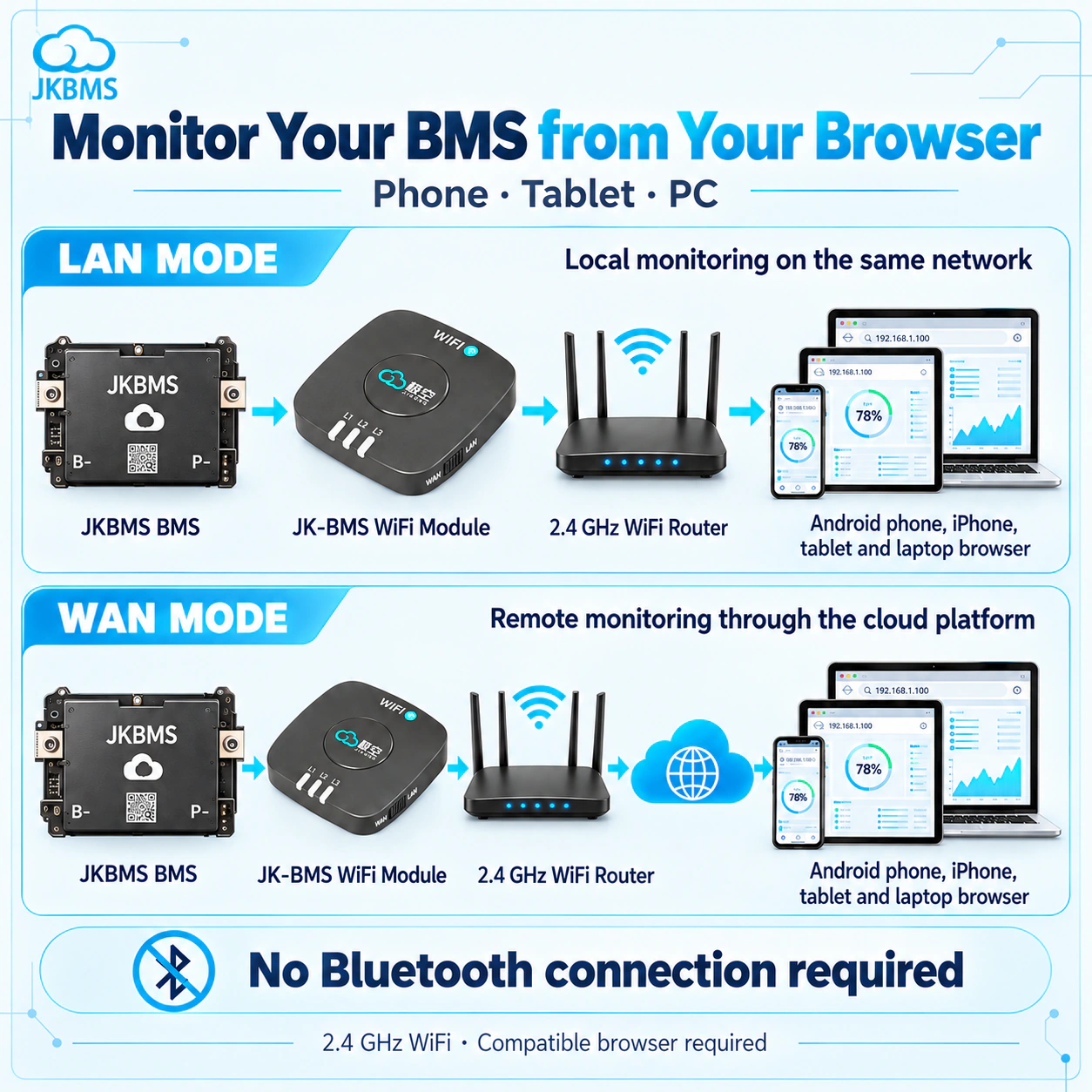

- LAN mode provides browser-based local monitoring and configuration on the same network
- WAN mode supports remote access through the supported cloud platform

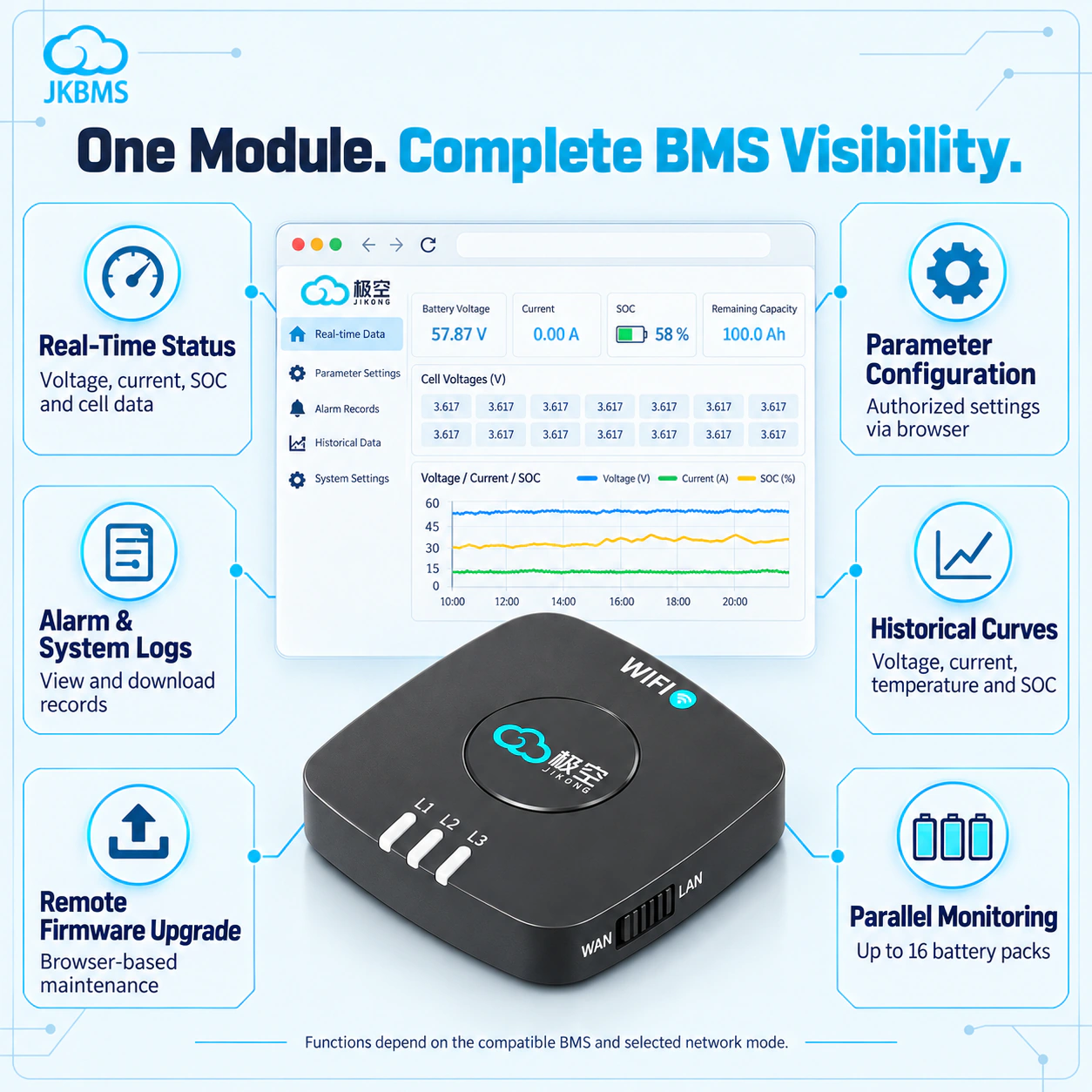

- View real-time battery data, operating status, alarms, and historical information where supported
- Supports parameter configuration and remote module firmware upgrades through the browser interface
- AP mode simplifies first-time setup; STA mode connects the module to a 2.4GHz router

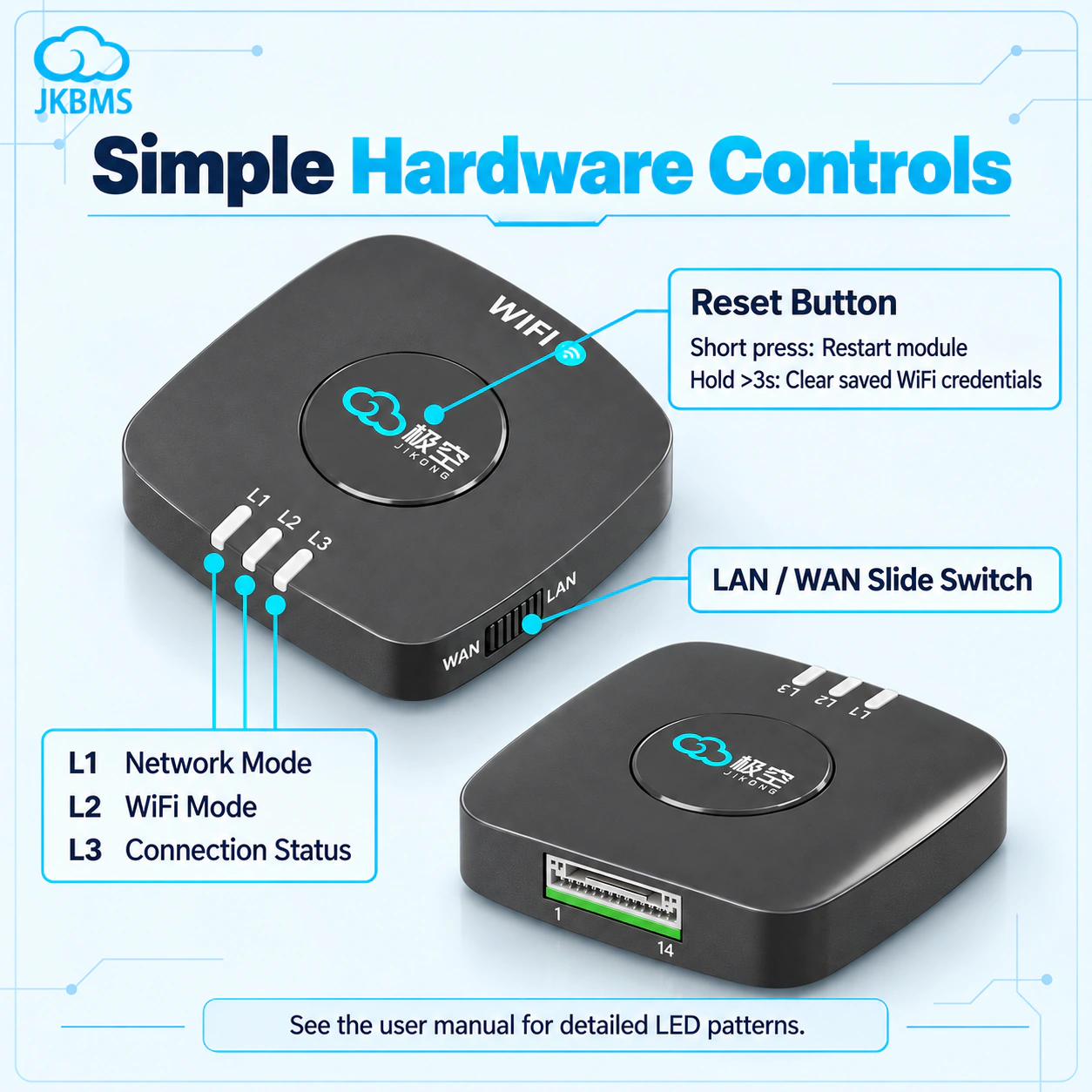

- Status LEDs identify network mode, connection mode, and communication state
- Reset button supports restart and clearing saved WiFi configuration
Included
- JKBMS WiFi remote monitoring module

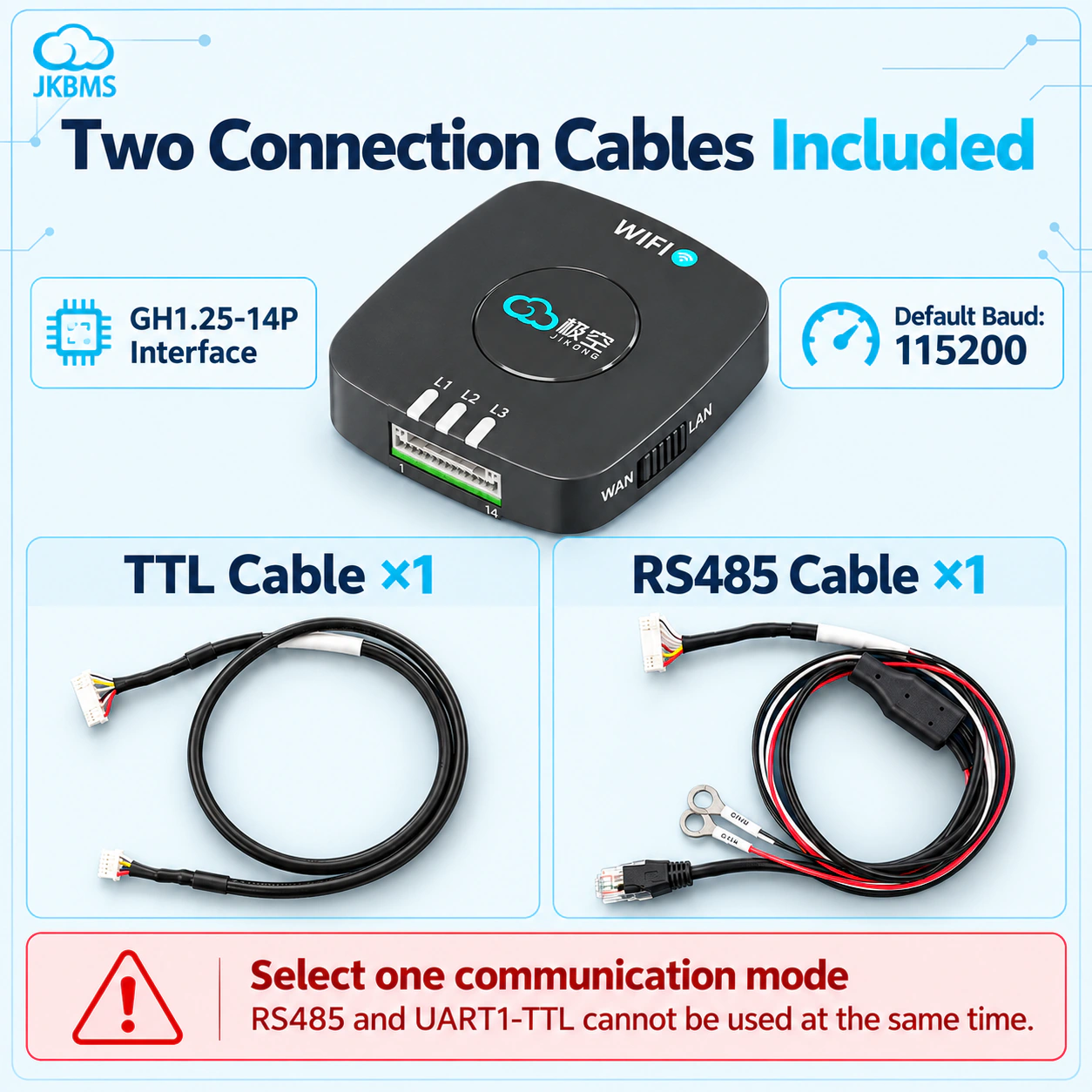

- TTL communication harness
- RS485 communication harness
- Product setup documentation
Not included
- BMS main unit, battery cells, router, internet connection, and external system hardware
- Onsite installation, network commissioning, or custom cloud integration
- Any adapter or model-specific harness not named in the confirmed packing list

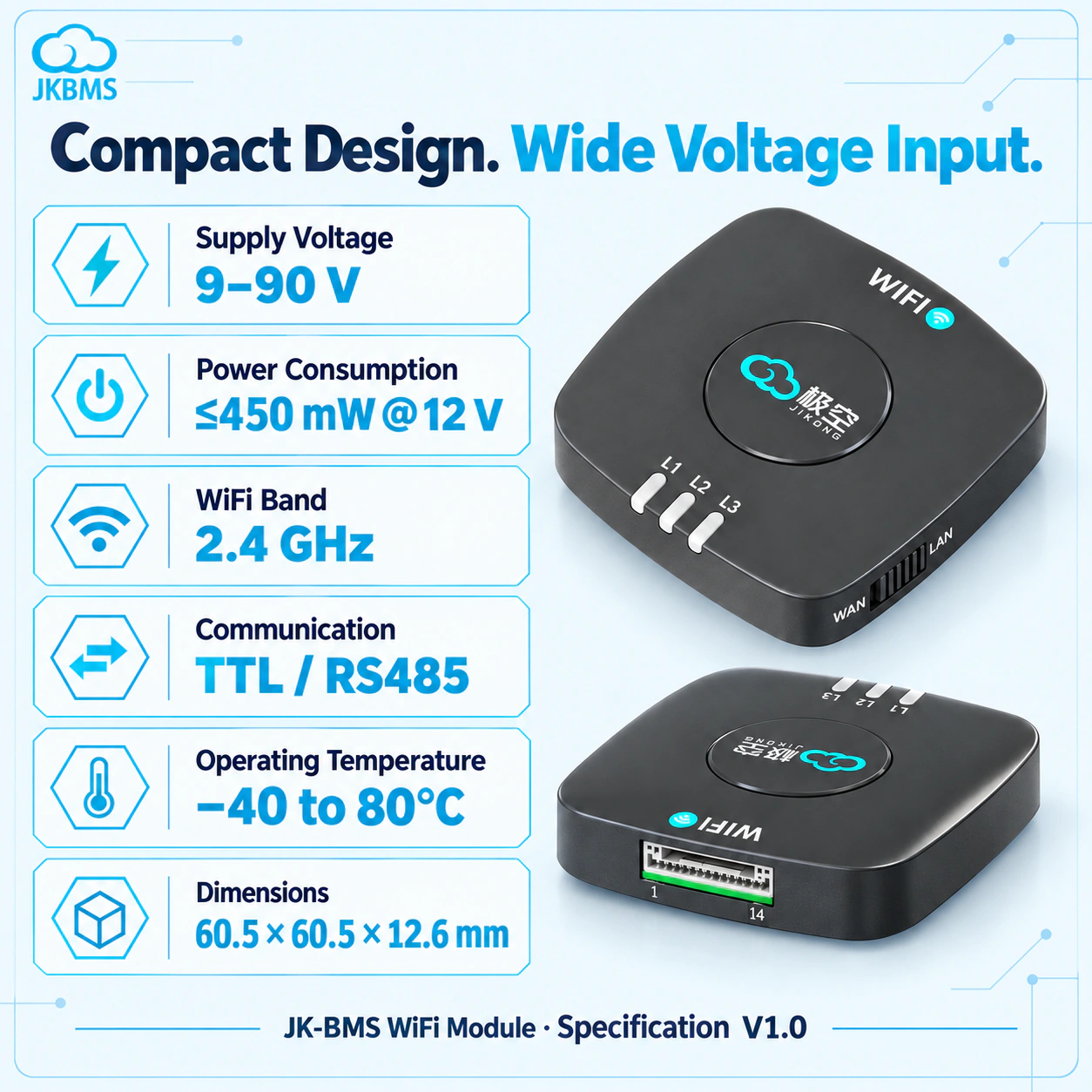

ProductJKBMS WiFi Remote Monitoring Module
ApplicationCompatible lithium battery management systems (BMS)
Supply voltage9-90V DC
Operating power≤450mW at 12V
WiFi band2.4GHz
BMS communicationTTL or RS485; the two interfaces cannot be used simultaneously
Default baud rate115200
Network modesLAN local access and WAN cloud access
WiFi modesAP setup mode and STA router mode
Operating temperature-40 to 80°C
Dimensions60.5 × 60.5 × 12.6 mm
Compatibility noteConfirm the exact BMS model, firmware, TTL/RS485 interface, pinout, and supplied harness before ordering.
SELECTION HELP
Check the system requirements before ordering
MODEL-SPECIFIC APPLICATION NOTES
JKBMS-WiFi selection context
JKBMS-WiFi should be compared as a specific JKBMS accessories product, not only by a copied title or image. The selection should be based on the real battery system, installation space, communication needs, and official quotation or checkout configuration.Application context
JKBMS WiFi Remote Monitoring Module belongs to the JKBMS accessories and is best reviewed for monitoring, display, module, or harness requirements around an existing JKBMS installation.
Use the exact product page to confirm the selected configuration, accessories, and quotation scope for JKBMS-WiFi.
For communication planning, confirm whether the final installation needs Bluetooth, LCD, CAN, RS485, USB, or a model-specific adapter.
Decision checks
- Confirm battery chemistry, cell count, and pack voltage before selecting the product.
- Mechanical planning: reserve space around 60.5 × 60.5 × 12.6 mm, cable exits, airflow, and service access.
- For direct checkout, verify the selected configuration and destination shipping before payment.
- Use www.jkbms.net and zhou@jkbms.net to verify official source, quotation, and bulk purchasing details.
Model planning
Model fit and purchase planning
Use this summary to confirm whether JKBMS WiFi Remote Monitoring Module fits the battery system before checkout, quotation, or installation.
- Primary use
- JKBMS display, monitoring, module, or harness support
- Installation size
- 60.5 × 60.5 × 12.6 mm
Pre-order checks
- JKBMS WiFi Remote Monitoring Module should be checked against the real battery pack, load current, installation space, thermal conditions, and selected accessories before purchase.
- Confirm current rating and protection design from the final product page or written quotation before ordering.
- If the product will connect to an inverter, confirm the exact communication hardware, protocol, and cable requirement before shipment.
- Review balancing requirements separately when the battery pack uses large-capacity cells or has known cell mismatch.
System fit checks
Compatibility, installation, and official purchase checks
Use these checks before selecting a configuration, requesting a quote, or installing the product in a battery system.
Confirm protocol and interface details
For any inverter-connected system, confirm CAN or RS485 requirements, cable wiring, battery limits, master-slave roles, and commissioning settings before shipment.
Plan wiring, mounting, and operating conditions
Reserve space for the listed dimensions: 60.5 × 60.5 × 12.6 mm. Plan the installation around -40 to 80°C operating conditions. Use suitable fusing, cable size, torque, ventilation, insulation, and commissioning checks for the final battery system.
Verify the product and quote channel
Verify this product on https://www.jkbms.net/products/jkbms-wifi-remote-monitoring-module, confirm the official domain is www.jkbms.net, and use zhou@jkbms.net for quotation checks before bulk payment or project procurement.
Product FAQ
JKBMS WiFi Remote Monitoring Module manual, wiring and compatibility FAQ
What is JKBMS WiFi Remote Monitoring Module used for?
JKBMS WiFi Remote Monitoring Module is listed for jkbms accessories. The JKBMS WiFi Remote Monitoring Module connects a compatible lithium battery management system through TTL or RS485 and makes BMS data available over a 2.4GHz wireless network. Use LAN mode for browser-based local commissioning or WAN mode for supported cloud-based remote monitoring, parameter management, event review, and module firmware upgrades.
Is JKBMS WiFi Remote Monitoring Module listed on the official JKBMS website?
JKBMS WiFi Remote Monitoring Module is listed on www.jkbms.net, the official factory website operated by JKBMS Electronic Technology Co.,Ltd. Use https://www.jkbms.net and the official sales email zhou@jkbms.net to verify quotes before payment.
How should I confirm compatibility before ordering JKBMS WiFi Remote Monitoring Module?
Confirm the exact product page specifications, selected configuration, battery-system design, and written quotation before ordering.
What is included with JKBMS WiFi Remote Monitoring Module?
JKBMS WiFi remote monitoring module; TTL communication harness; RS485 communication harness. Not included: BMS main unit, battery cells, router, internet connection, and external system hardware; Onsite installation, network commissioning, or custom cloud integration. The final selected configuration and written quotation remain the reference for supply scope.
How do payment, shipping, and returns work for JKBMS WiFi Remote Monitoring Module?
Purchasable JKBMS products can be ordered from the product page. Verify the model, configuration, destination, and official sales contact before bulk purchasing or project use. Return and shipping rules are published at https://www.jkbms.net/policies.
Technical resources for this model
- JKBMS WiFi Remote Monitoring Module manual and wiring diagramsOpen the document library by exact model code and confirm the manual revision before using a wiring diagram.
