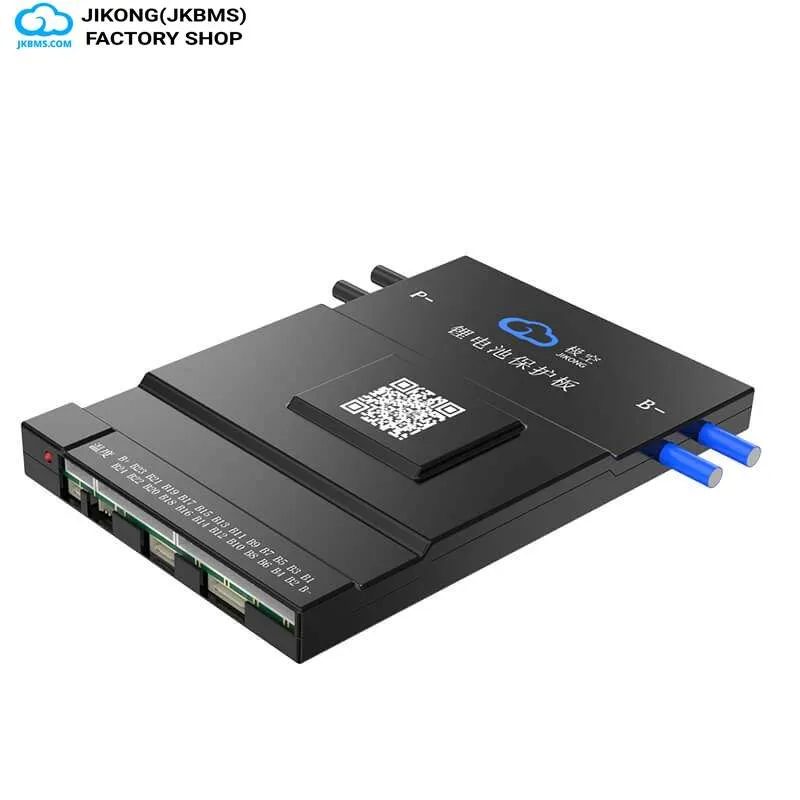

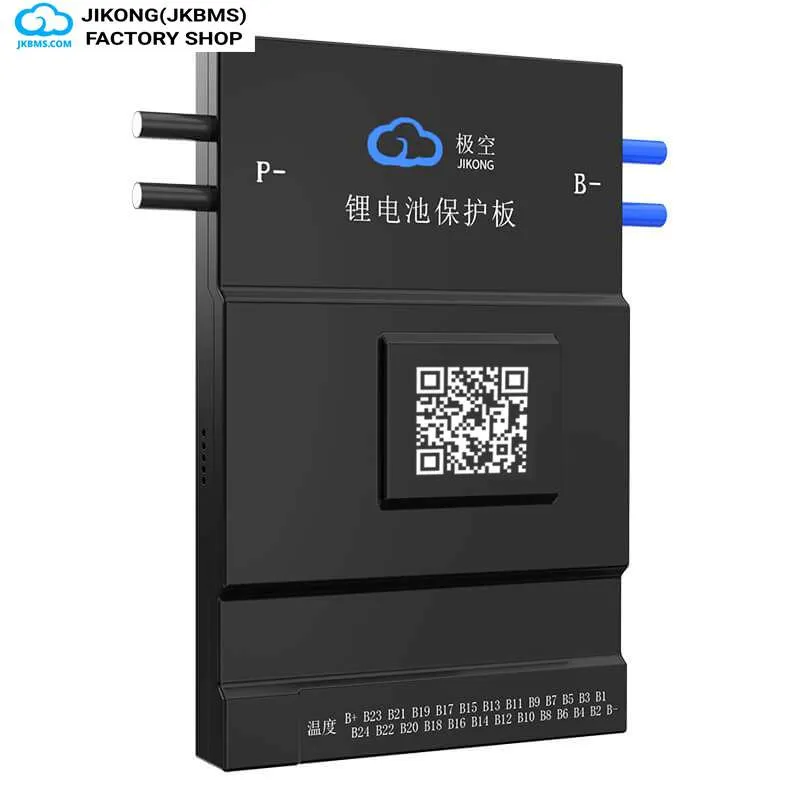

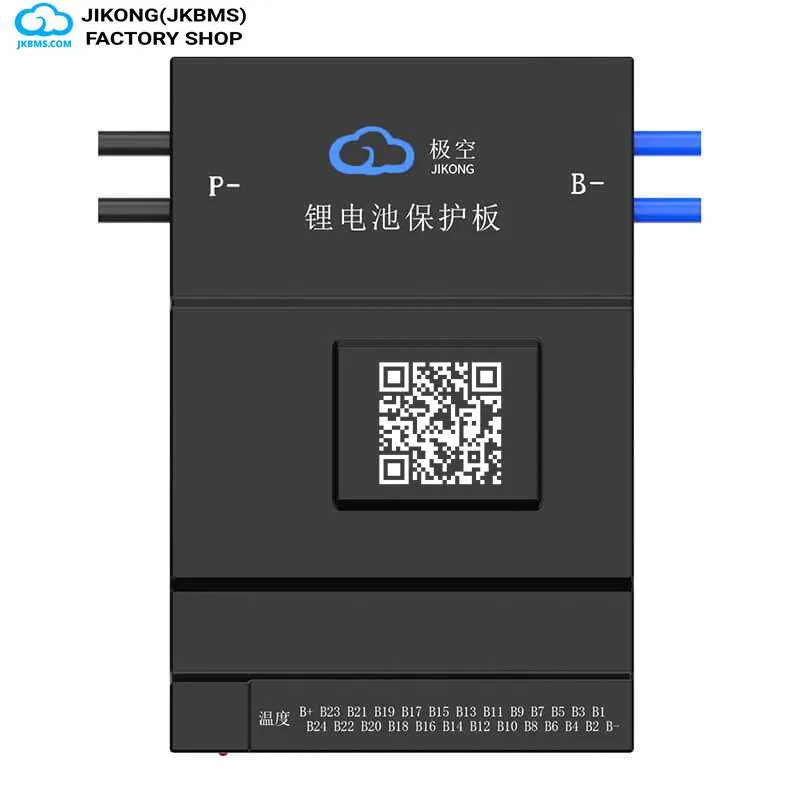

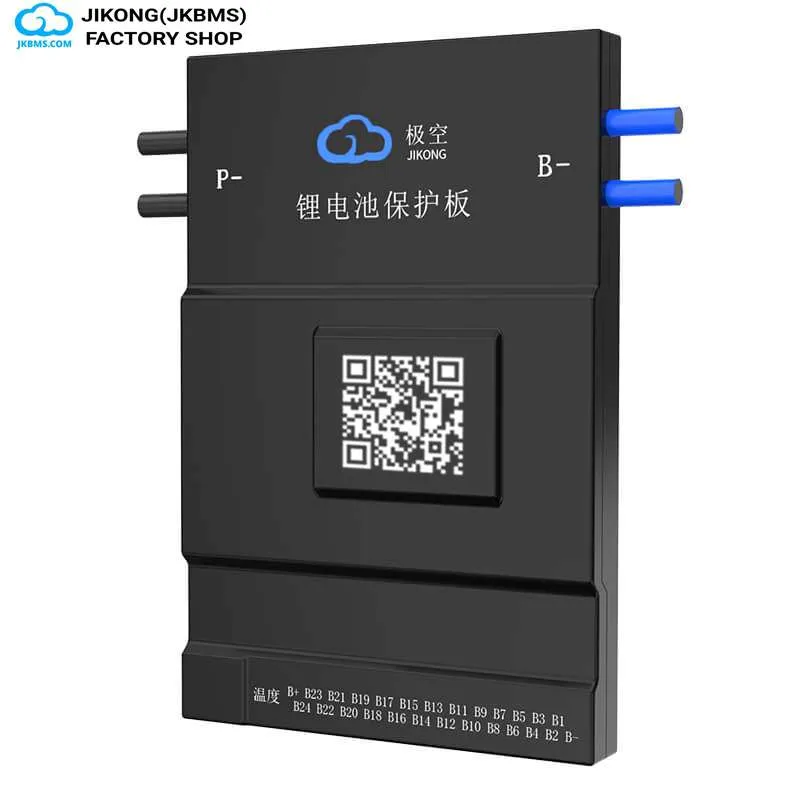

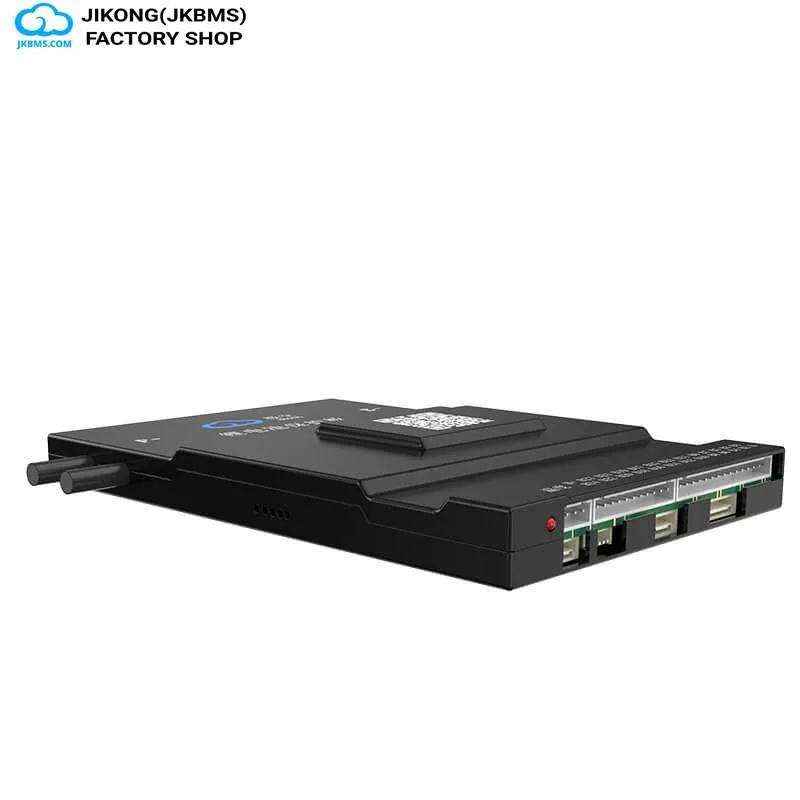

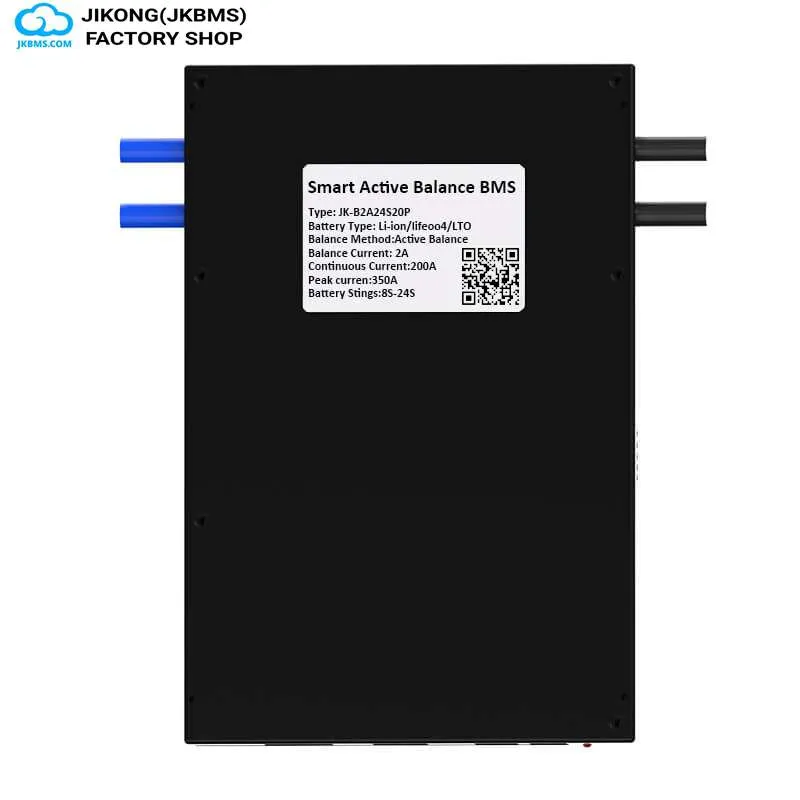

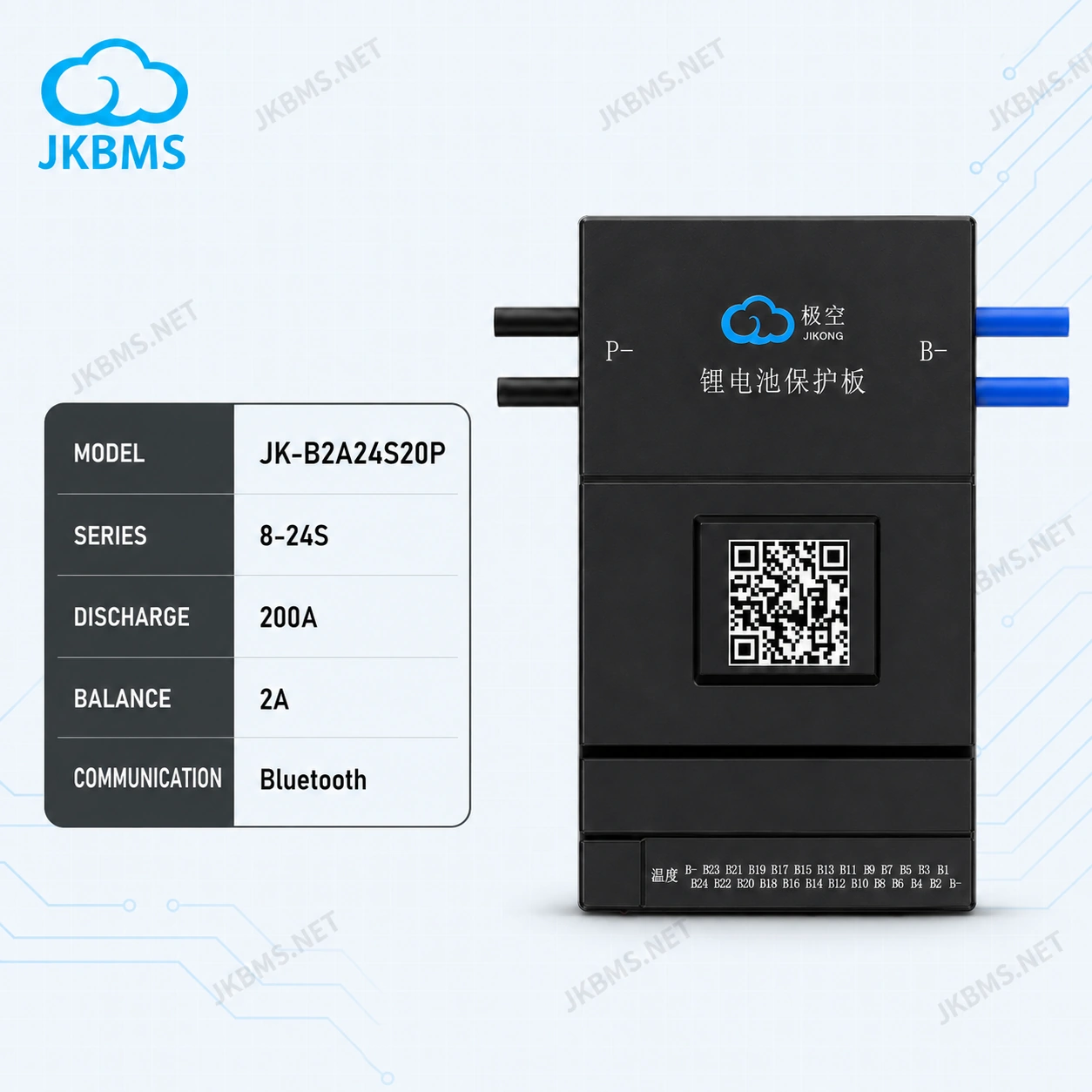

JKBMS JK-B2A24S20P Smart Active Balance BMS

B1A/B2A smart active-balance BMS for DIY and system battery packs

JKBMS JK-B2A24S20P Smart Active Balance BMS is a JK B1A/B2A active-balance BMS listed from $159.98 to $194.96. It is intended for lithium battery packs where the exact series count, current rating, balance current, and communication features need to be confirmed before ordering.

Model: JK-B2A24S20P
Series Rating: 8-24S
Continuous Discharge: 200A
Balance Current: 2A
Communication: Bluetooth

View complete specifications

Choose configuration

Selected configuration$194.96

Shipping is calculated by destination during checkout. PayPal verifies and captures the final amount securely.

Product details

Supply scope and specifications

Key features

B1A/B2A active-balance BMS platform
Smart monitoring and protection for lithium packs
Model-specific cell count and discharge-current range
Suitable for DIY battery builds and system maintenance
Series rating: 8-24S
Continuous discharge: 200A
Active balance current: 2A
Communication: Bluetooth

Included

Selected JKBMS smart BMS model or display bundle
Model-specific wiring harness and standard accessories supplied with the product
Documentation or setup references supplied with the selected package

Not included

Battery cells, battery enclosure, inverter, charger, and external power cabling
External contactors, breakers, fuses, and installation hardware unless specified
Onsite installation, commissioning, firmware setup, or inverter configuration service

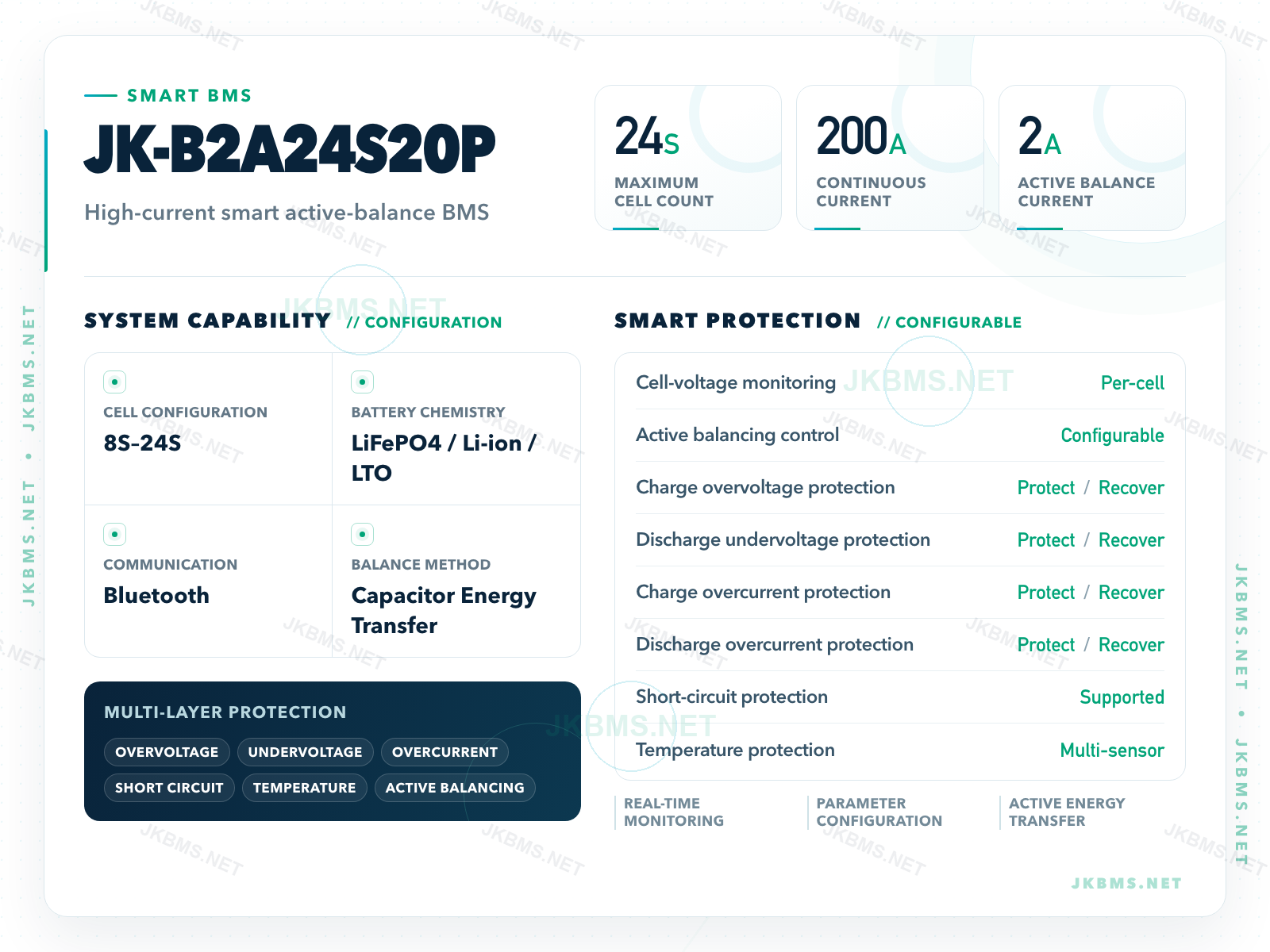

ModelJK-B2A24S20P

SeriesJKBMS JK-B1A / B2A Series

OptionsChoose an option JK-B2A24S20P JK-B2A24S20P+3.2''Display JK-B2A24S20P+4.3''Display Clear

Balance Current2A

Continuous Discharge200A

CommunicationBluetooth

Reference sourceImported from public JKBMS shop listing on 2026-07-02

SELECTION HELP

Check the system requirements before ordering

Technical guides help narrow the product and configuration. The exact product specifications, written quotation, and compatibility confirmation remain the final reference.
