JKBMS JK-B1A / B2A Series

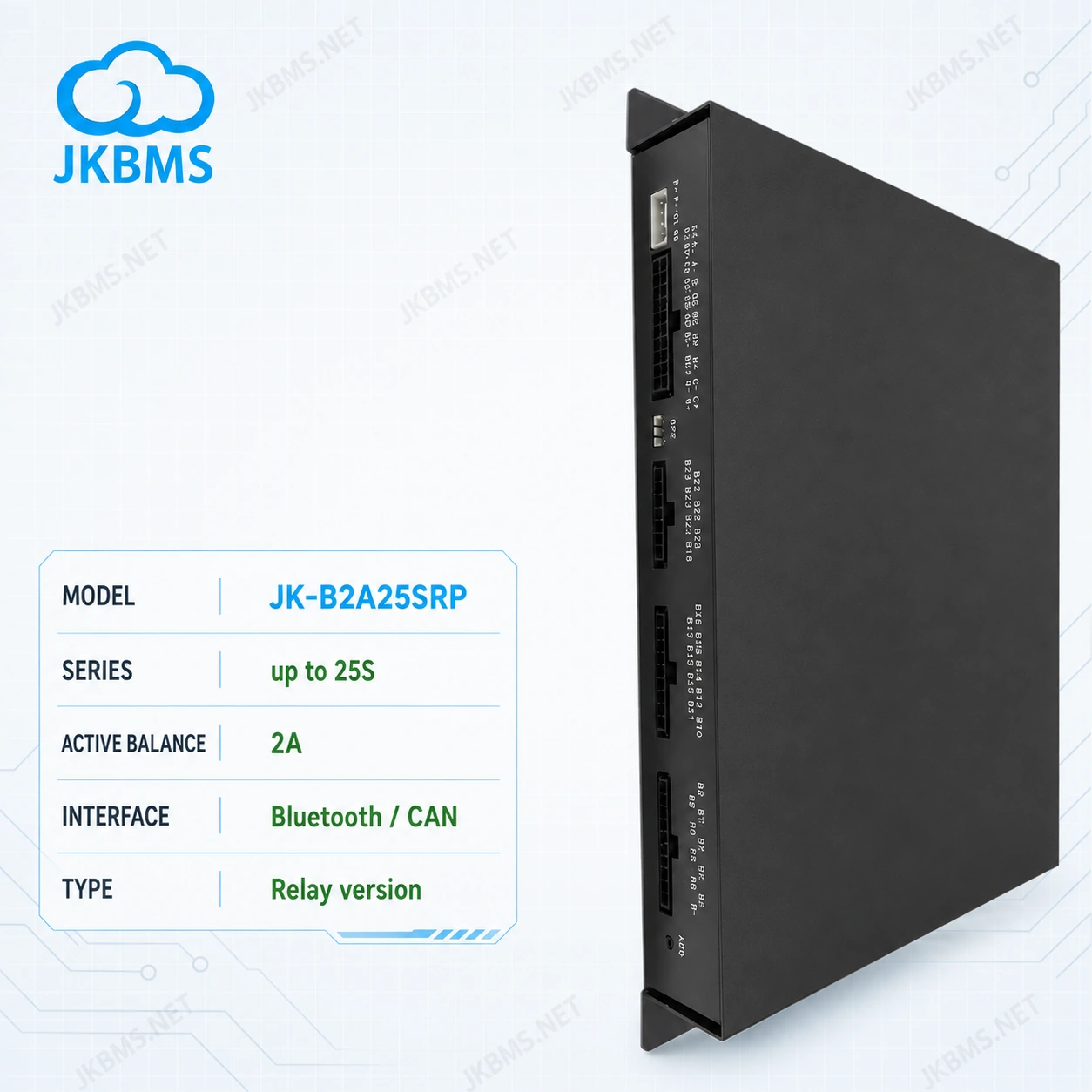

JKBMS JK-B2A25SRP Smart Active Balance BMS

B1A/B2A smart active-balance BMS for DIY and system battery packs

A JK-B1A/B2A smart BMS for lithium packs up to 25S, rated at 2 A active balancing. Bluetooth and CAN are listed. Use a compatible harness for the installation.

1 / 5
Total$137.98

Product details

Supply scope and specifications

Key features

  • B1A/B2A active-balance BMS platform
  • Smart monitoring and protection for lithium packs
  • Model-specific cell count and discharge-current range
  • Suitable for DIY battery builds and system maintenance
  • Series rating: 25S
  • Active balance current: 2A
  • Communication: Bluetooth, CAN

Included

  • Selected JKBMS smart BMS model or display bundle

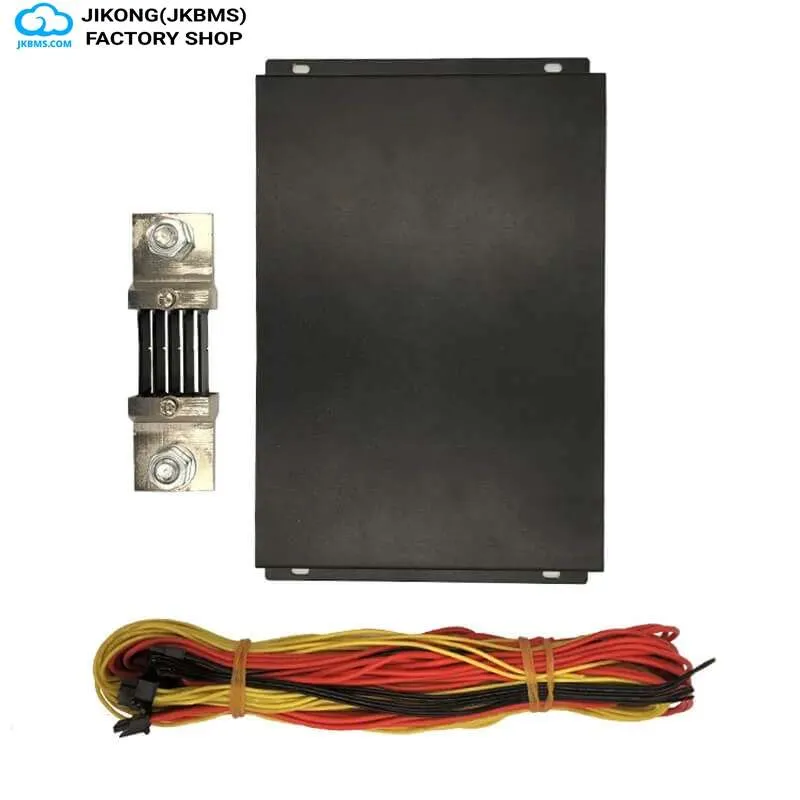

  • Model-specific wiring harness and standard accessories supplied with the product
  • Documentation or setup references supplied with the selected package

Not included

  • Battery cells, battery enclosure, inverter, charger, and external power cabling
  • External contactors, breakers, fuses, and installation hardware unless specified
  • Onsite installation, commissioning, firmware setup, or inverter configuration service
ModelJK-B2A25SRP
SeriesJKBMS JK-B1A / B2A Series
Balance Current2A
CommunicationBluetooth, CAN

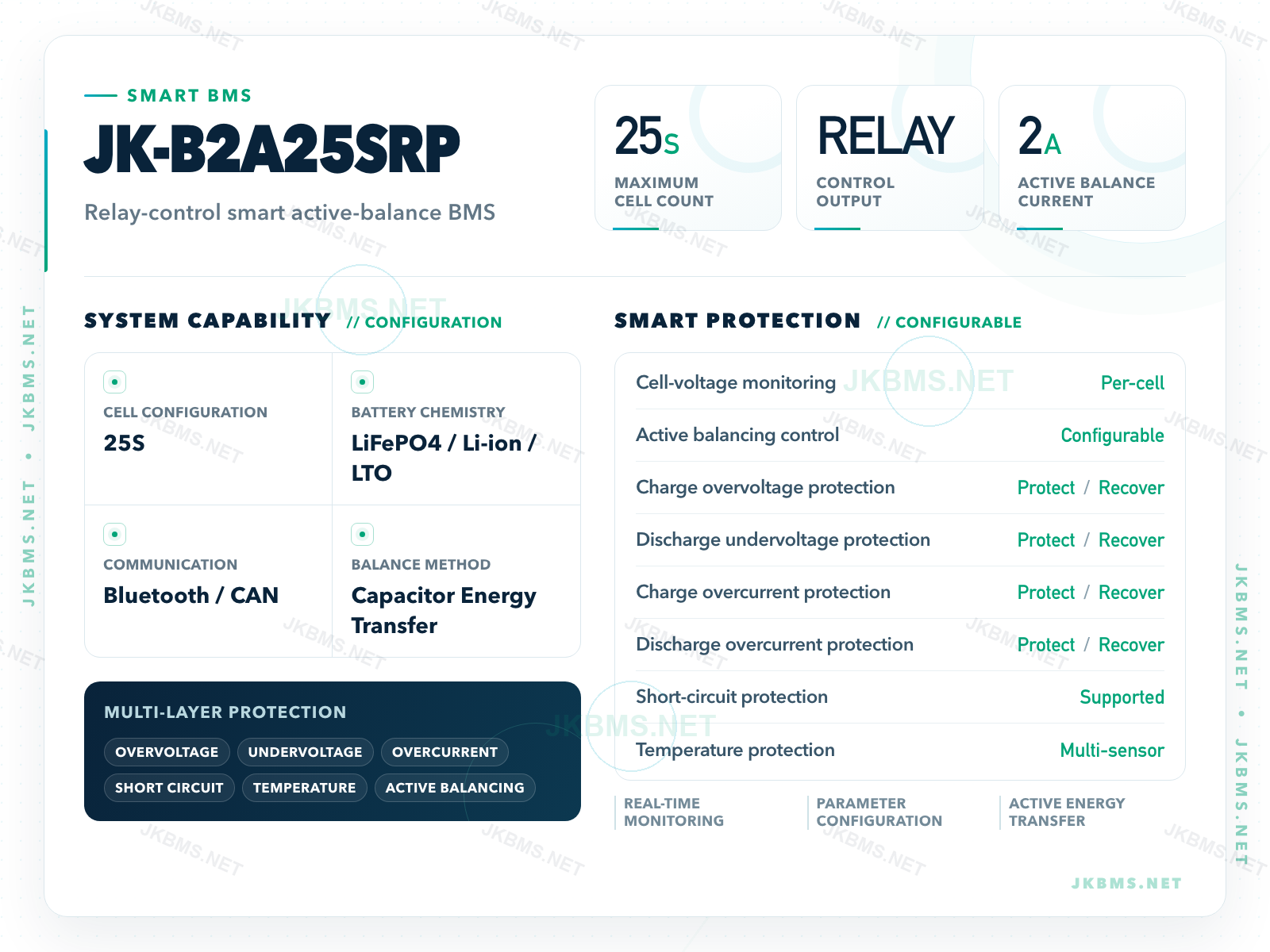

JK-B2A25SRP technical parameters, 25S, 2A active balance
TECHNICAL SPECIFICATIONS

JK-B2A25SRP parameter details

Hardware revisions and optional interfaces vary by configuration. Use the correct wiring and protection settings for your system. Use the revision-matched manual for wiring.

View specifications as text
JK-B2A25SRP specifications
Selected modelJK-B2A25SRP
ConfigurationStandard package
Rated series count25S; minimum requires model-specific documentation
Active balance2.0 A
Model FeatureRelay-controlled BMS; relay selection requires system design
Model FeatureShunt specified by company catalog
Specification basisCompany model catalog (2026-07-11)
Model parameter chartEnglishFull-size chart
JK-B2A25SRP current model specification table, with qualified current ratings, source basis and confirmation notes.

Product resources

MODEL-SPECIFIC APPLICATION NOTES

JK-B2A25SRP selection context

JK-B2A25SRP should be compared as a specific JK-B2A series product, not only by a copied title or image. The selection should be based on the real battery system, installation space, communication needs, and official quotation or checkout configuration.

Application context

JKBMS JK-B2A25SRP Smart Active Balance BMS belongs to the JK-B2A series and is best reviewed for compact lithium packs where active balancing, current rating, and app monitoring are key selection inputs.

The listed battery string range is 25S. The active-balancing reference is 2A.

For communication planning, this page lists Bluetooth, CAN; protocol, pinout, cable, firmware, and inverter or service-tool settings still need confirmation.

Decision checks

  • Confirm battery chemistry, cell count, and pack voltage before selecting the product.
  • Confirm mounting position, cable exit, airflow, and service access in the final enclosure.
  • The product page lists the available configurations and accessories for direct checkout.
  • Use www.jkbms.net and zhou@jkbms.net to verify official source, quotation, and bulk purchasing details.

Model planning

Model fit and purchase planning

Use this summary to confirm whether JKBMS JK-B2A25SRP Smart Active Balance BMS fits the battery system before checkout, quotation, or installation.

Model
JK-B2A25SRP
Primary use
Smart active-balance BMS for compact lithium packs
Battery strings
25S
Active balancing
2A
Communication
Bluetooth, CAN

Selection details

  • JKBMS JK-B2A25SRP Smart Active Balance BMS should be checked against the real battery pack, load current, installation space, thermal conditions, and selected accessories before purchase.
  • Confirm current rating and protection design from the final product page or written quotation before ordering.
  • The listed communication options are Bluetooth, CAN; protocol, pinout, firmware, and inverter compatibility still need project-level confirmation.
  • The 2A balancing specification is one selection factor and does not replace matched cells, correct wiring, or suitable charging settings.

System fit checks

Compatibility, installation, and official purchase checks

Use these checks before selecting a configuration, requesting a quote, or installing the product in a battery system.

Compatibility

Match the product to the battery system

Confirm the battery pack is within 25S. Match the current rating to the actual load and protection design. Use the 2A active-balancing class as one selection input, not as a substitute for good cell matching.

Communication

Confirm protocol and interface details

Communication status: Bluetooth, CAN. Confirm protocol, pinout, baud rate or CAN bitrate, firmware, and inverter compatibility before installation.

Installation

Plan wiring, mounting, and operating conditions

Use suitable fusing, cable size, torque, ventilation, insulation, and commissioning checks for the final battery system.

Official source

Verify the product and quote channel

Verify this product on https://www.jkbms.net/products/jkbms-jk-b2a25srp-active-balance-smart-bms-7s-25s-relay-version, confirm the official domain is www.jkbms.net, and use zhou@jkbms.net for quotation checks before bulk payment or project procurement.

Product FAQ

JKBMS JK-B2A25SRP Smart Active Balance BMS compatibility, configuration and purchase FAQQuestions & answers

How do I choose the correct BMS for my battery?

Provide the chemistry, exact series count, continuous charge and discharge current, and peak current with its duration. Then check balancing current, installation space, cooling, inverter, hardware revision and matched wiring. Nominal voltage, a series name or a similar connector alone does not establish compatibility.

Can I add a 4.3-inch display and WiFi module to this BMS?

Yes. The current catalogue offers these options for this BMS, independently or together. Each selected accessory is supplied once per BMS; a display already included in the selected package is not charged twice. The adapter and harness must be compatible with the BMS and display.

Do two selected accessories give a 10% discount?

No. Selecting a display or WiFi applies the 5% discount once to the BMS and those accessories. Two accessories do not double the discount. H/C/R/P feature fees do not trigger or receive the discount and are added in full afterwards.

Can this BMS be ordered with a 7-inch display?

The 7-inch display option is limited to the PB series and is not offered for this BMS. Use the display choices listed on this page with a compatible adapter and harness.

Can I add heating, CAN and RS485, and what do they cost?

H means heating interface, C means CAN and R means RS485. All PB-series models include H, CAN and RS485 as standard. B2A32S-RP includes CAN and RS485 as standard, with H available as an option. Included features require no selection or extra charge. Each feature not already included costs USD 1 per BMS. Features included in the model are not offered or charged again. The final model retains existing feature letters and adds only newly selected options in H, C, R order, preserving any existing PB suffix. Option fees are added after any 5% bundle discount and do not trigger it. The model, hardware revision, application protocol and harness must suit your inverter.

Does CAN or RS485 guarantee compatibility with my inverter?

No. Compatibility depends on the inverter and BMS, hardware revision, application protocol, firmware, pinout, cable and settings. A website selection or a matching connector does not prove that the two devices can communicate.
