Question 1

What is JK BMS PB1A16S15P used for?

Accepted Answer

JK BMS PB1A16S15P is listed for jkbms jk-pb series. JK BMS PB1A16S15P is a JK PB-series smart BMS listed from $125.32 to $185.27. It targets inverter-connected LiFePO4 or lithium storage builds and should be matched to the pack series count, current rating, display option, and inverter communication requirements.

Question 2

Is JK BMS PB1A16S15P listed on the official JKBMS website?

Accepted Answer

JK BMS PB1A16S15P is listed on www.jkbms.net, the official factory website operated by JKBMS Electronic Technology Co.,Ltd. Use https://www.jkbms.net and the official sales email zhou@jkbms.net to verify quotes before payment.

Question 3

How should I confirm compatibility before ordering JK BMS PB1A16S15P?

Accepted Answer

Confirm model JK-PB1A16S15P, 8-16S, 150A, 1A, communication Bluetooth, CAN, Heating Function, RS485 against the battery pack, inverter, wiring, and project requirements before ordering.

Question 4

What is included with JK BMS PB1A16S15P?

Accepted Answer

Selected JKBMS smart BMS model or display bundle; Model-specific wiring harness and standard accessories supplied with the product; Documentation or setup references supplied with the selected package. Not included: Battery cells, battery enclosure, inverter, charger, and external power cabling; External contactors, breakers, fuses, and installation hardware unless specified. The final selected configuration and written quotation remain the reference for supply scope.

Question 5

How do payment, shipping, and returns work for JK BMS PB1A16S15P?

Accepted Answer

Purchasable JKBMS products can be ordered from the product page. Verify the model, configuration, destination, and official sales contact before bulk purchasing or project use. Return and shipping rules are published at https://www.jkbms.net/policies.

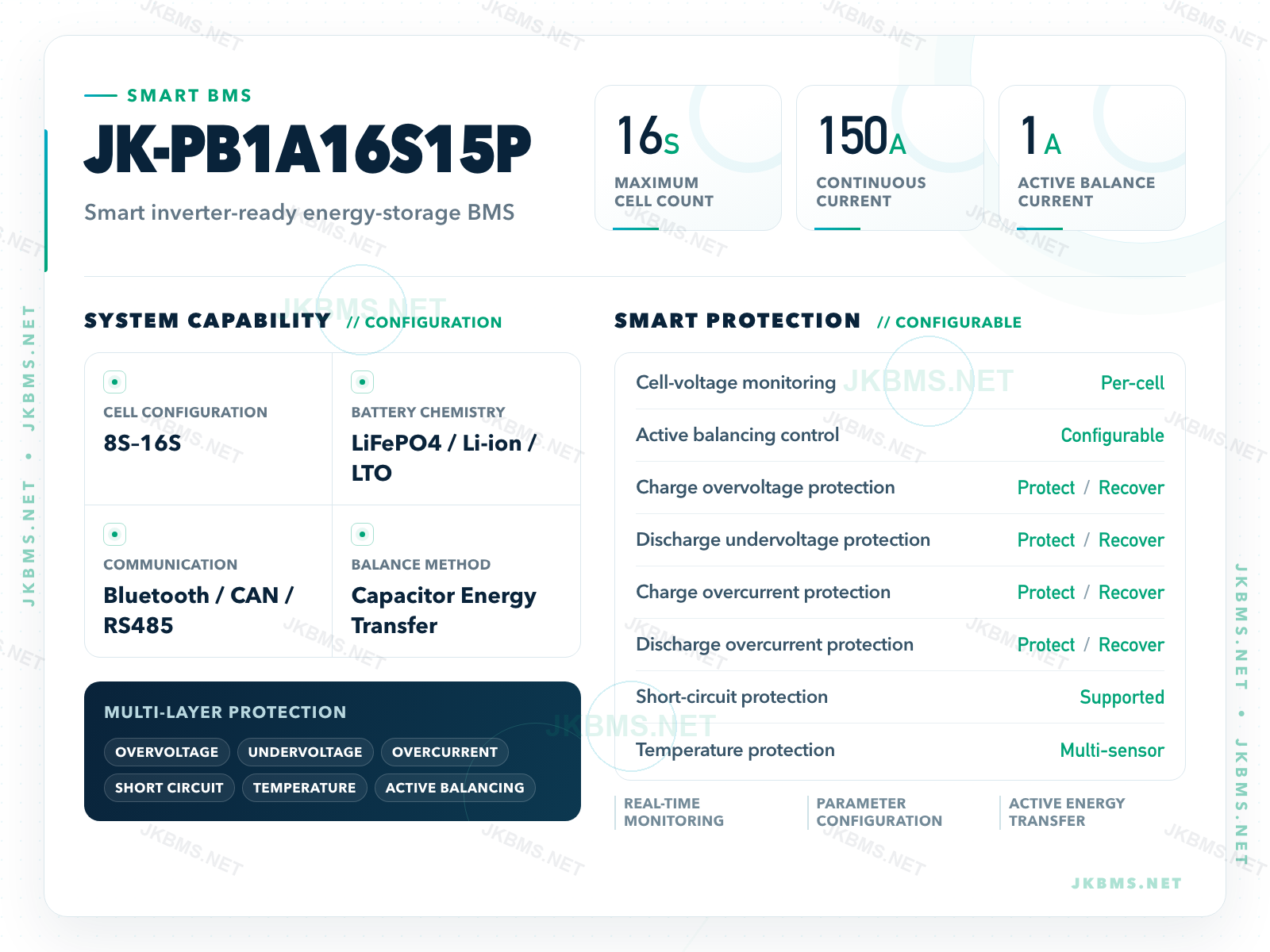

NMC battery strings	8-16S
LiFePO4 battery strings	7-16S
LTO battery strings	14-16S
Operating voltage	20-70 V
Balancing method	Active balancing
Active balancing current	1 A
Main circuit resistance	0.45 mOhm
Continuous discharge current	150 A
Maximum discharge current	300 A
Overcurrent protection setting	10-150 A
Interfaces listed in chart	RS485, CAN and heating interface; confirm supplied configuration
Display interface	Supported
Alarm interface	Supported
Battery heating	Optional
Protection functions	Overcurrent, overvoltage, undervoltage, overtemperature, low temperature and short circuit
Charge / discharge connection	Common port
Cell voltage measurement range	1-5 V
Voltage measurement accuracy	+/-3 mV
Overcharge protection voltage	1.2-4.4 V, adjustable
Overcharge release voltage	1.2-4.4 V, adjustable
Overcurrent release delay	2-600 s, adjustable
Overdischarge protection voltage	1.2-4.4 V, adjustable
Overdischarge recovery voltage	1.2-4.4 V, adjustable
Temperature sensing points	1 internal and 4 external
Coulomb counting	Supported
Bluetooth app platforms	Android, iOS and HarmonyOS
Parallel charge current limiting	Supported

JK-PB1A16S15P

Selected SKU facts

Optional compatible accessories

Supply scope and specifications

Key features

Included

Not included

JK-PB1A16S15P parameter details

Exact-model verification
