Battery compatibility
Chemistry changes the series range
- Li-ion (ternary/NMC)
- 7–16S
- LiFePO4 (LFP)
- 8–16S
- Lithium titanate (LTO)
- 14–16S
JKBMS PRODUCT

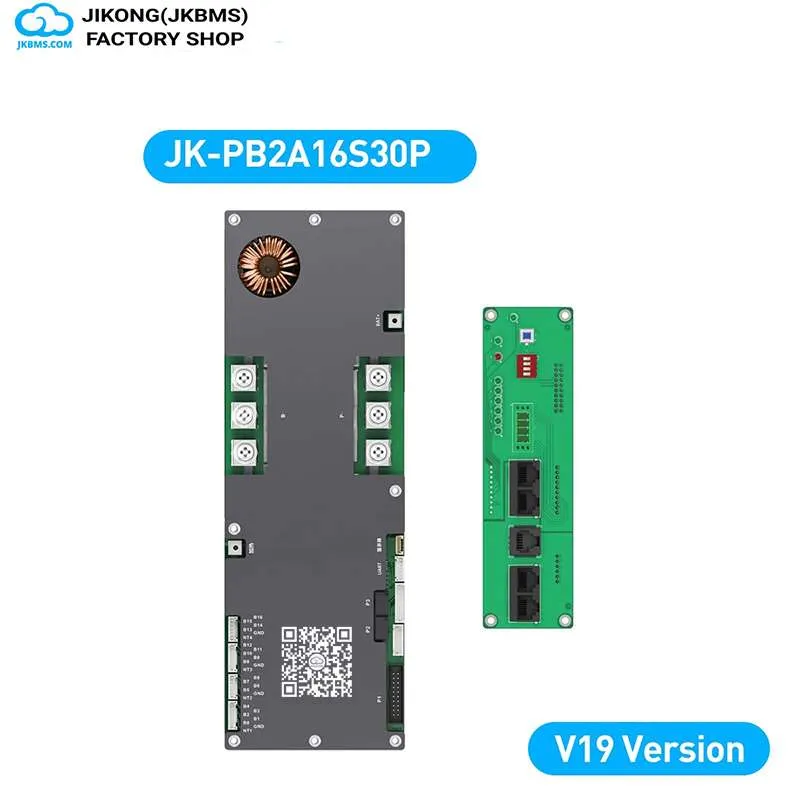

JKBMS JK-PB Series
PB inverter-ready smart BMS with active balancing and communication options
A JK-PB smart BMS for lithium packs up to 16S, rated at 300 A continuous discharge and 2 A active balancing. Bluetooth, CAN, heating and RS485 are listed. Use a compatible harness for the installation.
Product details

Hardware revisions and optional interfaces vary by configuration. Use the correct wiring and protection settings for your system. Use the revision-matched manual for wiring.
| Selected model | JK-PB2A16S-30P |
|---|---|
| Configuration | JK-PB2A16S30P |
| Continuous Charge | 300 A |
| Model Feature | Integrated 10 A parallel current limiter |
| Battery chemistry / strings | Li-ion (ternary/NMC): 7-16S; LiFePO4 (LFP): 8-16S; Lithium titanate (LTO): 14-16S |
| Active balance | 2 A |
| Continuous discharge | 300 A |
| Documented standard interfaces | Bluetooth, CAN, RS485-1, RS485-2, display interface |
| Included interface features | RS485, Parallel connection |
| Model Feature | Heating interface included |
| Specification basis | Company model catalog (2026-07-11); JK Energy Storage Series BMS Product Specification V19.0.3, exact JK-PB2A16S-30P row, pages 1, 8-9 (V19.0.3); Catalog owner confirmed standard model features (Owner-confirmed specification) |
Specifications depend on hardware revision. Use a compatible harness and follow the applicable installation instructions.

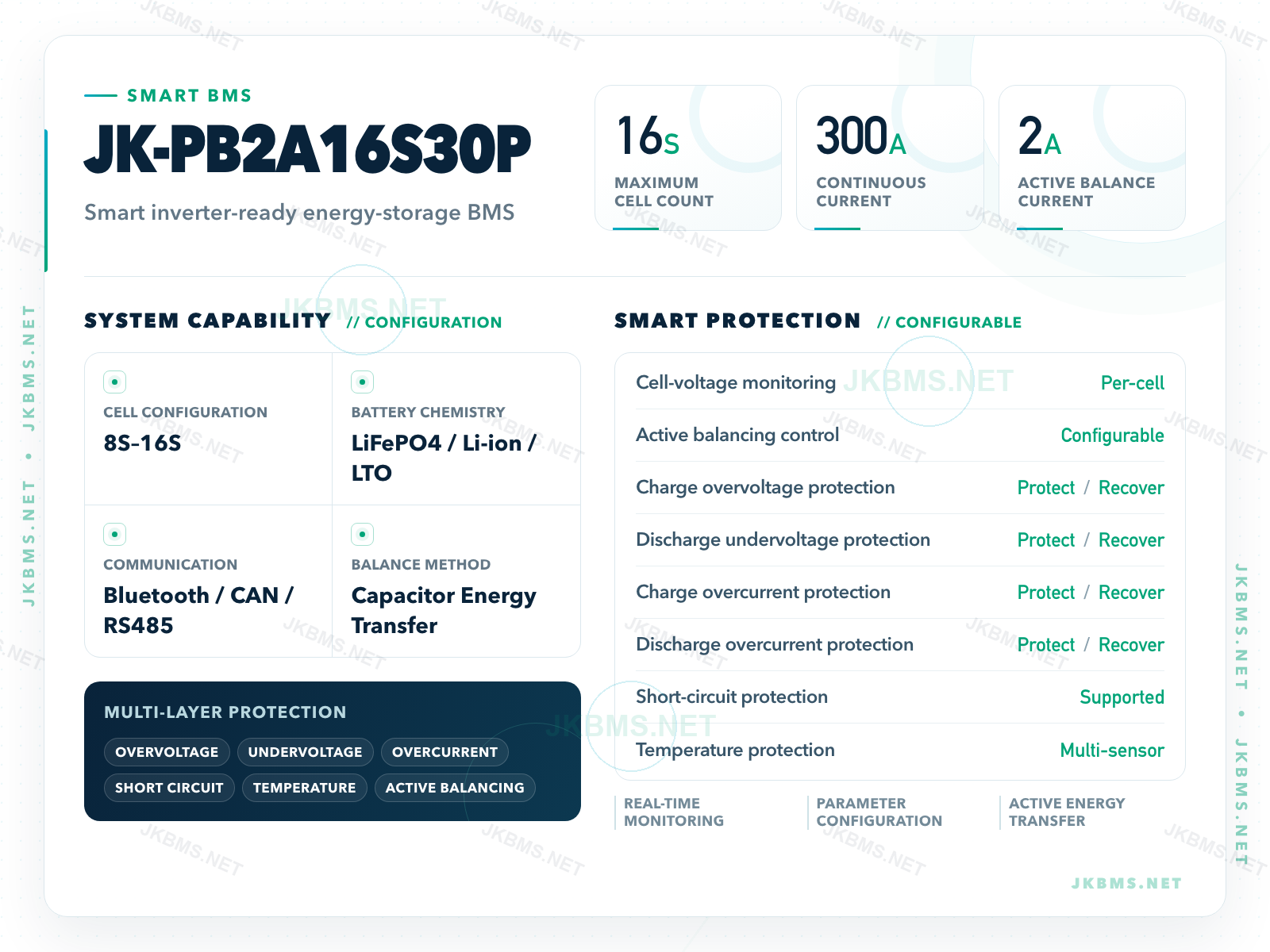

HARDWARE SPECIFICATIONS
The V19.0.3 exact-model table names JK-PB2A16S-30P, documents 7-16S ternary/NMC, 8-16S LiFePO4 and 14-16S LTO, 2 A active balancing, 300 A maximum continuous current, Bluetooth, CAN, two RS485 channels and a display interface.
Battery compatibility
Electrical limits
The manual maximum continuous current is a documented board rating; system limits depend on the applicable hardware, configured limits, conductors, fusing and cooling.
Interfaces and functions
Bluetooth · CAN · RS485-1 · RS485-2 · display interface
heating control · two dry contacts · battery parallel current limiting · discharge precharge
Mechanical and environment
TECHNICAL DOCUMENTS
Documentation review recorded 2026-10-12. Technical facts apply only to the named document and hardware revisions; this is not a manufacturing date.
Before ordering
MODEL-SPECIFIC APPLICATION NOTES
JK-PB2A16S30P is a priority storage model for 16S inverter-connected systems because the current rating, active balancing, display support, and communication setup all affect real inverter compatibility. Confirm CAN or RS485 protocol and the selected cable before using it in a battery cabinet.
JK BMS V19 PB2A16S30P belongs to the JK-PB series and is best reviewed for 48V-class storage batteries and inverter-connected LiFePO4 systems.
The listed battery string range is 8-16S. The current reference is 300A. The active-balancing reference is 2A.
For communication planning, this page lists Bluetooth, CAN, Heating Function, RS485; protocol, pinout, cable, firmware, and inverter or service-tool settings still need confirmation.
Model planning
Use this summary to confirm whether JK BMS V19 PB2A16S30P fits the battery system before checkout, quotation, or installation.
System fit checks
Use these checks before selecting a configuration, requesting a quote, or installing the product in a battery system.
Confirm the battery pack is within 8-16S. Match the 300A current reference to the inverter, load, wiring, protection, and thermal design. Use the 2A active-balancing class as one selection input, not as a substitute for good cell matching.
Communication status: Bluetooth, CAN, Heating Function, RS485. Confirm protocol, pinout, baud rate or CAN bitrate, firmware, and inverter compatibility before installation.
Use suitable fusing, cable size, torque, ventilation, insulation, and commissioning checks for the final battery system.
Verify this product on https://www.jkbms.net/products/jkbms-v19-jk-pb2a16s30p-smart-inverter-bms-16s-300a-2a-active-balancer, confirm the official domain is www.jkbms.net, and use zhou@jkbms.net for quotation checks before bulk payment or project procurement.
Product FAQ
Provide the chemistry, exact series count, continuous charge and discharge current, and peak current with its duration. Then check balancing current, installation space, cooling, inverter, hardware revision and matched wiring. Nominal voltage, a series name or a similar connector alone does not establish compatibility.
Yes. The current catalogue offers these options for this BMS, independently or together. Each selected accessory is supplied once per BMS; a display already included in the selected package is not charged twice. The adapter and harness must be compatible with the BMS and display.
No. Selecting a display or WiFi applies the 5% discount once to the BMS and those accessories. Two accessories do not double the discount. H/C/R/P feature fees do not trigger or receive the discount and are added in full afterwards.

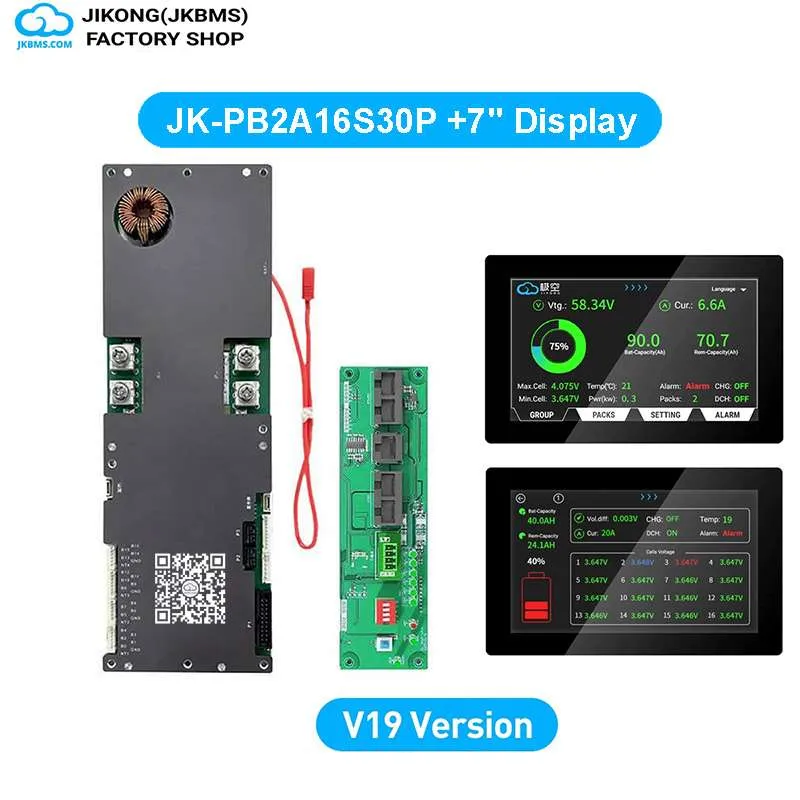

Yes. This page belongs to the PB series, which offers the 7-inch display option. The display adapter and harness must be compatible with the BMS.
H means heating interface, C means CAN and R means RS485. All PB-series models include H, CAN and RS485 as standard. B2A32S-RP includes CAN and RS485 as standard, with H available as an option. Included features require no selection or extra charge. Each feature not already included costs USD 1 per BMS. Features included in the model are not offered or charged again. The final model retains existing feature letters and adds only newly selected options in H, C, R order, preserving any existing PB suffix. Option fees are added after any 5% bundle discount and do not trigger it. The model, hardware revision, application protocol and harness must suit your inverter.
No. Compatibility depends on the inverter and BMS, hardware revision, application protocol, firmware, pinout, cable and settings. A website selection or a matching connector does not prove that the two devices can communicate.
