JKBMS JK-PB Series

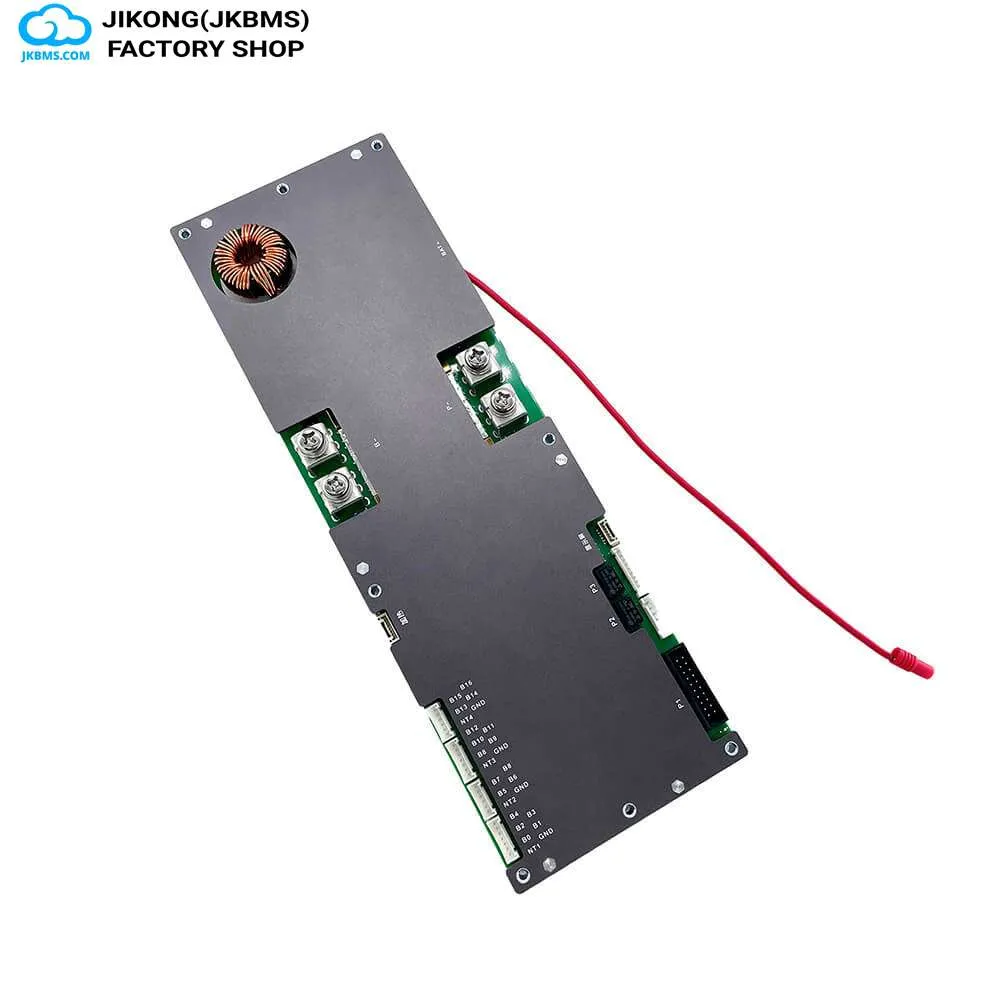

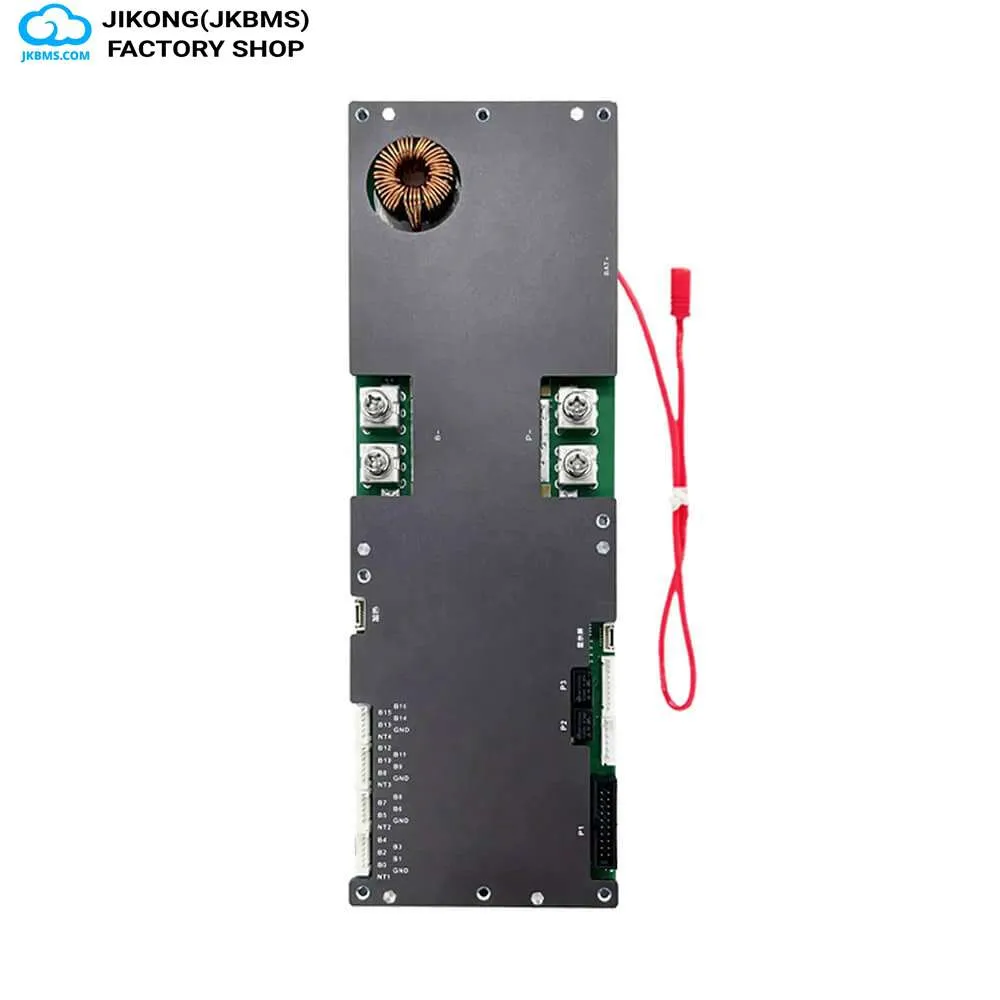

JK BMS PB2A16S20P

200 A-class inverter BMS with 2 A active balancing, CAN and dual RS485

A JK-PB smart BMS for lithium packs up to 16S, rated at 200 A continuous discharge and 2 A active balancing. Bluetooth, CAN, dual RS485 and display are listed. Use a compatible harness for the installation.

1 / 8
Total$161.98

Product details

Supply scope and specifications

Key features

  • Chemistry-specific support: 7-16S Li-ion, 8-16S LiFePO4, 14-16S LTO
  • 200 A current class; V19.0.3 explicitly documents the 20P current tier
  • 2 A active cell balancing
  • V24 standard interfaces: Bluetooth, CAN, dual RS485 and display
  • V24 standard functions: heating, two dry contacts, parallel current limiting and discharge precharge
  • Revision-controlled wiring: verify V19 versus V24 before selecting a harness

Included

  • Selected JKBMS smart BMS model or display bundle
  • Model-specific wiring harness and standard accessories supplied with the product
  • Documentation or setup references supplied with the selected package

Not included

  • Battery cells, battery enclosure, inverter, charger, and external power cabling
  • External contactors, breakers, fuses, and installation hardware unless specified
  • Onsite installation, commissioning, firmware setup, or inverter configuration service
ModelJK-PB2A16S20P
SeriesJKBMS JK-PB Series
Battery ChemistryLi-ion (ternary/NMC) 7–16S; LiFePO4 (LFP) 8–16S; Lithium titanate (LTO) 14–16S
Series RatingLi-ion 7–16S; LiFePO4 8–16S; Lithium titanate 14–16S
Balance Current2 A active
Current Class200 A
Supply Voltage20–80 V
Operating Temperature-40°C to 75°C
Standard CommunicationBluetooth, CAN, RS485-1, RS485-2, display interface
DimensionsV24.0.1: 300 × 100 × 24 mm
Manual RevisionV19.0.3 / V24.0.1

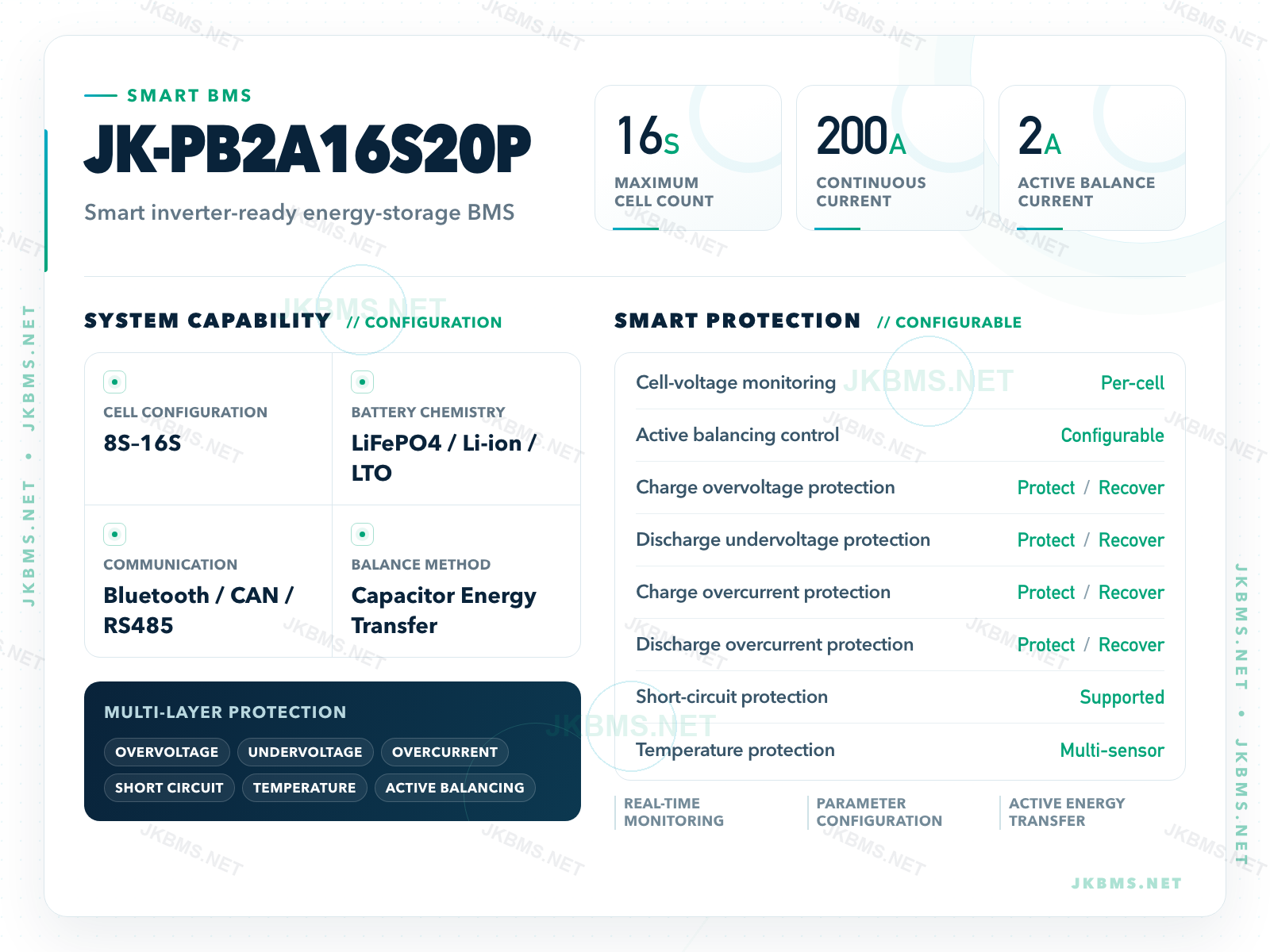

JK-PB2A16S20P technical parameters, 8S–16S, 200A, 2A active balance

Product resources

No exact-model wiring PDF is verified for JK-PB2A16S20P. The listed V19.36 file is firmware, not a connection diagram; contact support for matching wiring instructions.

HARDWARE SPECIFICATIONS

JK-PB2A16S20P data by hardware revision

The V19.0.3 manual explicitly maps JK-PB2A16S20P to the 200 A current tier, while V24.0.1 verifies the chemistry-specific cell counts, 2 A active balancing, standard interfaces and V24 enclosure. Match the hardware revision before wiring.

Battery compatibility

Chemistry changes the series range

Li-ion (ternary/NMC)
7–16S
LiFePO4 (LFP)
8–16S
Lithium titanate (LTO)
14–16S

Electrical limits

Use the correct rating label

Active balance
2 A
Current class
200 A
Supply voltage
20–80 V

V19.0.3 maps the 20P model to 200 A maximum continuous, charge and discharge current. For V24.0.1 hardware, keep 200 A as the model class and confirm the configured protection limits.

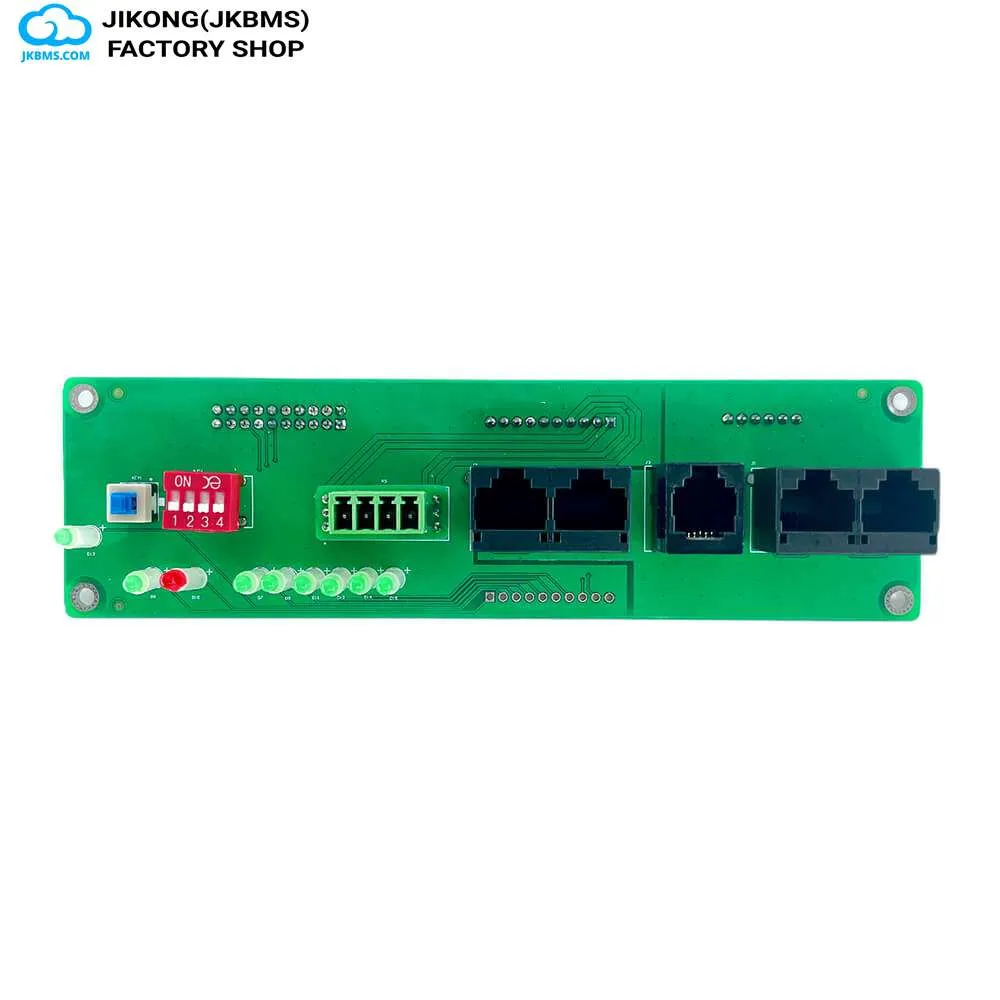

Interfaces and functions

Standard is not the same as optional

Standard

Bluetooth · CAN · RS485-1 · RS485-2 · display interface

Additional standard functions

Heating control · Two dry-contact outputs · Parallel current limiting · Discharge precharge

  • CAN and RS485-1 are provided for inverter communication.
  • RS485-2 is used for parallel communication or PC software.
  • Protocol compatibility, cable pinout and inverter settings must be confirmed for the target system.

Mechanical and environment

Match dimensions to the label

V24.0.1
300 × 100 × 24 mm
Operating temperature
-40°C to 75°C
Revision control matters.
  • V19.0.3 explicitly maps JK-PB2A16S-20P to 200 A maximum continuous, charge and discharge current.
  • V24.0.1 lists 100 A, 150 A and 200 A tiers; confirm the shipped label and configured limits before relying on a protection setting.
  • V19 and V24 wiring, connectors and harnesses must not be mixed by assumption.
  • The available documents do not establish that V24 replaces every V19 unit.
  • Weight, operating-power value and disputed instantaneous-current values are intentionally not published here pending final adjudication.

TECHNICAL DOCUMENTS

Product manuals

Documentation review recorded 2026-08-03. Technical facts apply only to the named document and hardware revisions; this is not a manufacturing date.

Browse the official technical library →

Before ordering

Four details that prevent the wrong configuration

  1. Photograph the product label or confirm the exact hardware/manual revision.
  2. Provide battery chemistry, series count and expected charge/discharge demand.
  3. Provide the inverter brand and model, required CAN or RS485 protocol, and parallel-pack plan.
  4. Confirm display, communication cable, heating, dry-contact and precharge requirements in the order.

MODEL-SPECIFIC APPLICATION NOTES

JK-PB2A16S20P selection context

JK-PB2A16S20P should be compared as a specific JK-PB series product, not only by a copied title or image. The selection should be based on the real battery system, installation space, communication needs, and official quotation or checkout configuration.
Why this model matters

The 200 A tier is explicitly mapped in V19.0.3, while the V24 dimensions and interface details apply to V24.0.1 hardware. Confirm the label, inverter protocol and cable because V19 and V24 wiring must not be treated as interchangeable.

Application context

JK BMS PB2A16S20P belongs to the JK-PB series and is best reviewed for 48V-class storage batteries and inverter-connected LiFePO4 systems.

The listed battery string range is Li-ion (ternary/NMC) 7–16S; LiFePO4 (LFP) 8–16S; Lithium titanate (LTO) 14–16S. The current reference is 200 A. The active-balancing reference is 2 A active.

For communication planning, this page lists Standard: Bluetooth, CAN, RS485-1, RS485-2, display interface; protocol, pinout, cable, firmware, and inverter or service-tool settings still need confirmation.

Decision checks

  • Battery chemistry or cell fit: Li-ion (ternary/NMC) 7–16S; LiFePO4 (LFP) 8–16S; Lithium titanate (LTO) 14–16S.
  • Mechanical planning: reserve space around V24.0.1: 300 × 100 × 24 mm, cable exits, airflow, and service access.
  • The product page lists the available configurations and accessories for direct checkout.
  • Use www.jkbms.net and zhou@jkbms.net to verify official source, quotation, and bulk purchasing details.

Model planning

Model fit and purchase planning

Use this summary to confirm whether JK BMS PB2A16S20P fits the battery system before checkout, quotation, or installation.

Model
JK-PB2A16S20P
Primary use
Inverter-connected LiFePO4 storage batteries
Battery strings
Li-ion (ternary/NMC) 7–16S; LiFePO4 (LFP) 8–16S; Lithium titanate (LTO) 14–16S
Current reference
200 A
Active balancing
2 A active
Communication
Standard: Bluetooth, CAN, RS485-1, RS485-2, display interface
Installation size
V24.0.1: 300 × 100 × 24 mm

Selection details

  • JK BMS PB2A16S20P should be checked against the real battery pack, load current, installation space, thermal conditions, and selected accessories before purchase.
  • The listed 200 A current reference must be matched with cable size, terminals, fuse or breaker, battery cells, thermal design, and expected inverter demand.
  • The listed communication options are Standard: Bluetooth, CAN, RS485-1, RS485-2, display interface; protocol, pinout, firmware, and inverter compatibility still need project-level confirmation.
  • The 2 A active balancing specification is one selection factor and does not replace matched cells, correct wiring, or suitable charging settings.

System fit checks

Compatibility, installation, and official purchase checks

Use these checks before selecting a configuration, requesting a quote, or installing the product in a battery system.

Compatibility

Match the product to the battery system

Confirm the battery pack is within Li-ion (ternary/NMC) 7–16S; LiFePO4 (LFP) 8–16S; Lithium titanate (LTO) 14–16S. Match the 200 A current reference to the inverter, load, wiring, protection, and thermal design. Use the 2 A active active-balancing class as one selection input, not as a substitute for good cell matching.

Communication

Confirm protocol and interface details

Communication status: Standard: Bluetooth, CAN, RS485-1, RS485-2, display interface. Confirm protocol, pinout, baud rate or CAN bitrate, firmware, and inverter compatibility before installation.

Installation

Plan wiring, mounting, and operating conditions

Reserve space for the listed dimensions: V24.0.1: 300 × 100 × 24 mm. Plan the installation around -40°C to 75°C operating conditions. Use suitable fusing, cable size, torque, ventilation, insulation, and commissioning checks for the final battery system.

Official source

Verify the product and quote channel

Verify this product on https://www.jkbms.net/products/jkbms-jkbms-jk-pb2a16s20p-smart-active-balance-bms, confirm the official domain is www.jkbms.net, and use zhou@jkbms.net for quotation checks before bulk payment or project procurement.

Product FAQ

JK-PB2A16S20P compatibility, configuration and purchase FAQQuestions & answers

How do I choose the correct BMS for my battery?

Provide the chemistry, exact series count, continuous charge and discharge current, and peak current with its duration. Then check balancing current, installation space, cooling, inverter, hardware revision and matched wiring. Nominal voltage, a series name or a similar connector alone does not establish compatibility.

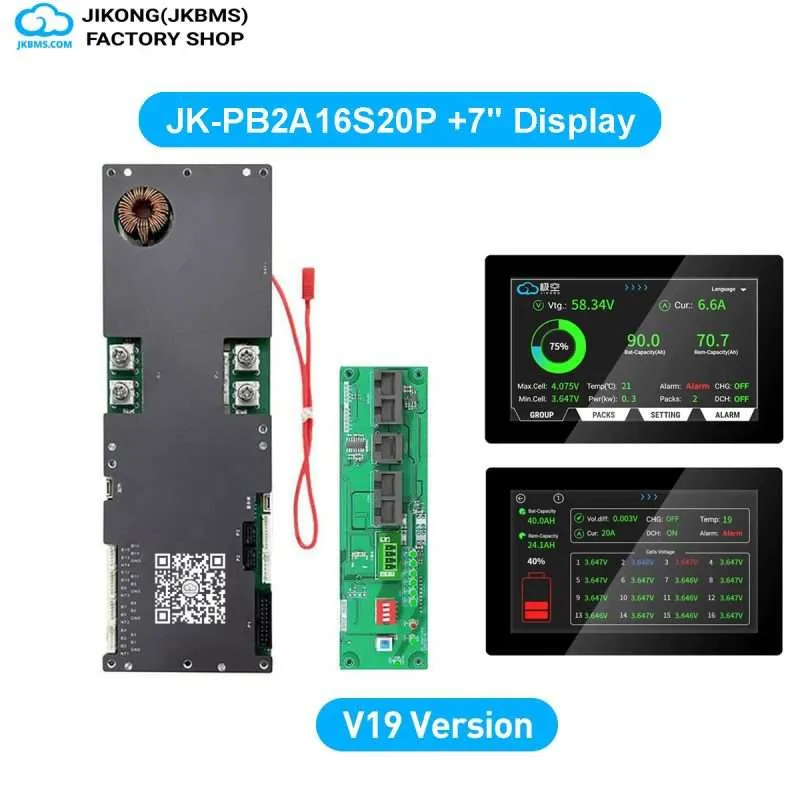

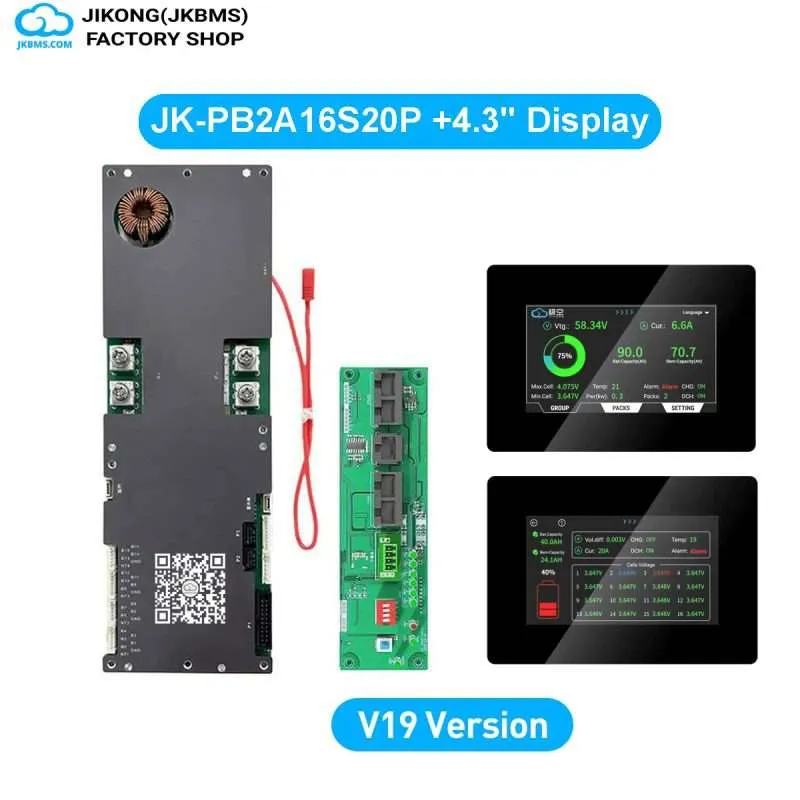

Can I add a 4.3-inch display and WiFi module to this BMS?

Yes. The current catalogue offers these options for this BMS, independently or together. Each selected accessory is supplied once per BMS; a display already included in the selected package is not charged twice. The adapter and harness must be compatible with the BMS and display.

Do two selected accessories give a 10% discount?

No. Selecting a display or WiFi applies the 5% discount once to the BMS and those accessories. Two accessories do not double the discount. H/C/R/P feature fees do not trigger or receive the discount and are added in full afterwards.

Can this BMS be ordered with a 7-inch display?

Yes. This page belongs to the PB series, which offers the 7-inch display option. The display adapter and harness must be compatible with the BMS.

Can I add heating, CAN and RS485, and what do they cost?

H means heating interface, C means CAN and R means RS485. All PB-series models include H, CAN and RS485 as standard. B2A32S-RP includes CAN and RS485 as standard, with H available as an option. Included features require no selection or extra charge. Each feature not already included costs USD 1 per BMS. Features included in the model are not offered or charged again. The final model retains existing feature letters and adds only newly selected options in H, C, R order, preserving any existing PB suffix. Option fees are added after any 5% bundle discount and do not trigger it. The model, hardware revision, application protocol and harness must suit your inverter.

Does CAN or RS485 guarantee compatibility with my inverter?

No. Compatibility depends on the inverter and BMS, hardware revision, application protocol, firmware, pinout, cable and settings. A website selection or a matching connector does not prove that the two devices can communicate.

Which battery cell counts does JK-PB2A16S20P support?

The V24.0.1 manual lists 7-16S for ternary/NMC lithium, 8-16S for LiFePO4 and 14-16S for LTO. Select by chemistry as well as series count.

Are CAN and RS485 standard on JK-PB2A16S20P V24?

For the V24.0.1 configuration, Bluetooth, CAN, two RS485 channels and a display interface are listed as standard. CAN and RS485-1 serve inverter communication; RS485-2 serves parallel communication or PC software. Protocol and cable compatibility still require confirmation.

What does the 200 A rating mean for JK-PB2A16S20P?

The V19.0.3 manual maps the 20P model to 200 A maximum continuous, charge and discharge current. For V24.0.1 hardware, treat 200 A as the model class and confirm the configured protection limits and complete system design.

Can a V19 harness be reused on a V24 JK-PB2A16S20P?

Do not assume so. V19 and V24 connectors, wiring and harness definitions must be matched to the actual hardware revision before connection.

What size is the JK-PB2A16S20P V24 enclosure?

The V24.0.1 manual gives 300 × 100 × 24 mm. Confirm the label because this dimension is revision-specific.
