JKBMS JK-B1A / B2A Series

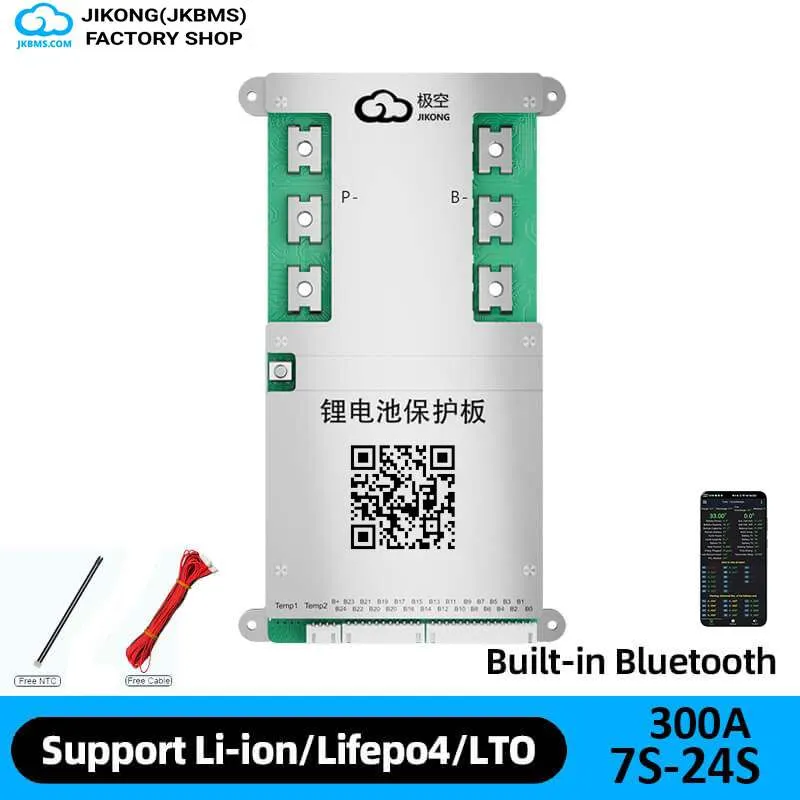

JKBMS JK-B2A24S30P Smart Active Balance BMS

7-24S/8-24S 300 A smart BMS with 2 A active balancing

A JK-B1A/B2A smart BMS for lithium packs up to 24S, rated at 300 A continuous discharge and 2 A active balancing. Bluetooth, UART and display are listed. Use a compatible harness for the installation.

1 / 8
Total$177.98

Product details

Supply scope and specifications

Key features

  • Chemistry-specific support: 7-24S Li-ion, 8-24S LiFePO4, 14-24S LTO
  • Maximum charge/discharge current: 300 A; instantaneous current: 600 A
  • 2 A active cell balancing and ±3 mV cell-voltage accuracy

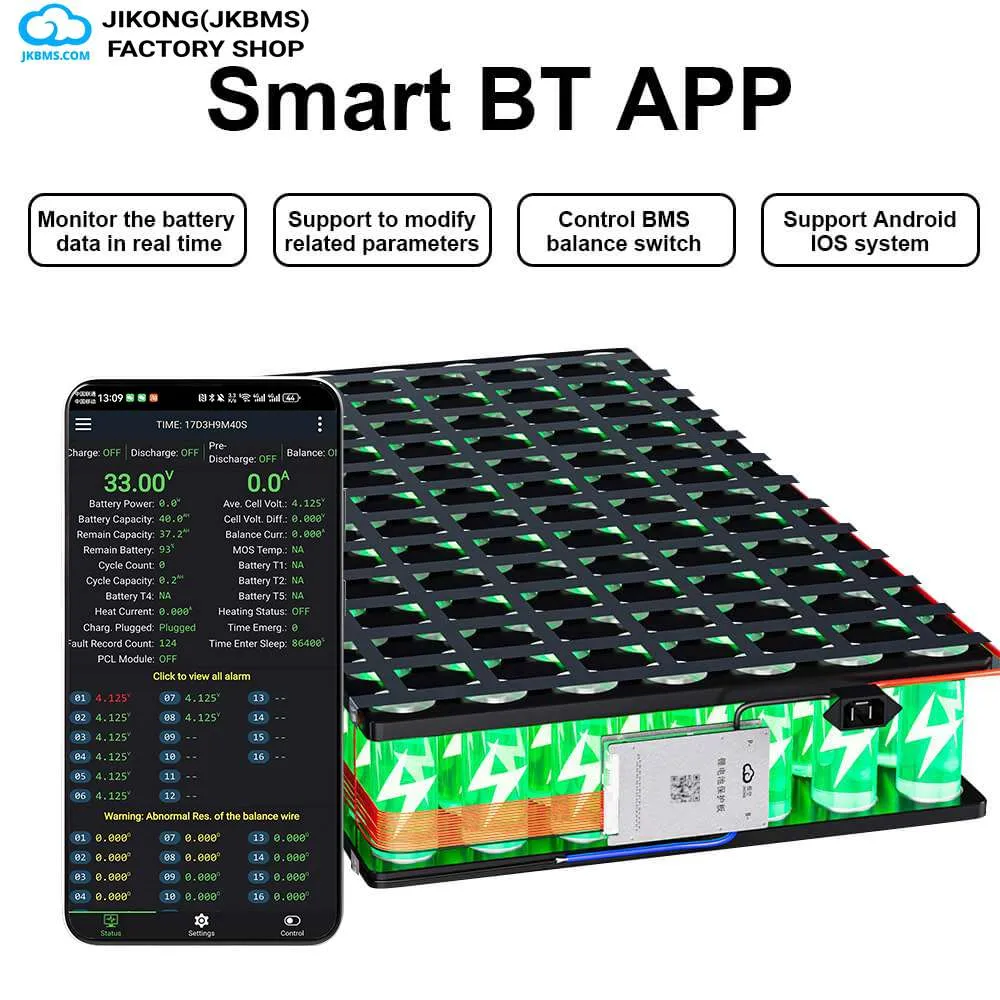

  • Standard interfaces: Bluetooth, UART and display
  • Optional by configuration: CAN, RS485, heating, alarm, parallel interface and ACC
  • V19.0.2 mechanical reference: 208 × 120.7 × 15.6 mm, 675 g

Included

  • Selected JKBMS smart BMS model or display bundle
  • Model-specific wiring harness and standard accessories supplied with the product
  • Documentation or setup references supplied with the selected package

Not included

  • Battery cells, battery enclosure, inverter, charger, and external power cabling
  • External contactors, breakers, fuses, and installation hardware unless specified
  • Onsite installation, commissioning, firmware setup, or inverter configuration service
ModelJK-B2A24S30P
SeriesJKBMS JK-B1A / B2A Series
Battery ChemistryLi-ion (ternary/NMC) 7–24S; LiFePO4 (LFP) 8–24S; Lithium titanate (LTO) 14–24S
Series RatingLi-ion 7–24S; LiFePO4 8–24S; Lithium titanate 14–24S
Balance Current2 A active
Maximum Charge Current300 A
Maximum Discharge Current300 A
Instantaneous Current600 A
Supply Voltage20–100 V
Operating Temperature-30°C to 70°C
Cell-voltage Accuracy±3 mV
Maximum Operating Power1.2 W
Standard CommunicationBluetooth, UART, display interface
Optional CommunicationCAN, RS485, heating control, alarm output, parallel interface, ACC
DimensionsV19.0.2: 208 × 120.7 × 15.6 mm
WeightV19.0.2: 675 g
Manual RevisionV19.0.2

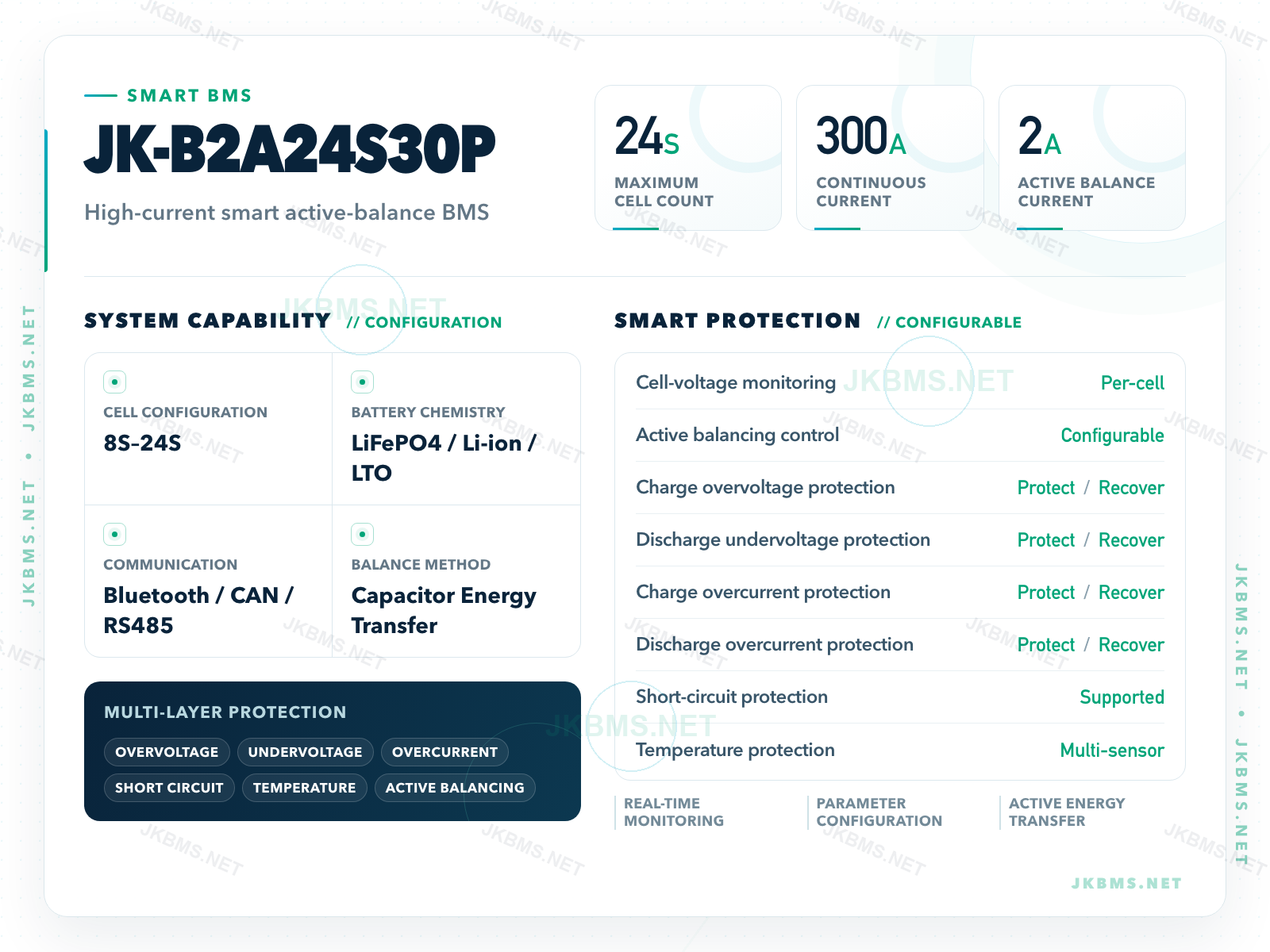

JK-B2A24S30P technical parameters, 8S–24S, 300A, 2A active balance
TECHNICAL SPECIFICATIONS

JK-B2A24S30P parameter details

Hardware revisions and optional interfaces vary by configuration. Use the correct wiring and protection settings for your system. Use the revision-matched manual for wiring.

View specifications as text
JK-B2A24S30P specifications
Selected modelJK-B2A24S30P
ConfigurationJK-B2A24S30P
Continuous Charge300 A
Continuous discharge300 A
Battery chemistry / stringsLi-ion (ternary/NMC): 7-24S; LiFePO4 (LFP): 8-24S; Lithium titanate (LTO): 14-24S
Active balance2 A
Maximum charge300 A
Maximum discharge (not continuous)300 A
Documented standard interfacesBluetooth, UART, display interface
Specification basisCompany model catalog (2026-07-11); JKBMS JK-B2A24S-30P user manual V19.0.2 (V19.0.2)
Model parameter chartEnglishFull-size chart
JK-B2A24S30P current model specification table, with qualified current ratings, source basis and confirmation notes.

Product resources

Specifications depend on hardware revision. Use a compatible harness and follow the applicable installation instructions.

HARDWARE SPECIFICATIONS

JK-B2A24S30P data by hardware revision

The V19.0.2 manual verifies chemistry-specific 7-24S/8-24S/14-24S limits, 300 A maximum charge and discharge current, 2 A active balancing, operating limits and mechanical data. Wired communication remains configuration-dependent.

Battery compatibility

Chemistry changes the series range

Li-ion (ternary/NMC)
7–24S
LiFePO4 (LFP)
8–24S
Lithium titanate (LTO)
14–24S

Electrical limits

Use the correct rating label

Active balance
2 A
Maximum charge
300 A
Maximum discharge
300 A
Instantaneous current
600 A
Supply voltage
20–100 V
Cell-voltage accuracy
±3 mV

Manual maximum values require suitable conductors, terminals, fusing, cooling and battery cells.

Interfaces and functions

Standard is not the same as optional

Standard

Bluetooth · UART · display interface

Optional / suffix-dependent

CAN · RS485 · heating control · alarm output · parallel interface · ACC

  • CAN and RS485 are optional and must be present in the ordered configuration.
  • A physical CAN or RS485 port does not by itself confirm inverter protocol compatibility.

Mechanical and environment

Match dimensions to the label

V19.0.2
208 × 120.7 × 15.6 mm · 675 g
Operating temperature
-30°C to 70°C
Maximum operating power
1.2 W
Revision control matters.
  • V19.0.2 is the newest applicable revision located in the verified package; this does not by itself prove the current shipment revision.
  • Confirm the shipped label and communication suffix before using the manual's connector definitions.

TECHNICAL DOCUMENTS

Product manuals

Documentation review recorded 2026-08-03. Technical facts apply only to the named document and hardware revisions; this is not a manufacturing date.

Browse the official technical library →

Before ordering

Four details that prevent the wrong configuration

  1. Confirm battery chemistry and exact series count.
  2. Confirm the expected charge/discharge duty, cable size, terminals, fuse and cooling.
  3. State whether CAN, RS485, heating, alarm, parallel interface or ACC is required.
  4. Provide the inverter brand/model and confirm protocol, firmware, cable and pinout before shipment.

MODEL-SPECIFIC APPLICATION NOTES

JK-B2A24S30P selection context

JK-B2A24S30P should be compared as a specific JK-B2A series product, not only by a copied title or image. The selection should be based on the real battery system, installation space, communication needs, and official quotation or checkout configuration.
Why this model matters

The electrical and mechanical values shown here come from V19.0.2. Confirm the shipment revision and optional-interface configuration before choosing a harness or finalizing the enclosure.

Application context

JKBMS JK-B2A24S30P Smart Active Balance BMS belongs to the JK-B2A series and is best reviewed for compact lithium packs where active balancing, current rating, and app monitoring are key selection inputs.

The listed battery string range is Li-ion (ternary/NMC) 7–24S; LiFePO4 (LFP) 8–24S; Lithium titanate (LTO) 14–24S. The current reference is 300 A. The active-balancing reference is 2 A active.

For communication planning, this page lists Standard: Bluetooth, UART, display interface; Optional: CAN, RS485, heating control, alarm output, parallel interface, ACC; protocol, pinout, cable, firmware, and inverter or service-tool settings still need confirmation.

Decision checks

  • Battery chemistry or cell fit: Li-ion (ternary/NMC) 7–24S; LiFePO4 (LFP) 8–24S; Lithium titanate (LTO) 14–24S.
  • Mechanical planning: reserve space around V19.0.2: 208 × 120.7 × 15.6 mm, cable exits, airflow, and service access.
  • The product page lists the available configurations and accessories for direct checkout.
  • Use www.jkbms.net and zhou@jkbms.net to verify official source, quotation, and bulk purchasing details.

Model planning

Model fit and purchase planning

Use this summary to confirm whether JKBMS JK-B2A24S30P Smart Active Balance BMS fits the battery system before checkout, quotation, or installation.

Model
JK-B2A24S30P
Primary use
Smart active-balance BMS for compact lithium packs
Battery strings
Li-ion (ternary/NMC) 7–24S; LiFePO4 (LFP) 8–24S; Lithium titanate (LTO) 14–24S
Current reference
300 A
Active balancing
2 A active
Communication
Standard: Bluetooth, UART, display interface; Optional: CAN, RS485, heating control, alarm output, parallel interface, ACC
Installation size
V19.0.2: 208 × 120.7 × 15.6 mm

Selection details

  • JKBMS JK-B2A24S30P Smart Active Balance BMS should be checked against the real battery pack, load current, installation space, thermal conditions, and selected accessories before purchase.
  • The listed 300 A current reference must be matched with cable size, terminals, fuse or breaker, battery cells, thermal design, and expected inverter demand.
  • The listed communication options are Standard: Bluetooth, UART, display interface; Optional: CAN, RS485, heating control, alarm output, parallel interface, ACC; protocol, pinout, firmware, and inverter compatibility still need project-level confirmation.
  • The 2 A active balancing specification is one selection factor and does not replace matched cells, correct wiring, or suitable charging settings.

System fit checks

Compatibility, installation, and official purchase checks

Use these checks before selecting a configuration, requesting a quote, or installing the product in a battery system.

Compatibility

Match the product to the battery system

Confirm the battery pack is within Li-ion (ternary/NMC) 7–24S; LiFePO4 (LFP) 8–24S; Lithium titanate (LTO) 14–24S. Match the 300 A current reference to the inverter, load, wiring, protection, and thermal design. Use the 2 A active active-balancing class as one selection input, not as a substitute for good cell matching.

Communication

Confirm protocol and interface details

Communication status: Standard: Bluetooth, UART, display interface; Optional: CAN, RS485, heating control, alarm output, parallel interface, ACC. Confirm protocol, pinout, baud rate or CAN bitrate, firmware, and inverter compatibility before installation.

Installation

Plan wiring, mounting, and operating conditions

Reserve space for the listed dimensions: V19.0.2: 208 × 120.7 × 15.6 mm. Plan the installation around -30°C to 70°C operating conditions. Use suitable fusing, cable size, torque, ventilation, insulation, and commissioning checks for the final battery system.

Official source

Verify the product and quote channel

Verify this product on https://www.jkbms.net/products/jkbms-jk-b2a24s30p-smart-bms-8s-24s-300a-2a-active-balancer, confirm the official domain is www.jkbms.net, and use zhou@jkbms.net for quotation checks before bulk payment or project procurement.

Product FAQ

JK-B2A24S30P compatibility, configuration and purchase FAQQuestions & answers

How do I choose the correct BMS for my battery?

Provide the chemistry, exact series count, continuous charge and discharge current, and peak current with its duration. Then check balancing current, installation space, cooling, inverter, hardware revision and matched wiring. Nominal voltage, a series name or a similar connector alone does not establish compatibility.

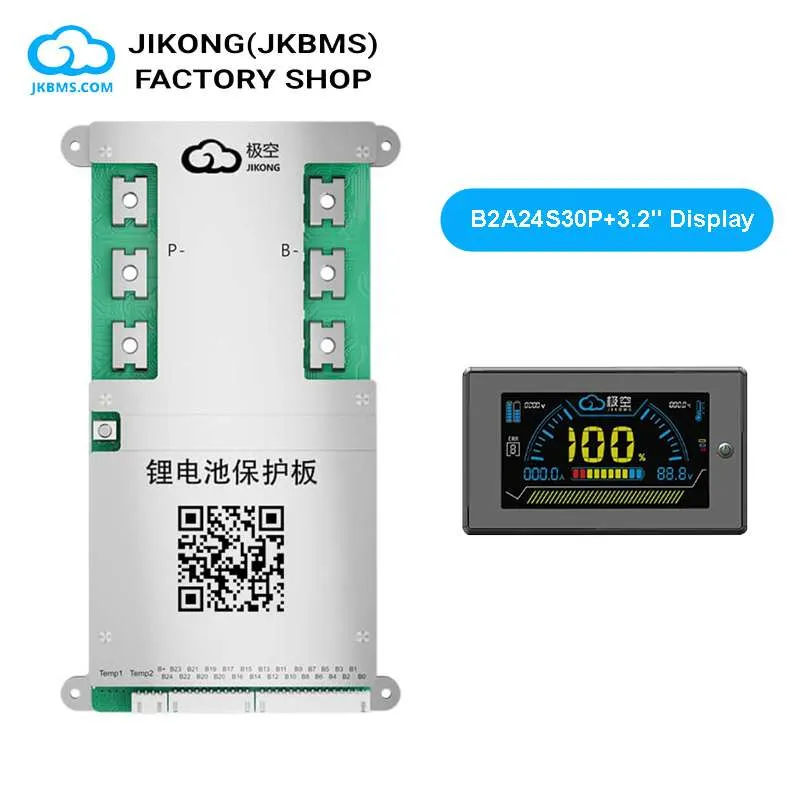

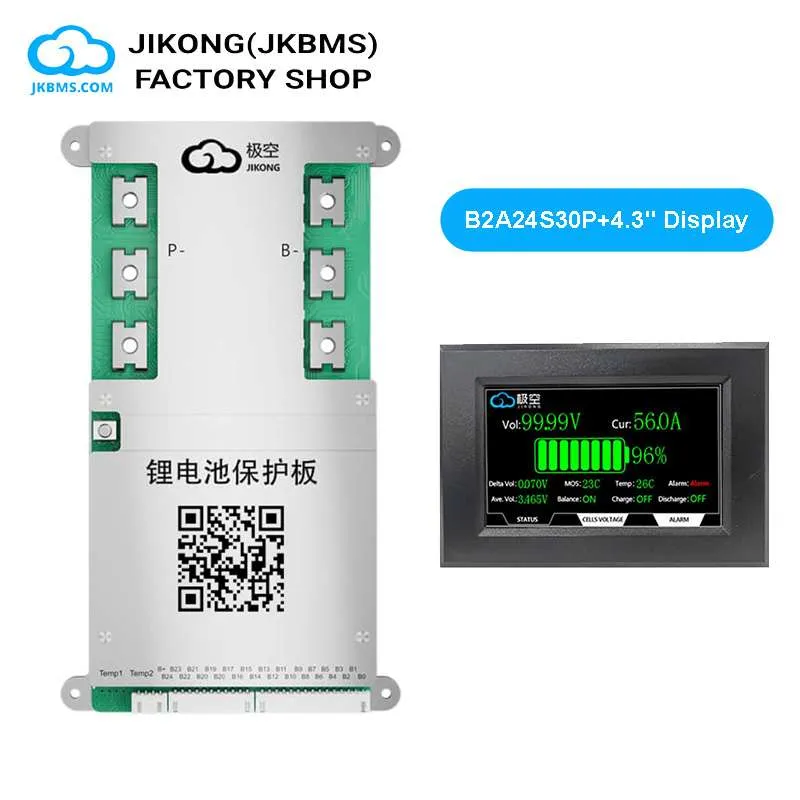

Can I add a 4.3-inch display and WiFi module to this BMS?

Yes. The current catalogue offers these options for this BMS, independently or together. Each selected accessory is supplied once per BMS; a display already included in the selected package is not charged twice. The adapter and harness must be compatible with the BMS and display.

Do two selected accessories give a 10% discount?

No. Selecting a display or WiFi applies the 5% discount once to the BMS and those accessories. Two accessories do not double the discount. H/C/R/P feature fees do not trigger or receive the discount and are added in full afterwards.

Can this BMS be ordered with a 7-inch display?

The 7-inch display option is limited to the PB series and is not offered for this BMS. Use the display choices listed on this page with a compatible adapter and harness.

Can I add heating, CAN and RS485, and what do they cost?

H means heating interface, C means CAN and R means RS485. All PB-series models include H, CAN and RS485 as standard. B2A32S-RP includes CAN and RS485 as standard, with H available as an option. Included features require no selection or extra charge. Each feature not already included costs USD 1 per BMS. Features included in the model are not offered or charged again. The final model retains existing feature letters and adds only newly selected options in H, C, R order, preserving any existing PB suffix. Option fees are added after any 5% bundle discount and do not trigger it. The model, hardware revision, application protocol and harness must suit your inverter.

Does CAN or RS485 guarantee compatibility with my inverter?

No. Compatibility depends on the inverter and BMS, hardware revision, application protocol, firmware, pinout, cable and settings. A website selection or a matching connector does not prove that the two devices can communicate.

Which cell counts does JK-B2A24S30P support by chemistry?

V19.0.2 lists 7-24S for ternary/NMC lithium, 8-24S for LiFePO4 and 14-24S for LTO. The correct lower limit therefore depends on chemistry.

Are CAN and RS485 standard on JK-B2A24S30P?

No. Bluetooth, UART and a display interface are standard in the V19.0.2 manual; CAN and RS485 are optional, as are heating, alarm, parallel and ACC functions.

What current values are listed for JK-B2A24S30P?

The V19.0.2 manual lists 300 A maximum charge current, 300 A maximum discharge current and 600 A instantaneous current. System wiring, terminals, fusing, cells and cooling must support the intended duty.

What are the JK-B2A24S30P dimensions?

The V19.0.2 manual lists 208 × 120.7 × 15.6 mm and 675 g. Confirm that the shipped hardware revision matches before finalizing the enclosure.
