JKBMS PRODUCT

JKBMS JK-PB Series

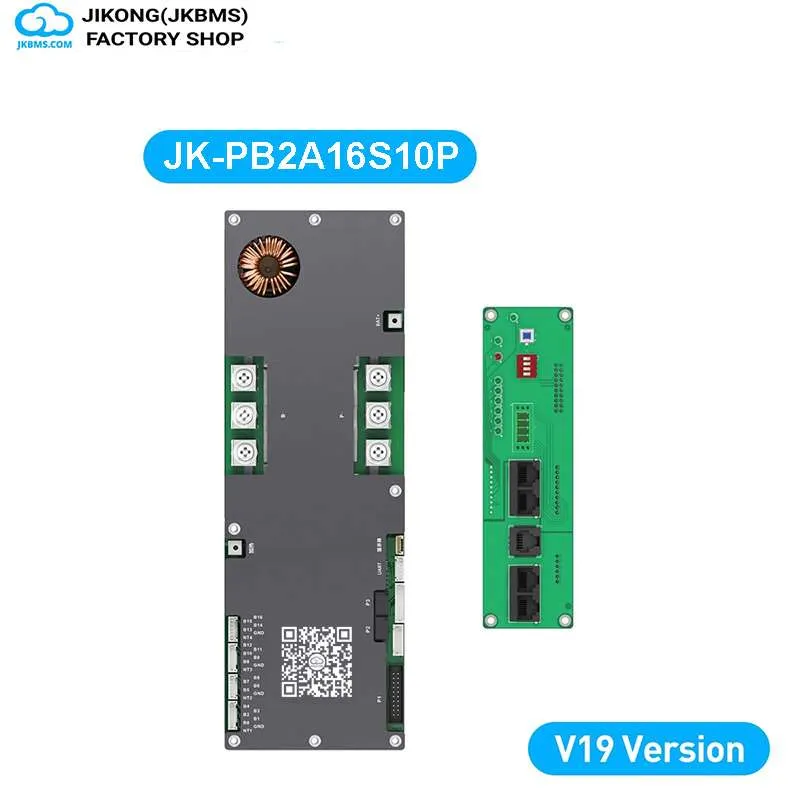

JK BMS V19 PB2A16S10P

JK-PB2A16S-10P documented V24.0.1 inverter BMS

A JK-PB smart BMS for lithium packs up to 16S, rated at 2 A active balancing. Bluetooth, CAN, dual RS485 and display are listed. Use a compatible harness for the installation.

1 / 5
Total$128.00

Product details

Supply scope and specifications

Key features

  • Exact manual model: JK-PB2A16S-10P V24.0.1
  • Chemistry-specific support: 7-16S NMC, 8-16S LiFePO4, 14-16S LTO
  • 2 A active balancing
  • Documented standard interfaces: Bluetooth, CAN, dual RS485 and display

Included

  • Selected JKBMS smart BMS model or display bundle
  • Model-specific wiring harness and standard accessories supplied with the product
  • Documentation or setup references supplied with the selected package

Not included

  • Battery cells, battery enclosure, inverter, charger, and external power cabling
  • External contactors, breakers, fuses, and installation hardware unless specified
  • Onsite installation, commissioning, firmware setup, or inverter configuration service
ModelJK-PB2A16S10P
SeriesJKBMS JK-PB Series
Battery ChemistryLi-ion (ternary/NMC) 7–16S; LiFePO4 (LFP) 8–16S; Lithium titanate (LTO) 14–16S
Series RatingLi-ion 7–16S; LiFePO4 8–16S; Lithium titanate 14–16S
Balance Current2 A active
Standard CommunicationBluetooth, CAN, RS485-1, RS485-2, display interface
Manual RevisionV24.0.1

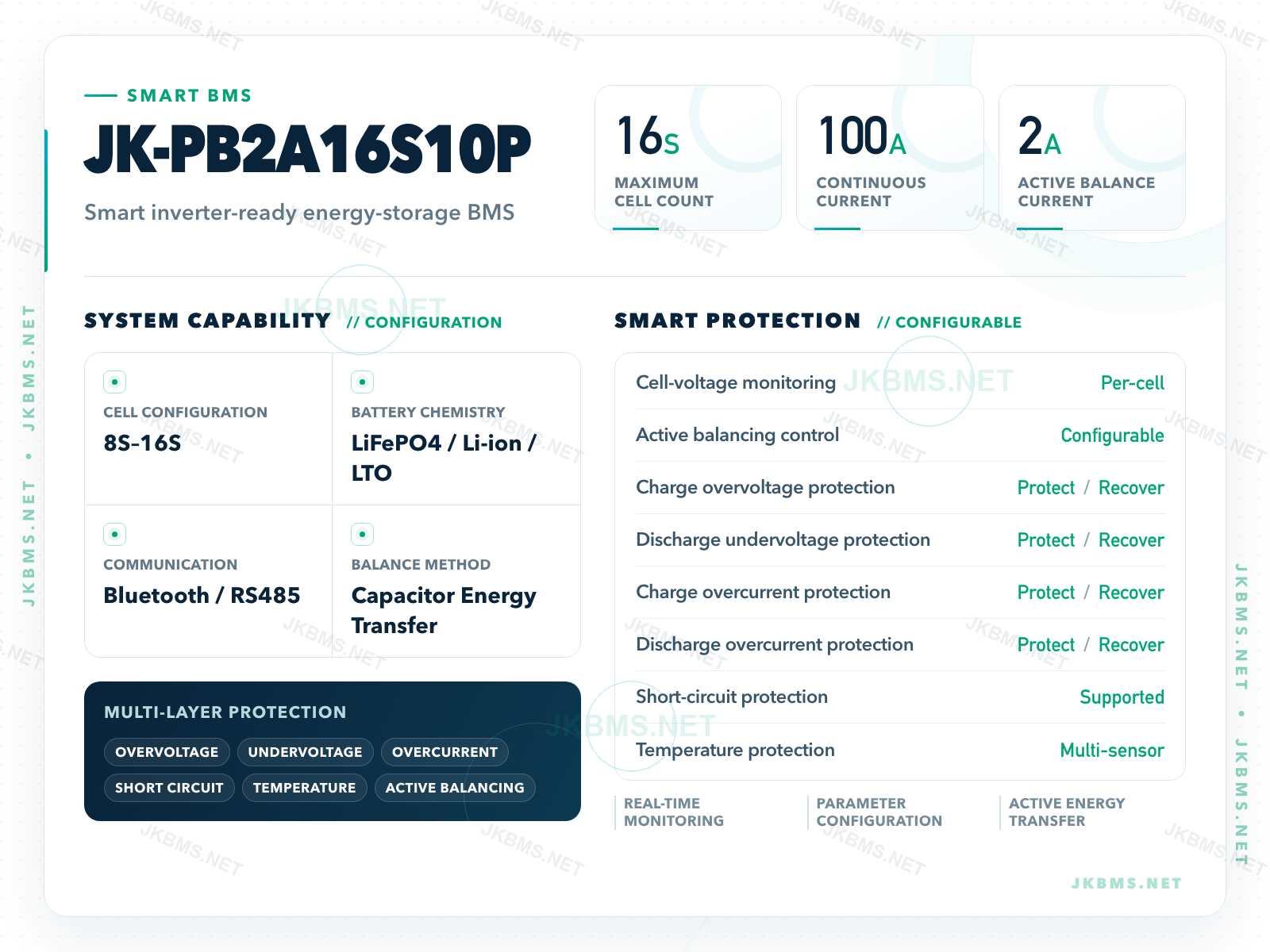

JK-PB2A16S10P technical parameters, 8S–16S, 100A, 2A active balance
TECHNICAL SPECIFICATIONS

JK-PB2A16S-10P parameter details

Hardware revisions and optional interfaces vary by configuration. Use the correct wiring and protection settings for your system. Use the revision-matched manual for wiring.

View specifications as text
JK-PB2A16S-10P specifications
Selected modelJK-PB2A16S-10P
ConfigurationJK-PB2A16S10P
Model FeatureIntegrated 10 A parallel current limiter
Battery chemistry / stringsLi-ion (ternary/NMC): 7-16S; LiFePO4 (LFP): 8-16S; Lithium titanate (LTO): 14-16S
Active balance2 A
Documented standard interfacesBluetooth, CAN, RS485-1, RS485-2, display interface
Included interface featuresRS485, Parallel connection
Model FeatureHeating interface included
Specification basisCompany model catalog (2026-07-11); JK Energy Storage Series BMS Product Specification V24.0.1, exact JK-PB2A16S-10P row, pages 1, 8-10, 19-20 (V24.0.1); Catalog owner confirmed standard model features (Owner-confirmed specification)
Model parameter chartEnglishFull-size chart
JK-PB2A16S-10P current model specification table, with qualified current ratings, source basis and confirmation notes.

Product resources

Specifications depend on hardware revision. Use a compatible harness and follow the applicable installation instructions.

HARDWARE SPECIFICATIONS

JK-PB2A16S-10P data by hardware revision

The V24.0.1 exact-model table names JK-PB2A16S-10P, documents 7-16S ternary/NMC, 8-16S LiFePO4 and 14-16S LTO, 2 A active balancing, Bluetooth, CAN, two RS485 channels and a display interface.

Battery compatibility

Chemistry changes the series range

Li-ion (ternary/NMC)
7–16S
LiFePO4 (LFP)
8–16S
Lithium titanate (LTO)
14–16S

Electrical limits

Use the correct rating label

Active balance
2 A

The V24.0.1 family table lists 100, 150 and 200 A current tiers without assigning the tiers to individual models.

Interfaces and functions

Standard is not the same as optional

Standard

Bluetooth · CAN · RS485-1 · RS485-2 · display interface

Additional standard functions

heating control · two dry contacts · battery parallel current limiting · discharge precharge

  • CAN and RS485 protocol and cable compatibility must be matched to the shipped revision. A documented display interface does not establish which display is supplied.

Mechanical and environment

Match dimensions to the label

Revision control matters.
  • Technical information follows the V24.0.1 documentation. Use the correct wiring and harness for the hardware revision.

TECHNICAL DOCUMENTS

Product manuals

Documentation review recorded 2026-10-12. Technical facts apply only to the named document and hardware revisions; this is not a manufacturing date.

Browse the official technical library →

Before ordering

Selecting the right configuration

  1. Choose the battery chemistry and series count for your pack.
  2. Select the communication interface needed for your system.
  3. Use the correct wiring, protection and cooling for your system.

MODEL-SPECIFIC APPLICATION NOTES

JK-PB2A16S-10P selection context

JK-PB2A16S-10P should be compared as a specific JK-PB series product, not only by a copied title or image. The selection should be based on the real battery system, installation space, communication needs, and official quotation or checkout configuration.
Why this model matters

Manual specifications apply to the V24.0.1 hardware revision; use a compatible inverter protocol and harness.

Application context

JK BMS V19 PB2A16S10P belongs to the JK-PB series and is best reviewed for 48V-class storage batteries and inverter-connected LiFePO4 systems.

The listed battery string range is Li-ion (ternary/NMC) 7–16S; LiFePO4 (LFP) 8–16S; Lithium titanate (LTO) 14–16S. The active-balancing reference is 2 A active.

For communication planning, this page lists Standard: Bluetooth, CAN, RS485-1, RS485-2, display interface; protocol, pinout, cable, firmware, and inverter or service-tool settings still need confirmation.

Decision checks

  • Battery chemistry or cell fit: Li-ion (ternary/NMC) 7–16S; LiFePO4 (LFP) 8–16S; Lithium titanate (LTO) 14–16S.
  • Confirm mounting position, cable exit, airflow, and service access in the final enclosure.
  • The product page lists the available configurations and accessories for direct checkout.
  • Use www.jkbms.net and zhou@jkbms.net to verify official source, quotation, and bulk purchasing details.

Model planning

Model fit and purchase planning

Use this summary to confirm whether JK BMS V19 PB2A16S10P fits the battery system before checkout, quotation, or installation.

Model
JK-PB2A16S-10P
Primary use
Inverter-connected LiFePO4 storage batteries
Battery strings
Li-ion (ternary/NMC) 7–16S; LiFePO4 (LFP) 8–16S; Lithium titanate (LTO) 14–16S
Active balancing
2 A active
Communication
Standard: Bluetooth, CAN, RS485-1, RS485-2, display interface

Selection details

  • JK BMS V19 PB2A16S10P should be checked against the real battery pack, load current, installation space, thermal conditions, and selected accessories before purchase.
  • Confirm current rating and protection design from the final product page or written quotation before ordering.
  • The listed communication options are Standard: Bluetooth, CAN, RS485-1, RS485-2, display interface; protocol, pinout, firmware, and inverter compatibility still need project-level confirmation.
  • The 2 A active balancing specification is one selection factor and does not replace matched cells, correct wiring, or suitable charging settings.

System fit checks

Compatibility, installation, and official purchase checks

Use these checks before selecting a configuration, requesting a quote, or installing the product in a battery system.

Compatibility

Match the product to the battery system

Confirm the battery pack is within Li-ion (ternary/NMC) 7–16S; LiFePO4 (LFP) 8–16S; Lithium titanate (LTO) 14–16S. Match the current rating to the actual load and protection design. Use the 2 A active active-balancing class as one selection input, not as a substitute for good cell matching.

Communication

Confirm protocol and interface details

Communication status: Standard: Bluetooth, CAN, RS485-1, RS485-2, display interface. Confirm protocol, pinout, baud rate or CAN bitrate, firmware, and inverter compatibility before installation.

Installation

Plan wiring, mounting, and operating conditions

Use suitable fusing, cable size, torque, ventilation, insulation, and commissioning checks for the final battery system.

Official source

Verify the product and quote channel

Verify this product on https://www.jkbms.net/products/jkbms-jk-pb2a16s10p-smart-ess-bms-16s-100a-2a-active-balance, confirm the official domain is www.jkbms.net, and use zhou@jkbms.net for quotation checks before bulk payment or project procurement.

Product FAQ

JK-PB2A16S-10P compatibility, configuration and purchase FAQQuestions & answers

How do I choose the correct BMS for my battery?

Provide the chemistry, exact series count, continuous charge and discharge current, and peak current with its duration. Then check balancing current, installation space, cooling, inverter, hardware revision and matched wiring. Nominal voltage, a series name or a similar connector alone does not establish compatibility.

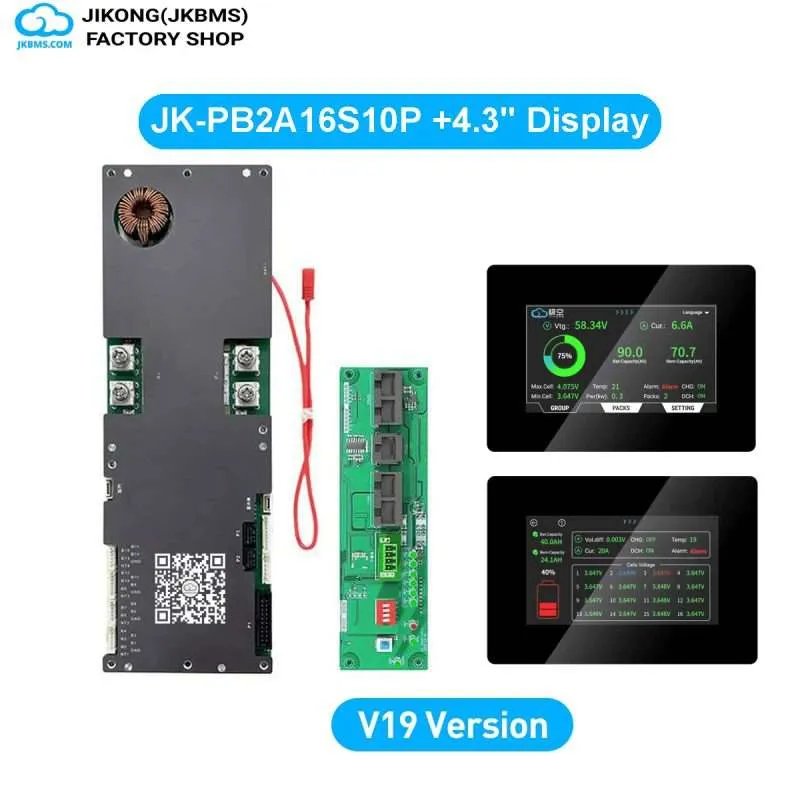

Can I add a 4.3-inch display and WiFi module to this BMS?

Yes. The current catalogue offers these options for this BMS, independently or together. Each selected accessory is supplied once per BMS; a display already included in the selected package is not charged twice. The adapter and harness must be compatible with the BMS and display.

Do two selected accessories give a 10% discount?

No. Selecting a display or WiFi applies the 5% discount once to the BMS and those accessories. Two accessories do not double the discount. H/C/R/P feature fees do not trigger or receive the discount and are added in full afterwards.

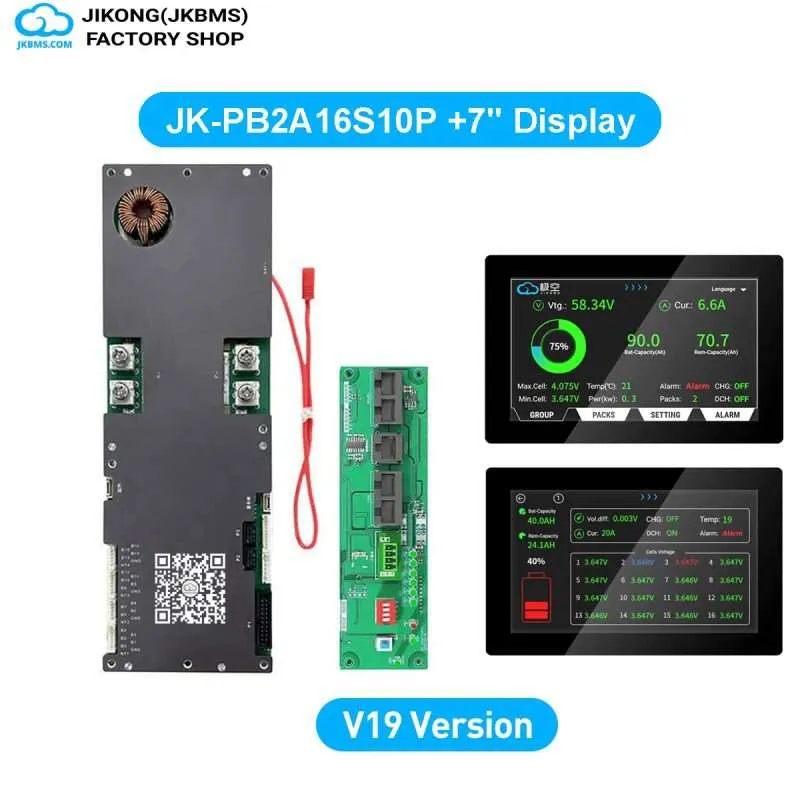

Can this BMS be ordered with a 7-inch display?

Yes. This page belongs to the PB series, which offers the 7-inch display option. The display adapter and harness must be compatible with the BMS.

Can I add heating, CAN and RS485, and what do they cost?

H means heating interface, C means CAN and R means RS485. All PB-series models include H, CAN and RS485 as standard. B2A32S-RP includes CAN and RS485 as standard, with H available as an option. Included features require no selection or extra charge. Each feature not already included costs USD 1 per BMS. Features included in the model are not offered or charged again. The final model retains existing feature letters and adds only newly selected options in H, C, R order, preserving any existing PB suffix. Option fees are added after any 5% bundle discount and do not trigger it. The model, hardware revision, application protocol and harness must suit your inverter.

Does CAN or RS485 guarantee compatibility with my inverter?

No. Compatibility depends on the inverter and BMS, hardware revision, application protocol, firmware, pinout, cable and settings. A website selection or a matching connector does not prove that the two devices can communicate.

Which chemistries and strings does JK-PB2A16S-10P support?

The exact V24.0.1 adaptation table lists 7-16S ternary/NMC lithium, 8-16S LiFePO4 and 14-16S LTO for JK-PB2A16S-10P. Match chemistry as well as series count.
